LMD-DS 320

Metal Canopy Ceiling in Filigree Optics

LMD-DS 320

Metal Canopy Ceiling in Filigree Optics

The ceiling panels of the metal canopy ceiling LMD-DS 320 can be operated without tools. The optionally angled edges and the variable arrangement as single module provide for filigree optics. The large-sized ceiling panels allow a view to the exposed concrete. Moreover, this cost-effective ceiling system impresses with an easy and quick installation. Fixtures can independently be installed between the metal canopy ceilings.

design freedom thanks to an individual arrangement of canopies and an exposed concrete
flexible room plannings are possible
large-sized ceiling panels optionally with 90° or 65° turn-up
easy maintenance option due to ceiling panels that can be individually operated without tools
independent installation of luminaires and fixtures possible between canopy ceilings
easy and quick installation
cost-effective canopy ceiling as economic solution
hygienic and easy to clean

Data Sheet CAD-Portal

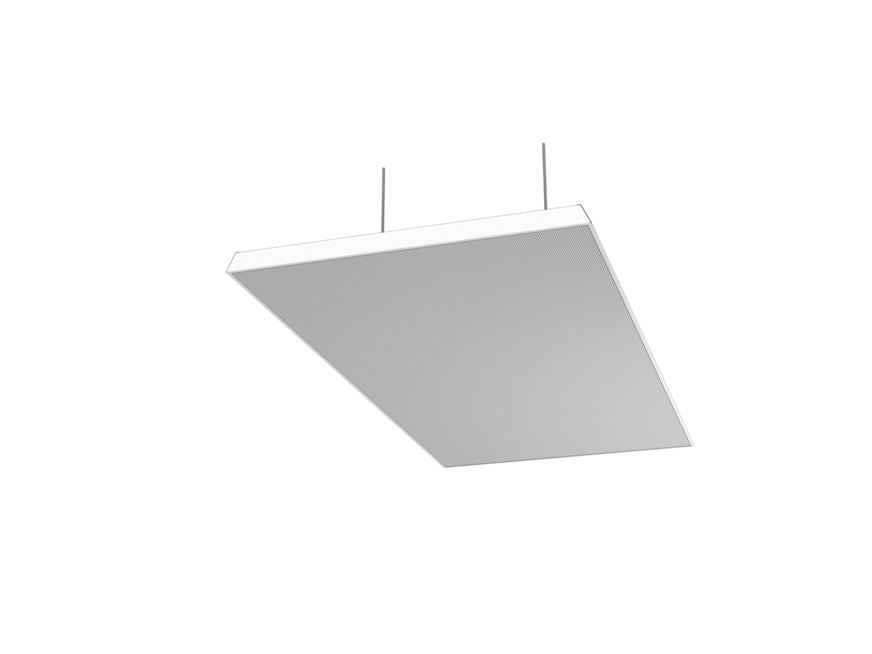

LMD-DS 320View from below

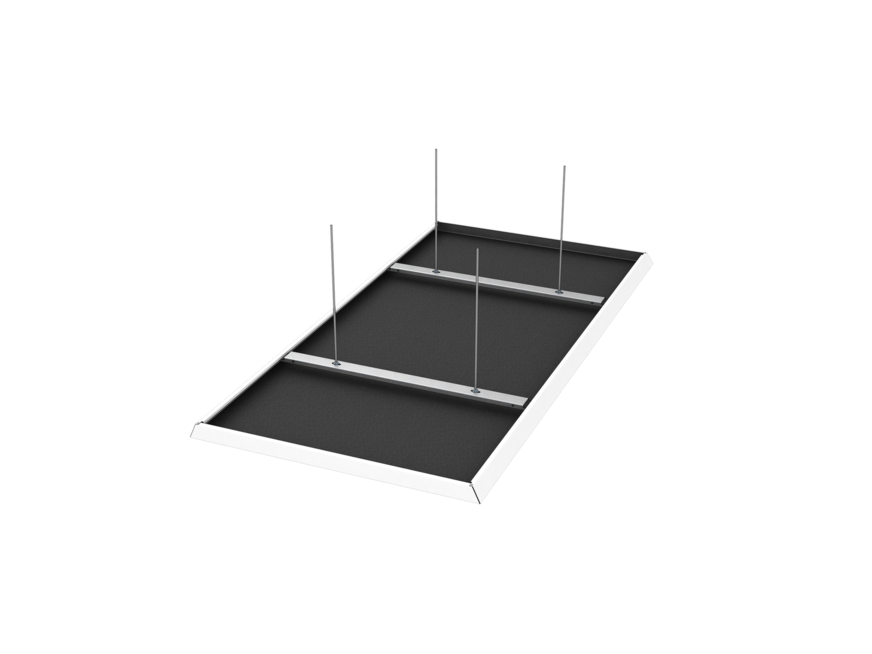

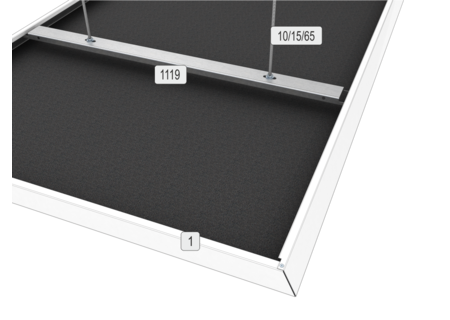

LMD-DS 320View from above

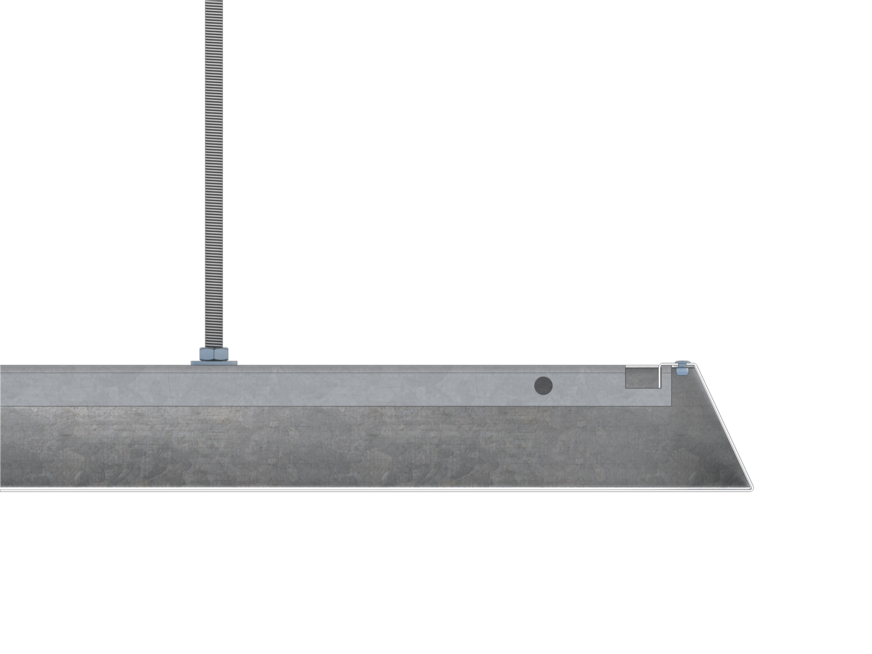

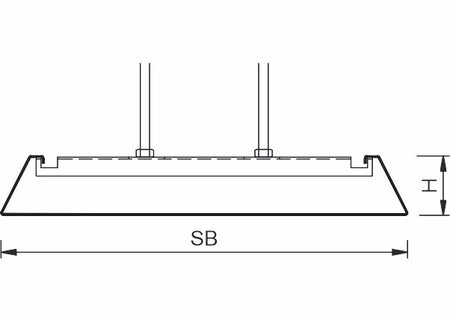

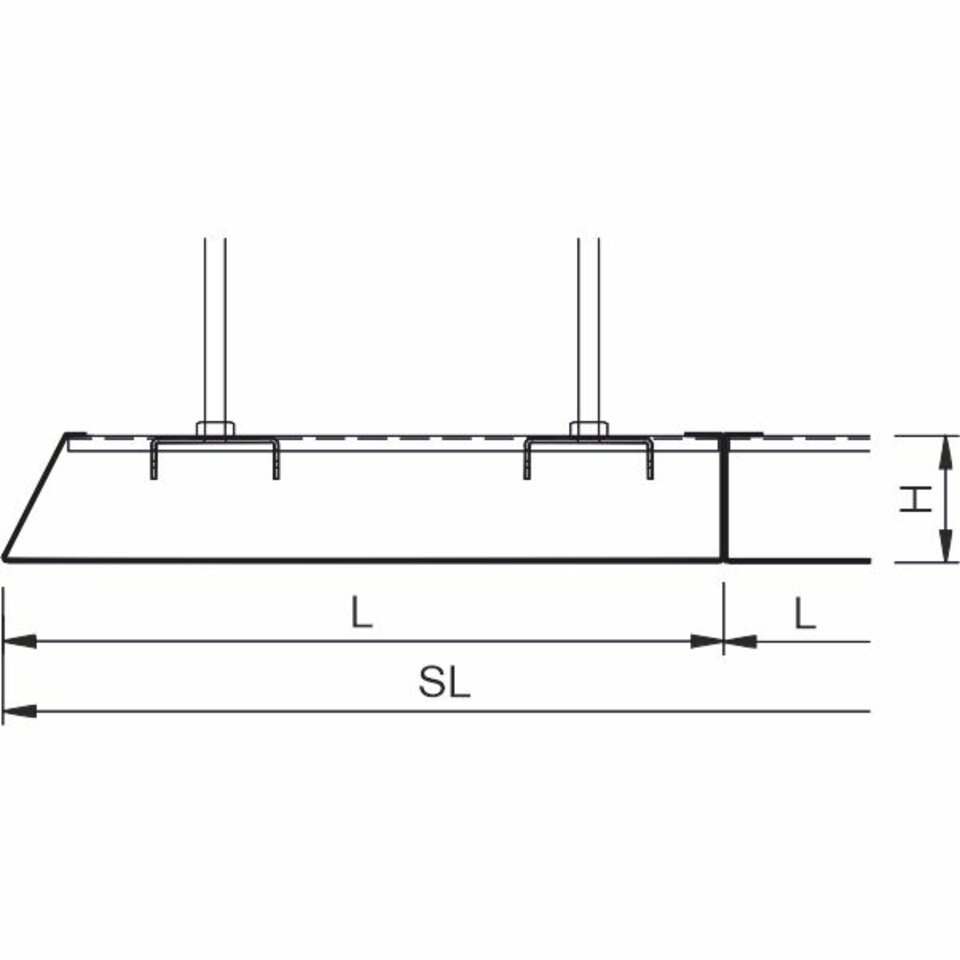

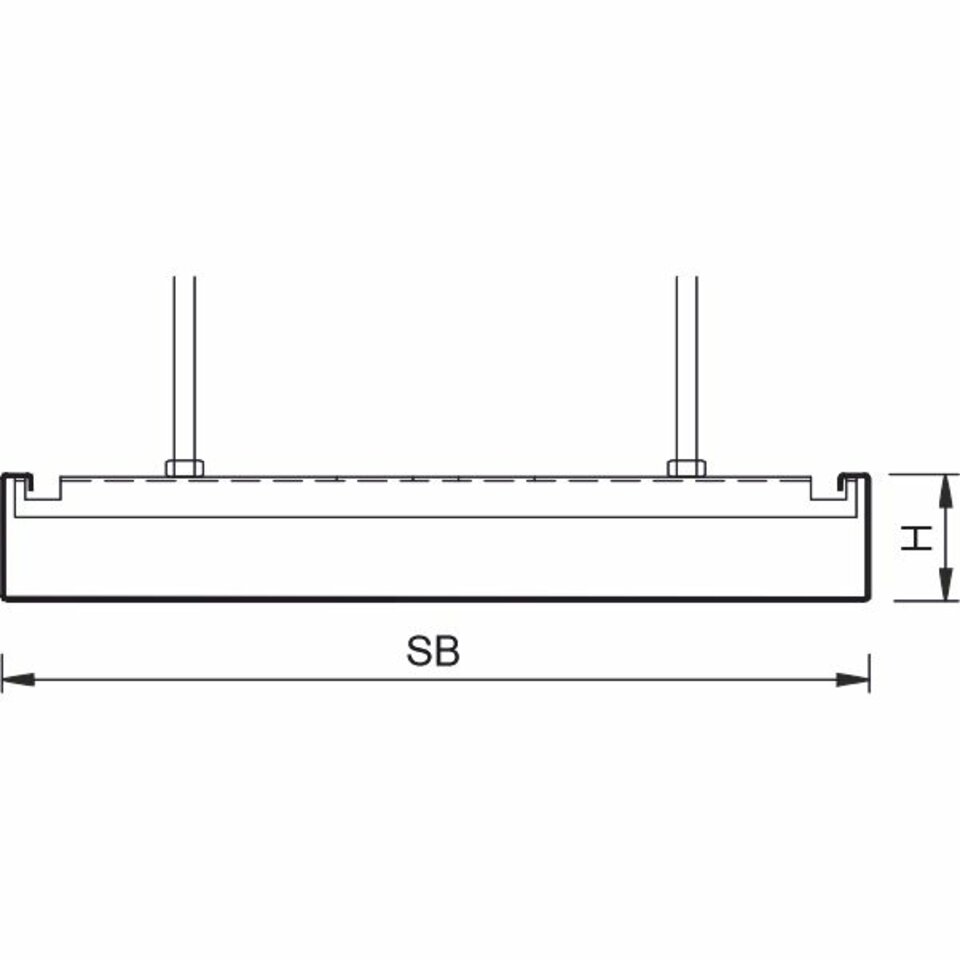

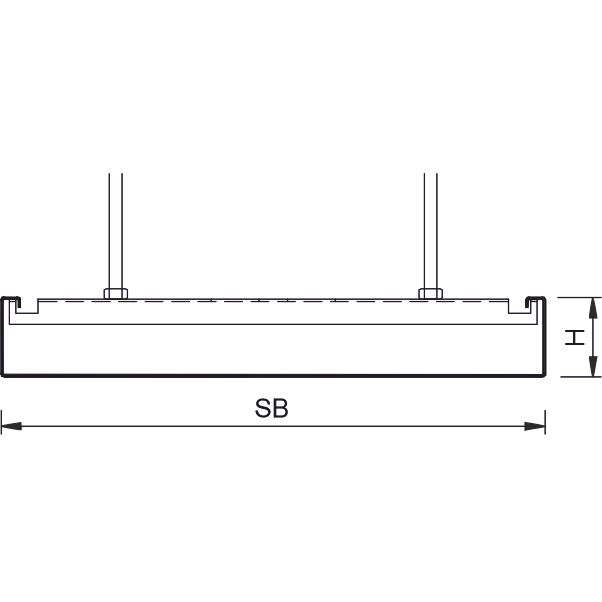

LMD-DS 320Section

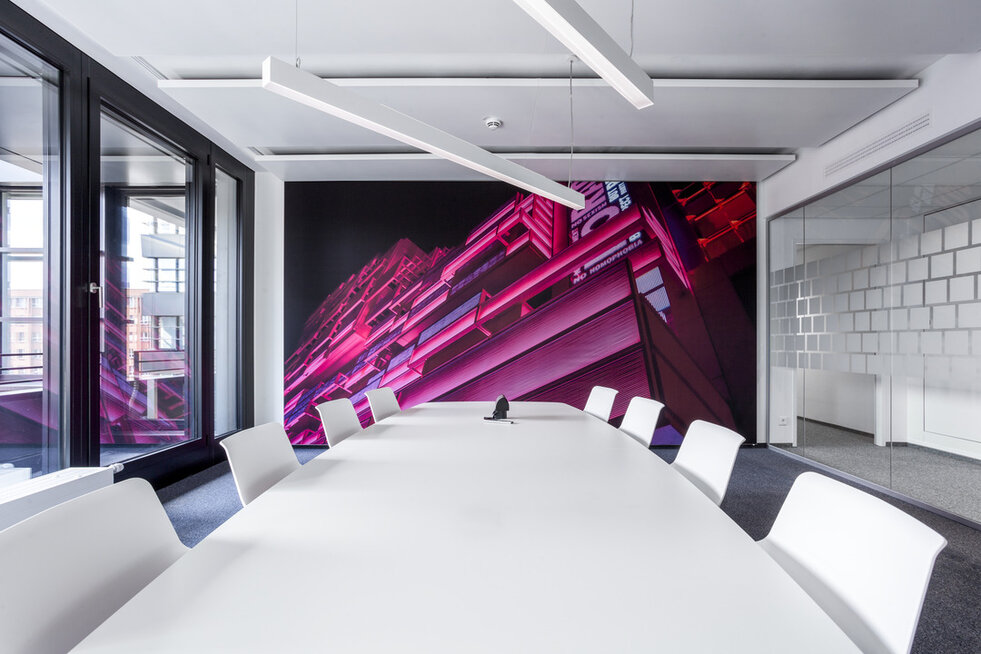

LMD-DS 320Application

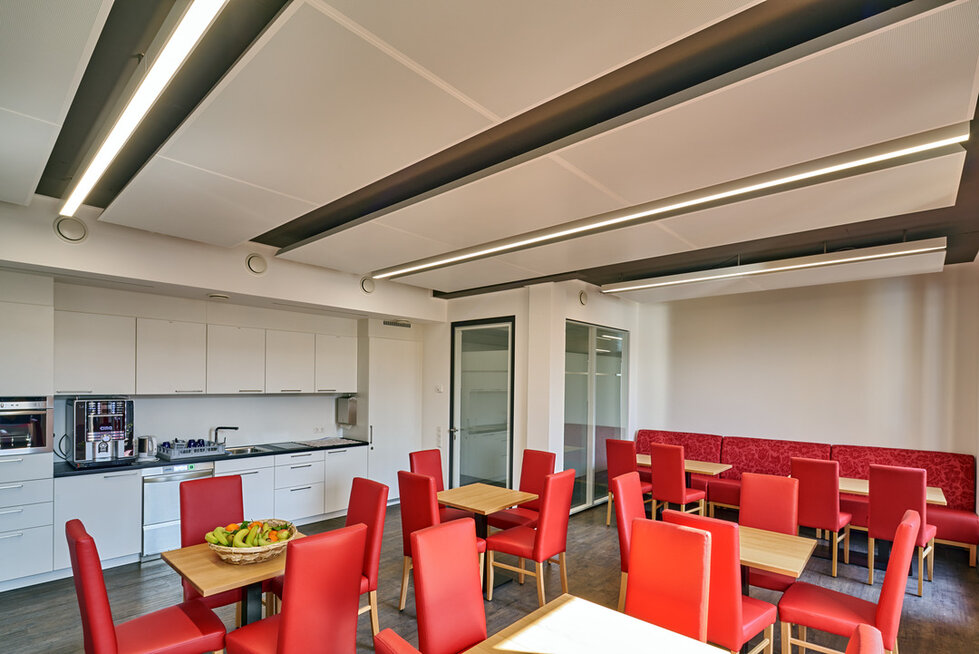

LMD-DS 320Application

LMD-DS 320Application

Downloads

Digital Service

NBS Specifications

Product Information

Ceiling elements

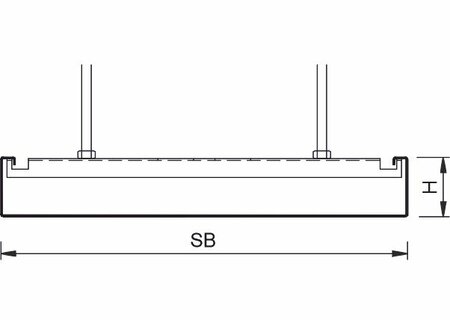

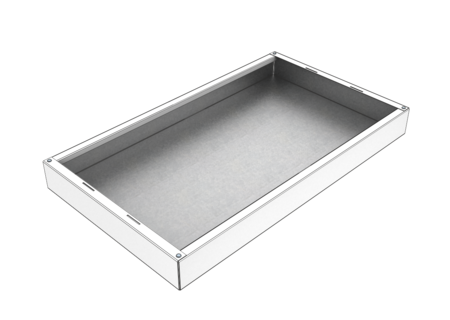

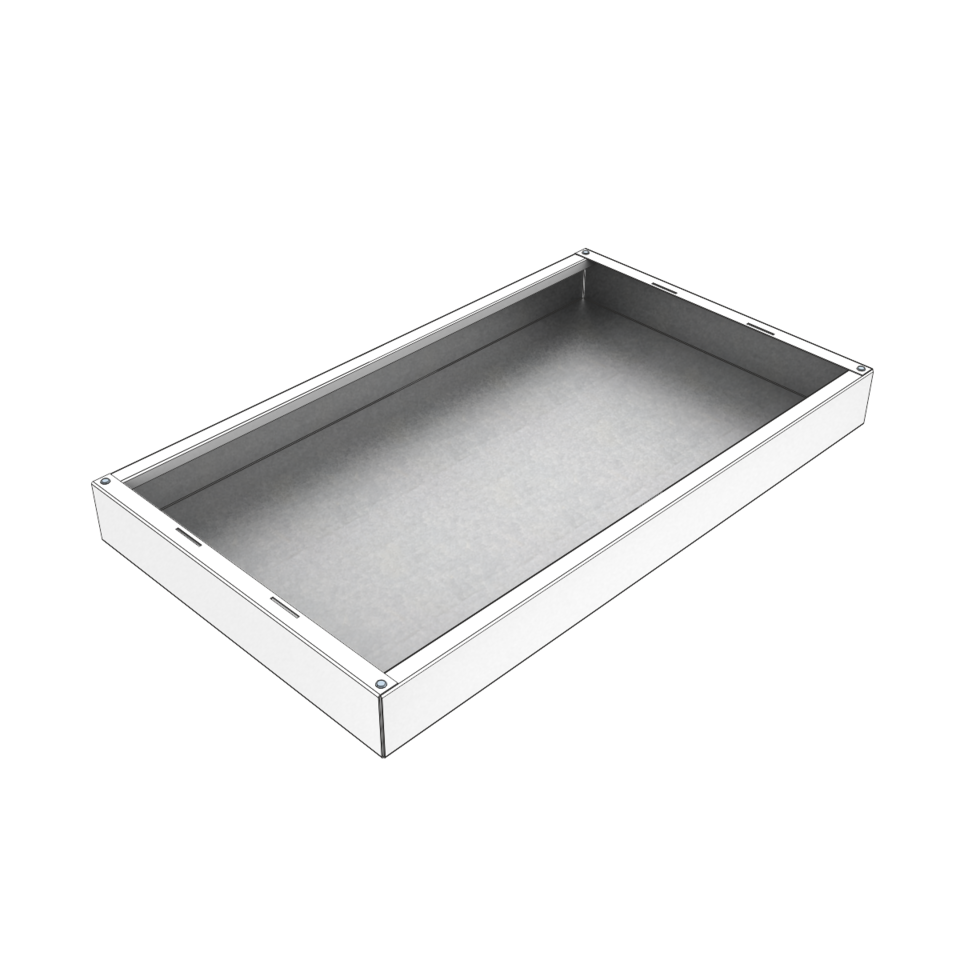

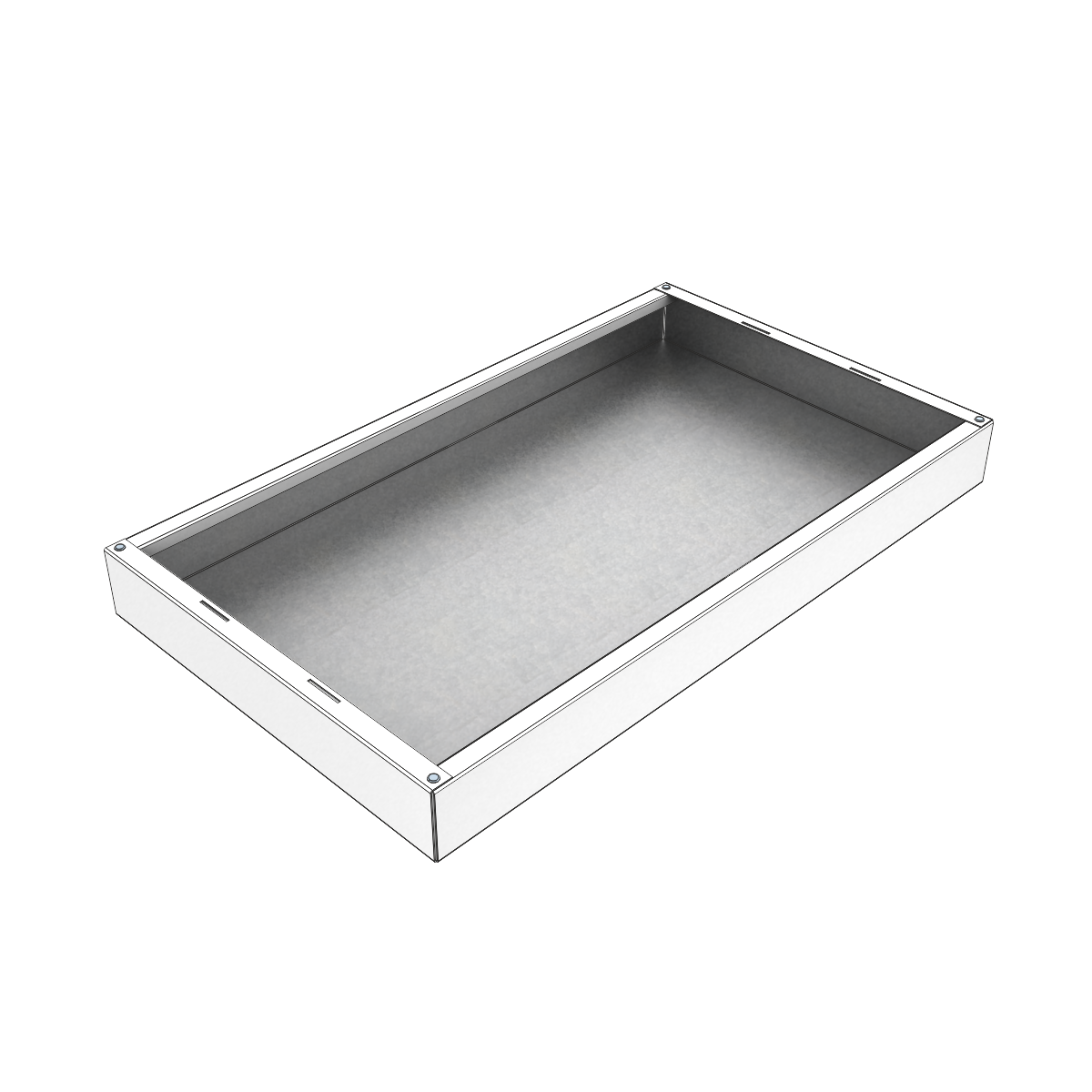

LMD-DS 320 Typ 1

90° turn-up as individual, border or central panel

Length (L)

500 - 3,000 mm

Width (B)

400 - 1,250 mm

Height (H)

50 mm

Canopy Length (SL)

variable

Canopy width (SB)

400 - 1,250 mm

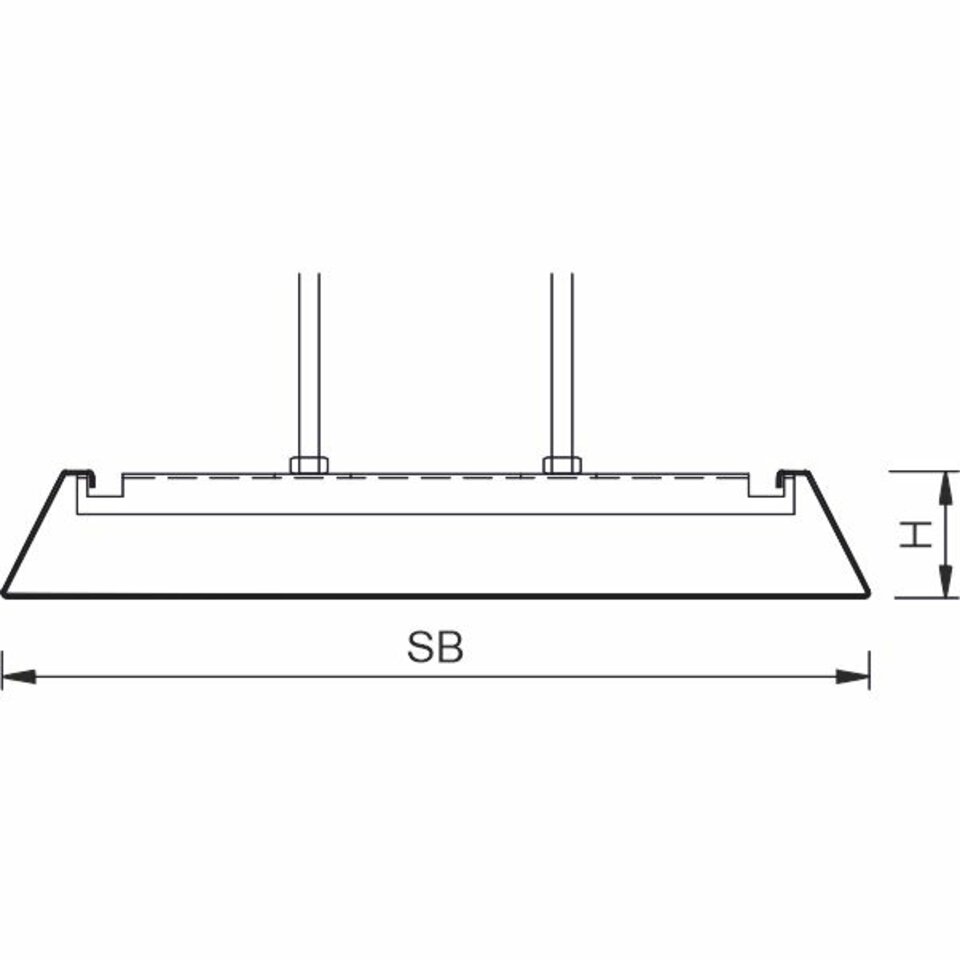

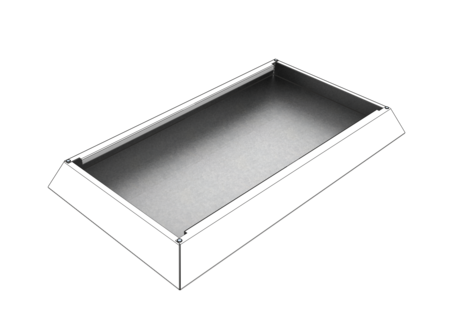

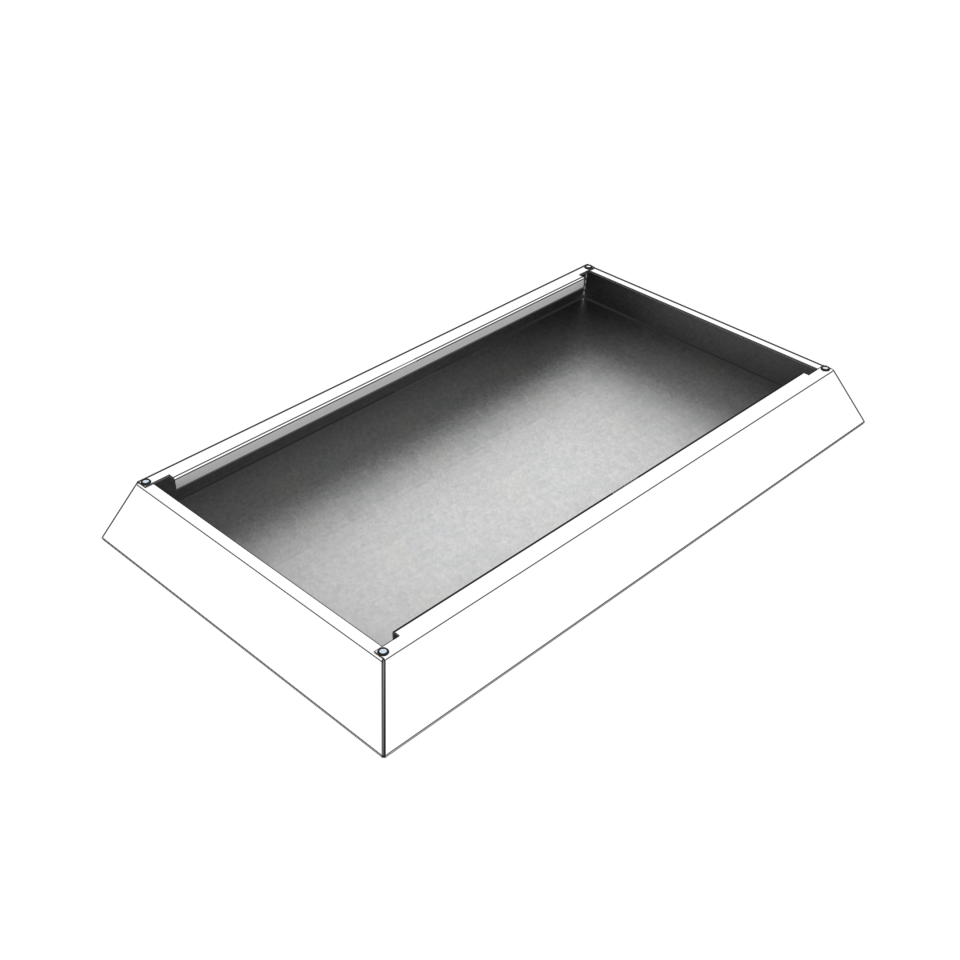

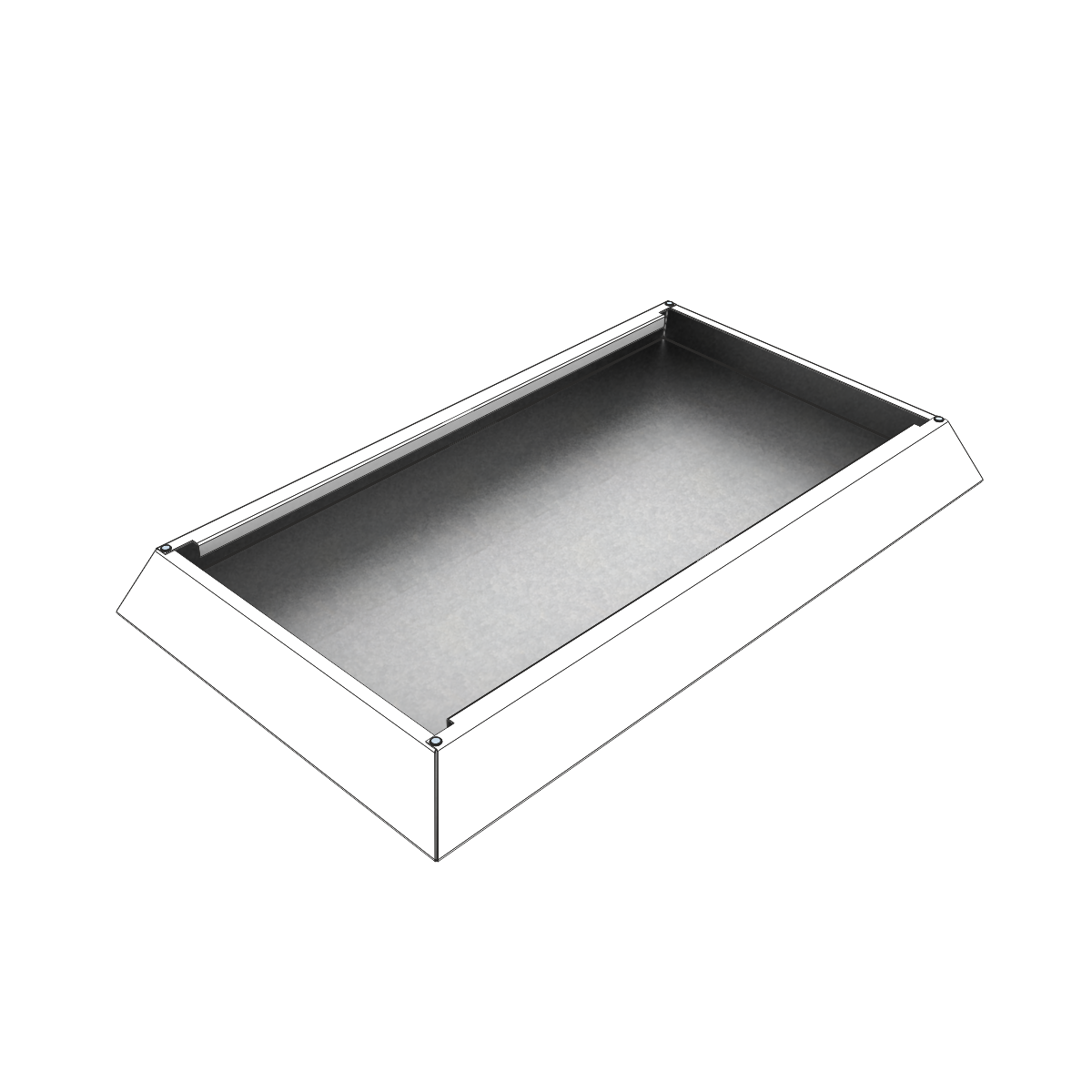

LMD-DS 320 Typ 2

65° turn-up as individual panel

Length (L)

500 - 3,000 mm

Width (B)

400 - 1,250 mm

Height (H)

50 mm

Canopy Length (SL)

variable

Canopy width (SB)

400 - 1,250 mm

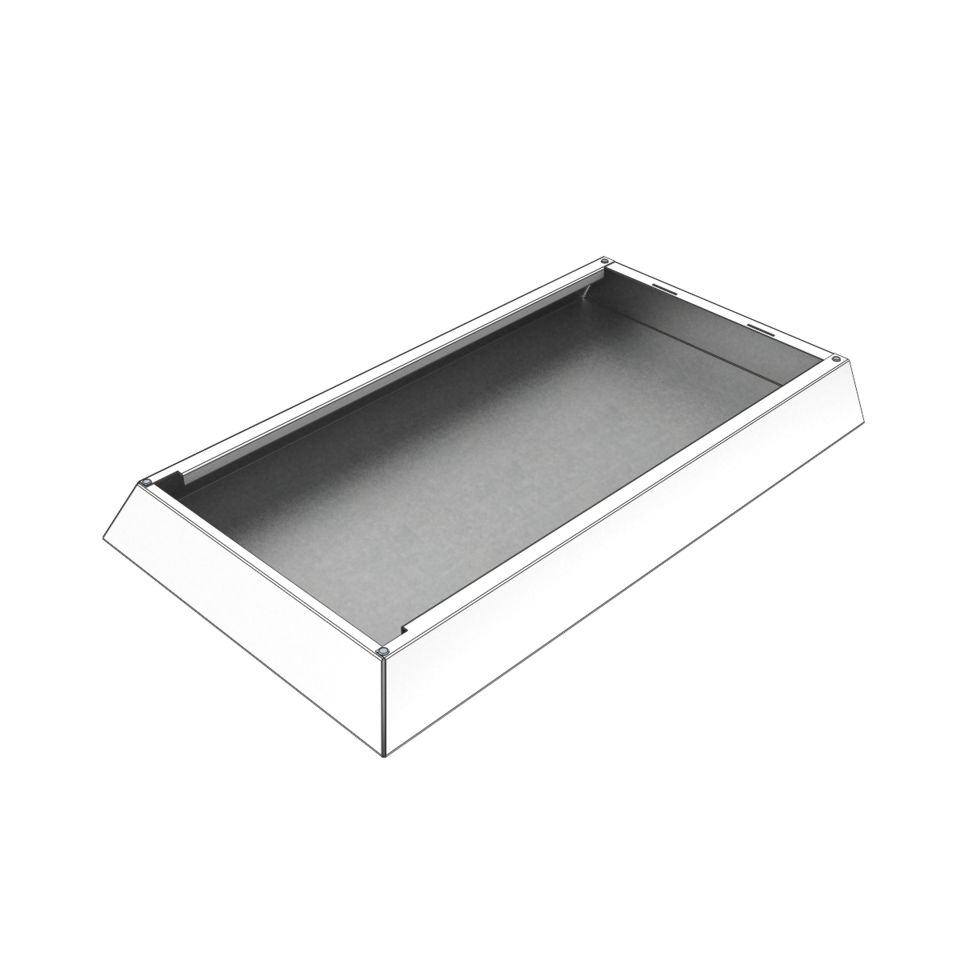

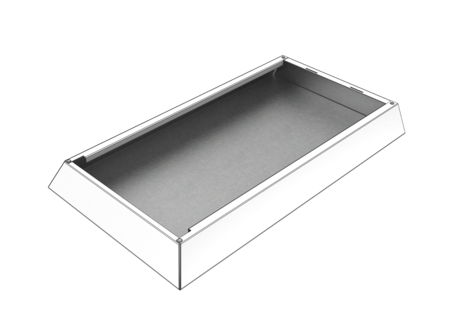

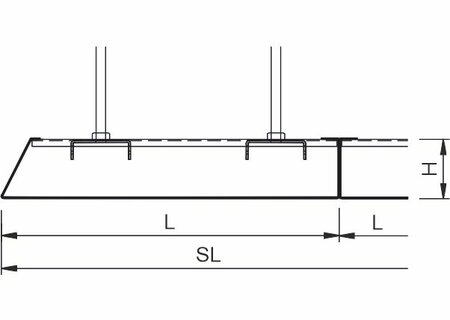

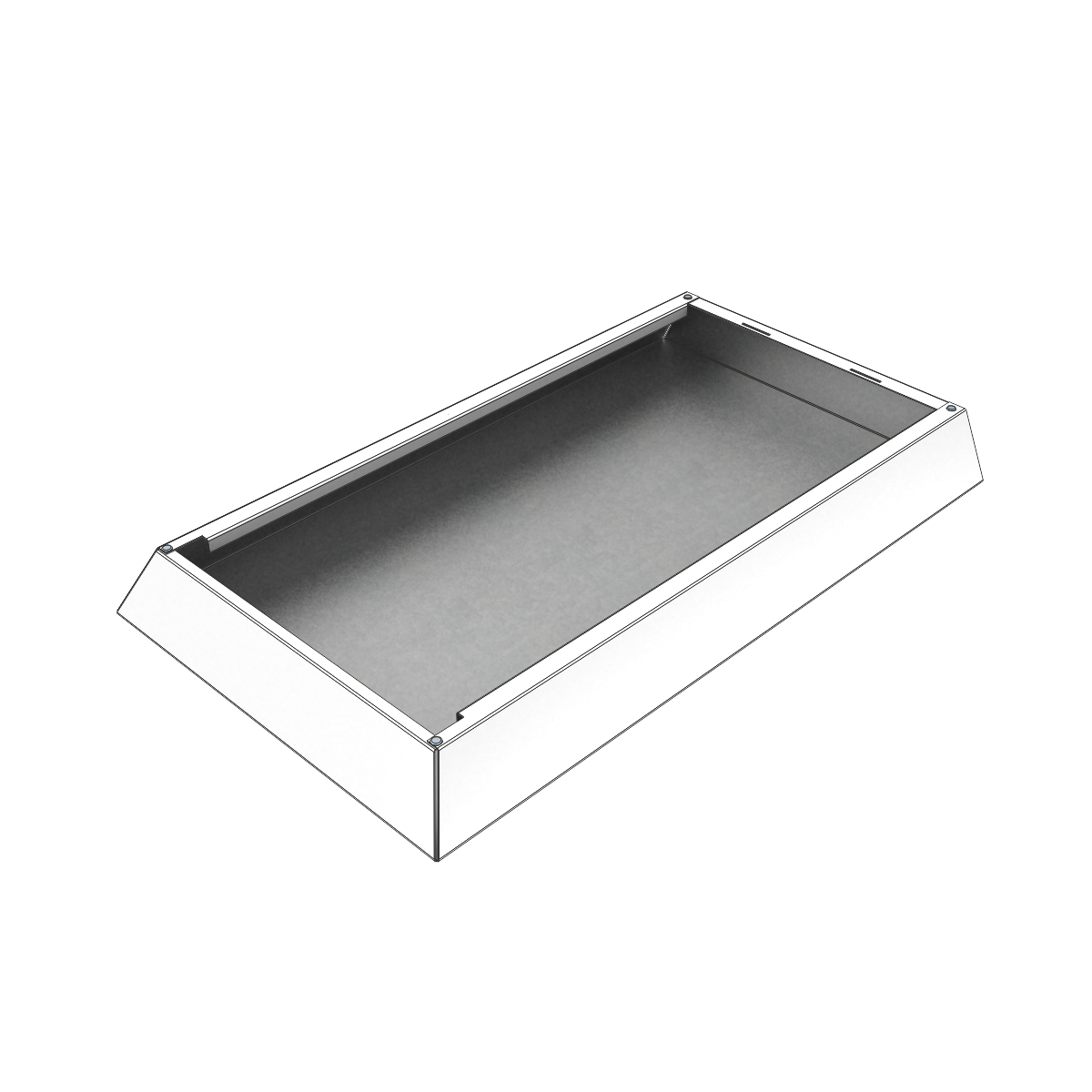

LMD-DS 320 Typ 3

65° turn-up as border panel for extension on short side

Length (L)

500 - 3,000 mm

Width (B)

400 - 1,250 mm

Height (H)

50 mm

Canopy Length (SL)

variable

Canopy width (SB)

400 - 1,250 mm

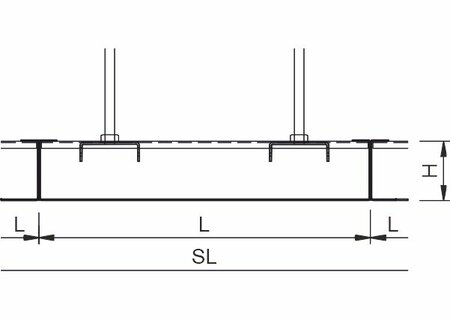

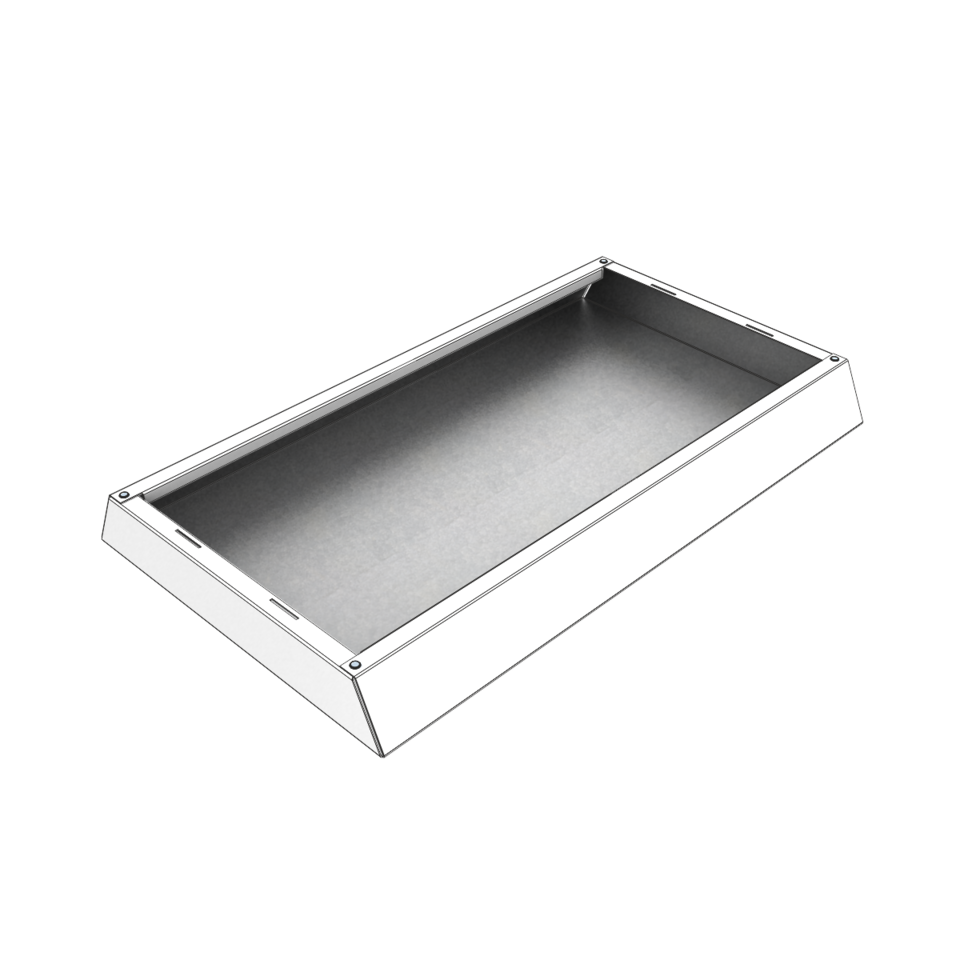

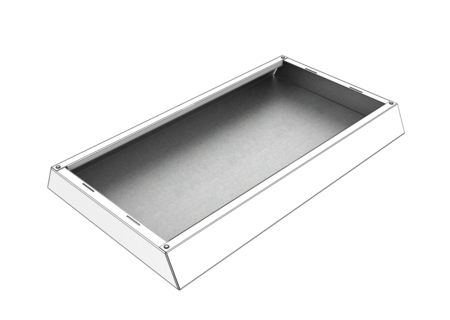

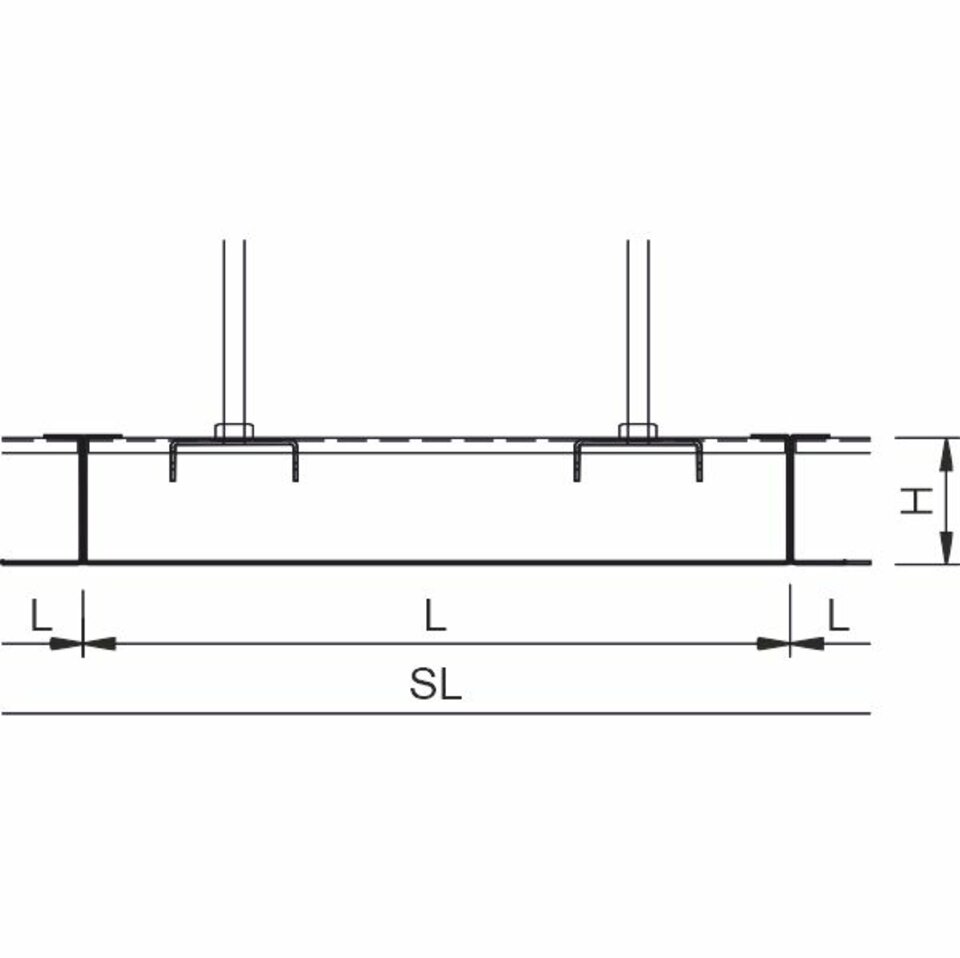

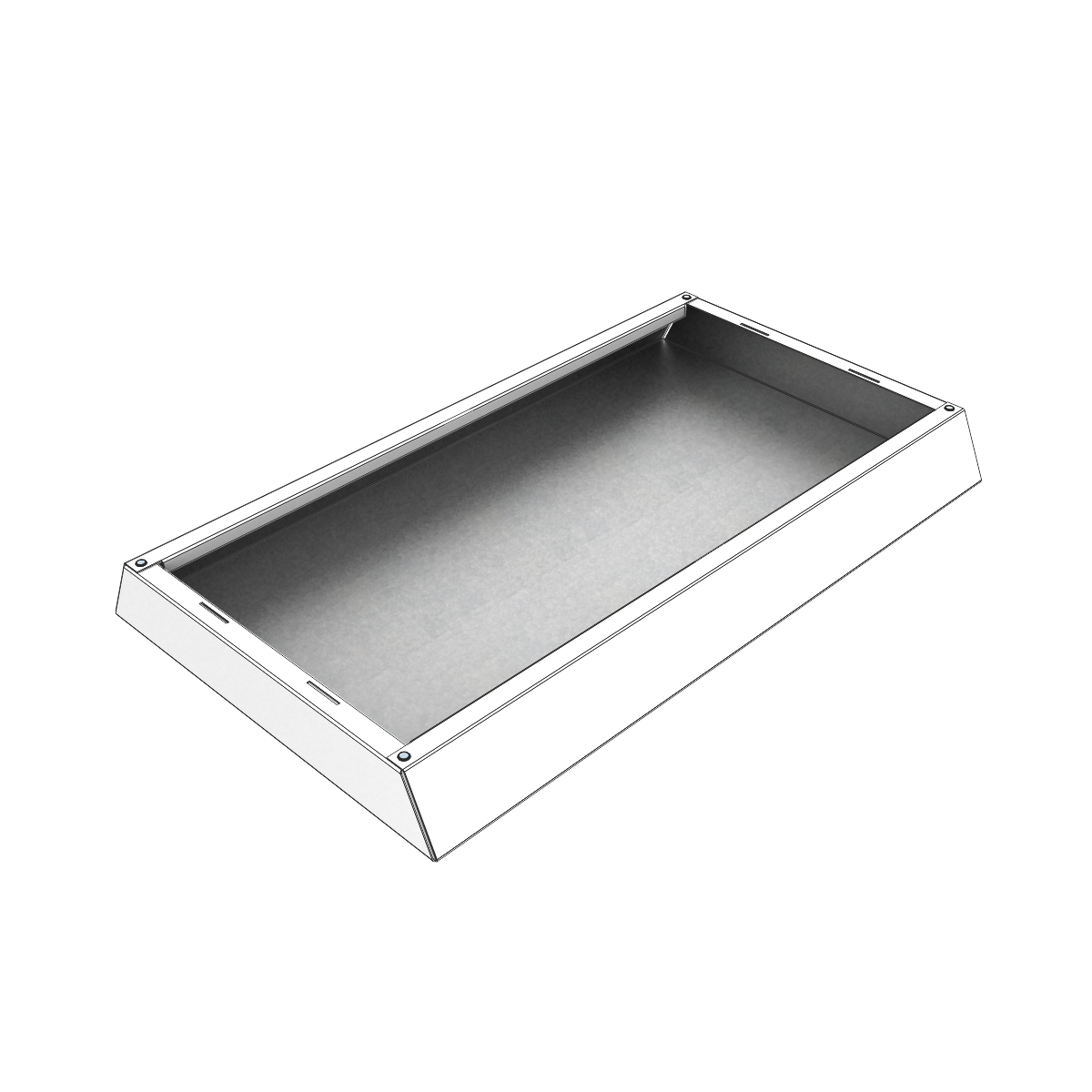

LMD-DS 320 Typ 4

65° turn-up as central panel for extension on short side

Length (L)

500 - 3,000 mm

Width (B)

400 - 1,250 mm

Height (H)

50 mm

Canopy Length (SL)

variable

Canopy width (SB)

400 - 1,250 mm

Technical details

Component list

Acoustics

Room Acoustics

Sound Absorber Class

ISO 11654

E - A

Noise Reduction Coefficient

ASTM C 423

NRC

0.15 - 1.25

Evaluated Sound Absorption Coefficient

ISO 11654

α_w

0.15 - 1.00

Notice: The acoustics of canopy ceilings are rated using the equivalent sound absorption area in accordance with DIN EN ISO 354.
The evaluation of αw and NRC can only be carried out in dependence and therefore is only an orientation value.

Fire protection

Static

Durability

Sustainability

Declarations

EPD (Environmental Product Declaration)

The product has a verified EPD in compliance with the applicable standards. ( ISO 14025/EN 15804)

French VOC Regulation

Emission class A+

Product Self-Declaration

A self-declaration in accordance with ISO 14021 is available. This contains extensive environmental information for planning, tenders and building certifications (LEED, DGNB, EU taxonomy).

French Environmental and Health Declaration

The product has a verified French Environmental and Health Declaration (FDES) that complies with the applicable standards (ISO 14025 / NF EN 15804+A2/CN). The FDES is registered in the French INIES database and is used for building assessment under RE2020.

Circular Economy

Cradle to Cradle Certified® Gold

Data

Recycled Content

24.60 %

Indoor air measurement EN 16516 options

< 5 µg/m³

Emission of Formaldehyde

< 3 µg/m³

Evidence

Indoor Air Comfort

Accomplished

Indoor Air Comfort Gold

Accomplished

AgBB

Accomplished

BREEAM International

Conform

LEED v4

Conform

DGNB

Conform

Surfaces

Additional equipment

Certification

Project solutions
