REGULARline

Further Perforations

REGULARline

Further Perforations

A wide selection of further REGULARline perforations is available - you can choose between different round holes, square holes and slotted holes. Perforated metal ceilings are acoustically effective when combined with sound-absorbing inlays on the rear side.

wide selection of perforations with round holes, square holes and slotted holes
acoustically effective in combination with sound absorbing inlays

Data Sheet

REGULARlineApplication

Downloads

Digital Service

NBS Specifications

Product Information

Variants

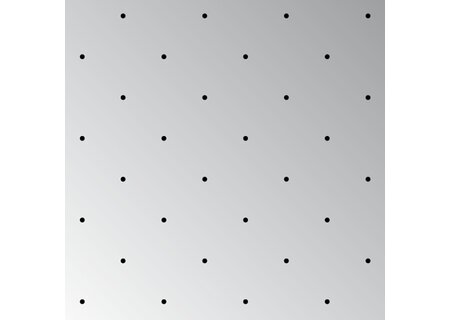

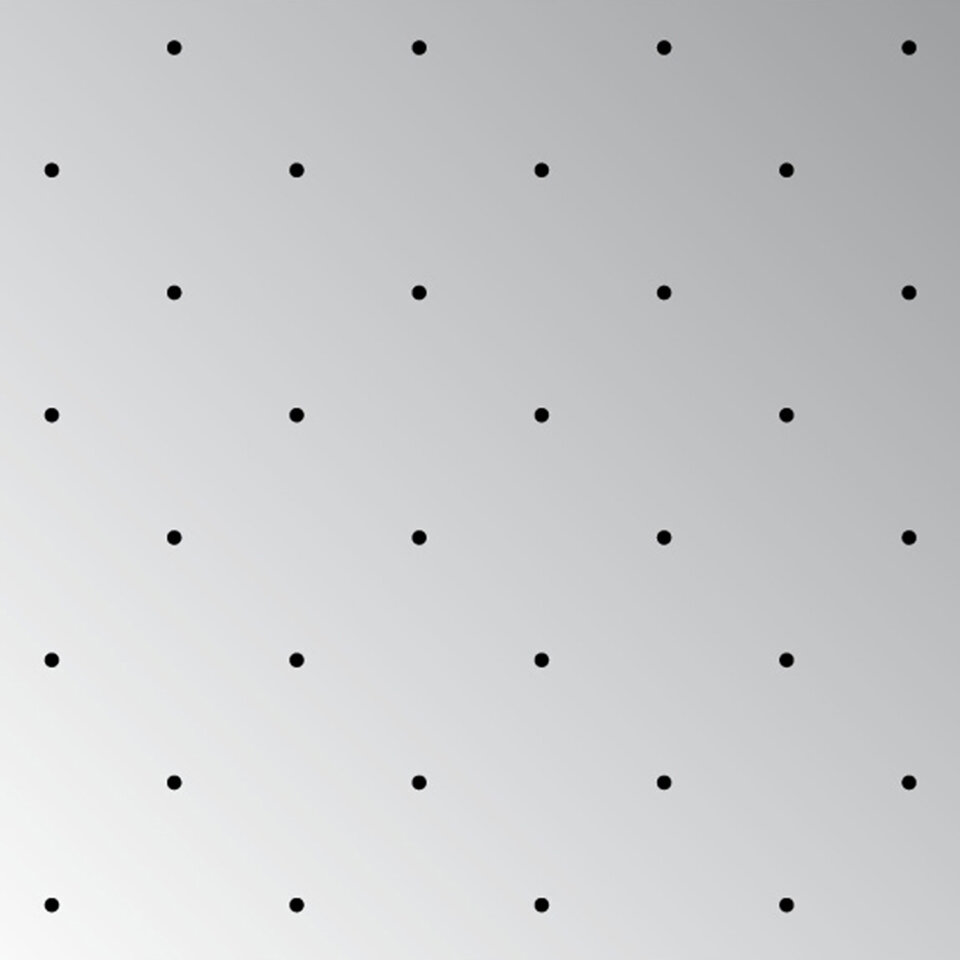

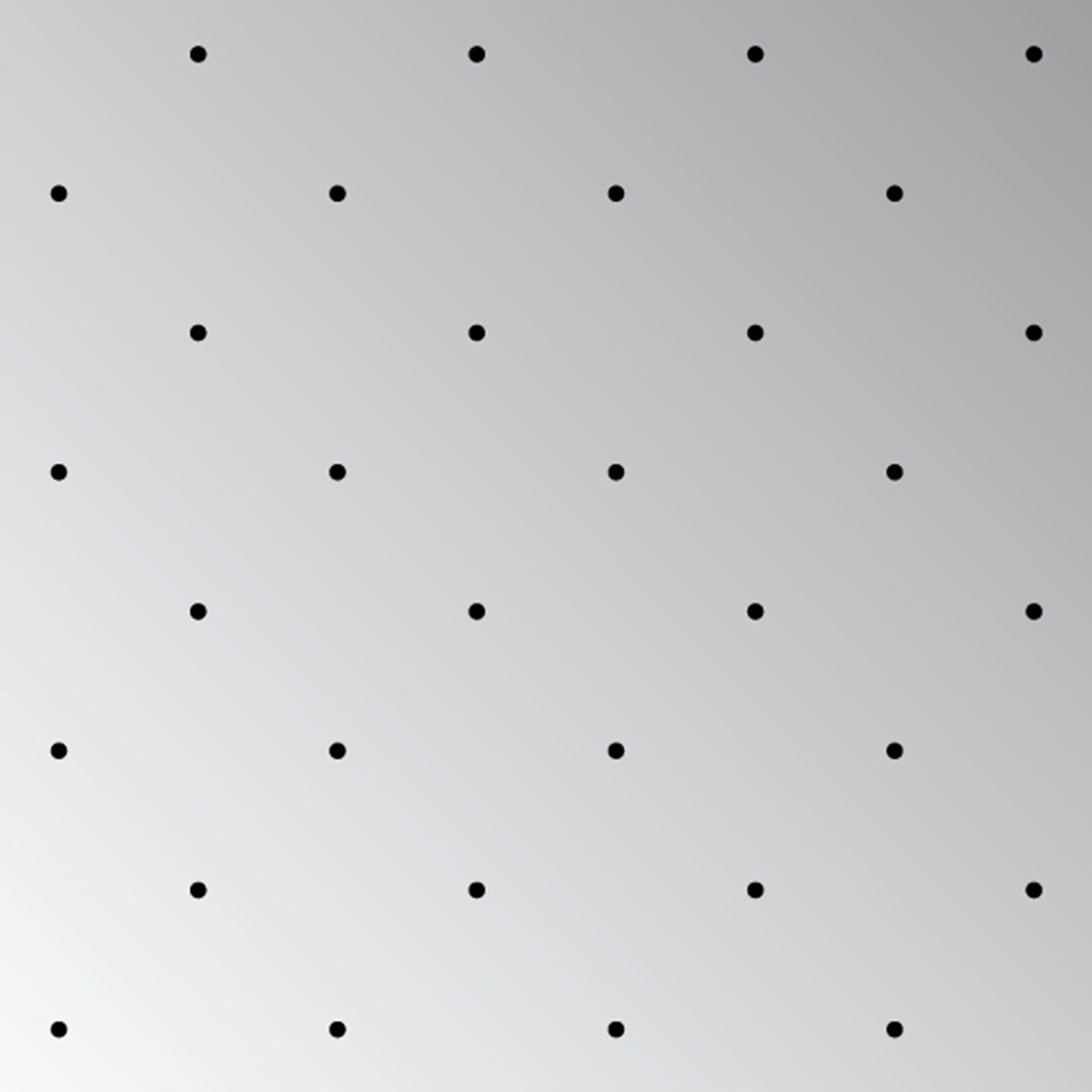

Rd 0,7-0,5

hole: Ø 0.7 mm diagonal pitch
open area: 0.5 %
material: steel l thickness: 0.6 mm l width of perforation: 860 mm
max. panel width: 625 mm

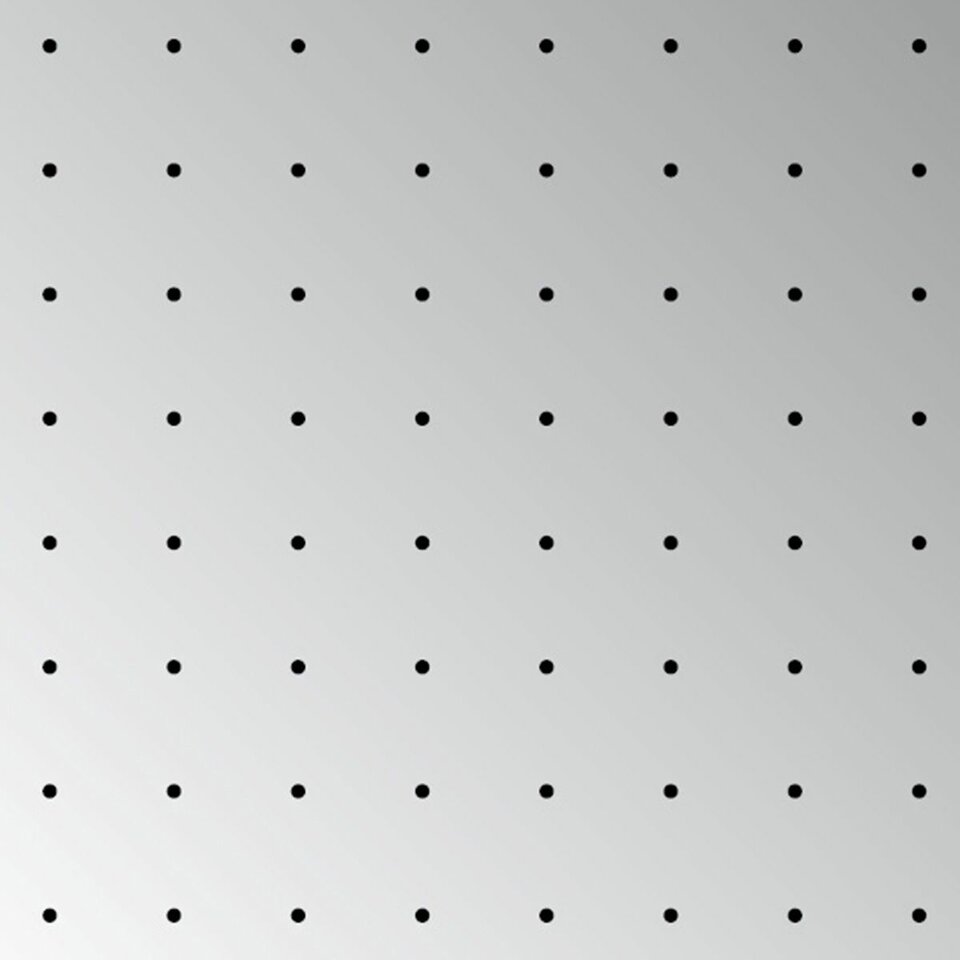

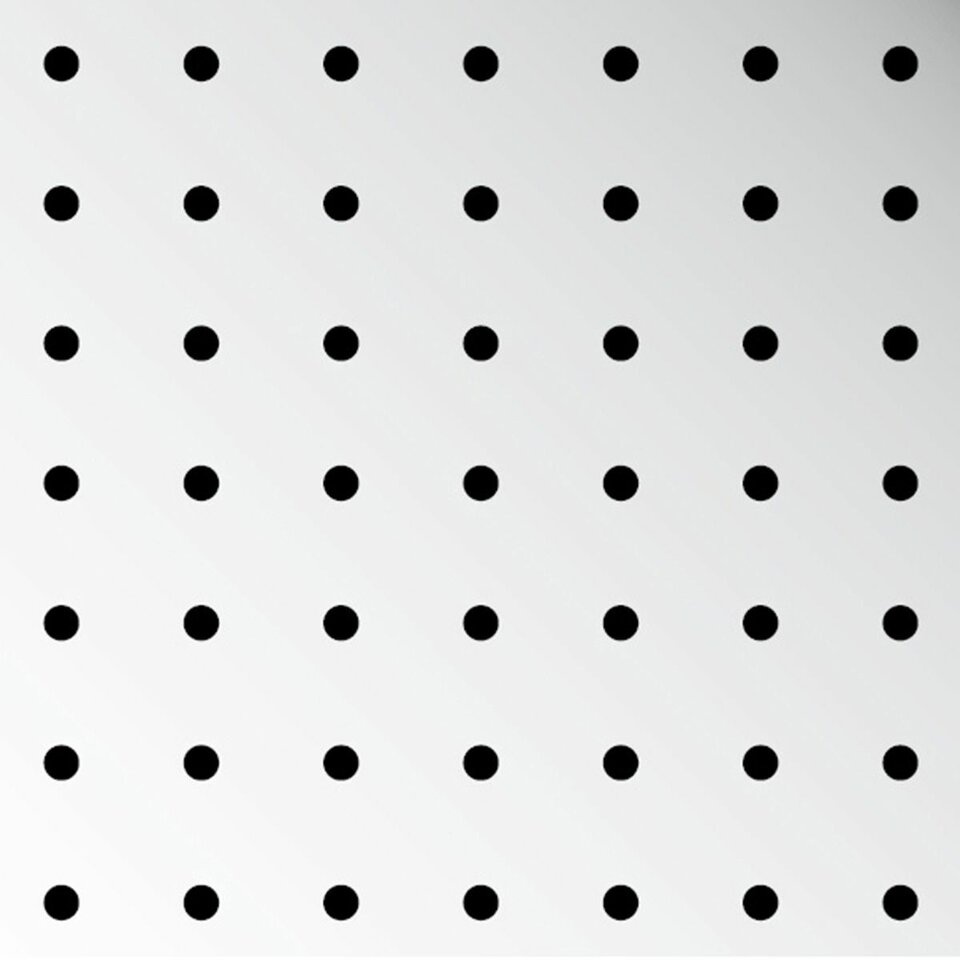

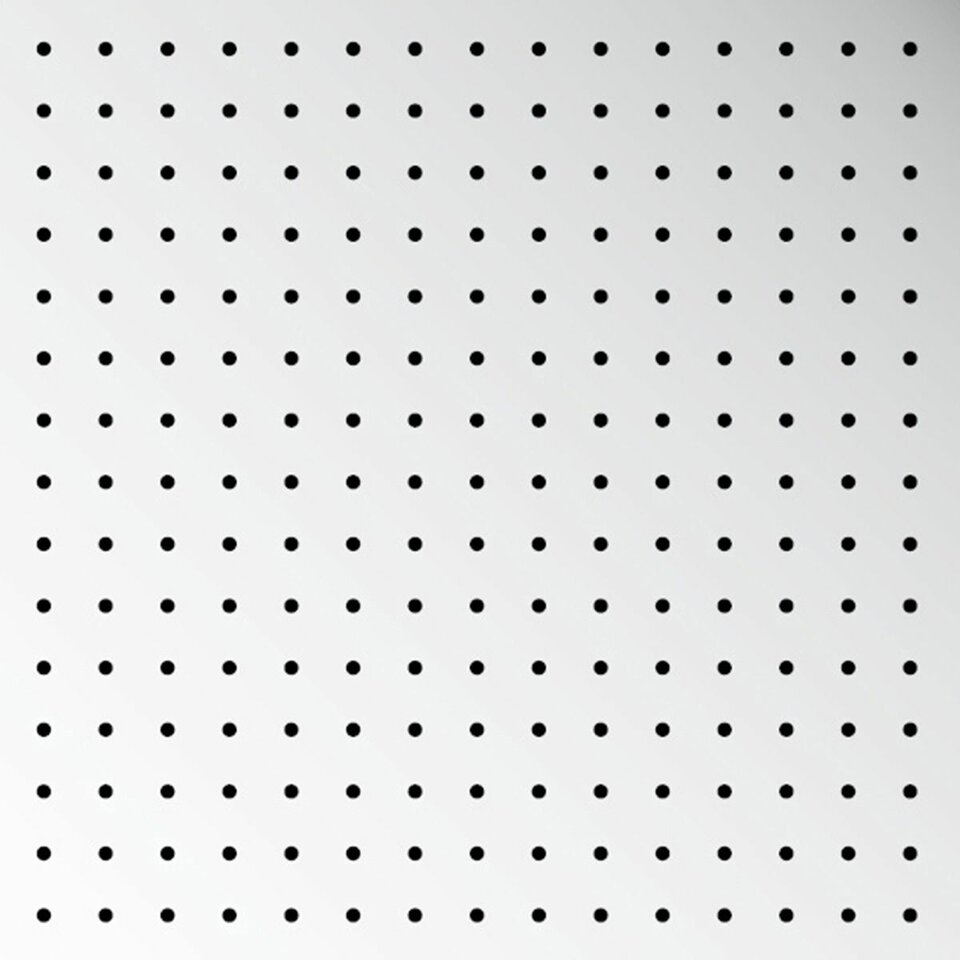

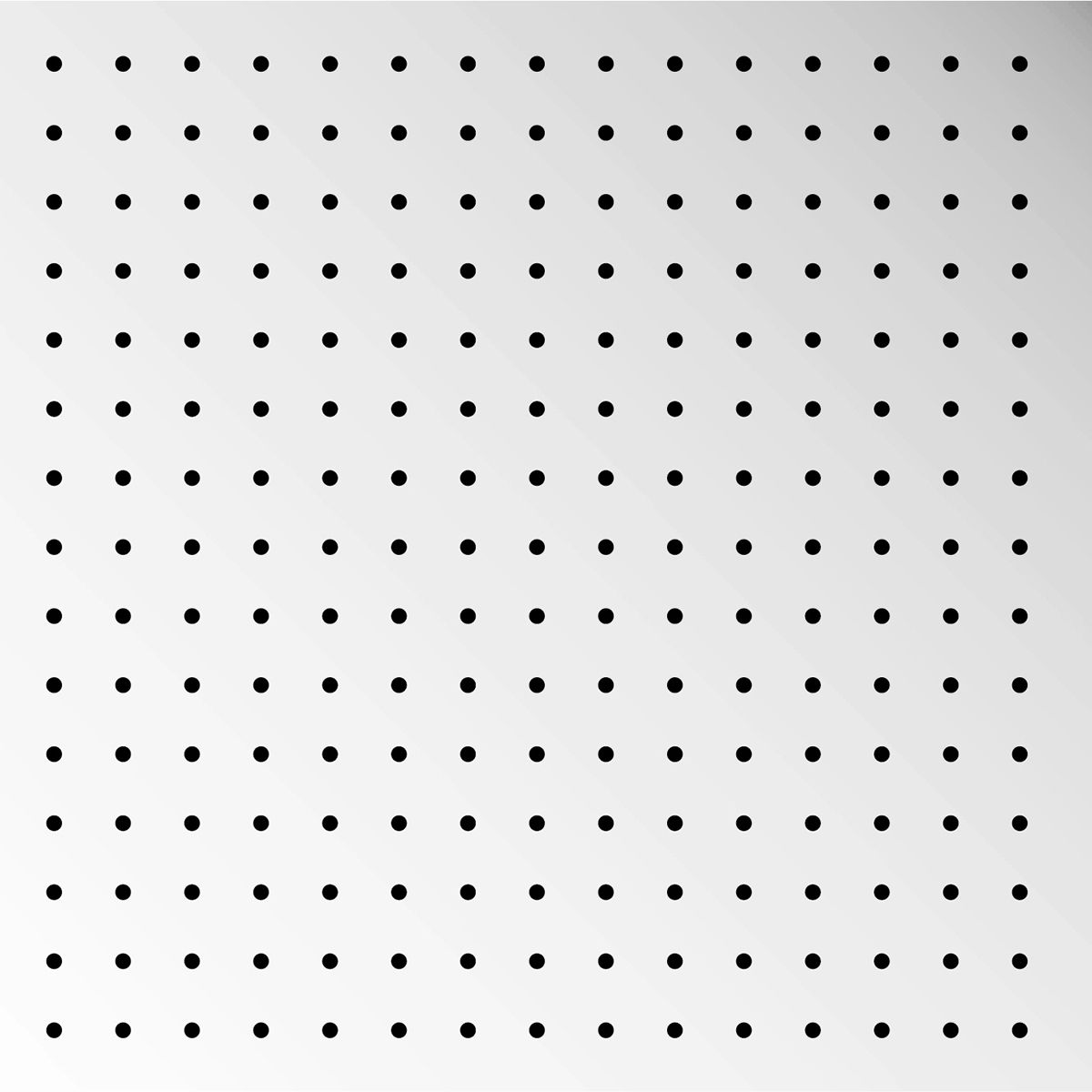

Rg 0,7-1

hole: Ø 0.7 mm straight pitch
open area: 1 %
material: steel l thickness: 0.6 mm l width of perforation: 1,340 mm
material: aluminium l thickness: 0.6 mm l width of perforation: 860 mm
material: aluminium l thickness: 0.8 mm l width of perforation: 1,340 mm
max. panel width: 625 mm

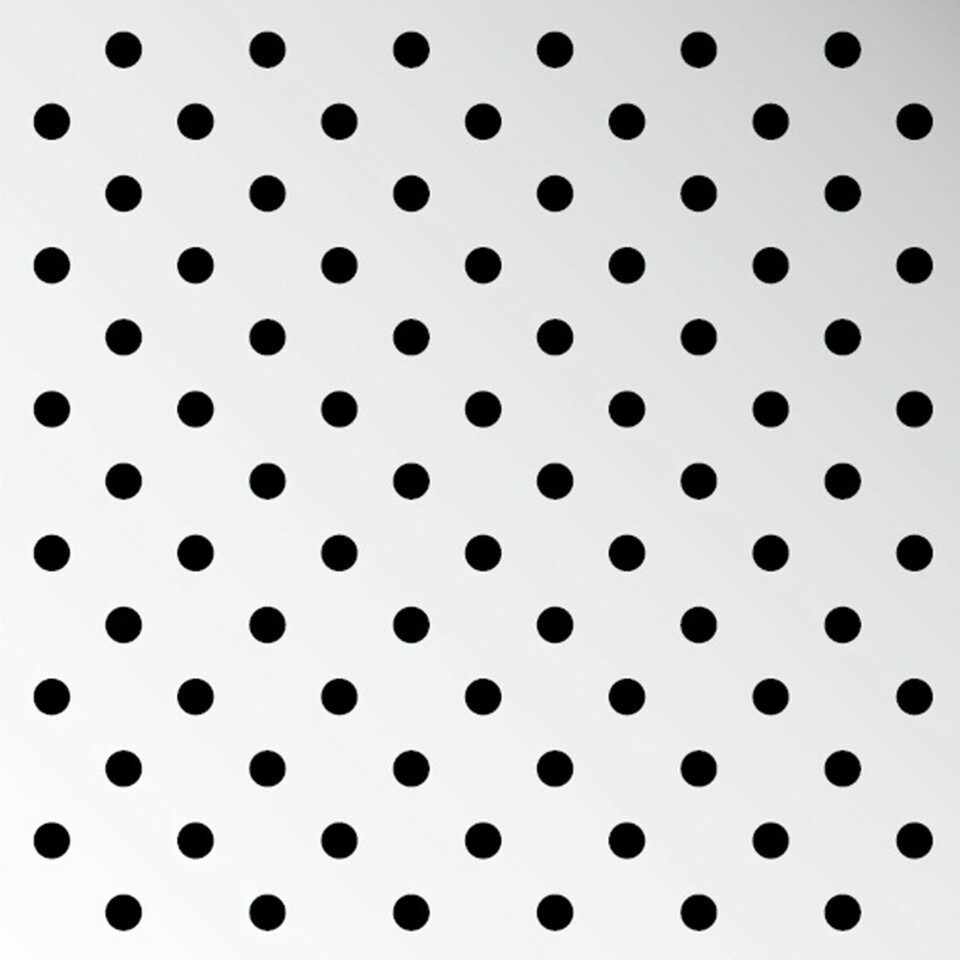

Rd 0,7-2

hole: Ø 0.7 mm diagonal pitch
open area: 2 %
material: steel l thickness: 0.6 mm l width of perforation: 1,340 mm
material: aluminium l thickness: 0.6 mm l width of perforation: 860 mm
material: aluminium l thickness: 0.8 mm l width of perforation: 1,340 mm
max. panel width: 625 mm

Rg 0,7-4

hole: Ø 0.7 mm straight pitch
open area: 4 %
material: steel l thickness: 0.6 mm l width of perforation: 1,535 mm
max. panel width: 625 mm

Rg 0,8-5

hole: Ø 0.8 mm straight pitch
open area: 5 %
material: steel l thickness: 0.7 mm l width of perforation: 1,630 mm

Rd 1,6-6

hole: Ø 1.6 mm diagonal pitch
open area: 6 %
material: steel l thickness: 0.6 mm l width of perforation: 860 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,630 mm

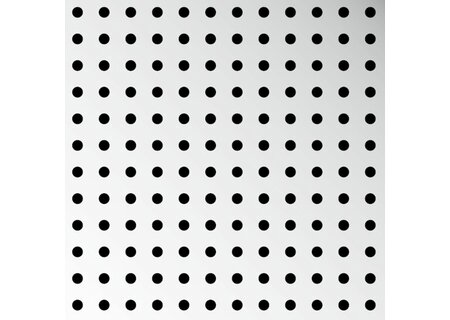

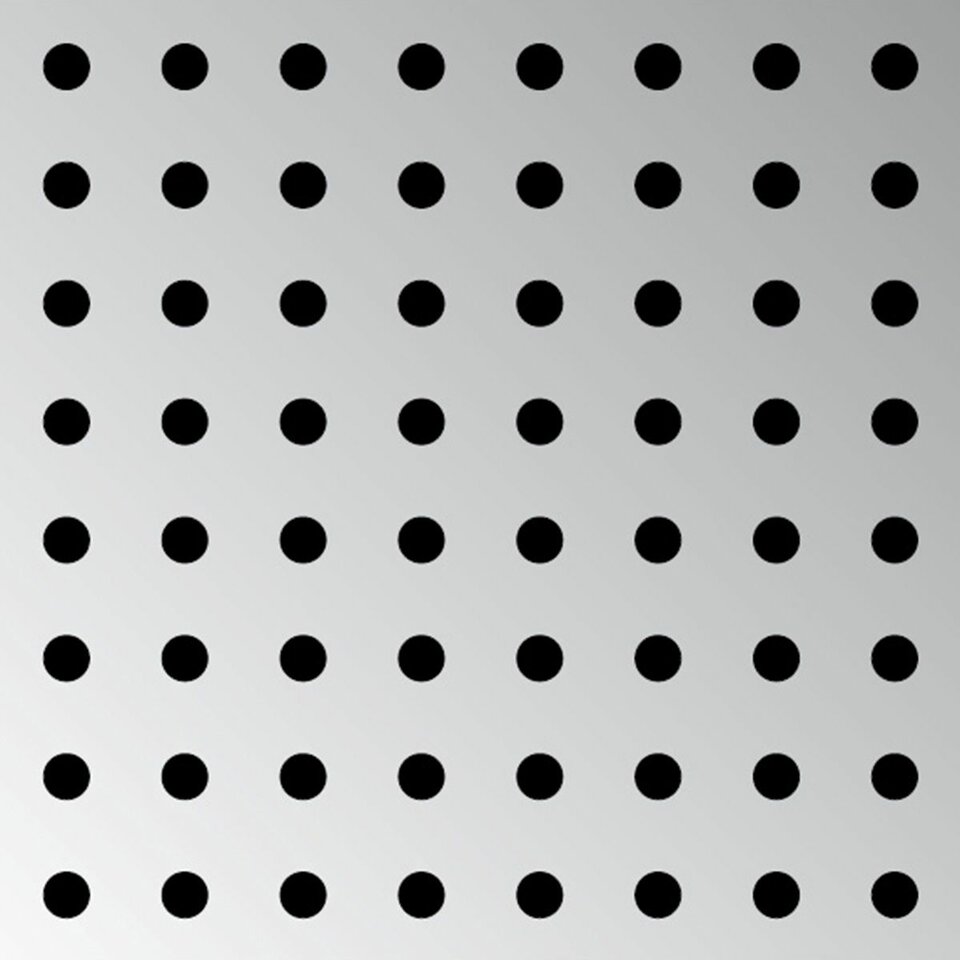

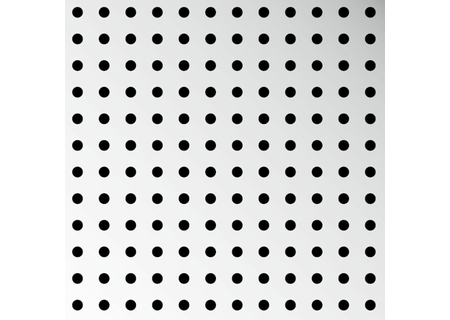

Rg 1,6-13

hole: Ø 1.6 mm straight pitch
open area: 13 %
material: steel l thickness: 0.6 mm l width of perforation: 860 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,600 mm

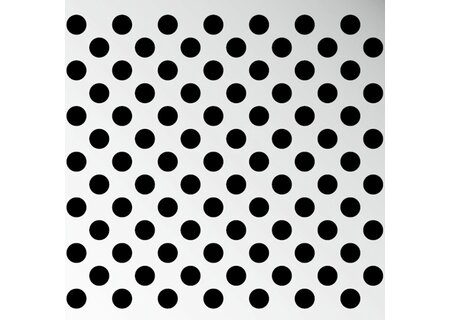

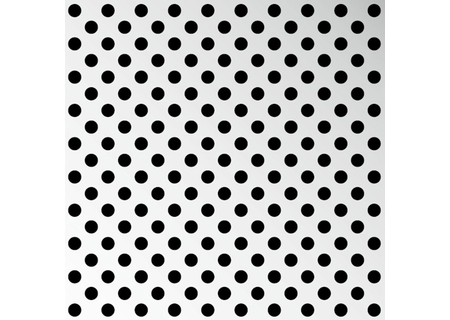

Rd 1,6-25

hole: Ø 1.6 mm diagonal pitch
open area: 25 %
material: steel l thickness: 0.6 mm l width of perforation: 860 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,600 mm

Rg 1,8-3

hole: Ø 1.8 mm straight pitch
open area: 3 %
material: steel l thickness: 0.7 mm l width of perforation: 1,310 mm

Rg 1,8-5

hole: Ø 1.8 mm straight pitch
open area: 5 %
material: steel l thickness: 0.6 mm l width of perforation: 1,280 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,280 mm

Rd 1,8-10

hole: Ø 1.8 mm diagonal pitch
open area: 10 %
material: steel l thickness: 0.6 mm l width of perforation: 1,280 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,280 mm

Rg 1,8-11

hole: Ø 1.8 mm straight pitch
open area: 11 %
material: steel l thickness: 0.7 mm l width of perforation: 1,310 mm

Rg 1,8-19

hole: Ø 1.8 mm straight pitch
open area: 19 %
material: steel l thickness: 0.6 mm l width of perforation: 1,280 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,280 mm
material: aluminium l thickness: 1.25 mm l width of perforation: 1,615 mm

Rv 1,8-20

hole: Ø 1.8 mm diagonal pitch
open area: 20 %
material: steel l thickness: 0.6 mm l width of perforation: 1,550 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,550 mm
material: aluminium l thickness: 0.6 mm l width of perforation: 880 mm
material: aluminium l thickness: 0.7 mm l width of perforation: 880 mm
material: aluminium l thickness: 0.8 mm l width of perforation: 880 mm

Rd 1,8-21

hole: Ø 1.8 mm diagonal pitch
open area: 21 %
material: steel l thickness: 0.7 mm l width of perforation: 1,310 mm

Rv 2,0-20

hole: Ø 2.0 mm diagonal pitch
open area: 20 %
material: steel l thickness: 0.6 mm l width of perforation: 1,250 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,250 mm
material: aluminium l thickness: 0.8 mm l width of perforation: 1,000 mm

Rg 2,3-11

hole: Ø 2.3 mm straight pitch
open area: 11 %
material: steel l thickness: 0.6 mm l width of perforation: 1,250 mm

Rd 2,3-23

hole: Ø 2.3 mm diagonal pitch
open area: 23 %
material: steel l thickness: 0.6 mm l width of perforation: 1,250 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,250 mm

Rv 2,5-32

hole: Ø 2.5 mm diagonal pitch
open area: 32 %
material: steel l thickness: 0.6 mm l width of perforation: 790 mm

Rg 3,0-15

hole: Ø 3.0 mm straight pitch
open area: 15 %
material: steel l thickness: 0.6 mm l width of perforation: 1,250 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,250 mm

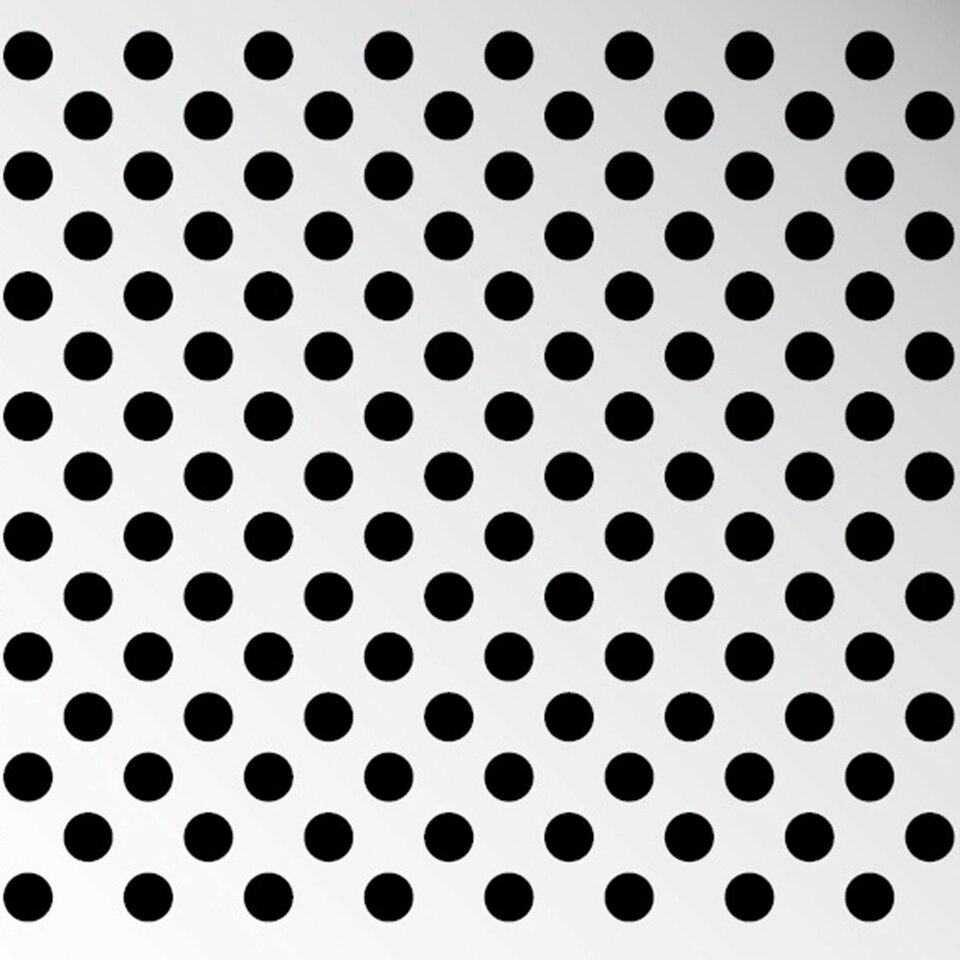

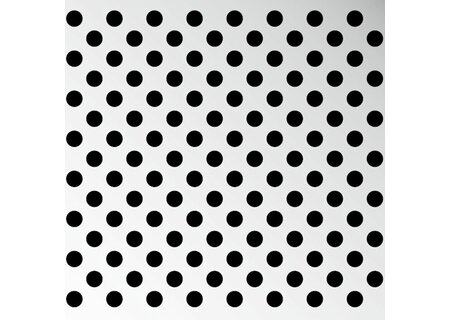

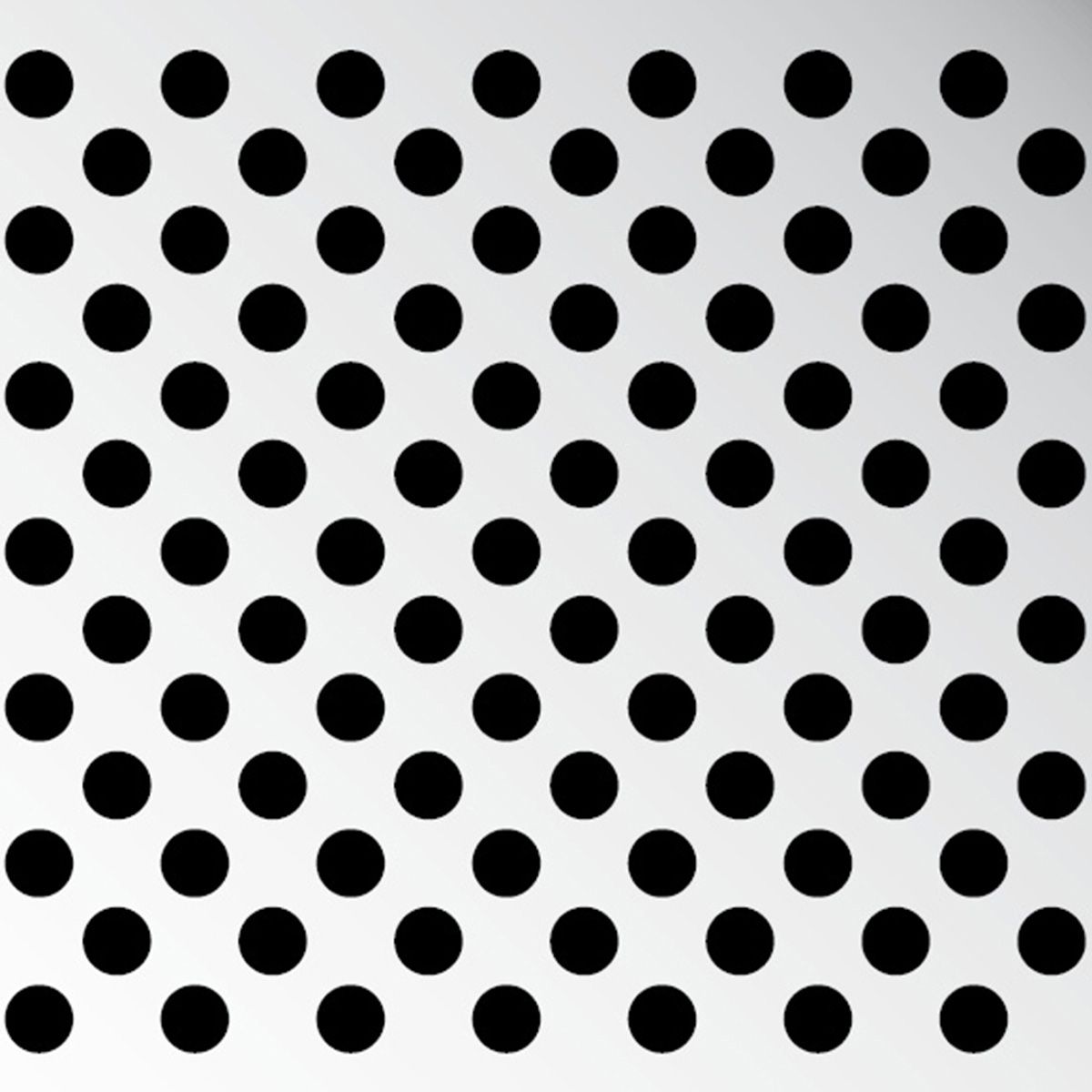

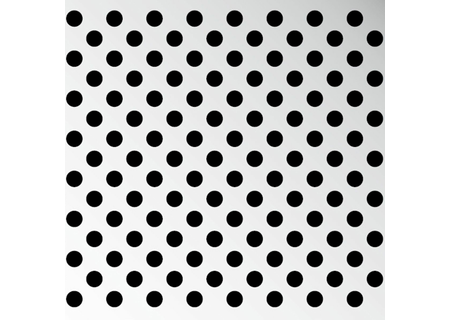

Rd 3,0-30

hole: Ø 3.0 mm diagonal pitch
open area: 30 %
material: steel l thickness: 0.6 mm l width of perforation: 1,250 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,250 mm
material: aluminium l thickness: 2.0 mm l width of perforation: 1,520 mm

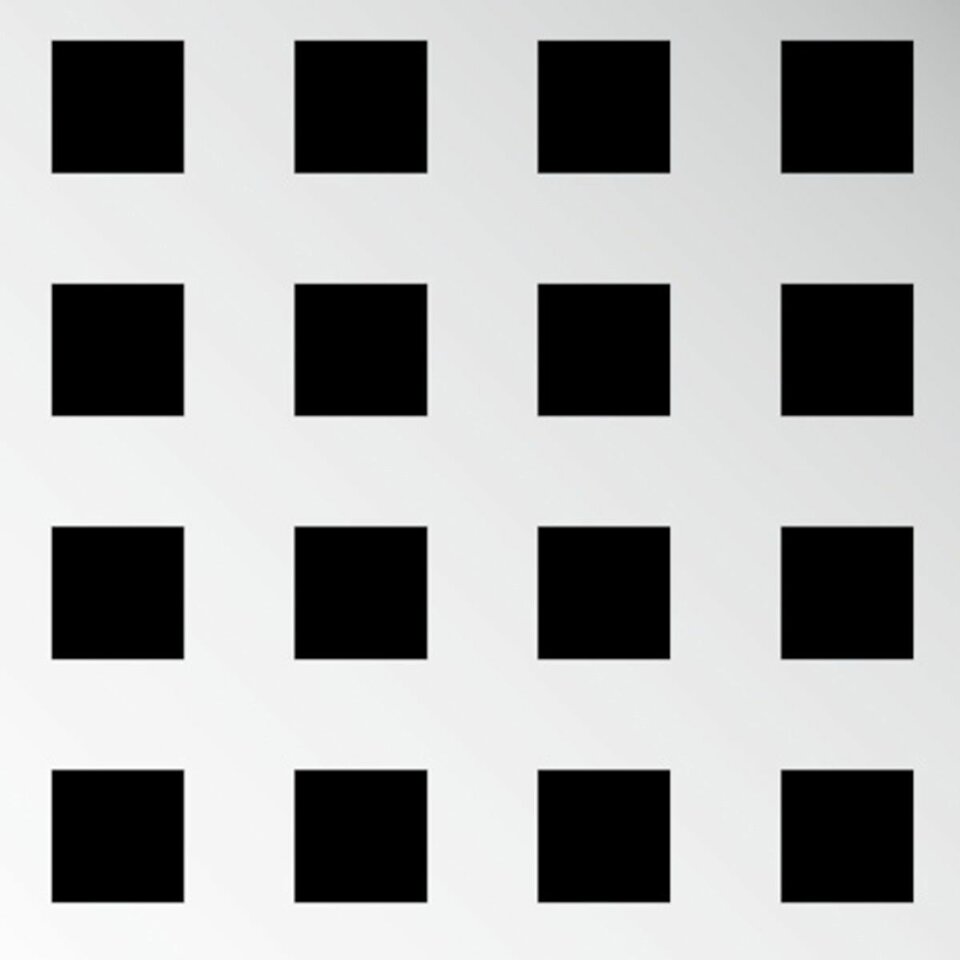

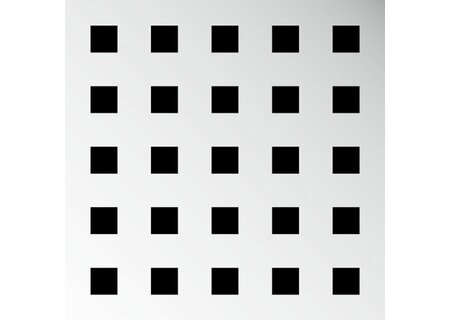

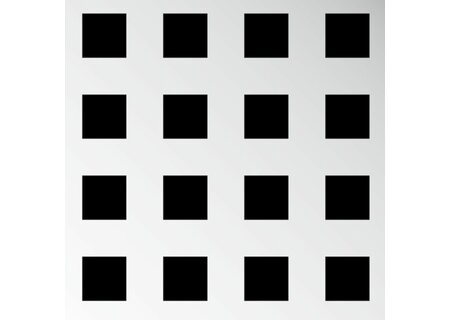

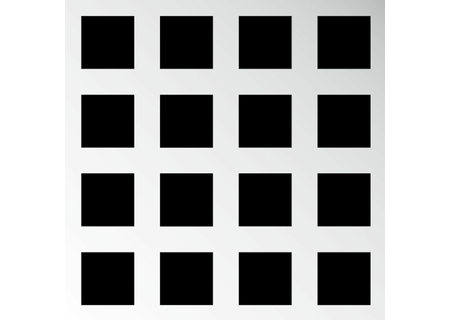

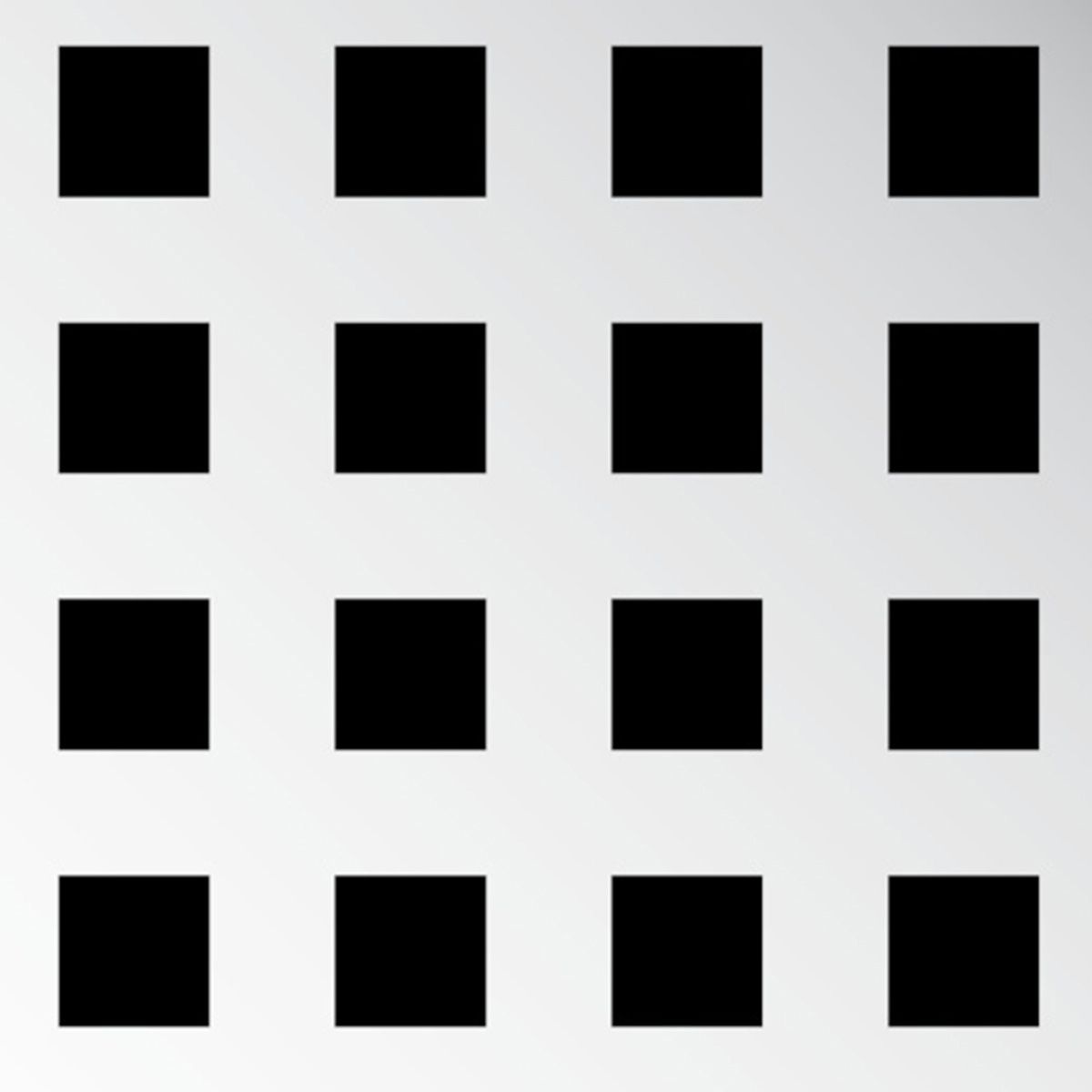

Qg 4,0-20

square hole: 4.0 mm straight pitch
open area: 20 %
material: steel l thickness: 0.6 mm l width of perforation: 1,600 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,600 mm

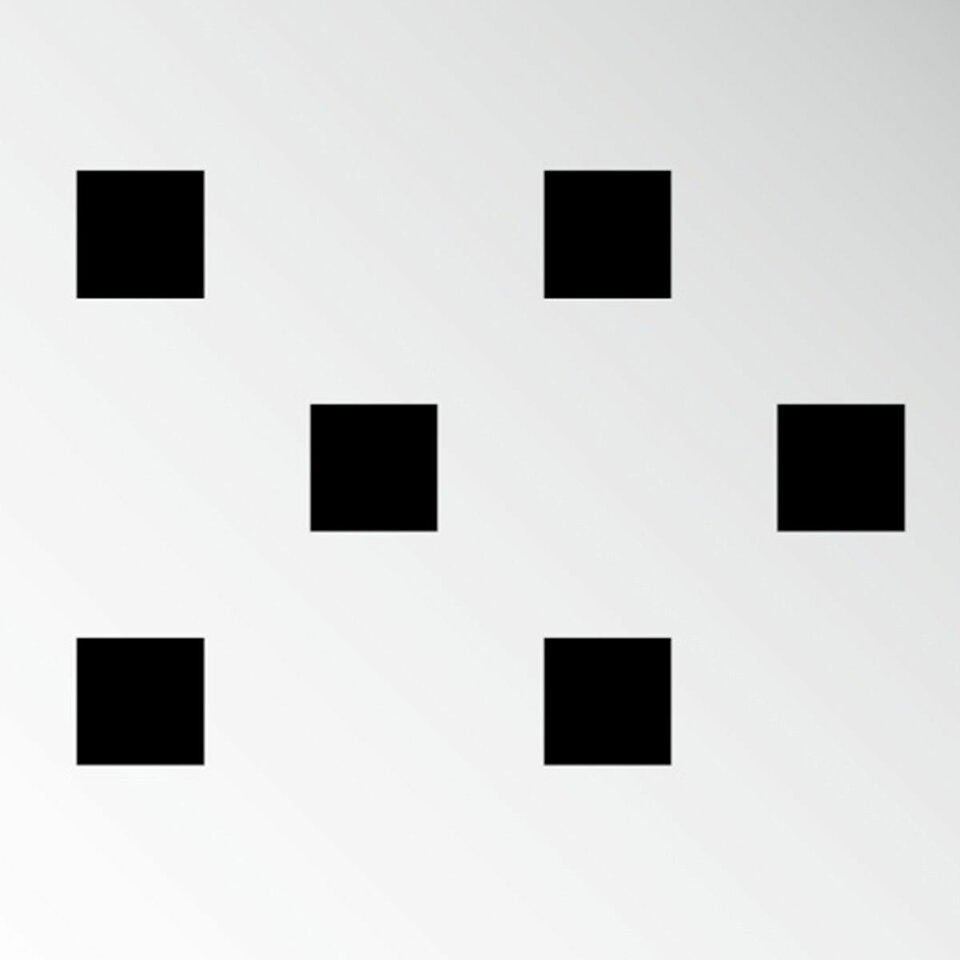

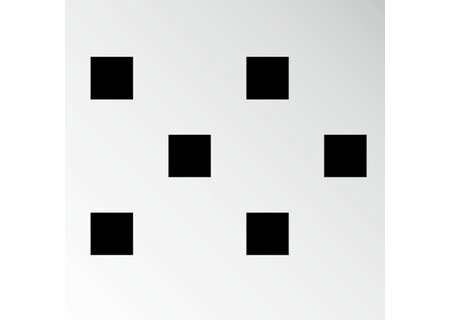

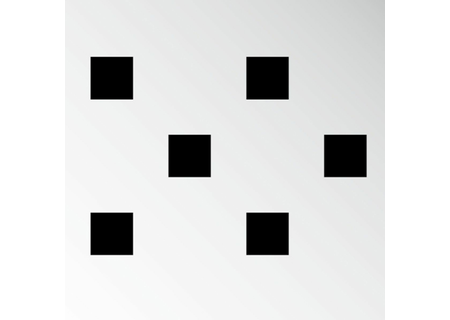

Qd 6,0-15

square hole: 6.0 mm diagonal pitch
open area: 15 %
material: steel l thickness: 0.6 mm l width of perforation: 1,600 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,600 mm

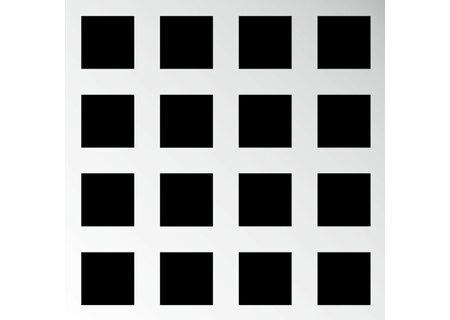

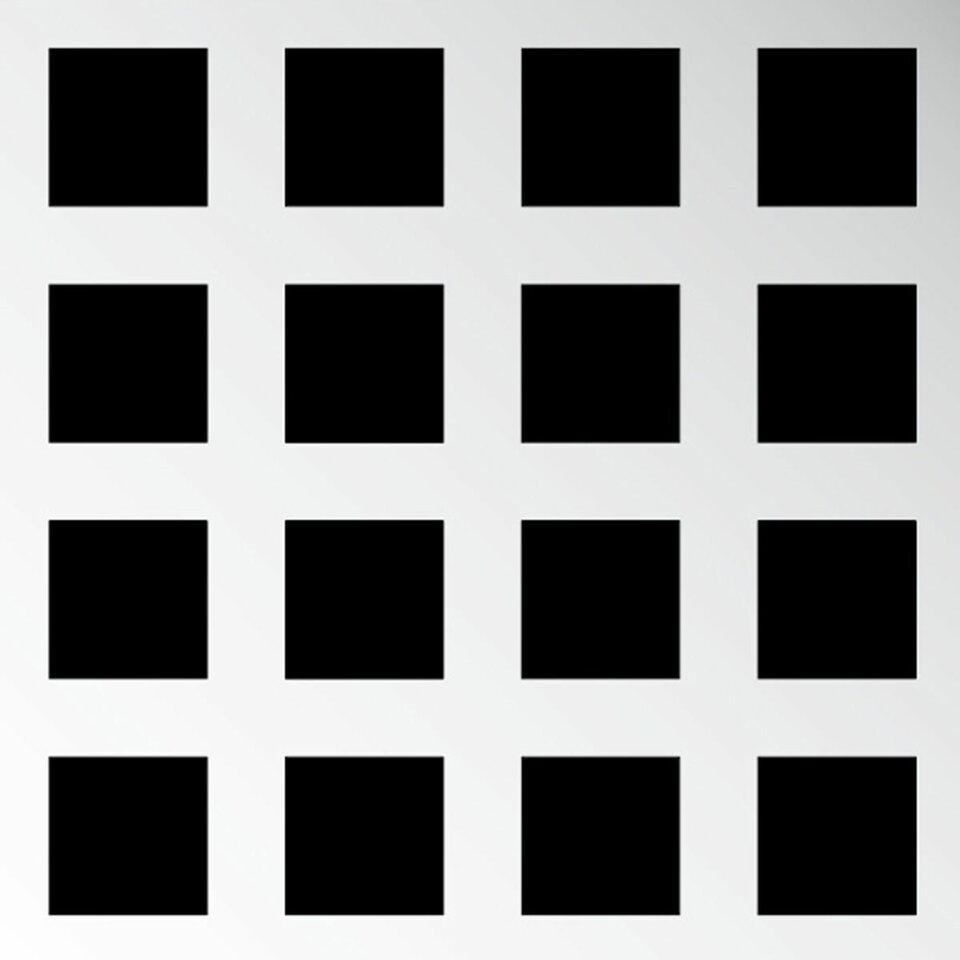

Qg 6,0-30

square hole: 6.0 mm straight pitch
open area: 30 %
material: steel l thickness: 0.6 mm l width of perforation: 1,600 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,600 mm

Qg 8,0-44

square hole: 8.0 mm straight pitch
open area: 44 %
material: steel l thickness: 0.6 mm l width of perforation: 650 mm
material: steel l thickness: 0.7 mm l width of perforation: 650 mm

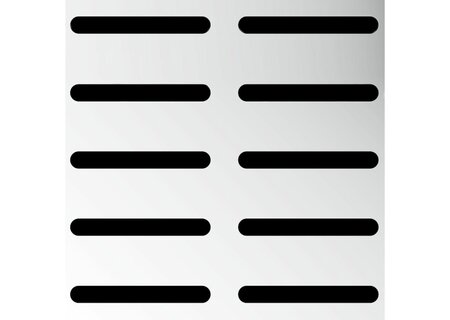

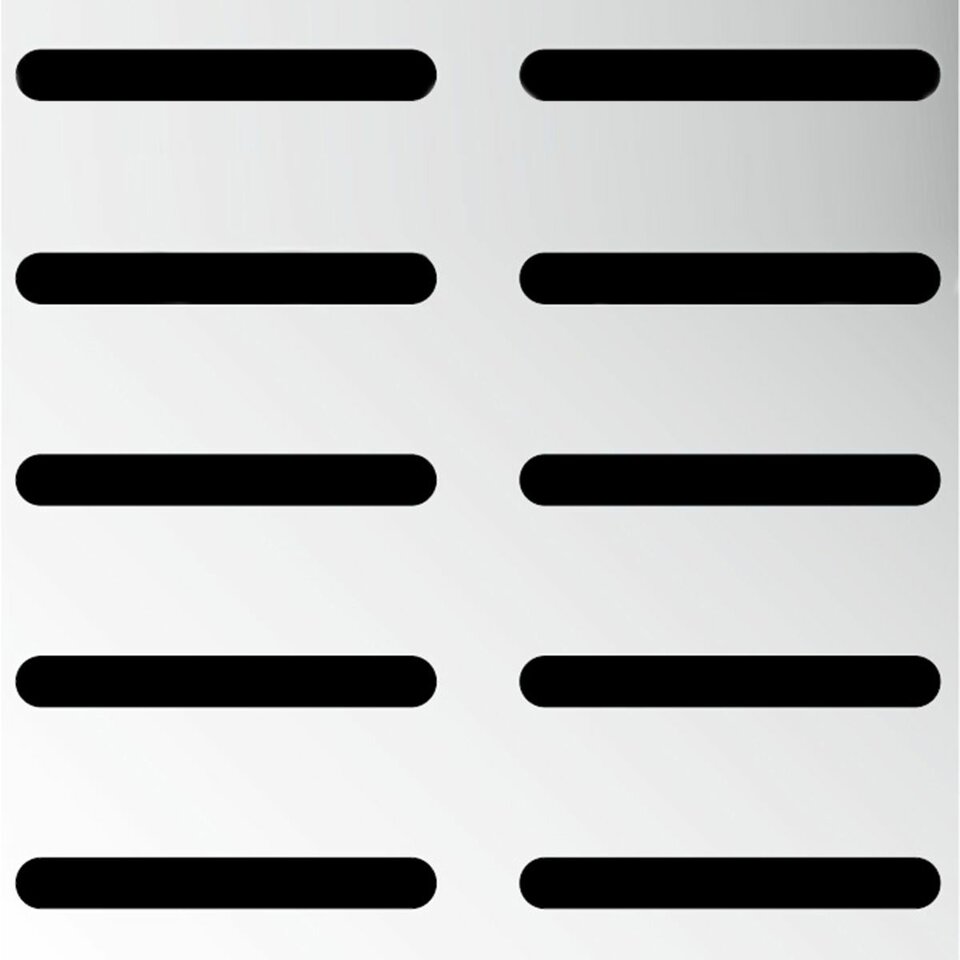

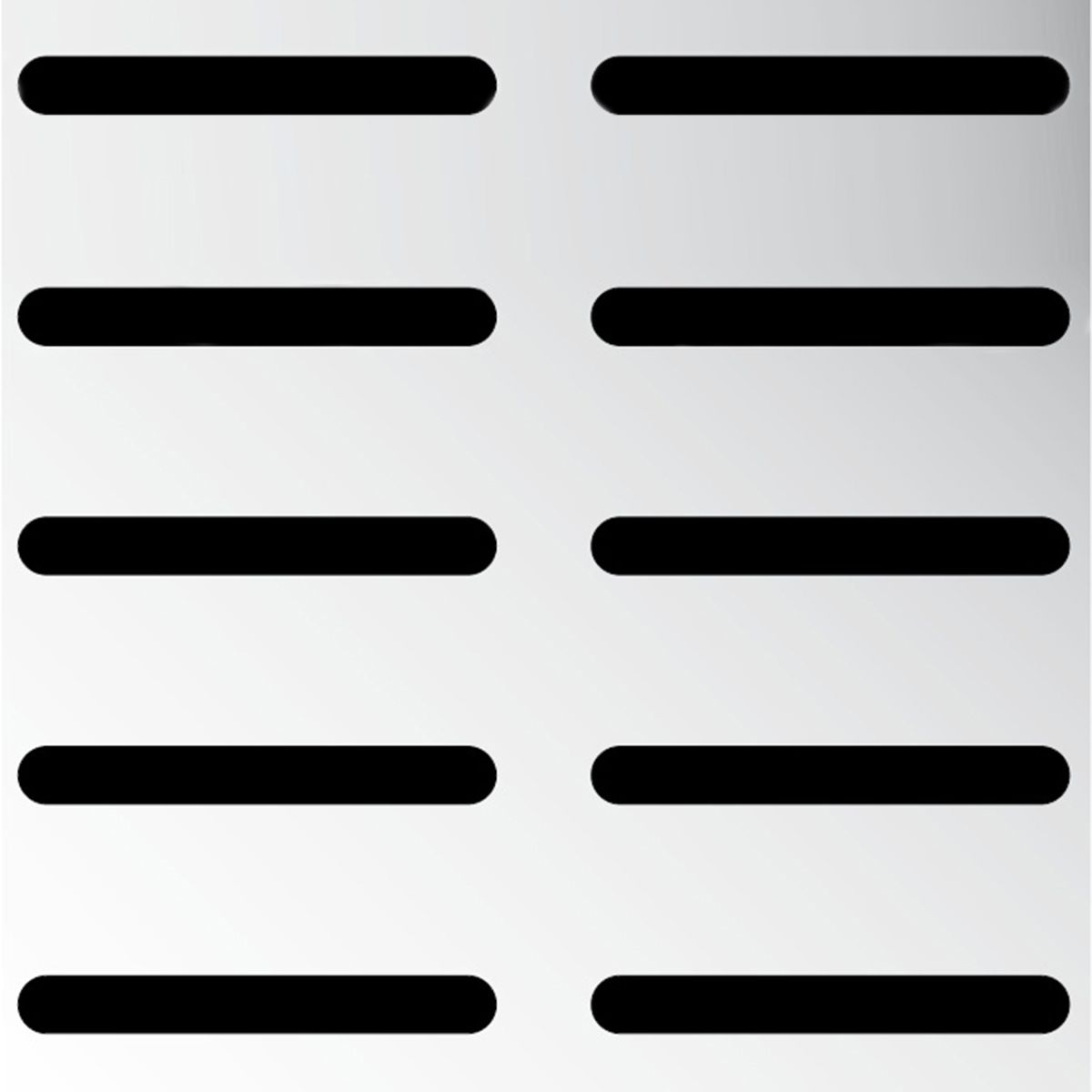

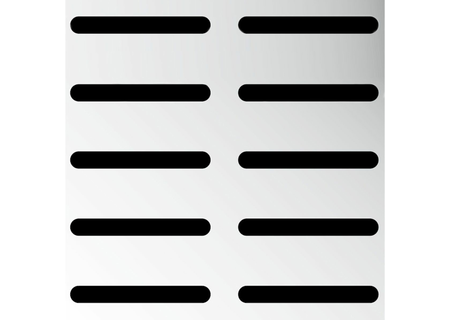

Lg 25x3

slotted round hole: 25.0 mm x 3.0 mm straight pitch
open area: 20 %
material: steel l thickness: 0.6 mm l width of perforation: 636 mm

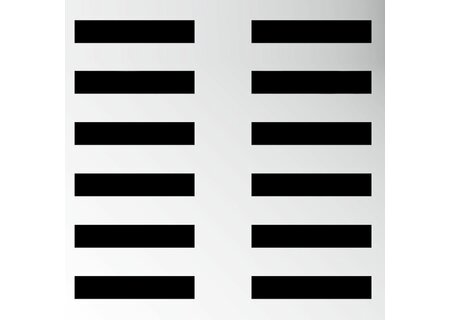

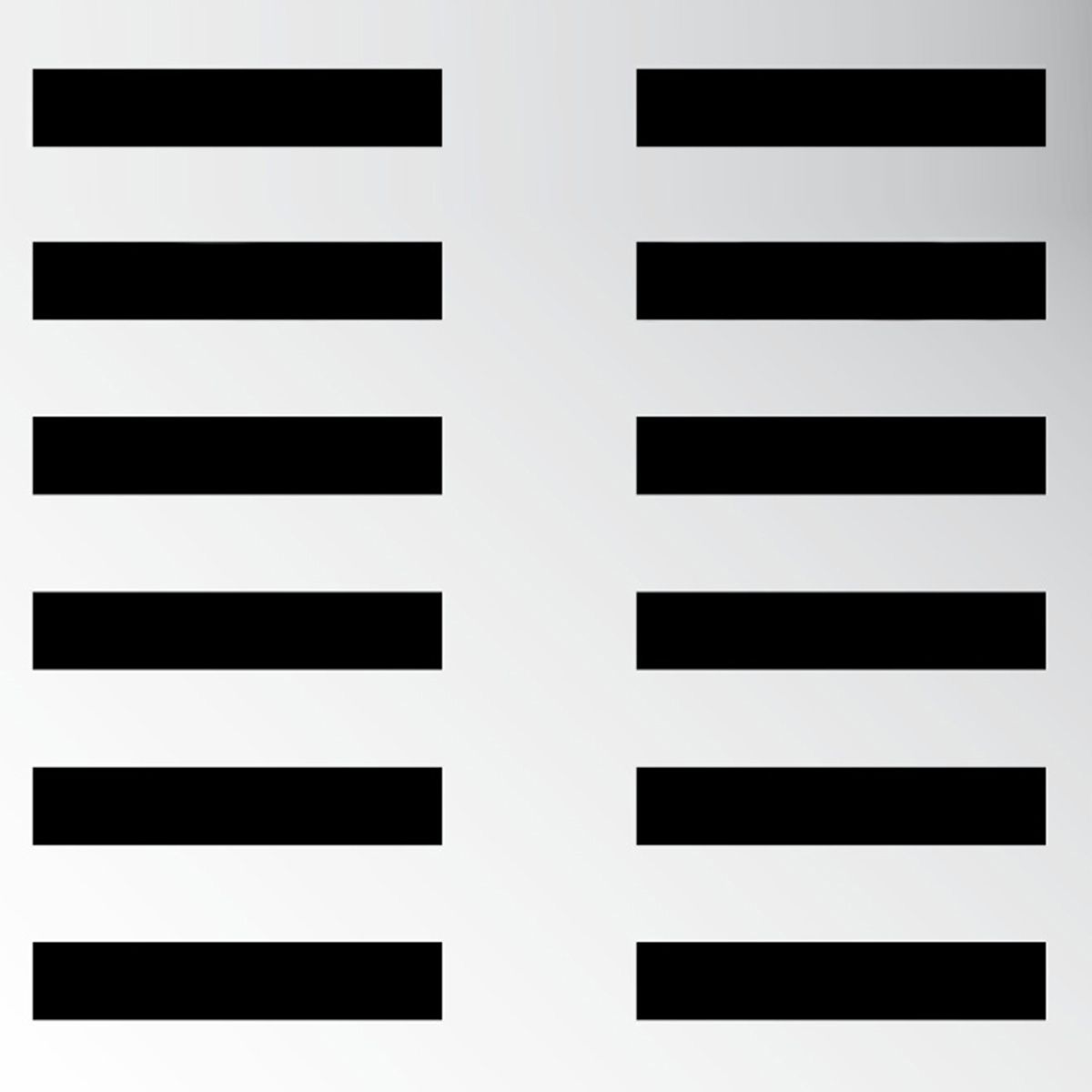

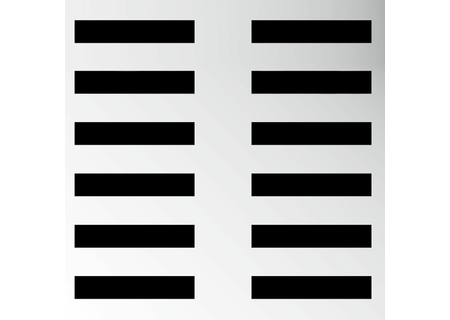

Lge 21x4

slotted square hole: 21.0 mm x 4.0 mm straight pitch
open area: 30 %
material: steel l thickness: 0.6 mm l width of perforation: 616 mm
material: steel l thickness: 0.7 mm l width of perforation: 616 mm
