F30 Drop-Slide

LMD Fire Rated Metal Ceiling acc. to DIN 4102-2

F30 Drop-Slide

LMD Fire Rated Metal Ceiling acc. to DIN 4102-2

The suspended fire rated metal ceiling impresses with ease of maintenance: every freely spanned ceiling element can be lowered and slid beneath other panels. No additional ceiling void is necessary for maintenance works. Moreover, no hanging ceiling elements affect the building traffic. This system offers an excellent compensation of tolerances on the wall.

general building authority test certificate No. P-2101/336/18-MPA BS
freely spanned construction
very good compensation of tolerances on the wall is possible due to an adjustable wall connection
maintenance option due to ceiling elements that can be individually operated, lowered and slid without tools
lowered ceiling elements can be pushed together to receive a large inspection opening (approx. 3,000 x 2,000 mm)
no disturbing, hanging ceiling elements in opened condition of the ceiling
no additional ceiling void is necessary for maintenance works
hygienic and easy to clean

Data Sheet CAD-Portal

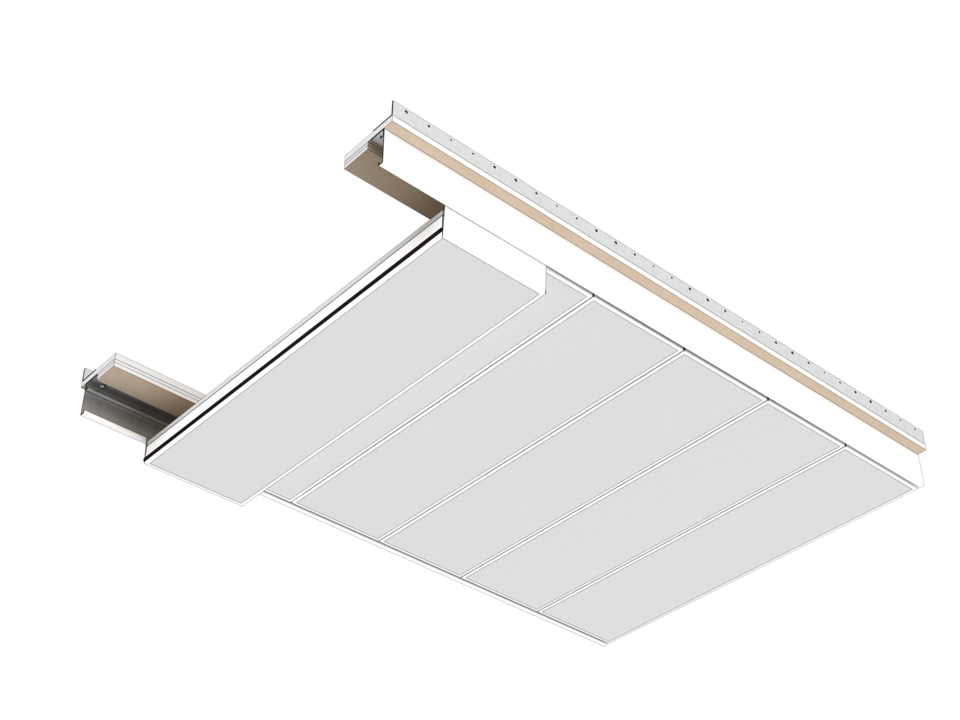

F30 Drop-SlideView from below

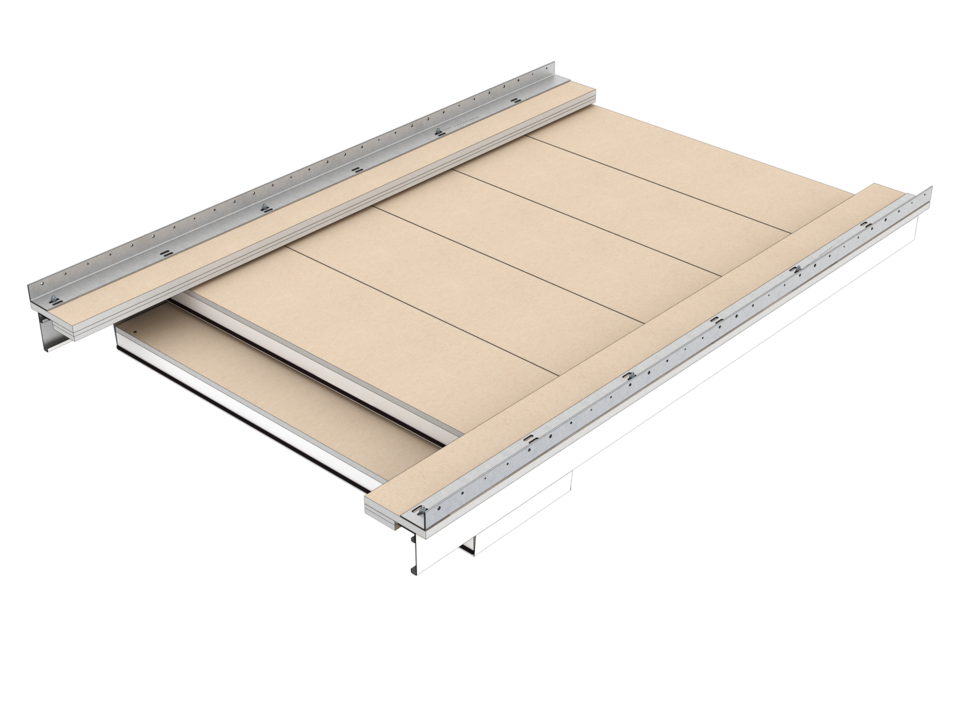

F30 Drop-SlideView from above

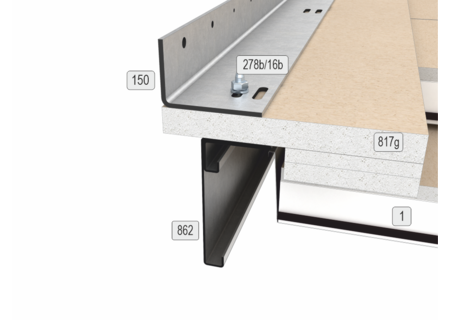

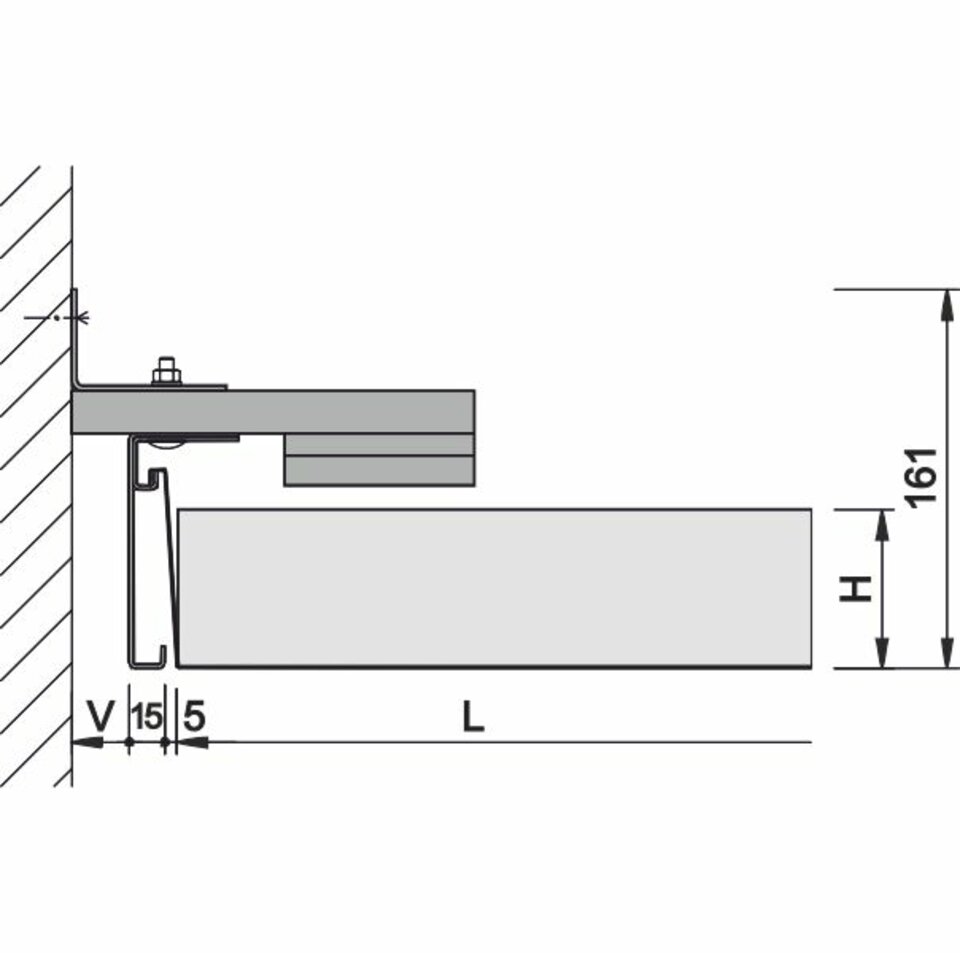

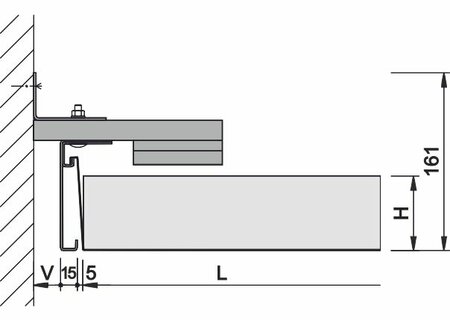

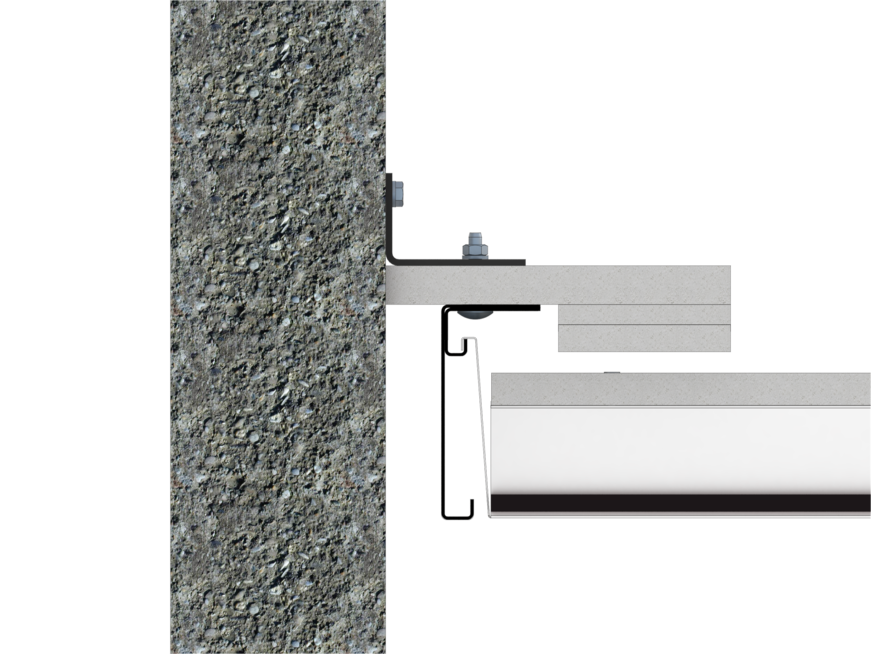

F30 Drop-SlideSection

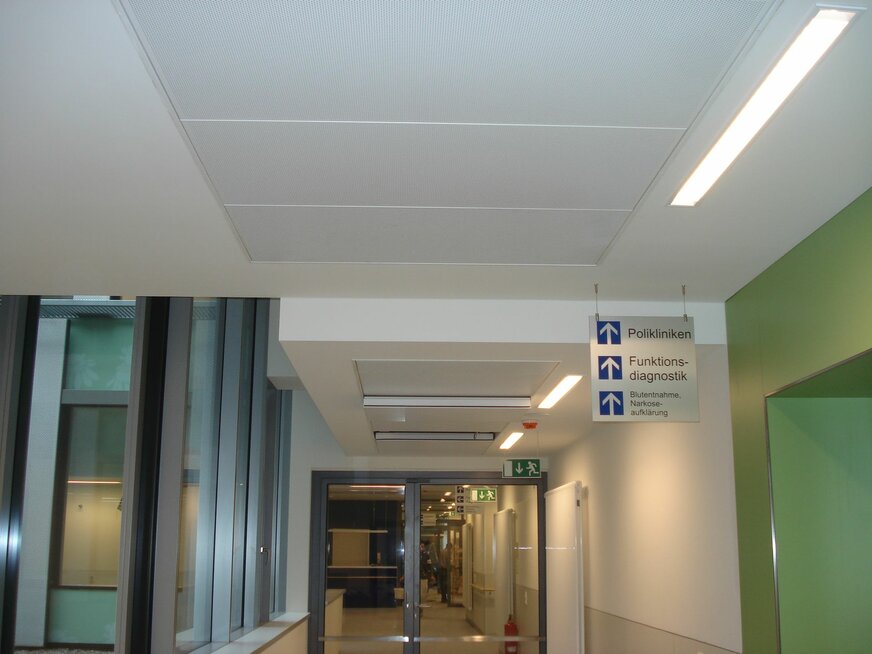

F30 Drop-SlideApplication

High

Downloads

Digital Service

NBS Specifications

BIM Content

www.bimobject.com

Product Information

Ceiling elements

Type table - Ceiling

Type

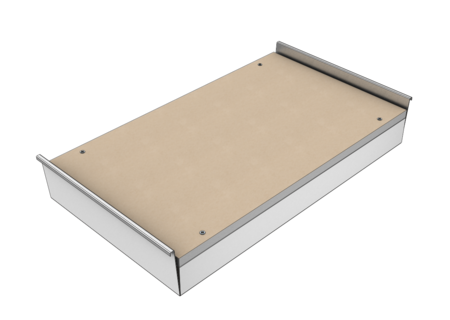

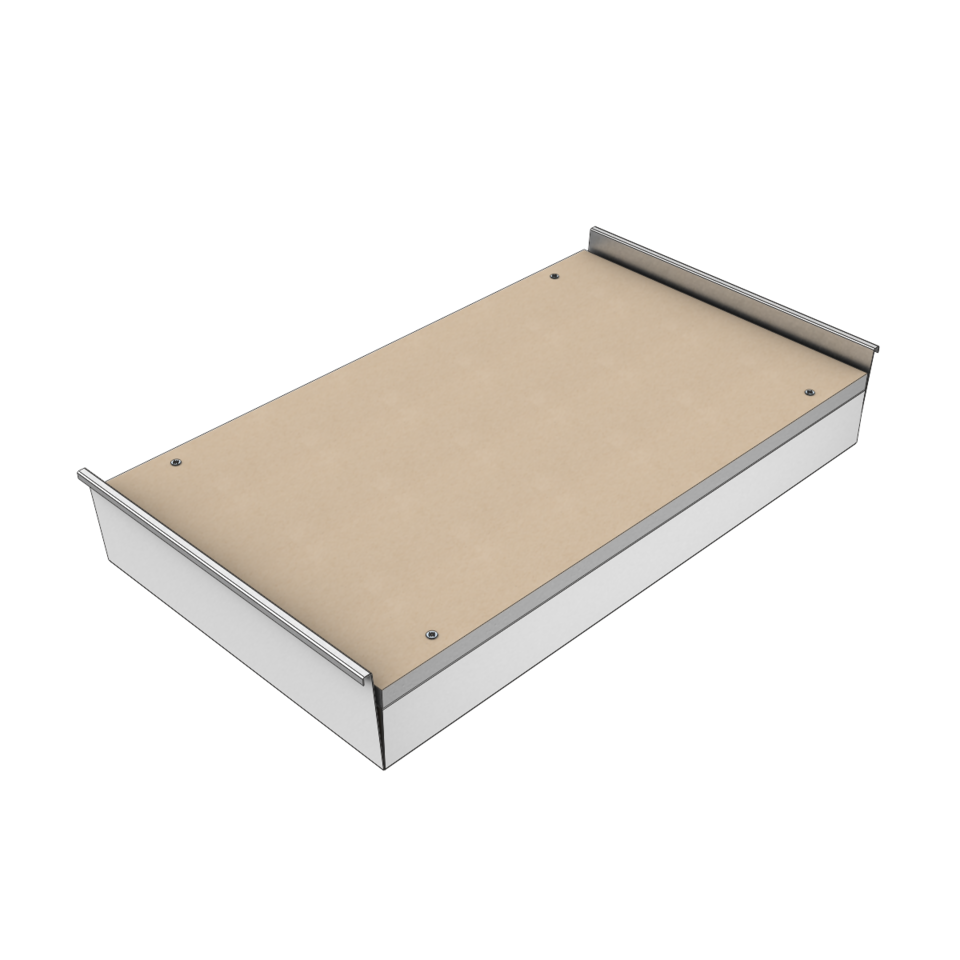

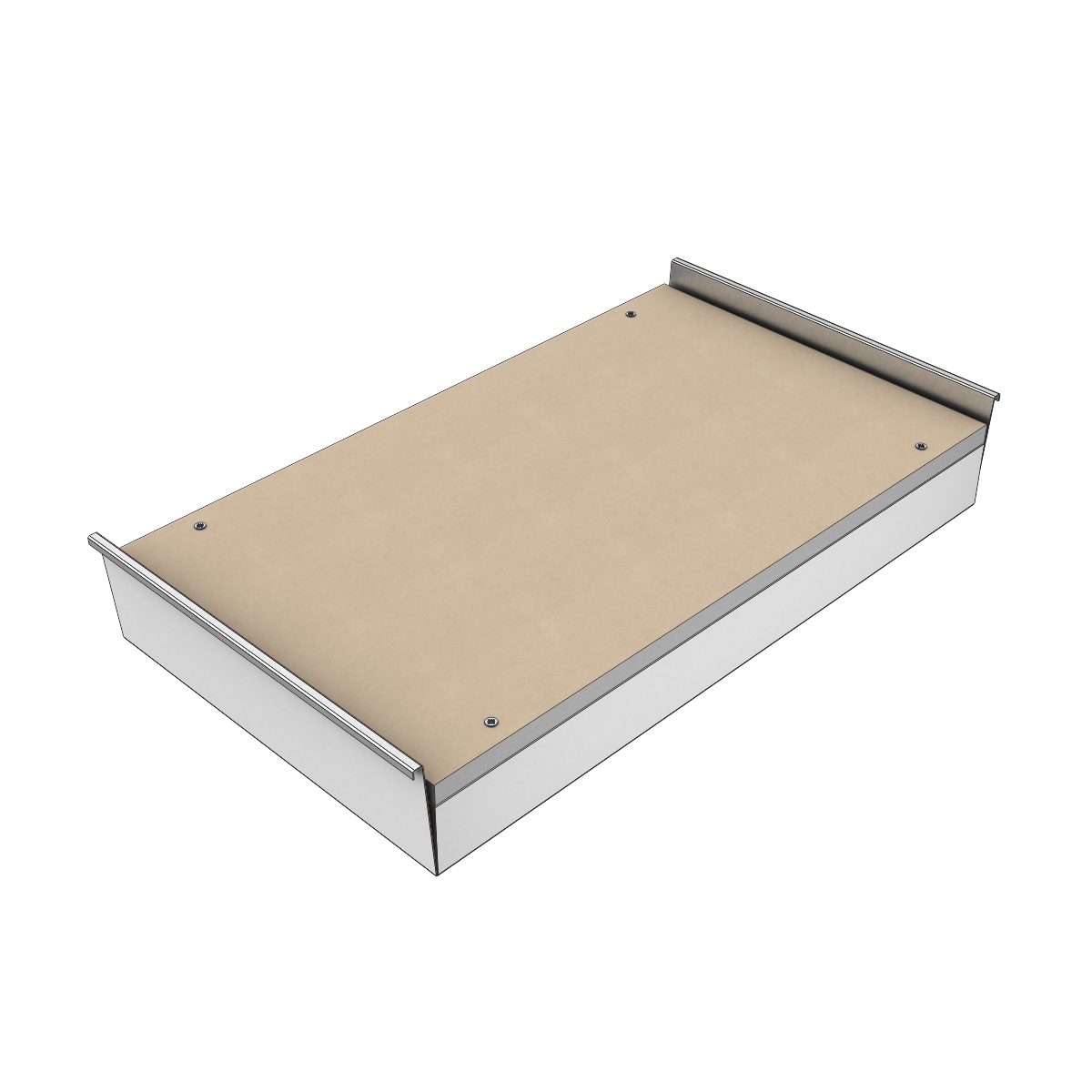

LMD F30-A Type 10.1

Length (L)

500 - 2,500 mm

Width (B)

200 - 625 mm

Height

67.5 mm

Adjustment Range

10 - 39 mm

Type table - Ceiling

Type

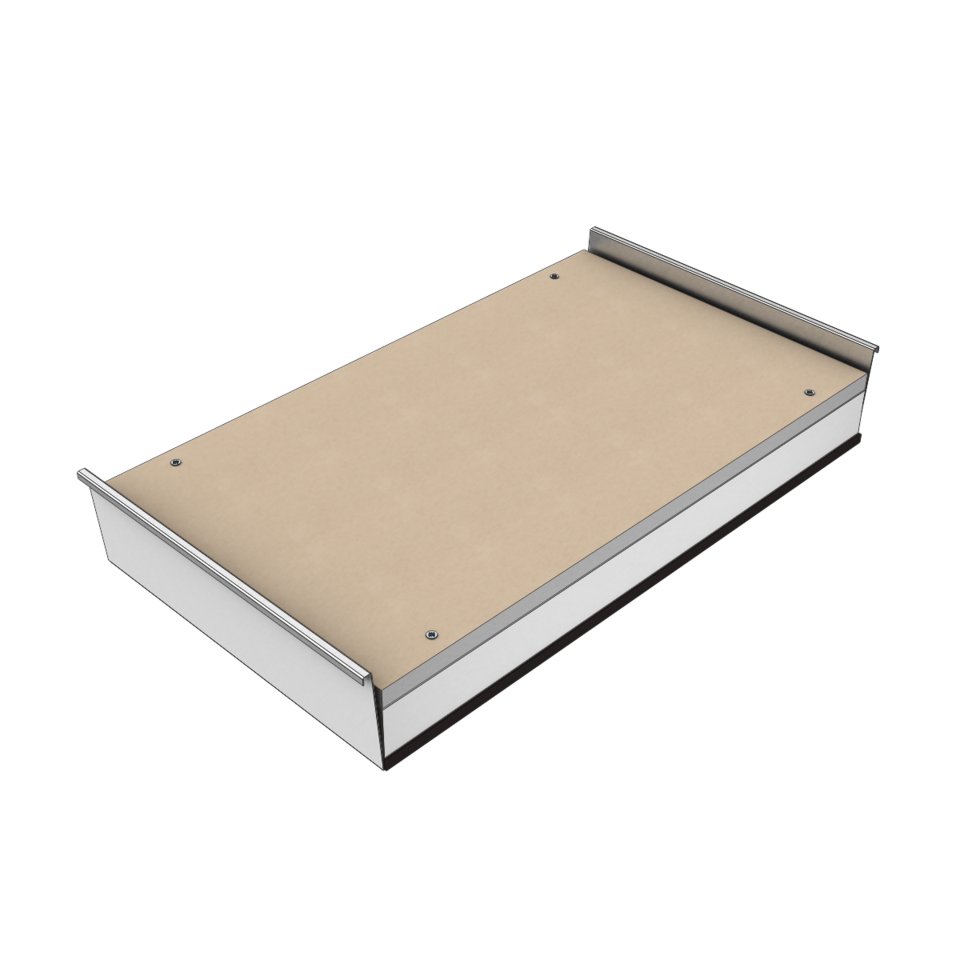

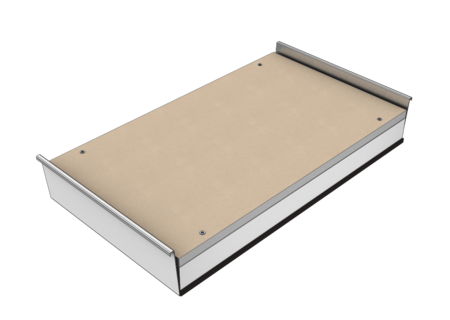

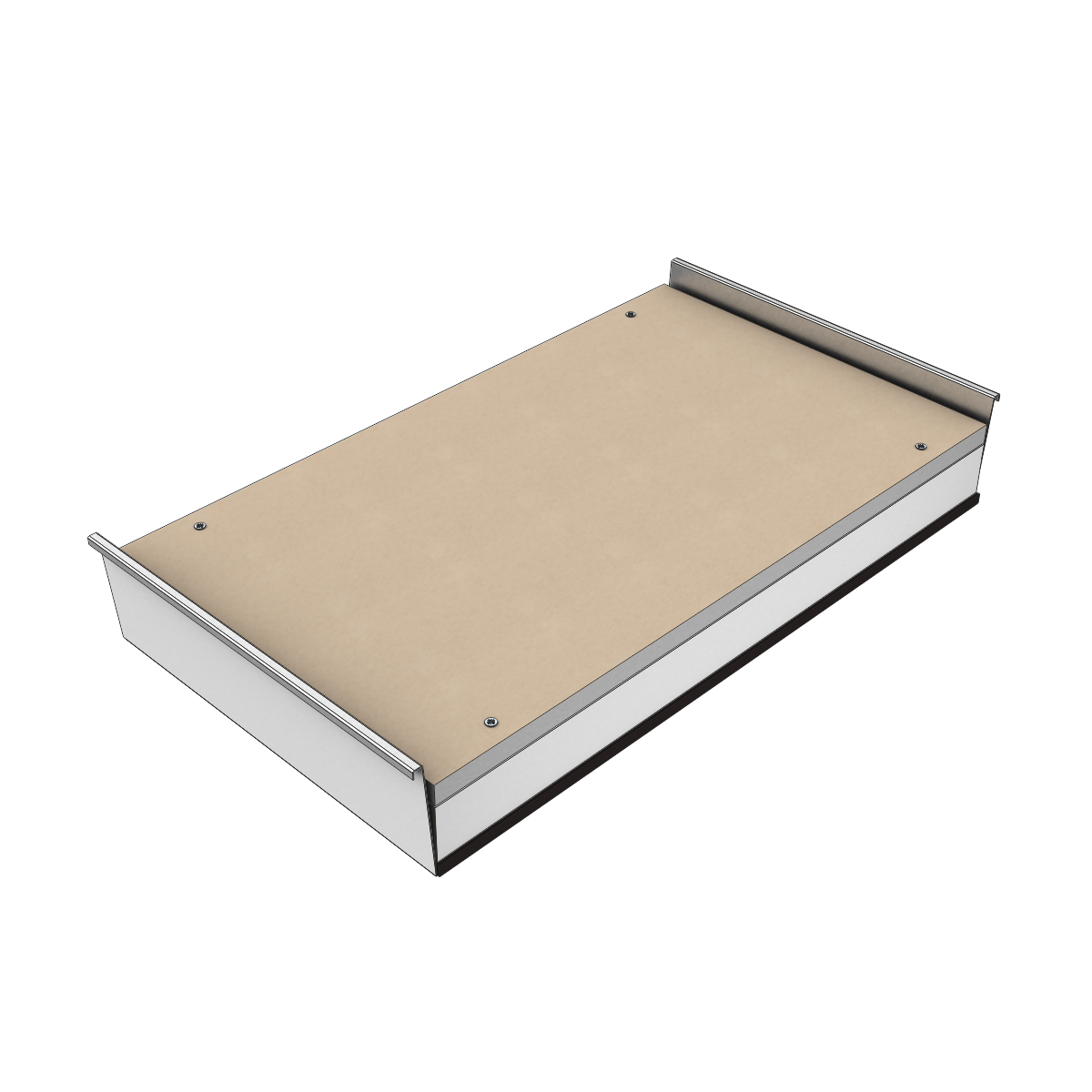

LMD F30-AB Type 10.1

Length (L)

500 - 2,500 mm

Width (B)

200 - 625 mm

Height

67.5 mm

Adjustment Range

10 - 39 mm

Technical data

Component list

Acoustics

Room Acoustics

Evaluated Sound Absorption Coeff.

DIN EN ISO 11654

αw

0,15 - 0,85

Sound Absorber Class

DIN EN ISO 11654

E - B

Noise Reduction Coefficient

ASTM C 423

NRC

0,15 - 0,85

Fire protection

Durability

Sustainability

Surfaces

Certification
