BASICline

Standard Perforations

BASICline

Standard Perforations

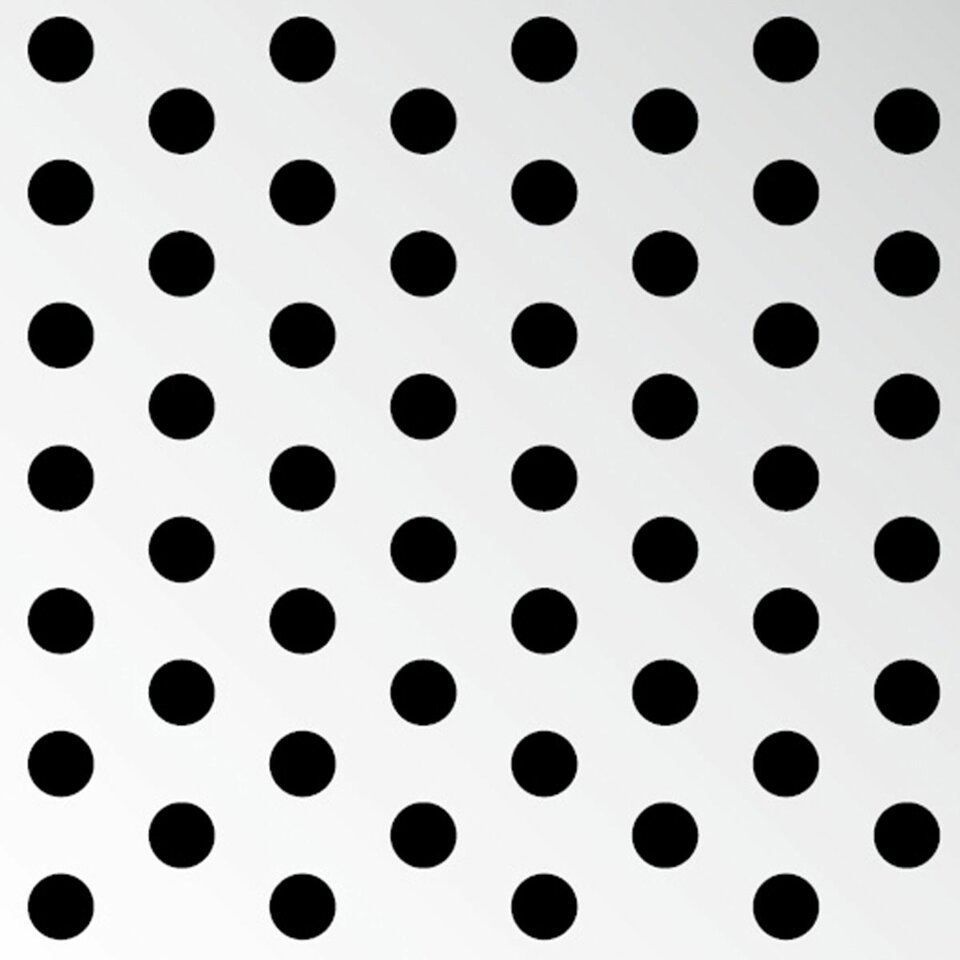

The standard perforations BASICline are common perforations that are constantly available. The round holes can be arranged in straight pitch or in diagonal pitch (45° or 60°). Perforated metal ceilings are acoustically effective when combined with sound-absorbing inlays on the rear side.

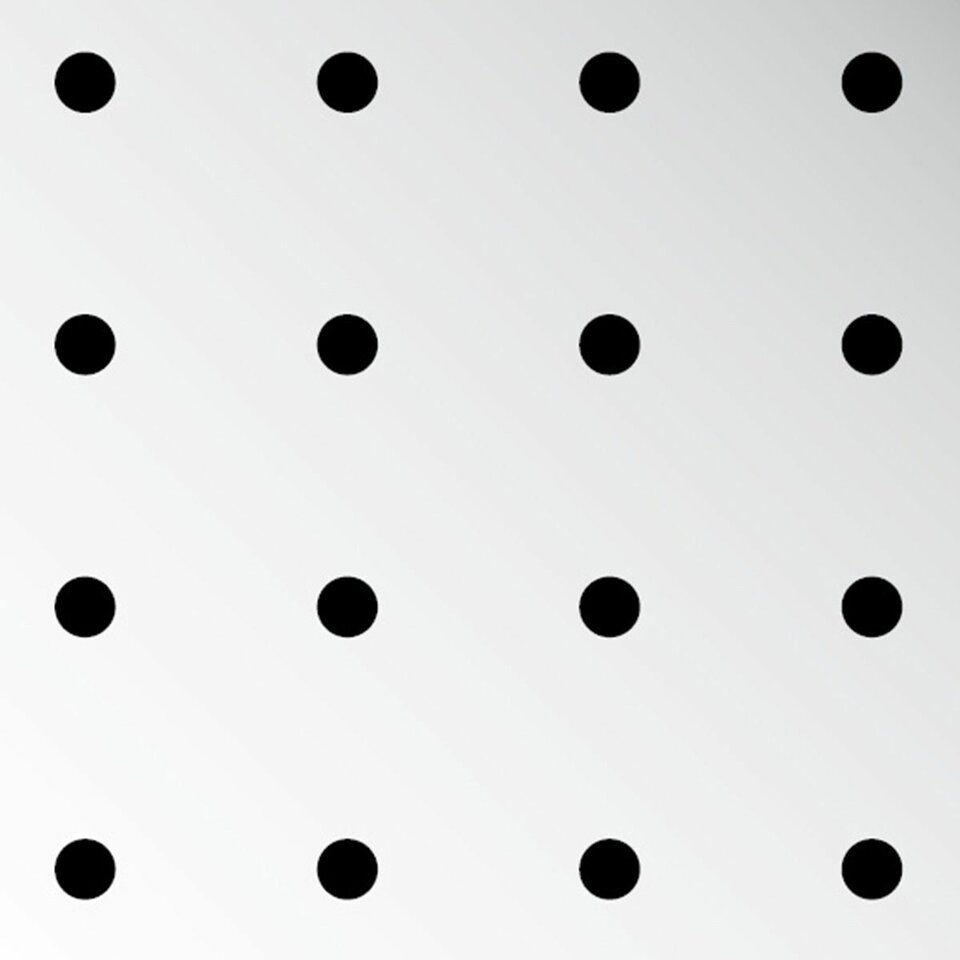

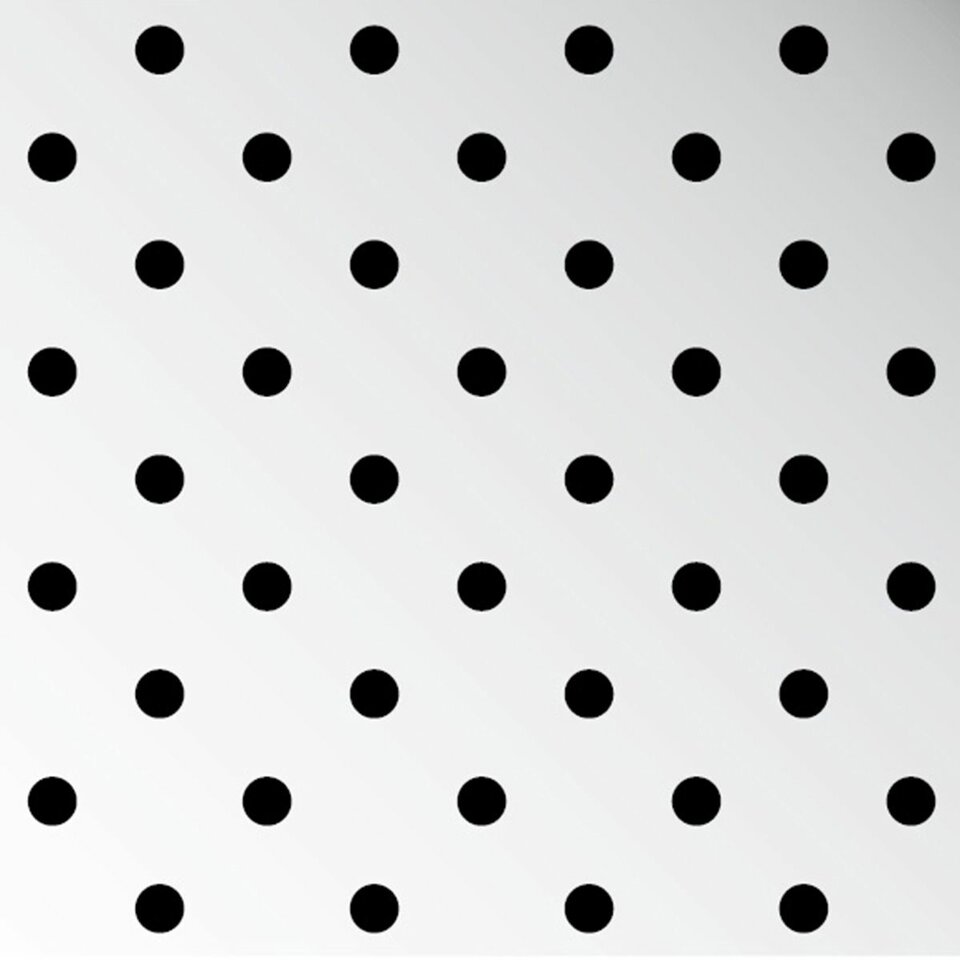

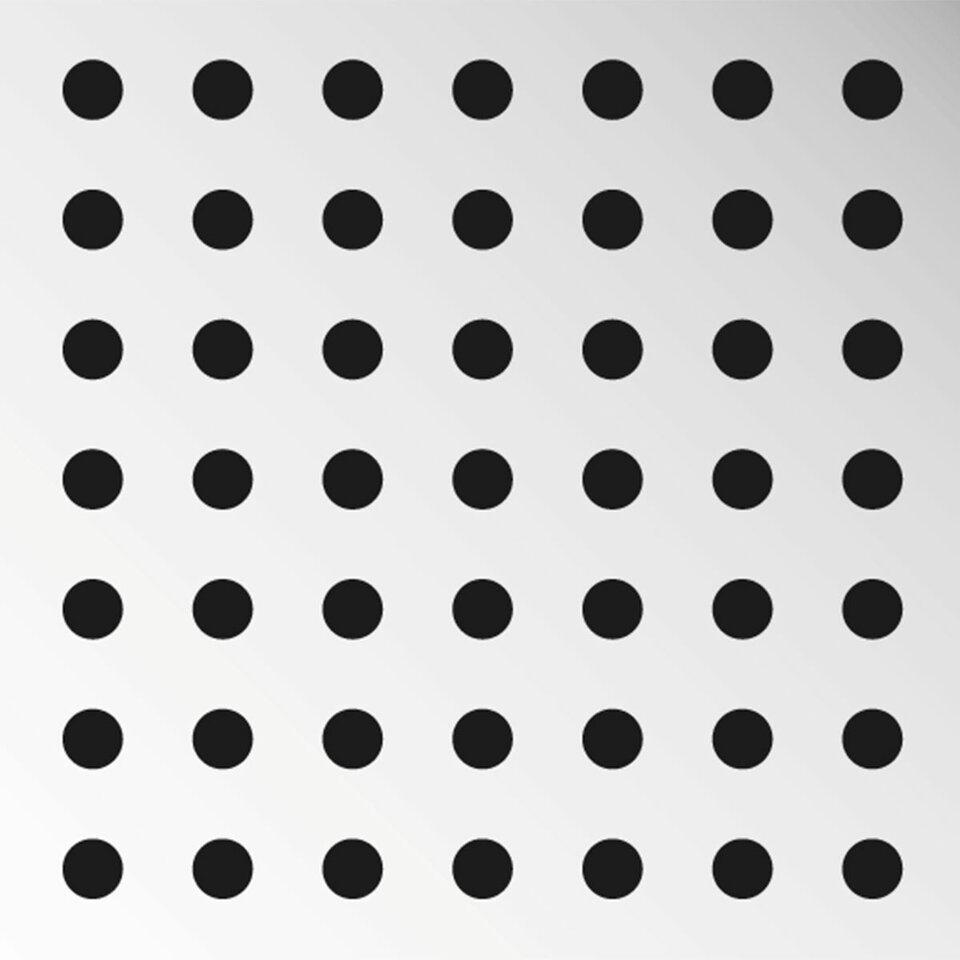

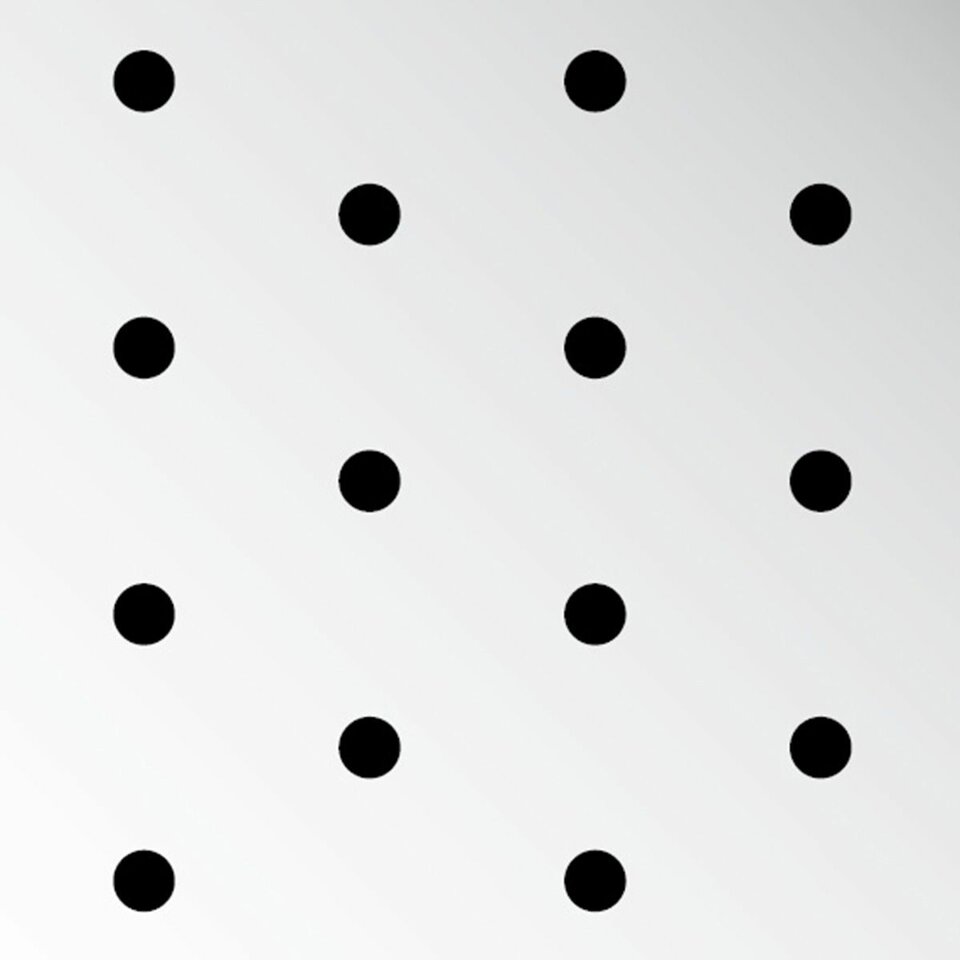

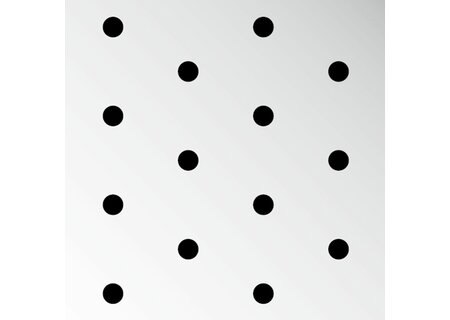

round holes arranged in straight pitch or in diagonal pitch (45° or 60°)
acoustically effective in combination with sound absorbing inlays

Data Sheet

BASIClineApplication

Downloads

Digital Service

NBS Specifications

Product Information

Variants

Rg 2,5-4

hole: Ø 2.5 mm straight pitch
open area: 4 %
material: steel l thickness: 0.6 mm l width of perforation: 1,400 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,400 mm

Rd 2,5-8

hole: Ø 2.5 mm diagonal pitch
open area: 8 %
material: steel l thickness: 0.6 mm l width of perforation: 1,400 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,400 mm

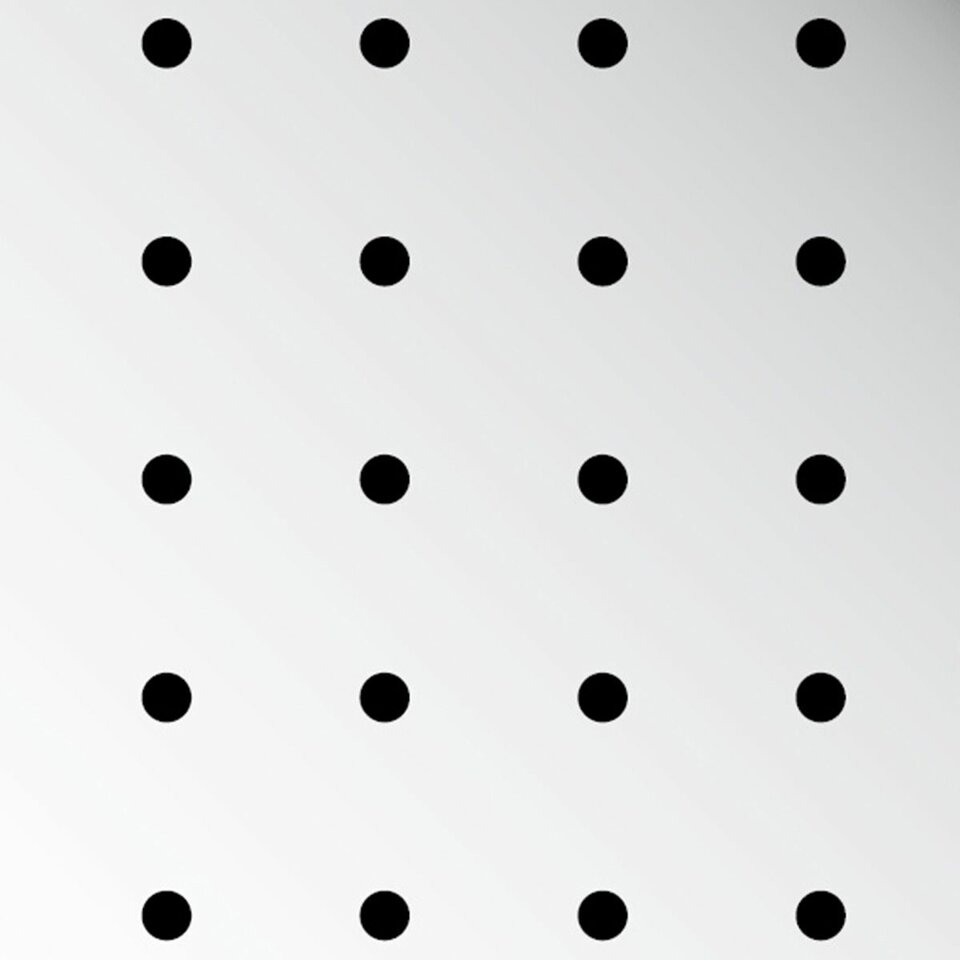

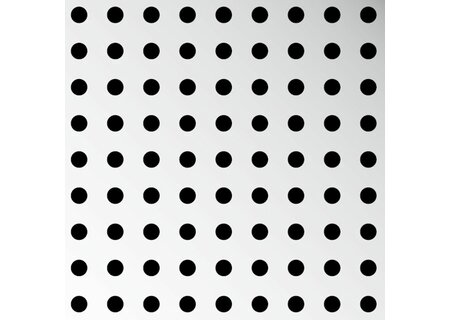

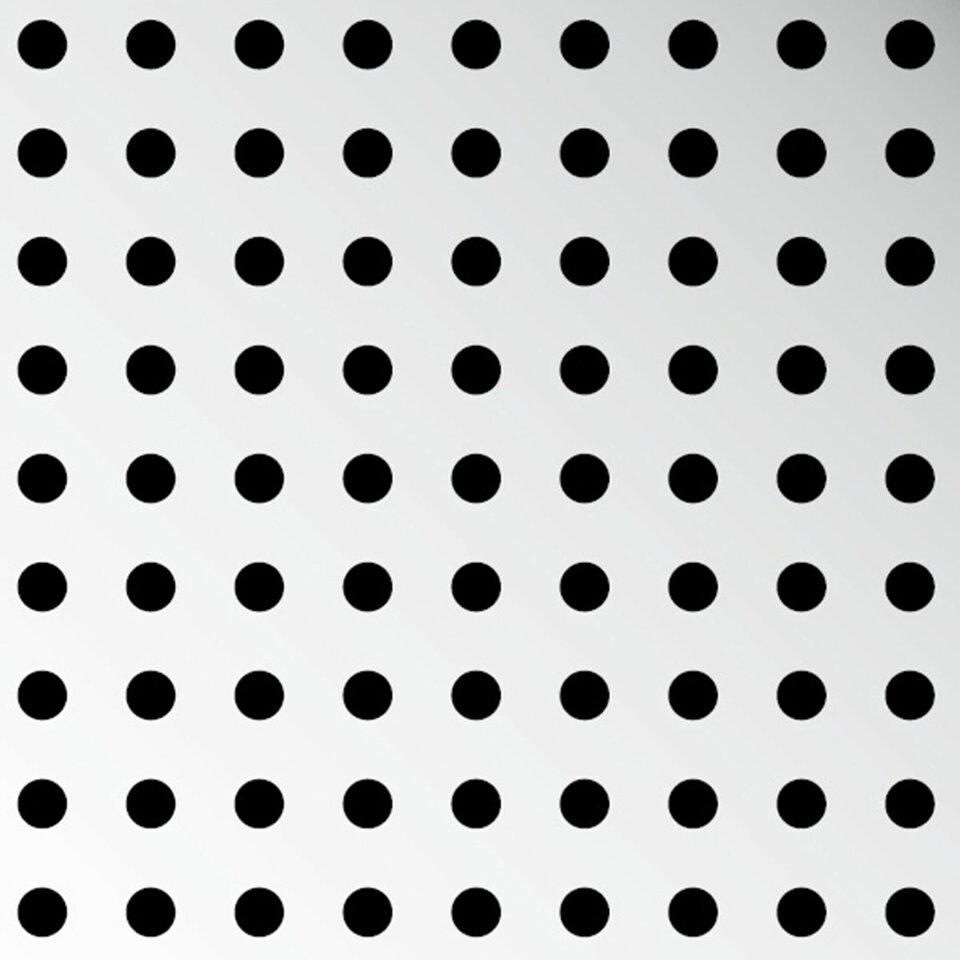

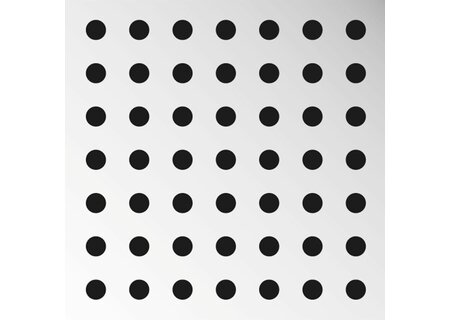

Rg 2,5-16

hole: Ø 2.5 mm straight pitch
open area: 16 %
material: steel l thickness: 0.6 mm l width of perforation: 1,400 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,400 mm
material: aluminium l thickness: 0.8 mm l width of perforation: 790 mm

Rg 3,0-4

hole: Ø 3.0 mm straight pitch
open area: 4 %
material: steel l thickness: 0.6 mm l width of perforation: 1.540 mm
material: steel l thickness: 0.7 mm l width of perforation: 1.540 mm

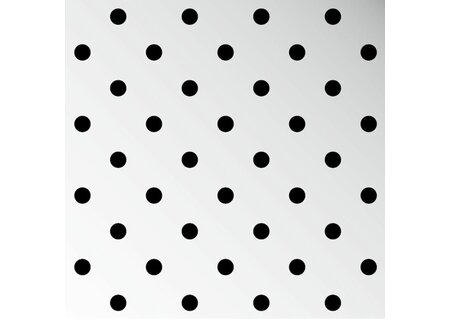

Rv 3,0-5

hole: Ø 3.0 mm diagonal pitch
open area: 5 %
material: steel l thickness: 0.6 mm l width of perforation: 1,500 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,500 mm

Rg 3,0-17

hole: Ø 3.0 mm straight pitch
open area: 17 %
material: steel l thickness: 0.6 mm l width of perforation: 1,540 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,540 mm
material: aluminium l thickness: 0.7 mm l width of perforation: 650 mm

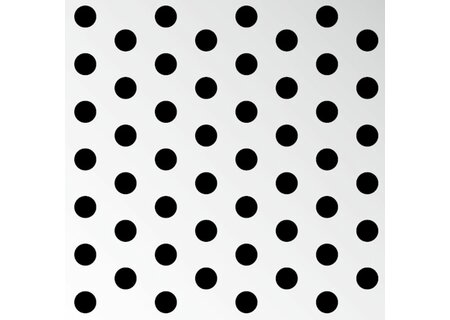

Rv 3,0-20

hole: Ø 3.0 mm diagonal pitch
open area: 20 %
material: steel l thickness: 0.6 mm l width of perforation: 1,500 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,500 mm

Rg 7,0-27

hole: Ø 7.0 mm straight pitch
open area: 27 %
material: steel l thickness: 0.6 mm l width of perforation: 1,300 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,300 mm

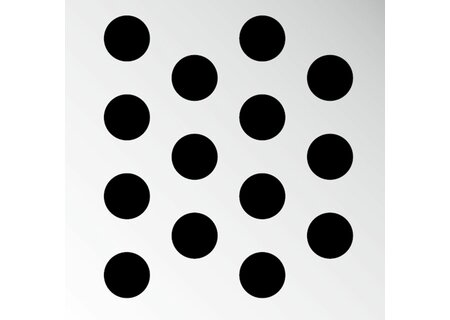

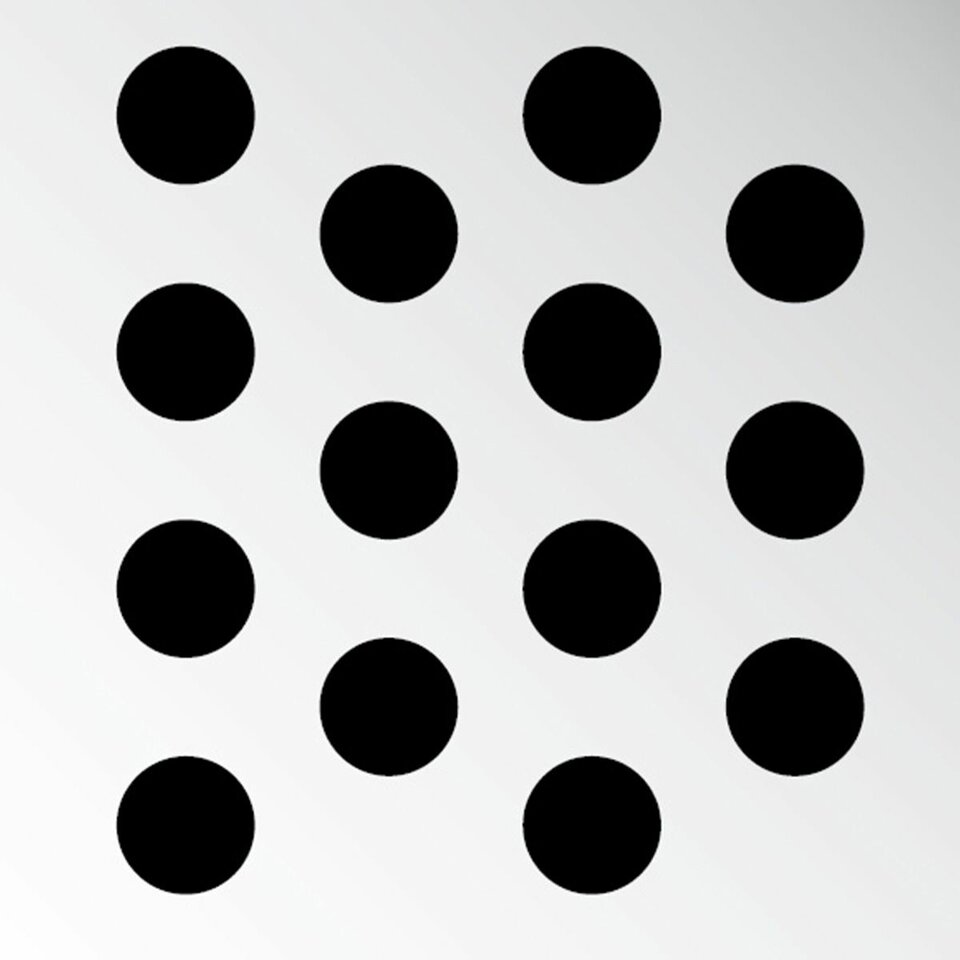

Rv 7,0-30

hole: Ø 7.0 mm diagonal pitch
open area: 30 %
material: steel l thickness: 0.6 mm l width of perforation: 1,300 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,300 mm

Rg 12,0-11

hole: Ø 12.0 mm straight pitch
open area: 11 %
material: steel l thickness: 0.6 mm l width of perforation: 1,290 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,290 mm

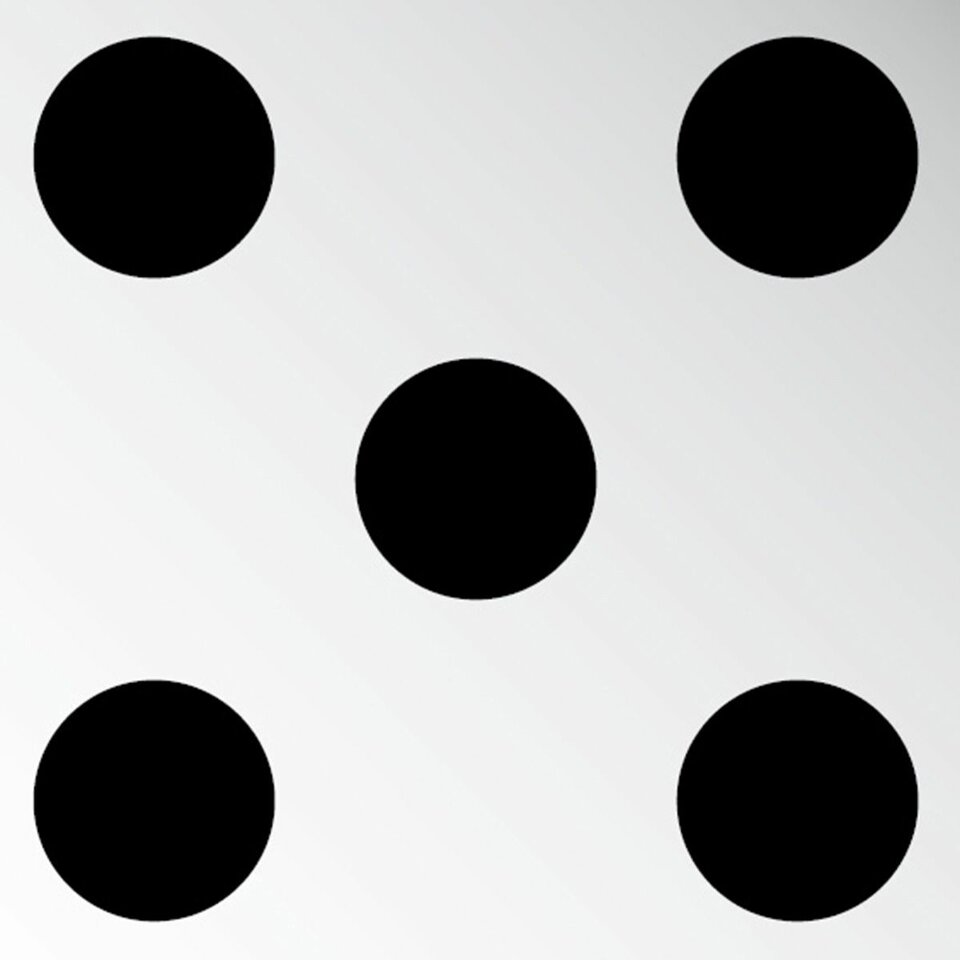

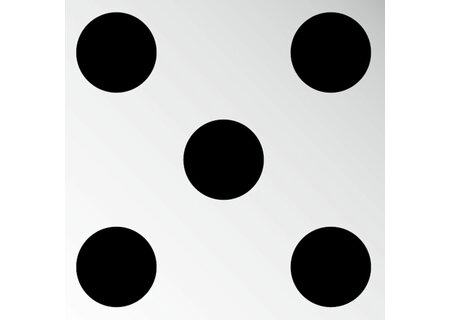

Rd 12,0-22

hole: Ø 12.0 mm diagonal pitch
open area: 22 %
material: steel l thickness: 0.6 mm l width of perforation: 1,290 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,290 mm

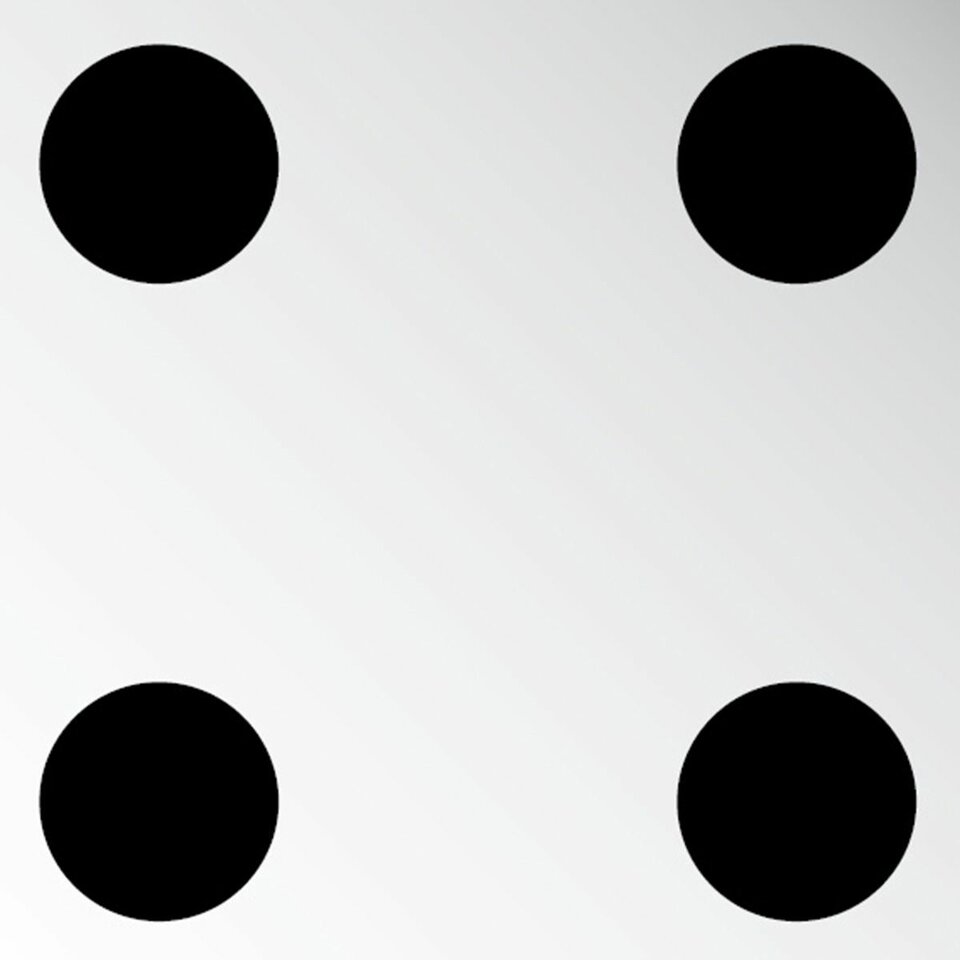

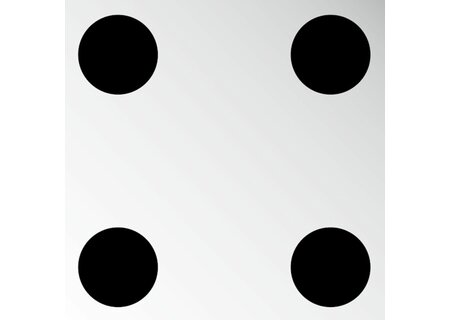

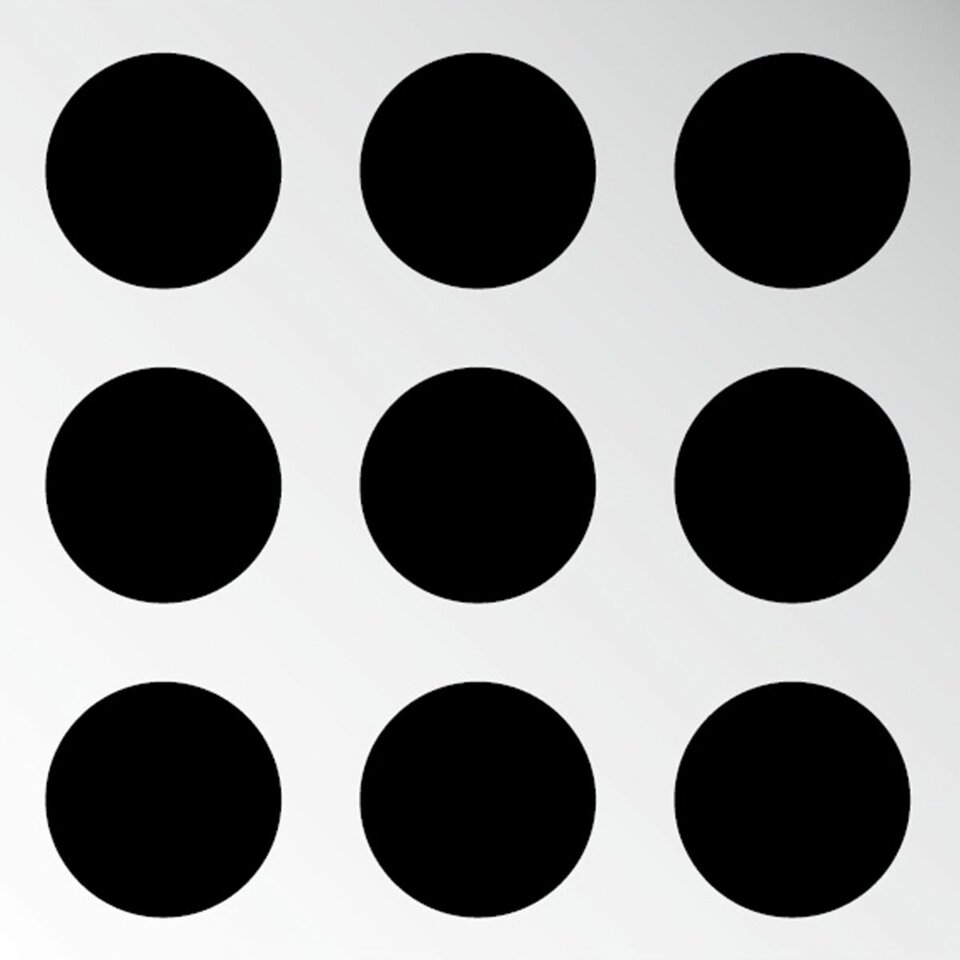

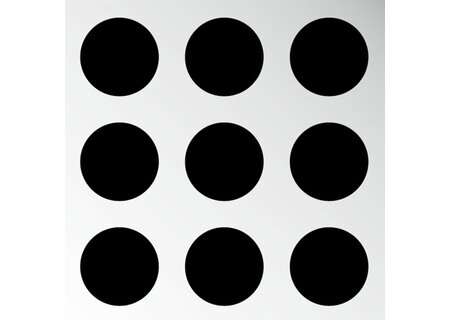

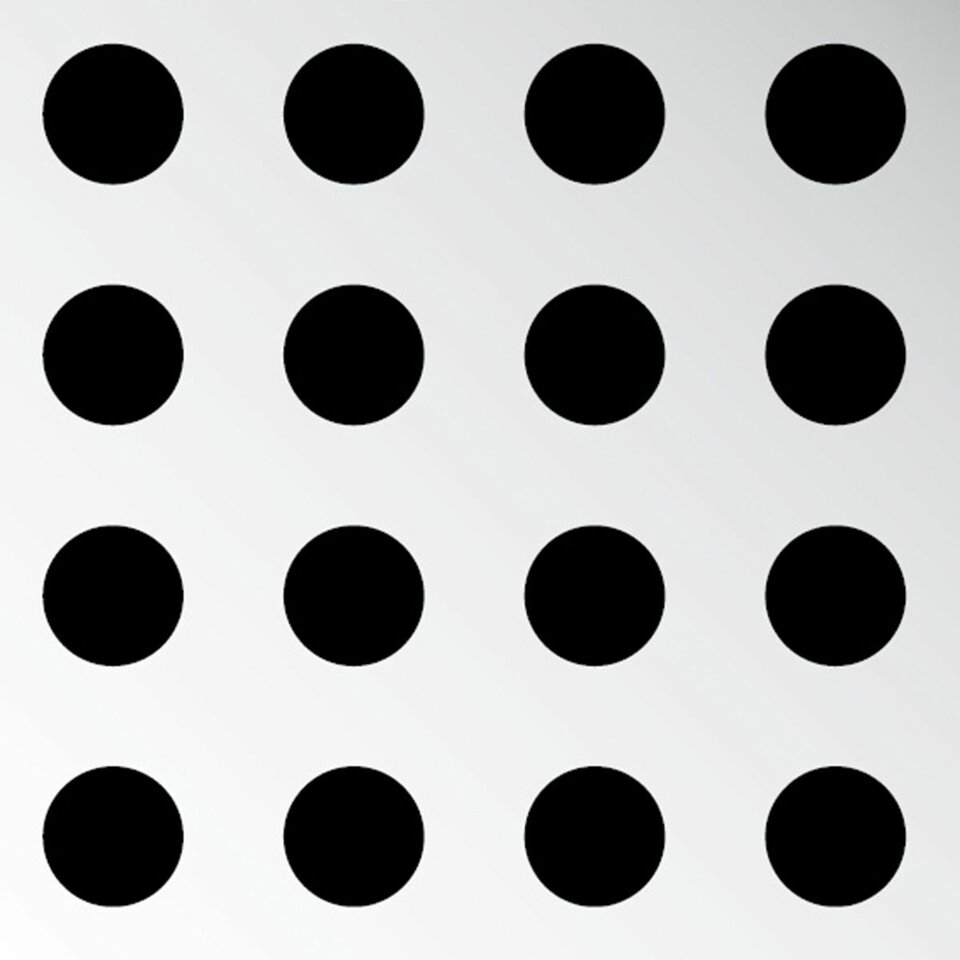

Rg 12,0-44

hole: Ø 12.0 mm straight pitch
open area: 44 %
material: steel l thickness: 0.6 mm l width of perforation: 1,290 mm
material: steel l thickness: 0.7 mm l width of perforation: 1,290 mm

Technical details

Acoustics

Fire protection

Durability

Sustainability

Project solutions

Don't hesitate to contact us!

+49 8723 20-3679 E-Mail

Combinable Systems - (45)

LMD-B 100

Linear Post Cap Ceiling

LMD-E 200

Hook-On Ceiling

LMD-E 213

Hook-On Ceiling with Accentuated Joints

LMD-L 608

Metal Baffle Ceiling, Hook-On/Slide baffle, two-piece

LMD-L 609

Metal Baffle Ceiling, Hook-On/Slide baffle, one-piece

F30 Hook-On-Swing-Down-Slide

LMD Fire Rated Metal Ceiling acc. to DIN 4102-2

F90 Hook-On-Swing-Down-Slide

LMD Fire Rated Metal Ceiling acc. to DIN 4102-2

EI90-VKF Hook-On-Swing-Down-Slide

LMD Fire Rated Metal Ceiling application acc. to VKF

Plafotherm® B 100

Linear Heated and Chilled Post Cap Ceiling

Plafotherm® DS 320

Heated and Chilled Canopy Ceiling in Filigree Optics

Plafotherm® E 200

Heated and Chilled Hook-On Ceiling

Plafotherm® L 608

Heated and Chilled Metal Baffle Ceiling, Hook-On/Slide baffle, two-piece

Plafotherm® L 609

Heated and Chilled Metal Baffle Ceiling, Hook-On/Slide baffle, one-piece

Plafotherm® DS AirHybrid

Hybrid Ventilation Element in Canopy Ceiling

LMD-DS 320

Metal Canopy Ceiling in Filigree Optics

EI30 Hook-On-Swing-Down-Slide

LMD Fire Rated Metal Ceiling classified acc. to DIN EN 13501-2

EI90 Hook-On-Swing-Down-Slide

LMD Fire Rated Metal Ceiling classified acc. to DIN EN 13501-2

EI30-VKF Hook-On-Swing-Down-Slide

LMD Fire Rated Metal Ceiling application acc. to VKF

Plafotherm® B 100 SD

Linear Heated and Chilled Post Cap Ceiling, Longitudinally Sound-Reduced

Plafotherm® B 147 SD

Heated and Chilled Post Cap Ceiling Concealed, Longitudinally Sound-Reduced

Plafotherm® E 210

Heated and Chilled Hook-On Ceiling with Butt Joints

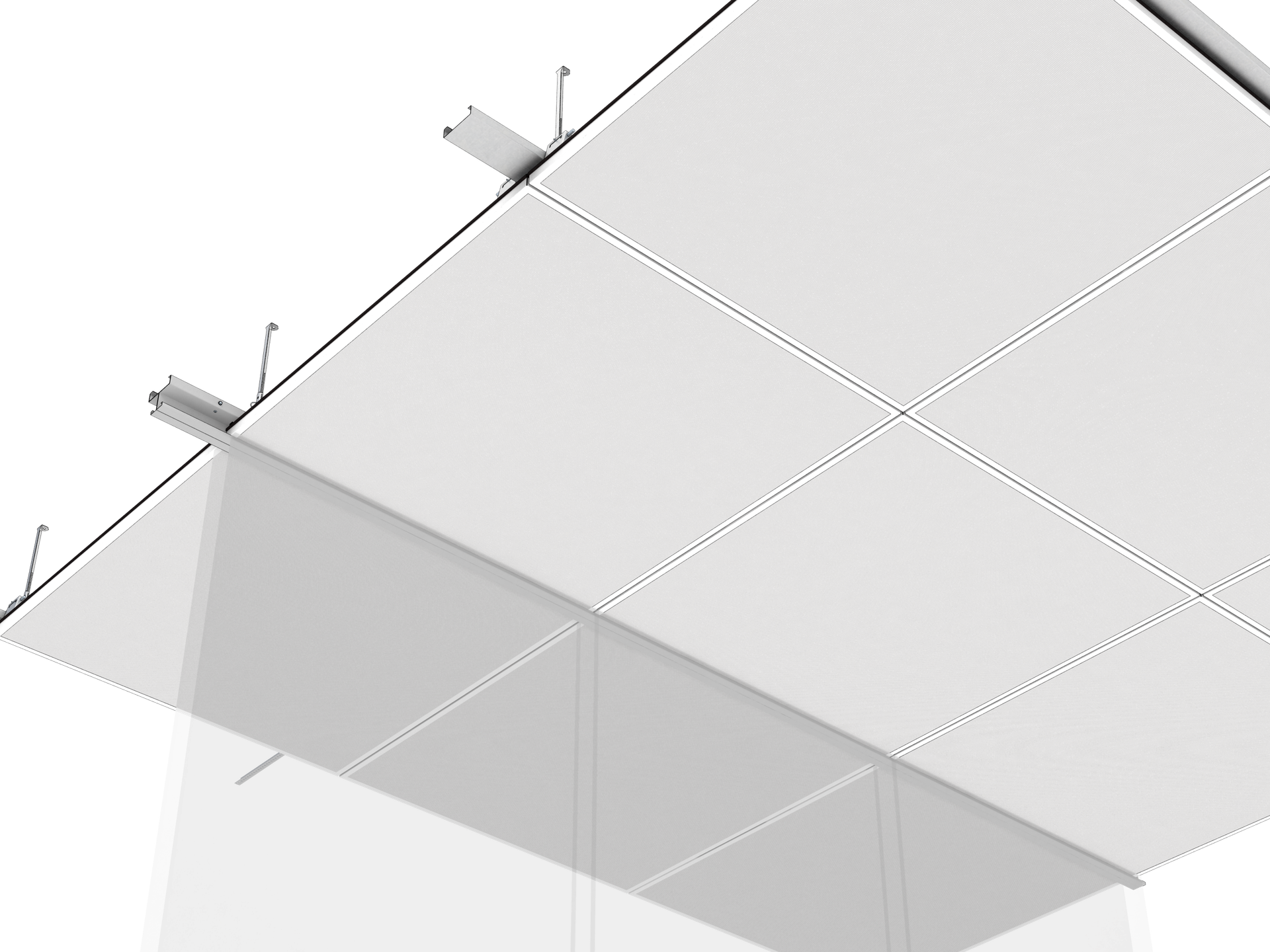

LMD-B 147 SD

Post Cap Ceiling Concealed, Longitudinally Sound-Reduced

LMD-E 312

Hook-On-Swing-Down-Slide Corridor Ceiling

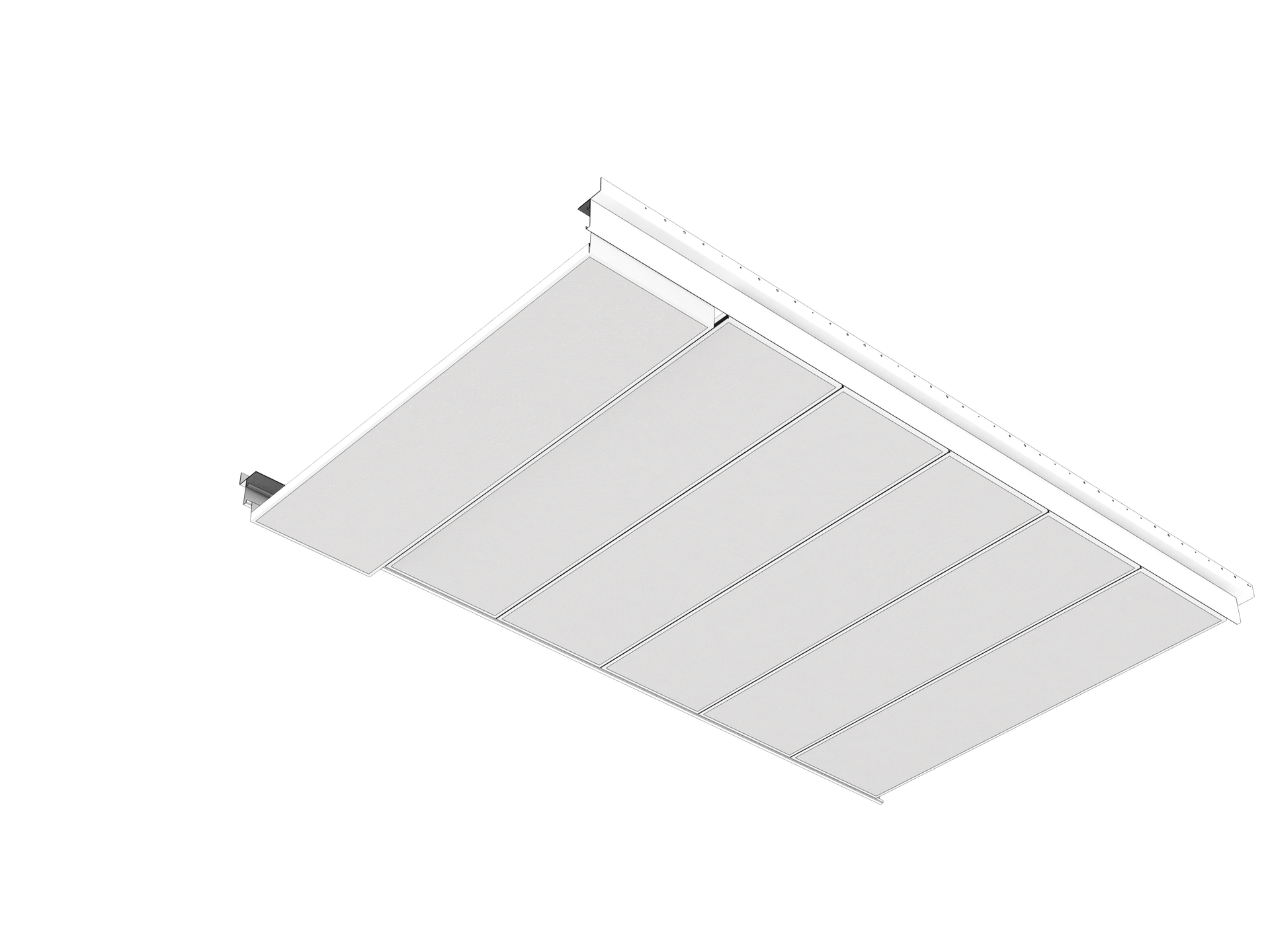

LMD-E 340

Drop-Slide Corridor Ceiling

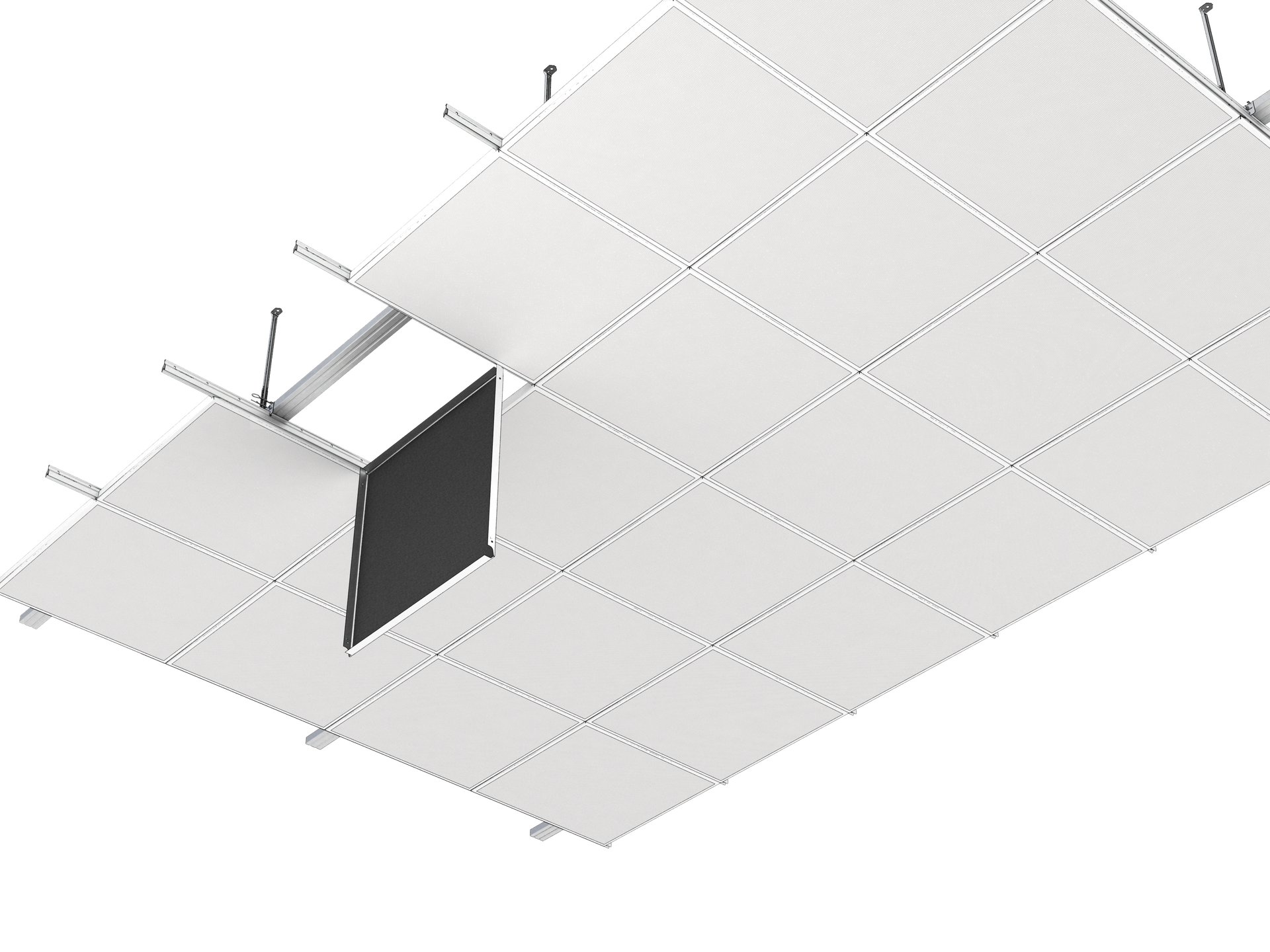

LMD-K 420
