LMD-E 300

Lay-In Corridor Ceiling

LMD-E 300

Lay-In Corridor Ceiling

The system LMD-E 300 is simply convincing: the ceiling panels of the corridor ceiling are freely spanned from wall to wall and supported by perimeter trims. This simple ceiling construction is quickly and easily installed and is an economic solution. Individual ceiling panels can be lifted and removed.

freely spanned construction
easy and quick installation
easy maintenance option due to ceiling panels that can be individually operated
cost-effective ceiling system as economic solution
hygienic and easy to clean

Data Sheet CAD-Portal

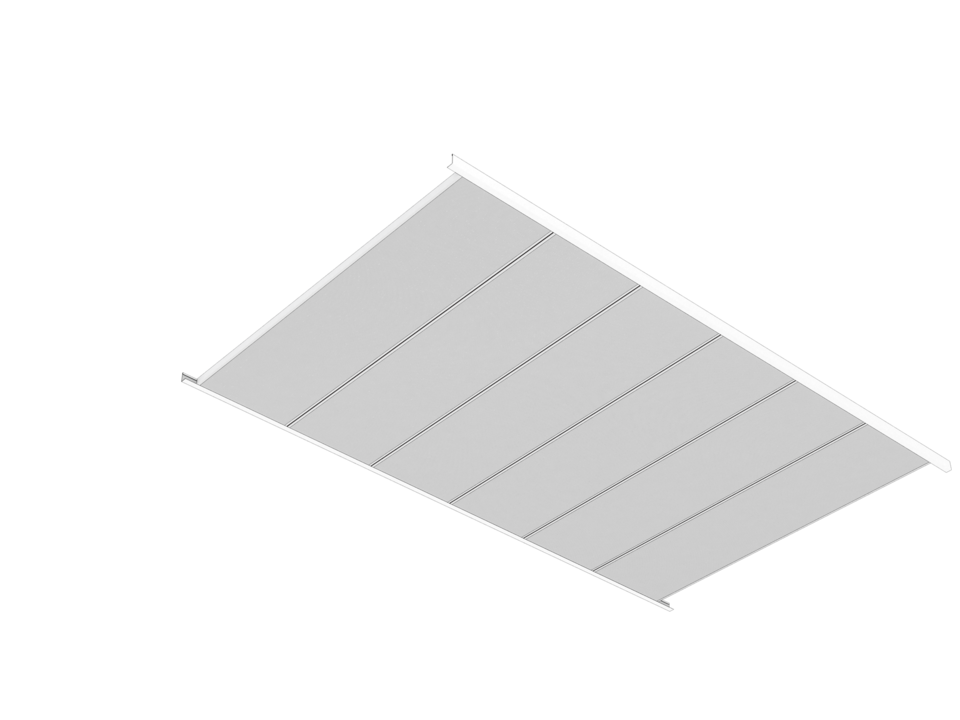

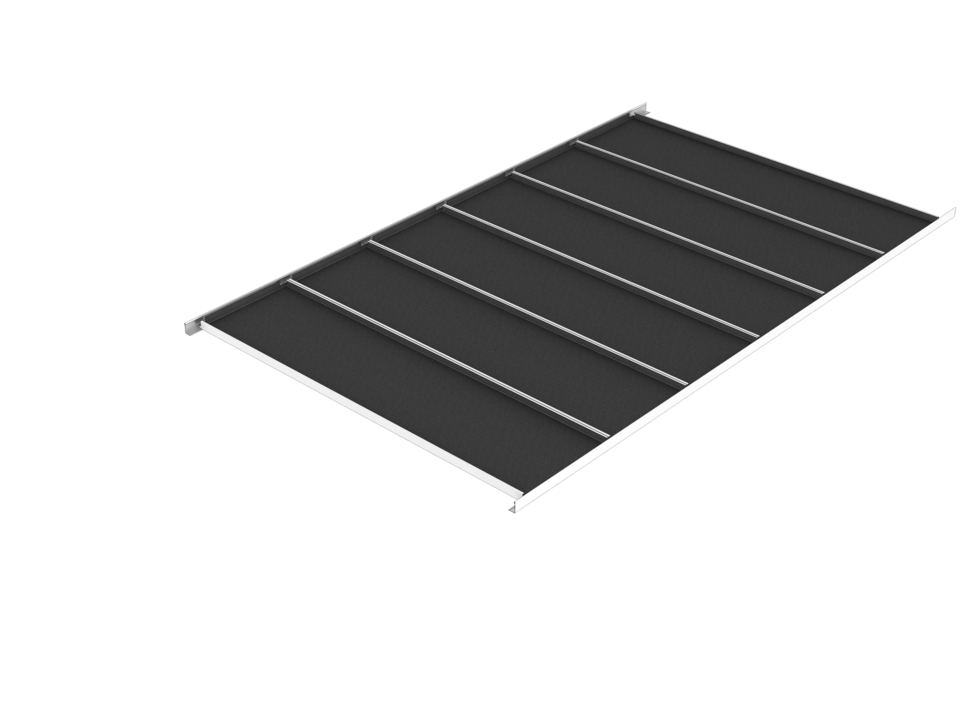

LMD-E 300View from below

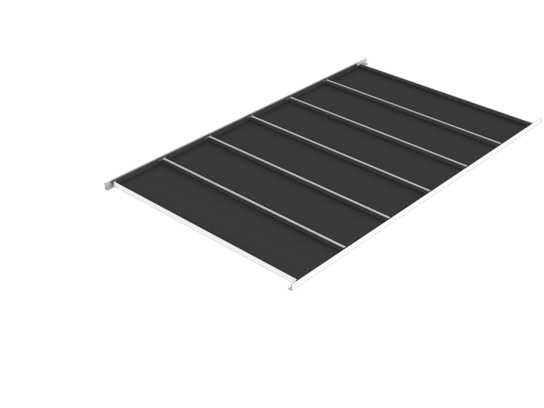

LMD-E 300View from above

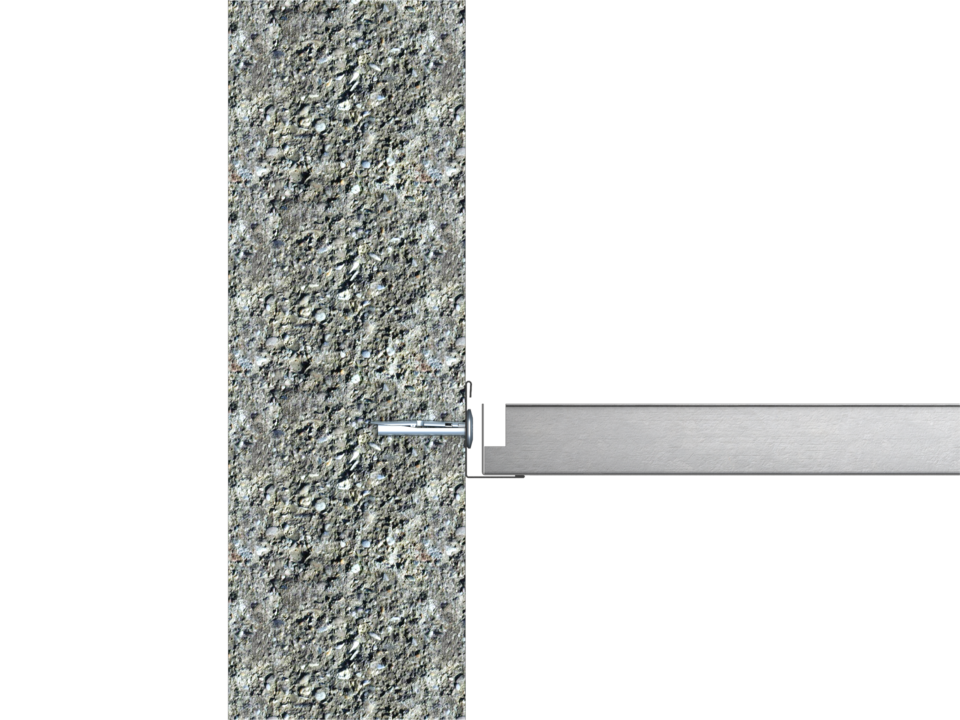

LMD-E 300Section

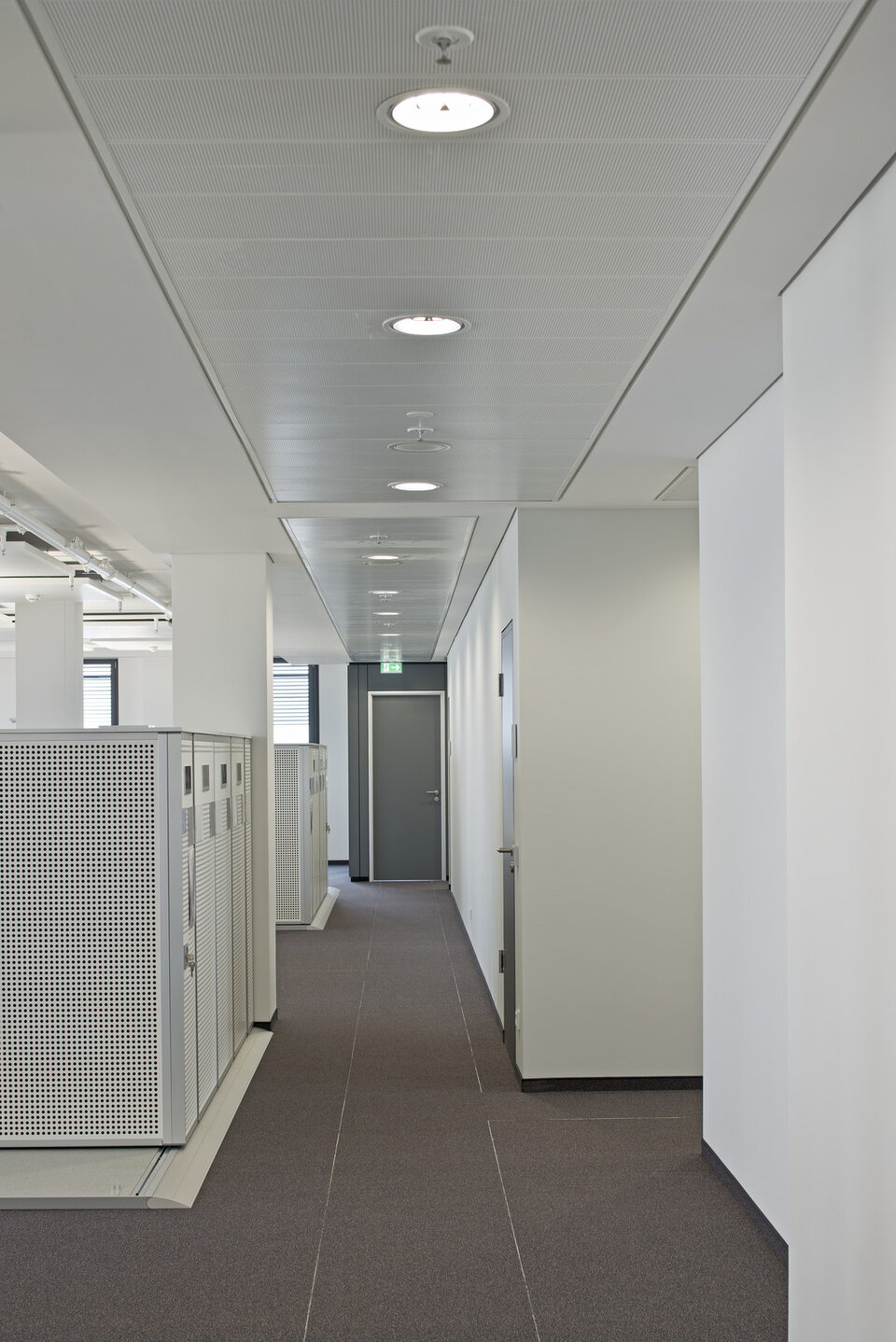

LMD-E 300Application

LMD-E 300Application

Outstanding

Downloads

Digital Service

NBS Specifications

Product Information

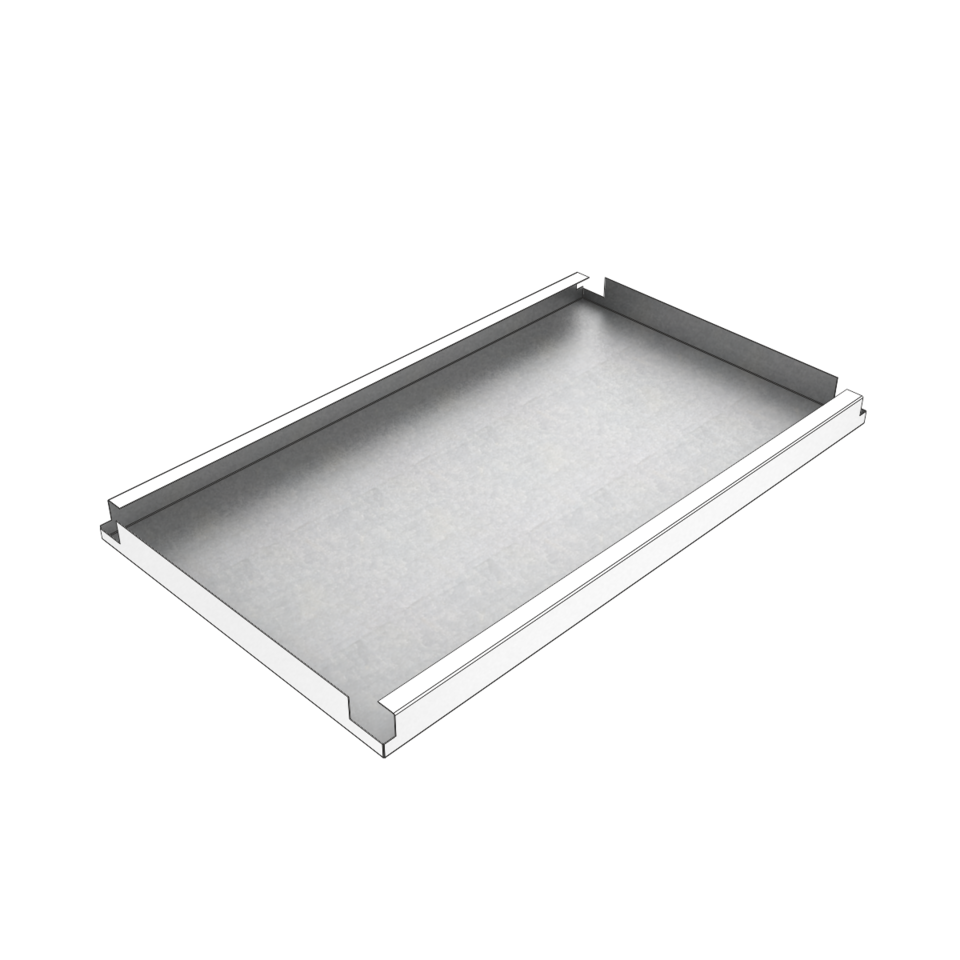

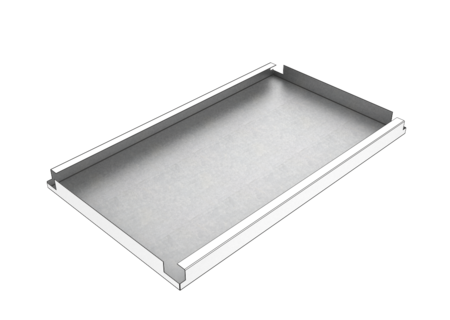

Ceiling elements

Technical Details

Component list

Acoustics

Room Acoustics

Evaluated Sound Absorption Coeff.

DIN EN ISO 11654

αw

0,15 - 1

Sound Absorber Class

DIN EN ISO 11654

E - A

Noise Reduction Coefficient

ASTM C 423

NRC

0,15 - 0,95

Fire protection

Durability

Sustainability

Data

Recycling Content

24.4 %

Indoor Air Measurement

EN 16516

< 5 µg/m³

Formaldehyde Emissions

< 3 µg/m³

Evidence of emission measurements

Indoor Air Comfort

Erfüllt

Indoor Air Comfort Gold

Erfüllt

AgBB/ ABG

Erfüllt

BREEAM Internatonal

Conform

LEED v4

Conform

DGNB

Conform

Declarations and Proof

Product Self-Declaration

Self-Declaration according to ISO 14021

EPD (Environmental Product Declaration)

EPD according to EN 15804 / ISO 14025

Circular Economy

Cradle to Cradle Certified® Gold

French VOC Regulation

Emission class A+

Green Level Certification

Outstanding

Surfaces

Certification

Don't hesitate to contact us!

+49 8723 20-3679 E-Mail

Additional Equipment - (9)

IS 17

Integrated luminaire for general areas

The lighting fixture IS 17 is framelessly and flush-mounted integrated into the metal ceiling elemen...

LK 73

Light channel

Our lighting fixture LK 73 can be adjusted to your ceiling solution. The luminaire is produced proje...

IS 22

Integrated luminaire for monitor workstations

The lighting fixture IS 22 is framelessly and flush-mounted integrated into the metal ceiling elemen...

QZI

Recessed luminaire for metal ceilings

The system luminaire QZI can be flexibly used for all areas with requirements of glare-control. Ligh...

IS 450

Integrated luminaire for office and general areas

The lighting fixture IS 450 is framelessly and flush-mounted integrated into the metal ceiling eleme...

High

Acustica

Acoustic fabric inlay

The acoustic fabric inlay Acustica is installed on the rear side of perforated ceiling panels and co...

Insula

Mineral wool inlay in acoustic foil

Insula mineral wool inlays are used to improve room acoustics. Very high sound absorption values can...

DPL

Integrated luminaire for post cap ceilings

The system luminaire DPL is suitable for integration into post cap ceilings. It is produced project-...

Load all

Areas of Use

Healthcare: Clinics and Hospitals, Laboratories and Research Facilities, Clean rooms ( pharmacy and medical technology)

Work: Utility Rooms, Data Centres

Education: Research Rooms

Transport: Airports

Hotels and Gastronomy: Hotels and Resorts

Industry: Clean rooms (electronics and semiconductor technology), Laboratories and Research Facilities

Public Institutions: Court Houses, Government Buildings
