LMD-E 213

Hook-On Ceiling with Accentuated Joints

LMD-E 213

Hook-On Ceiling with Accentuated Joints

The system LMD-E 213 is characterised by accentuated joints in both directions along the ceiling panels, generating a special ceiling layout. Open Hook-On profiles create a homogeneous ceiling surface and an appealing look. Flexible shapes such as rectangular, trapezoidal or triangular ceiling panels enable individual, project-related design options. Ceiling panels that can be removed or swung down and slid without tools are available.

homogeneous ceiling surface due to concealed substructure
individual design thanks to flexible panel shapes and sizes
ceiling layout with accentuated joints in both directions possible
easy maintenance option due to ceiling panels that can be individually operated, swung down and slid without tools
hygienic and easy to clean

Data Sheet CAD-Portal

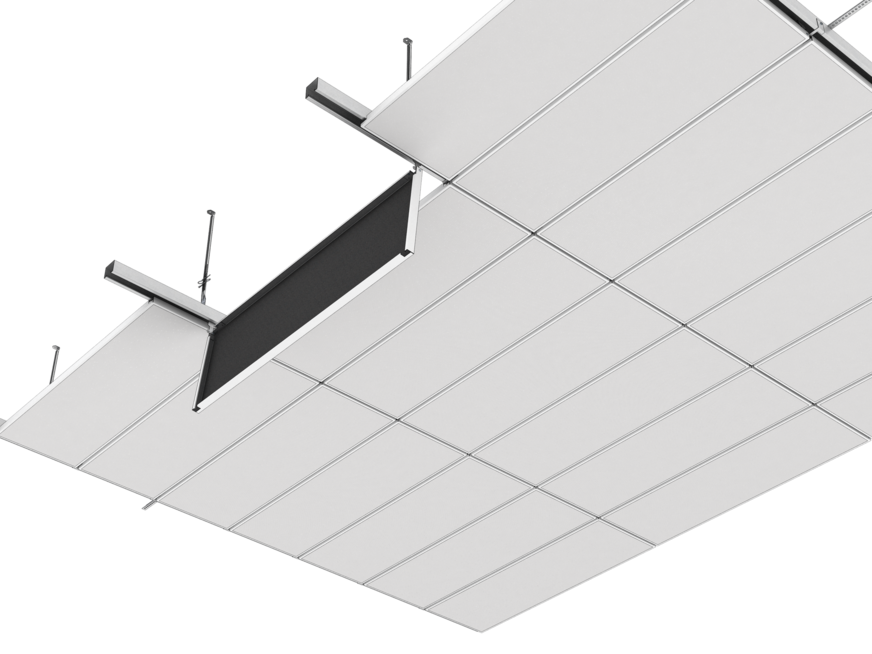

LMD-E 213View form below

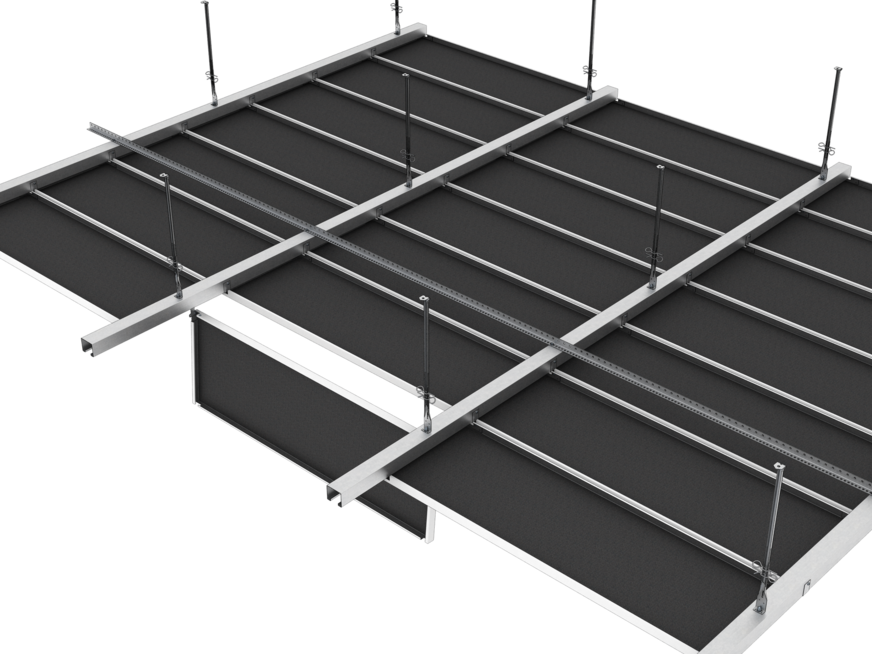

LMD-E 213View from above

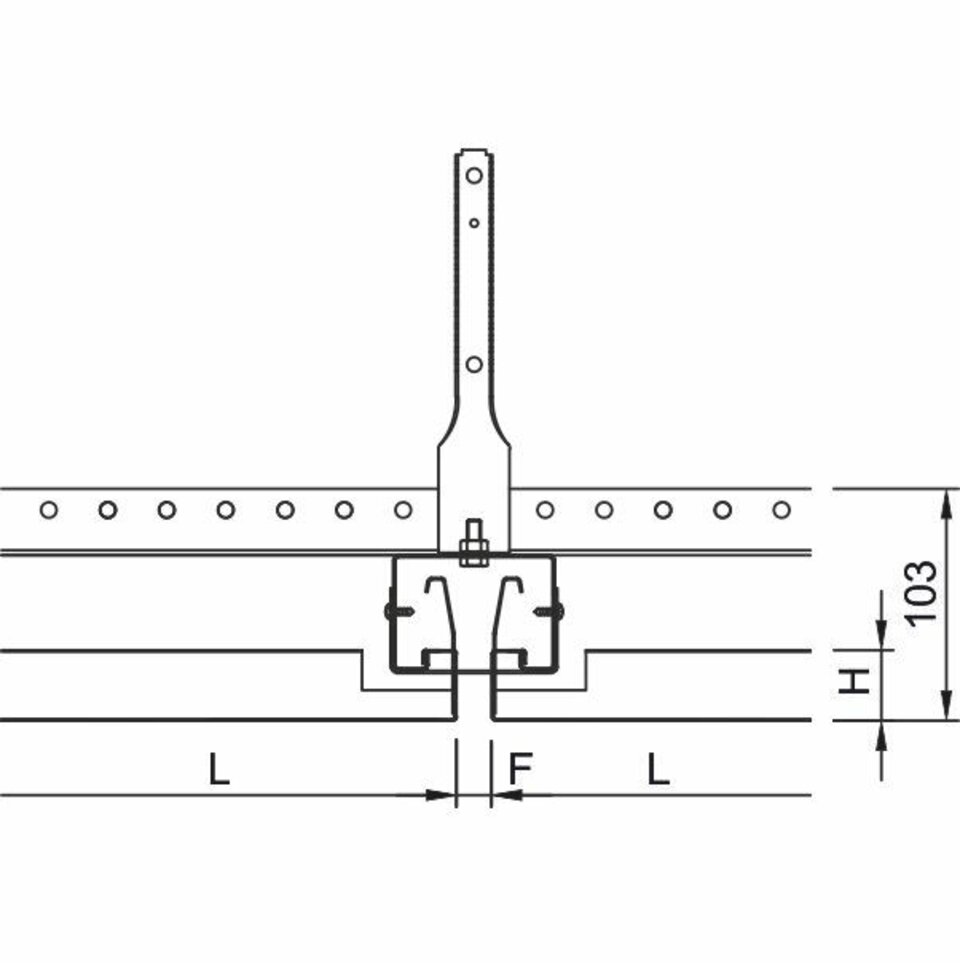

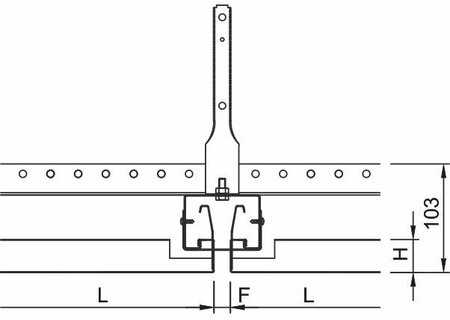

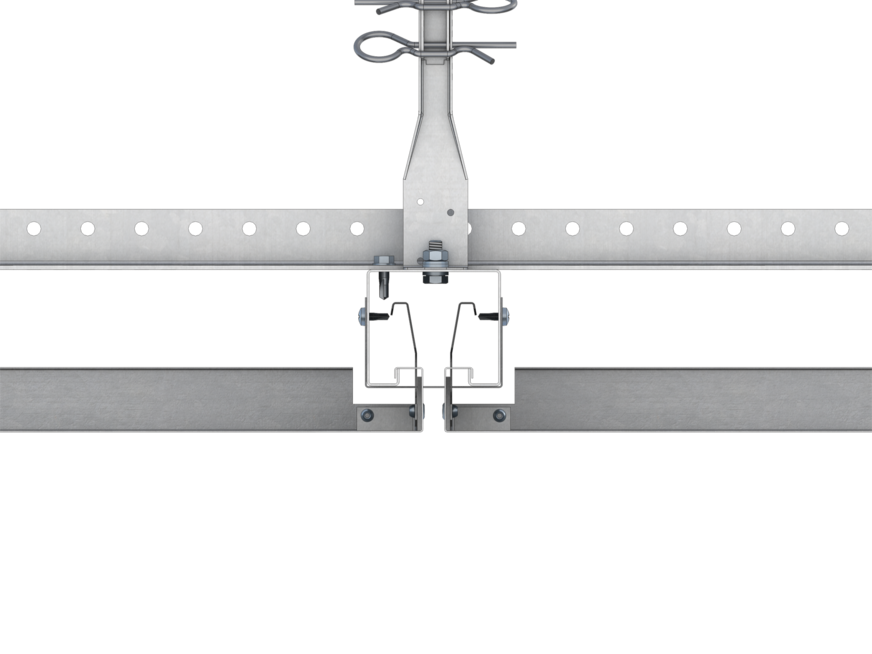

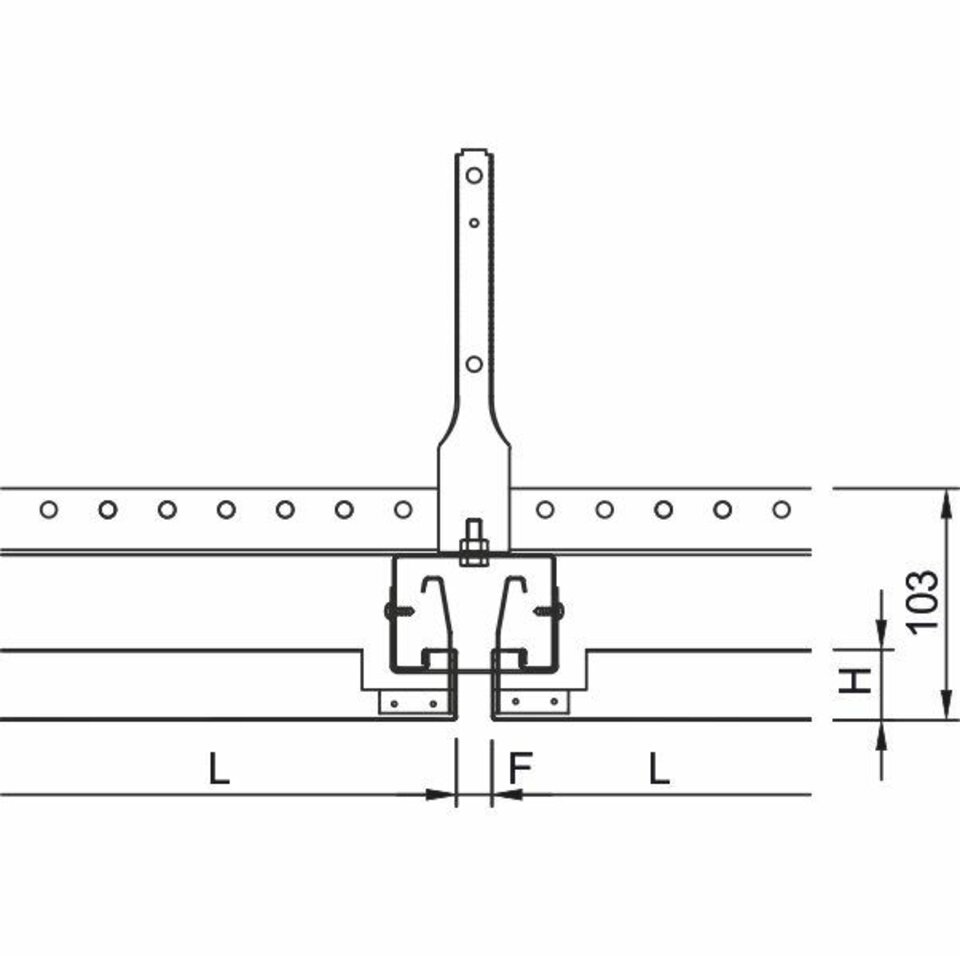

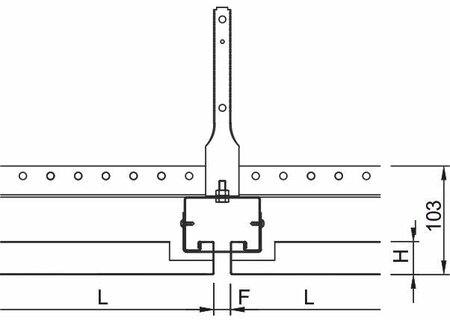

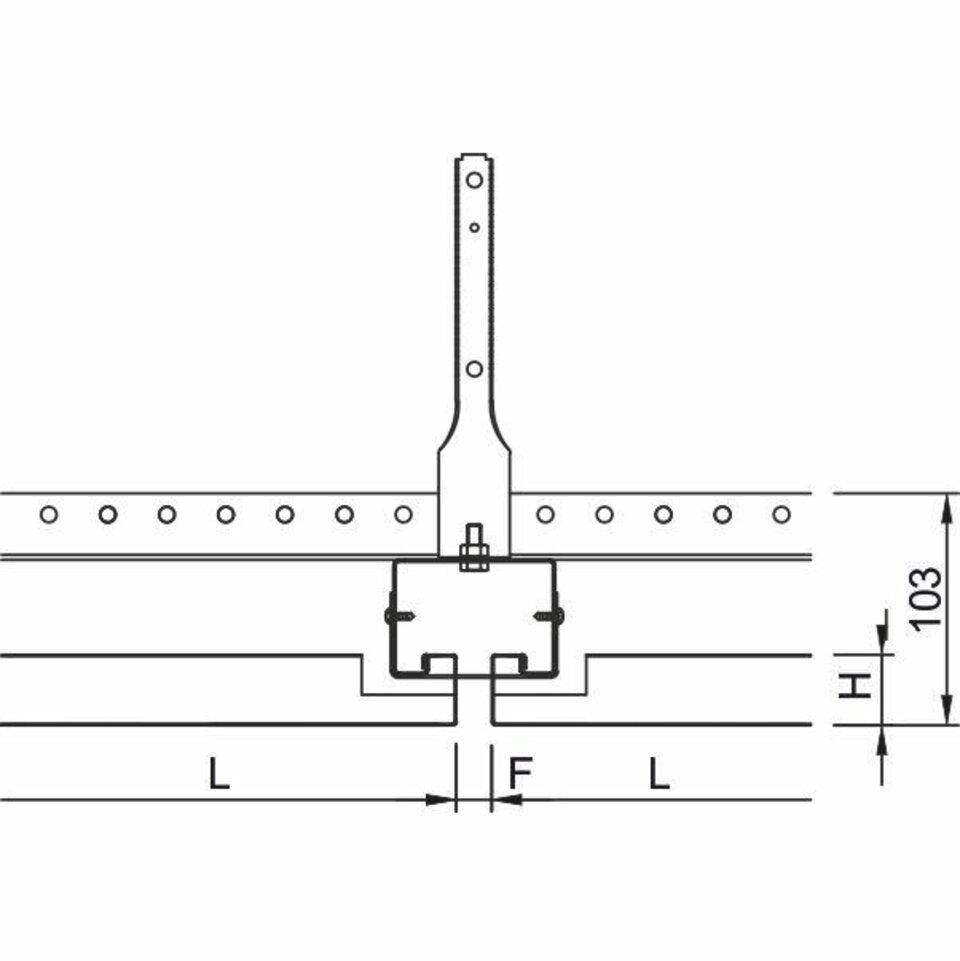

LMD-E 213Section

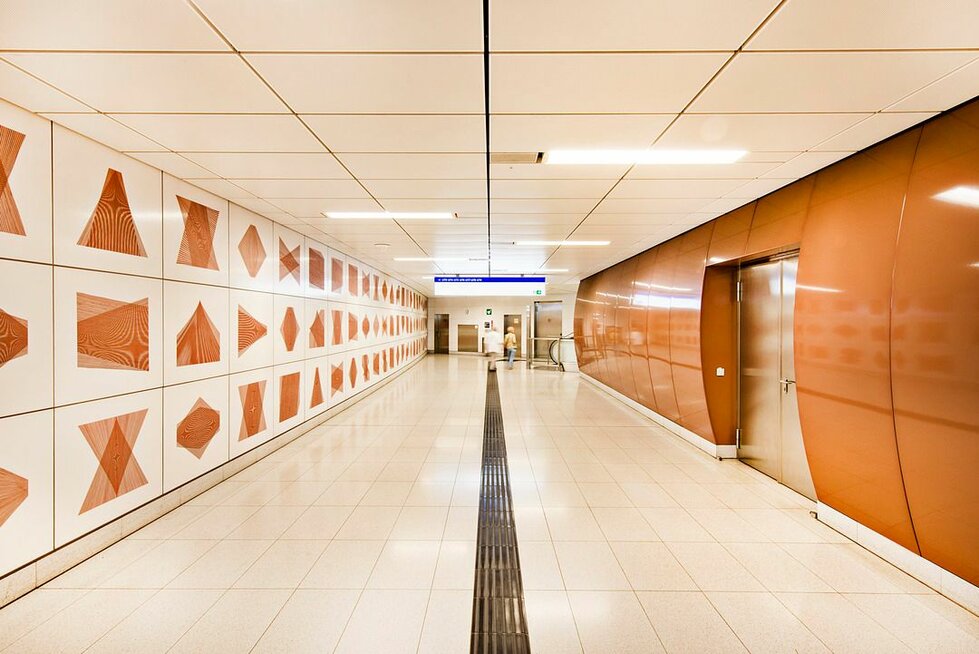

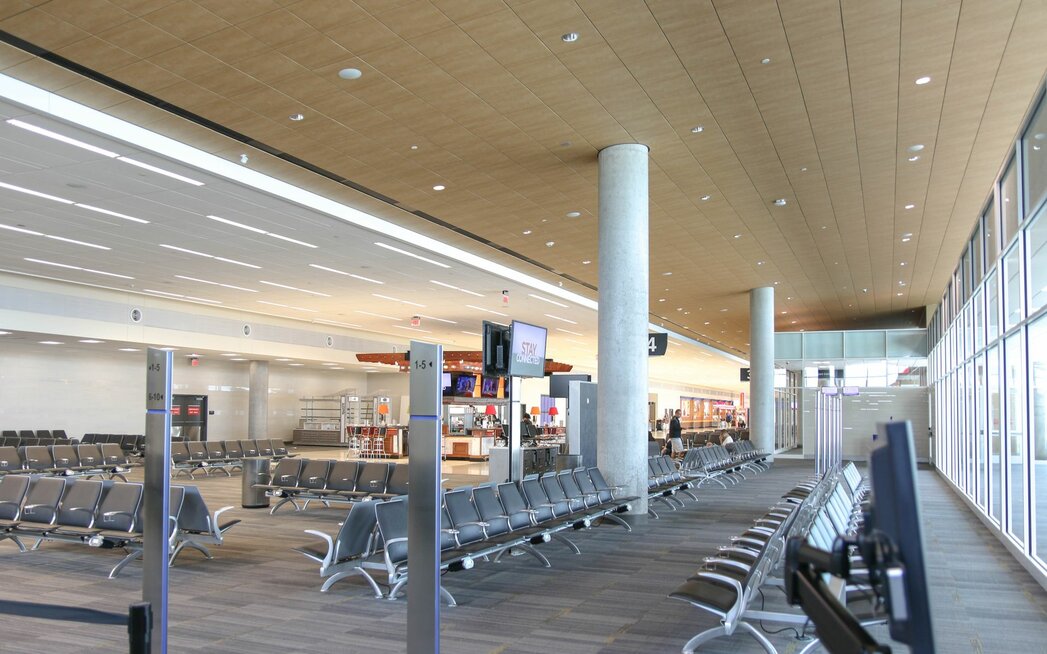

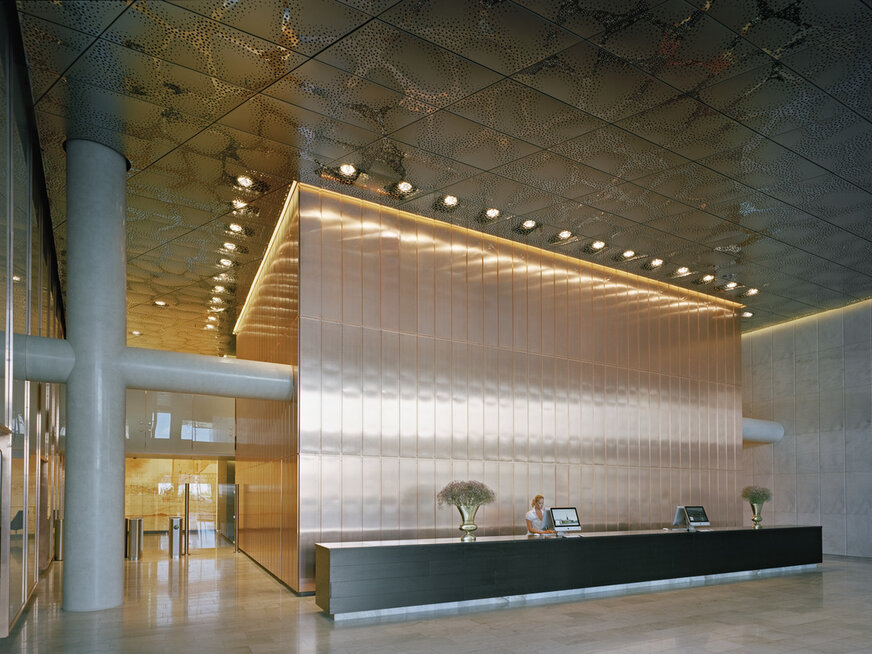

LMD-E 213Application

LMD-E 213Application

LMD-E 213Application

LMD-E 213Application

Downloads

Digital Service

NBS Specifications

Product Information

Ceiling elements

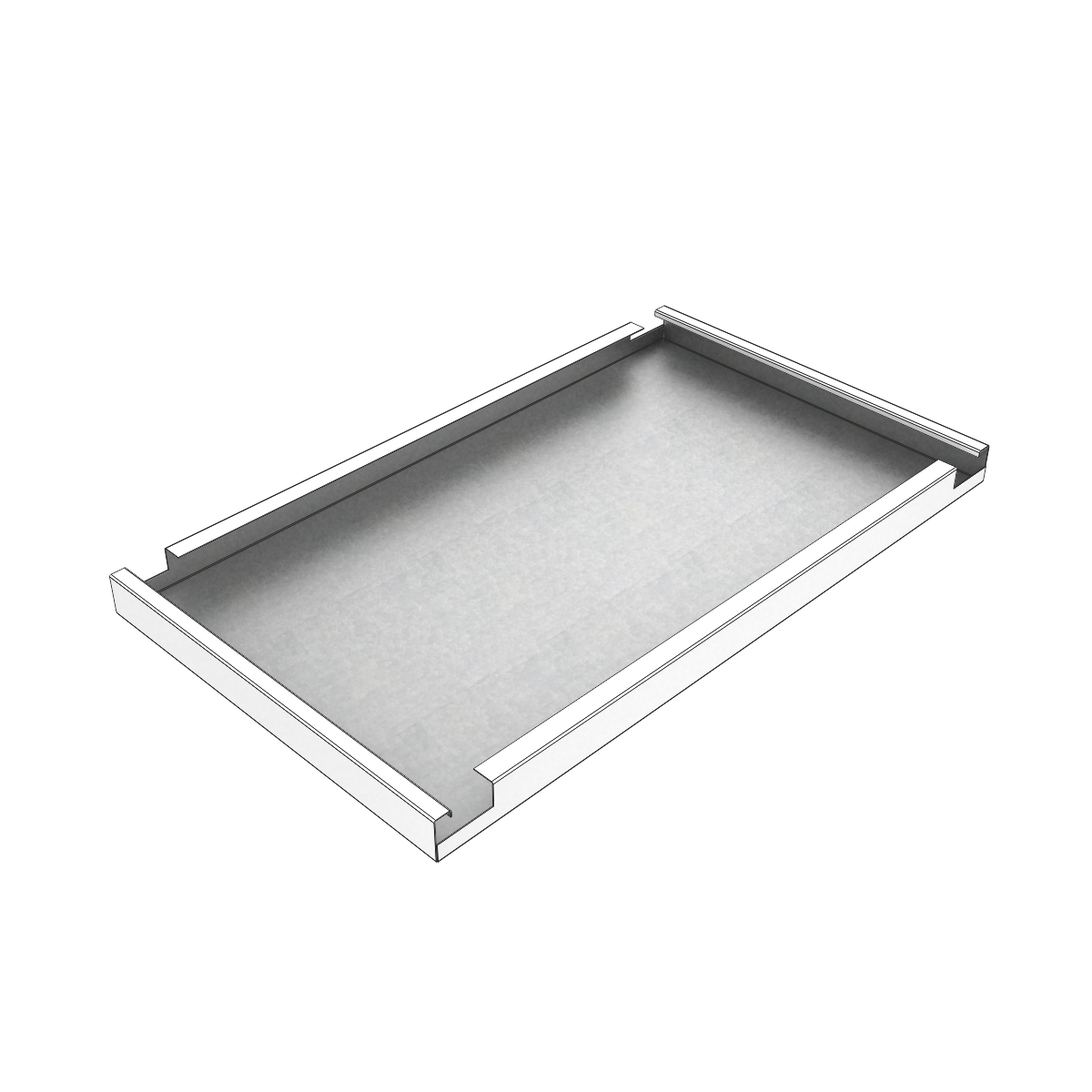

LMD-E 213 Typ 1

Hook-On

Length (L)

250 - 3,000 mm

Width (B)

200 - 1,250 mm

Height (H)

30 mm, 40 mm, 50 mm

Joint width (F)

10 mm, 15 mm, 20 mm, 25 mm, 30 mm

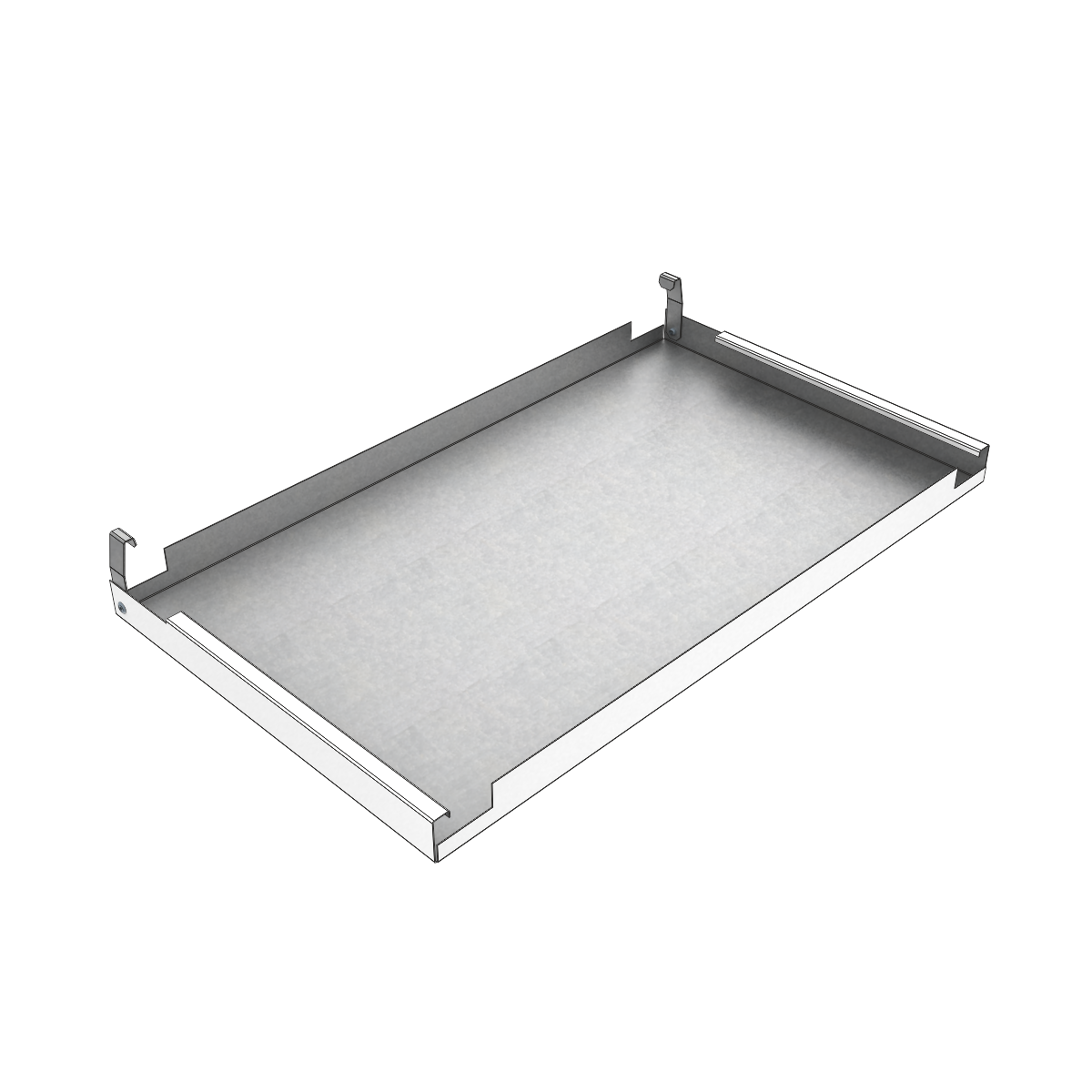

LMD-E 213 Typ 2

Hook-On, Swing-Down and slide option <1.2 m²

Length (L)

250 - 3,000 mm

Width (B)

200 - 1,250 mm

Height (H)

30 mm, 40 mm, 50 mm

Joint width (F)

10 mm, 15 mm, 20 mm, 25 mm, 30 mm

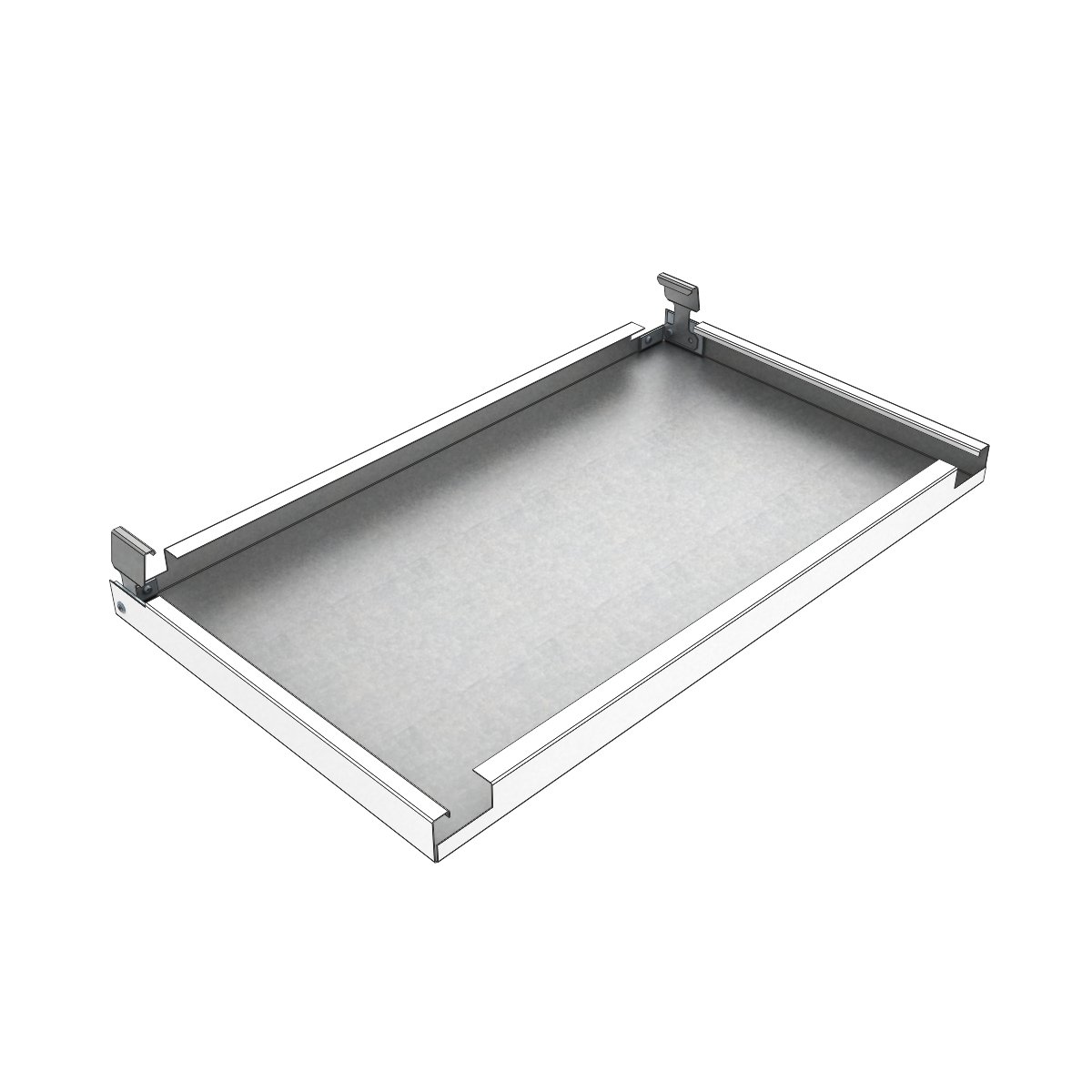

LMD-E 213 Typ 3

Hook-On, Swing-Down and slide option

Length (L)

250 - 3,000 mm

Width (B)

200 - 1,250 mm

Height (H)

30 mm, 40 mm, 50 mm

Joint width (F)

10 mm, 15 mm, 20 mm, 25 mm, 30 mm

Technical details

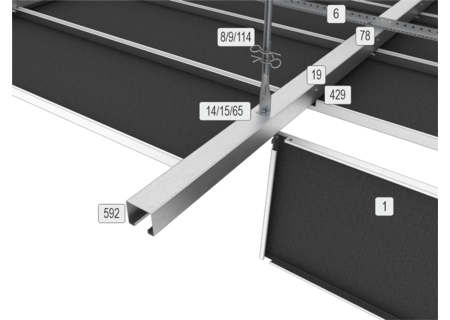

Component list

Acoustics

Room Acoustics

Sound Absorber Class

ISO 11654

E - A

Noise Reduction Coefficient

ASTM C 423

NRC

0.15 - 0.95

Evaluated Sound Absorption Coefficient

ISO 11654

α_w

0.15 - 1.00

Fire protection

Static

Safety

Durability

Sustainability

Declarations

EPD (Environmental Product Declaration)

The product has a verified EPD in compliance with the applicable standards. ( ISO 14025/EN 15804)

French VOC Regulation

Emission class A+

Product Self-Declaration

A self-declaration in accordance with ISO 14021 is available. This contains extensive environmental information for planning, tenders and building certifications (LEED, DGNB, EU taxonomy).

French Environmental and Health Declaration

The product has a verified French Environmental and Health Declaration (FDES) that complies with the applicable standards (ISO 14025 / NF EN 15804+A2/CN). The FDES is registered in the French INIES database and is used for building assessment under RE2020.

Circular Economy

Cradle to Cradle Certified® Gold

Data

Recycled Content

24.40 %

Indoor air measurement EN 16516 options

< 5 µg/m³

Emission of Formaldehyde

< 3 µg/m³

Evidence

Indoor Air Comfort

Accomplished

Indoor Air Comfort Gold

Accomplished

AgBB

Accomplished

BREEAM International

Conform

LEED v4

Conform

DGNB

Conform

Surfaces

Additional equipment

Certification

Project solutions

Don't hesitate to contact us!

+49 8723 20-3679 E-Mail

Combinable Systems - (3)

Plafotherm® E 213

Heated and Chilled Hook-On Ceiling with Accentuated Joints

LMD-E 213 WL

Hook-On Ceiling for Exterior Areas

LMD-E 213 BWS

Hook-On Ceiling, Ball-Impact Resistant

Examples for areas of application

Businesses, Recreation and Culture: Swimming Pools and Aquatic Centres, Banks, Stadiums and Arenas, Places of Assembly, Shopping Centres, Cinemas and Multiplex Theatres, Museums and Galleries, Sales Areas

Work: Facilities for Meetings, Conventions and Conferences, Common Rooms, Assembly Rooms, Office Buildings

Education: Libraries, Research Rooms, Universities and Higher Education Buildings, Schools

Transport: Railway Stations, Airports

Healthcare: Pharmacies (Production), Clinics and Hospitals

Hotels and Gastronomy: Hotels and Resorts

Industry: Factories and Production Facilities

Public Areas: Entrance Areas

Public Institutions: Courts and Correctional Facilities, Town Halls, Government and Administrative Buildings
