LMD-St 213

Hook-On Expanded Metal Ceiling with Accentuated Joints

LMD-St 213

Hook-On Expanded Metal Ceiling with Accentuated Joints

The system LMD-St 213 impresses with design freedom and ease of maintenance. Diverse mesh types, shapes and sizes are available. The ceiling panels can be removed – a combination with Swing-Down ceiling panels is also possible. Create visual highlights with accentuated joints up to 30 mm, or expanded ceiling panels with backlighting.

homogeneous ceiling surface due to concealed substructure
many design possibilities thanks to different mesh types, shapes and sizes
the possibility to see – to a greater or lesser extent – into the ceiling void depends on the mesh or the requirement
installation of illumination or further fixtures in the ceiling void is possible in case of a high open area
ceiling layout with accentuated joints in both directions possible
easy maintenance option due to ceiling panels that can be individually operated, swing down and slid without tools

Data Sheet CAD Portal

LMD-St 213View from below

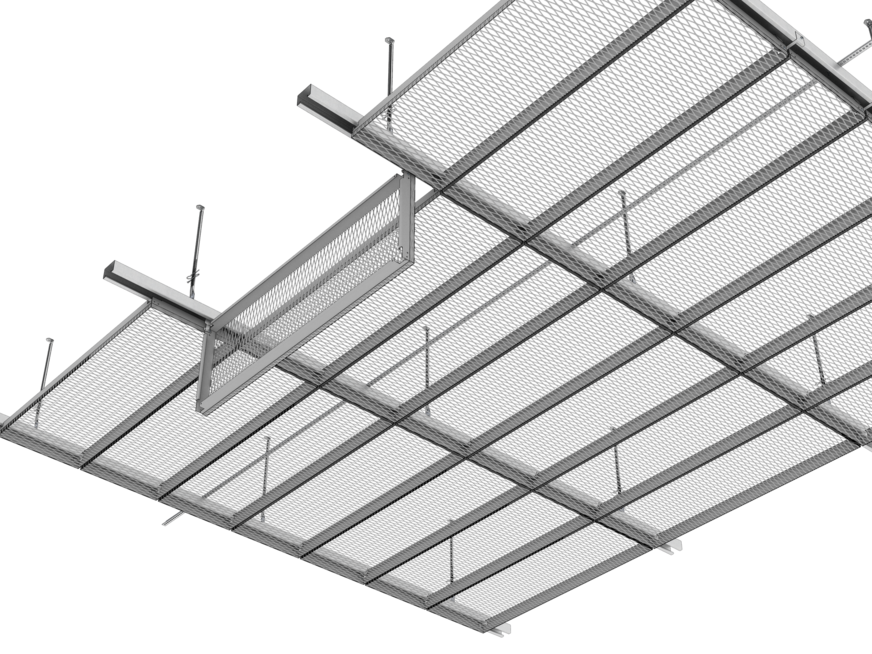

LMD-St 213View from above

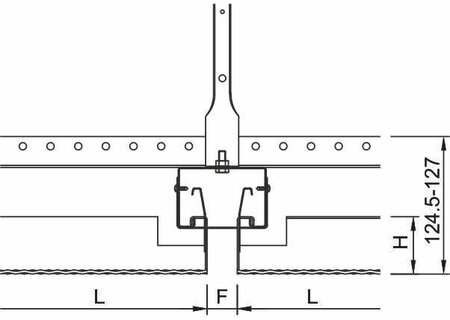

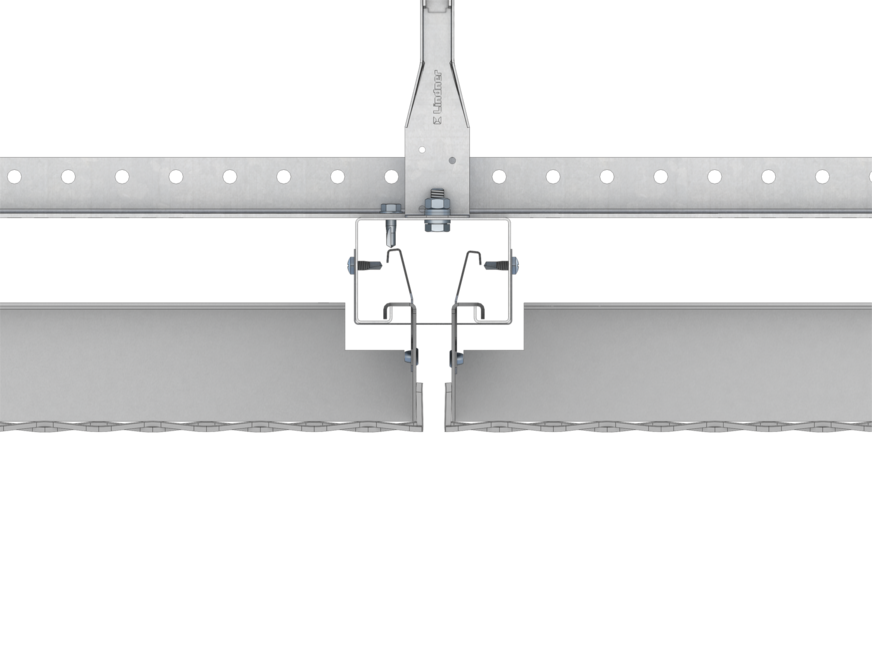

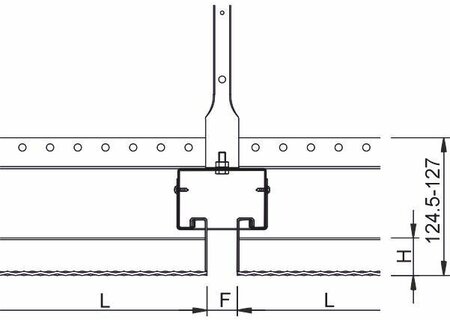

LMD-St 213Section

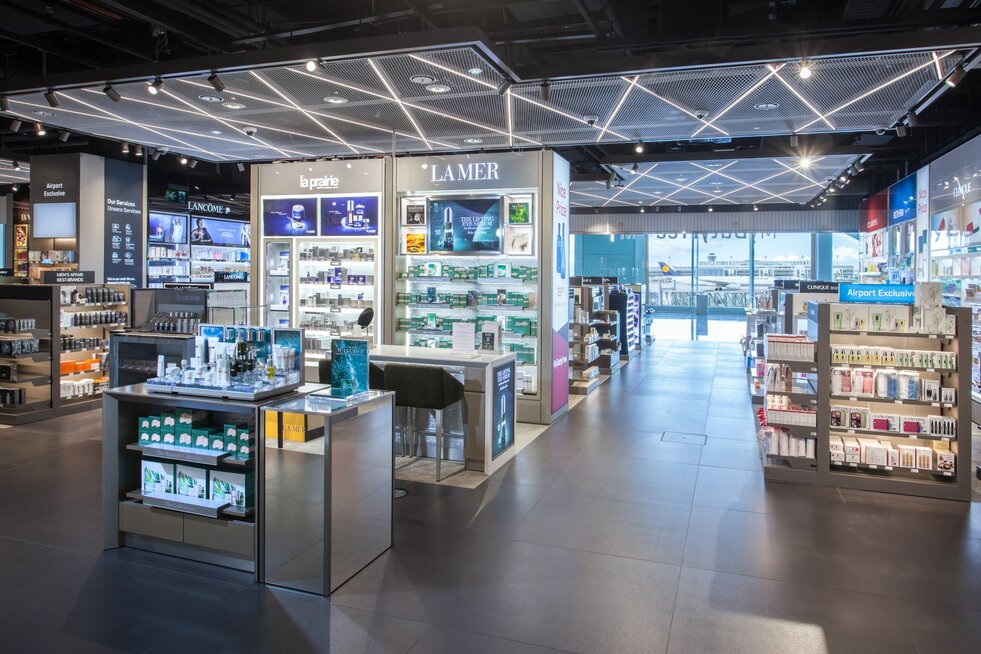

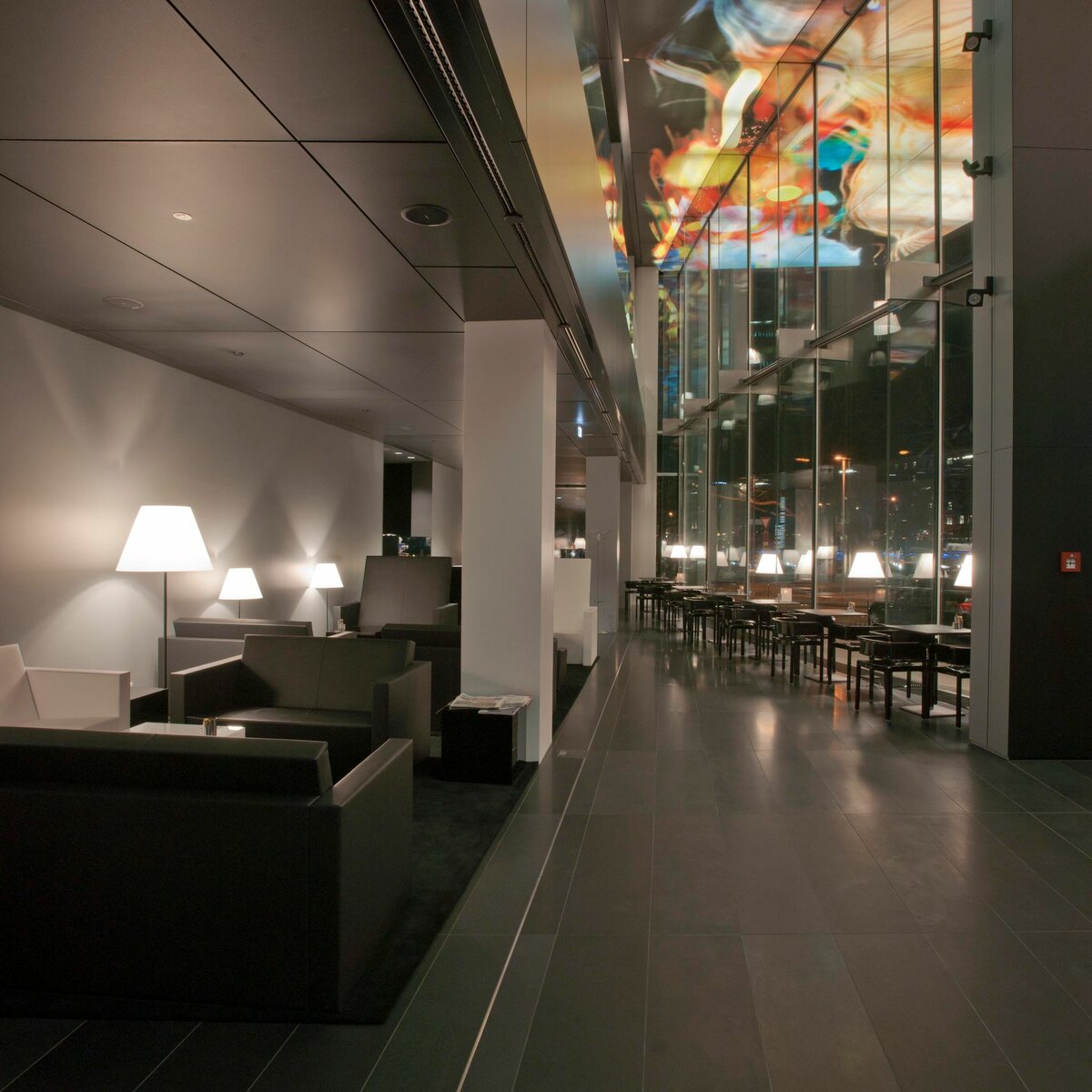

LMD-St 213Application

Outstanding

Downloads

Digital Service

NBS Specifications

BIM Content

www.bimobject.com

Product Information

Ceiling elements

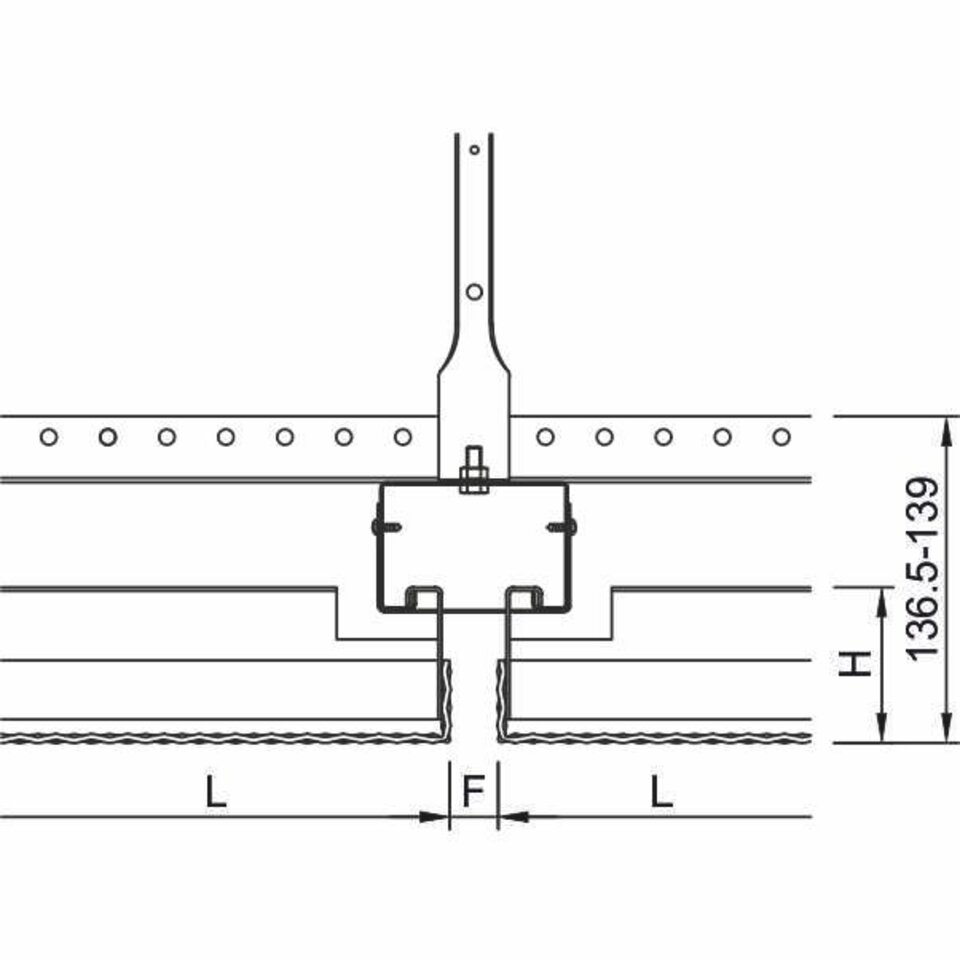

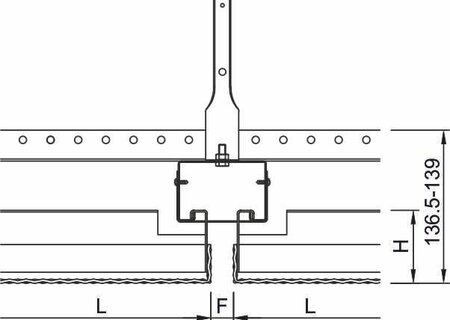

Type table - Ceiling

Type

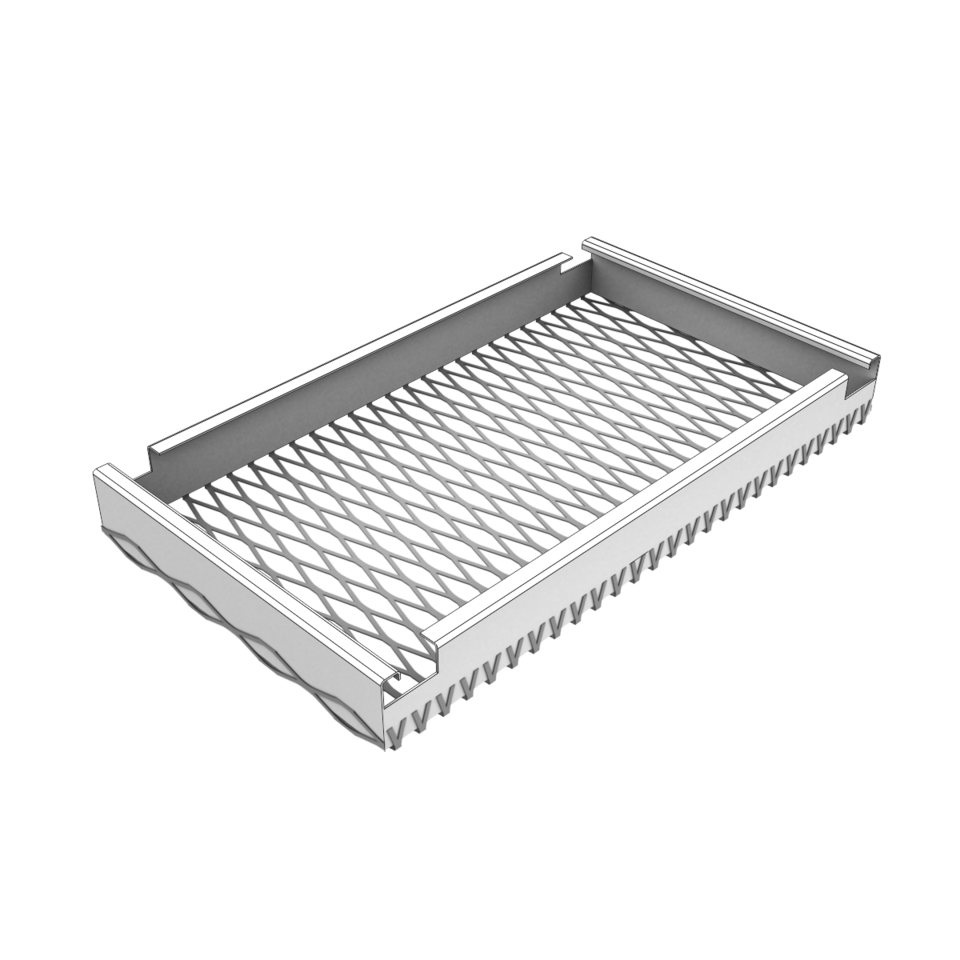

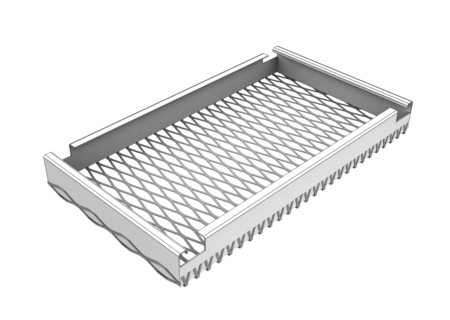

LMD-St 213 Type 3

Type

Hook-On, expanded metal turned up

Length (L)

250 - 3,000 mm

Width (B)

200 - 1,250 mm

Height

63.5 - 66 mm

Joint Width (F)

10 mm, 15 mm, 20 mm, 25 mm, 30 mm

Type table - Ceiling

Type

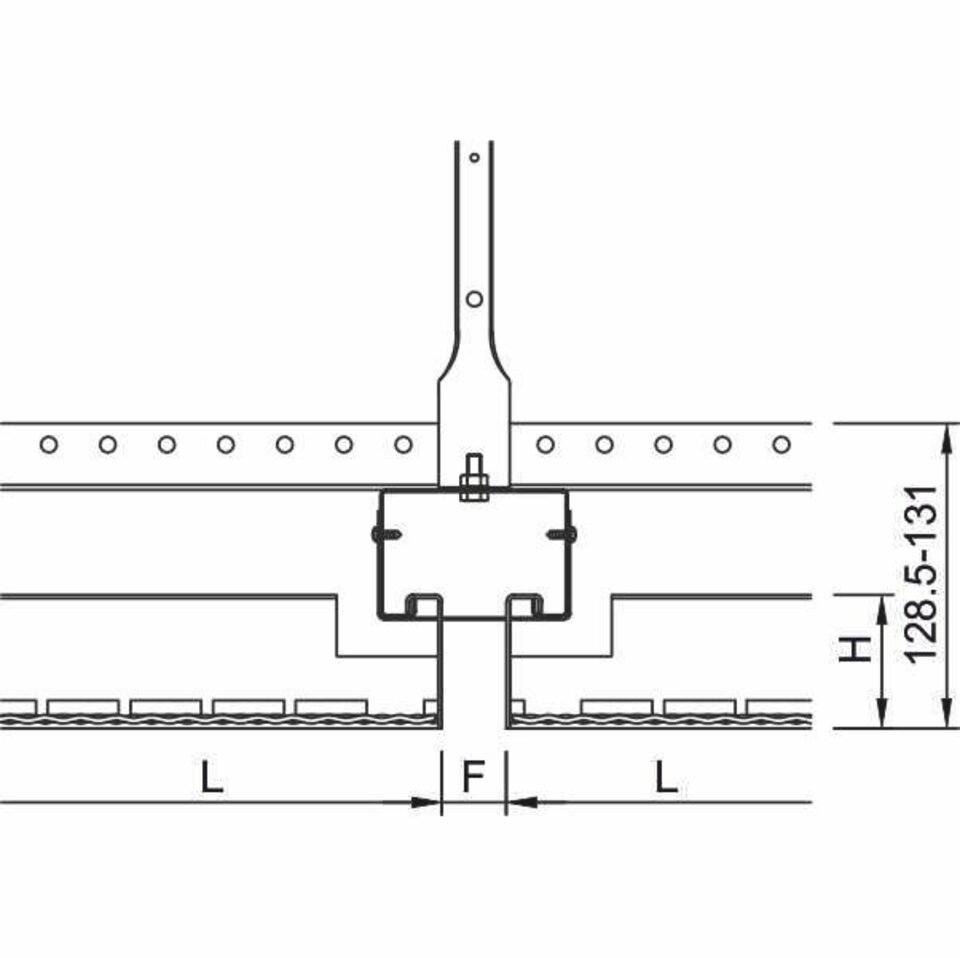

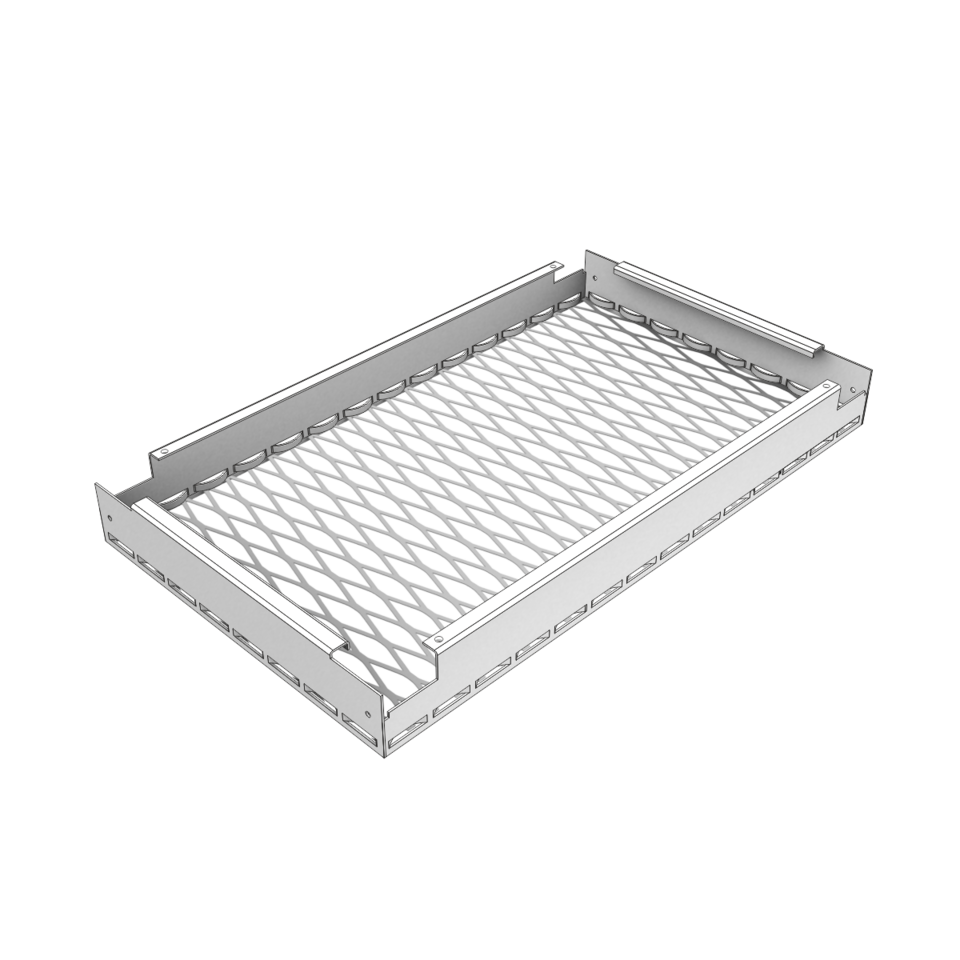

LMD-St 213 Type 4

Type

Hook-On, expanded metal bordered

Length (L)

250 - 3,000 mm

Width (B)

200 - 1,250 mm

Height

55.5 - 58 mm

Joint Width (F)

10 mm, 15 mm, 20 mm, 25 mm, 30 mm

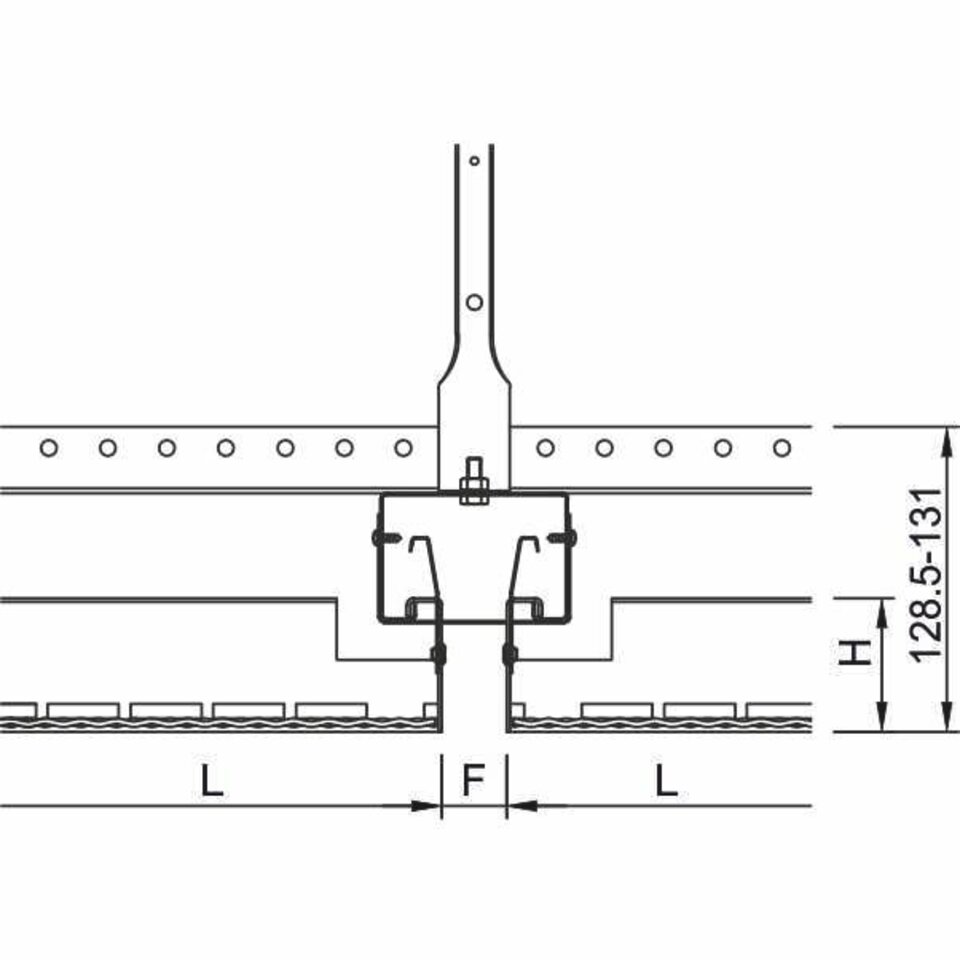

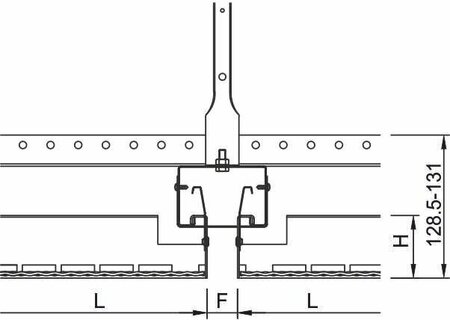

Type table - Ceiling

Type

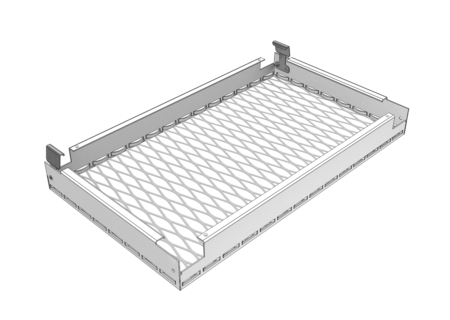

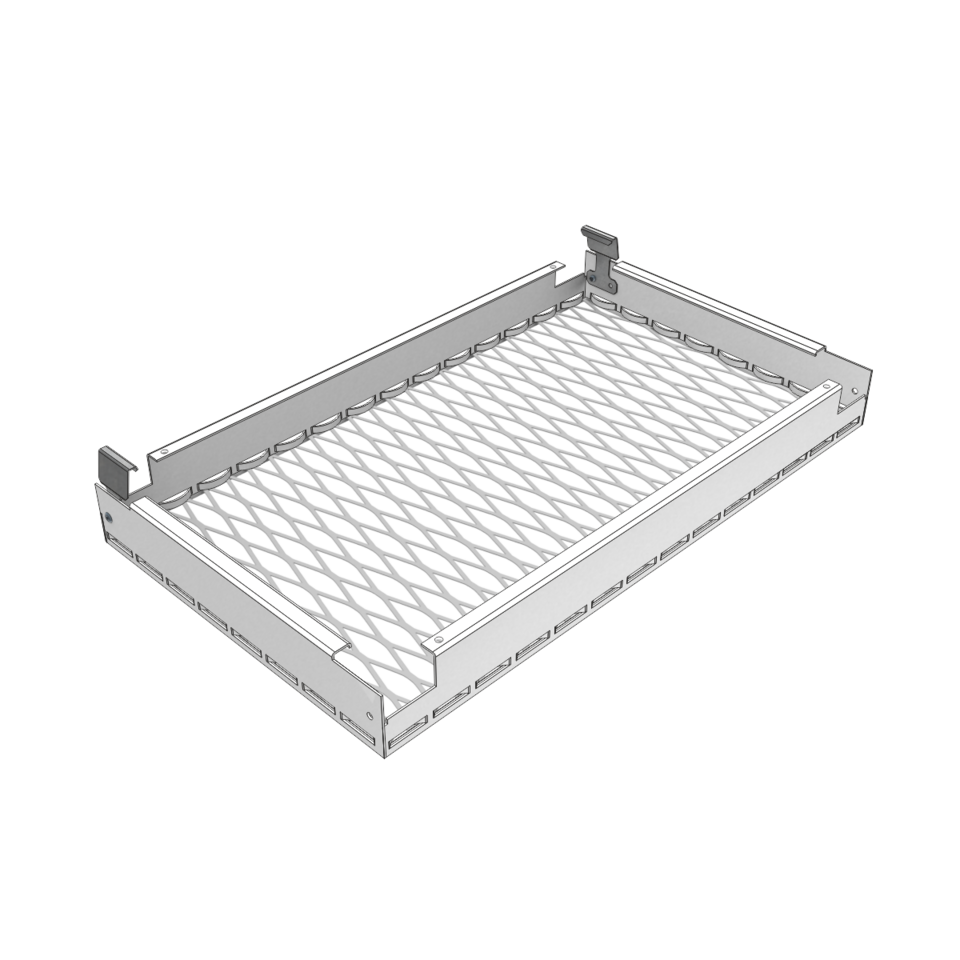

LMD-St 213 Type 5

Type

Hook-On/Swing-Down, expanded metal bordered

Length (L)

250 - 3,000 mm

Width (B)

200 - 1,250 mm

Height

55.5 - 58 mm

Joint Width (F)

10 mm, 15 mm, 20 mm, 25 mm, 30 mm

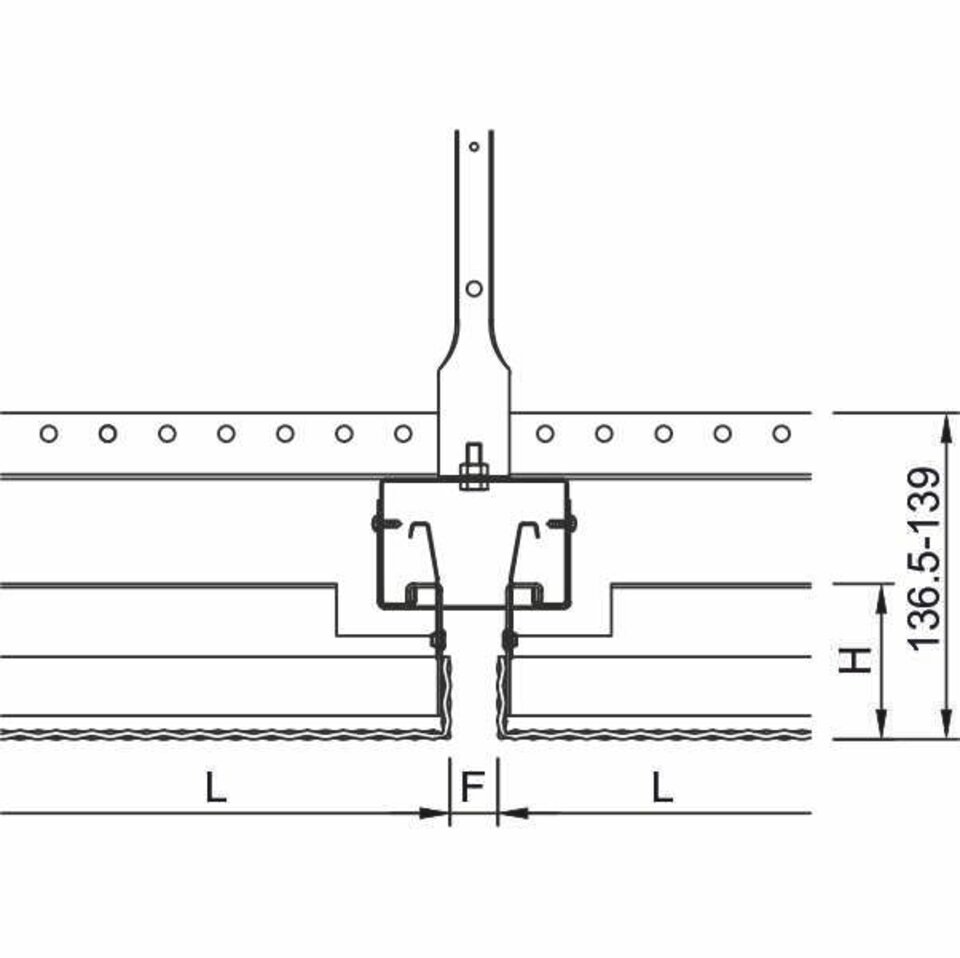

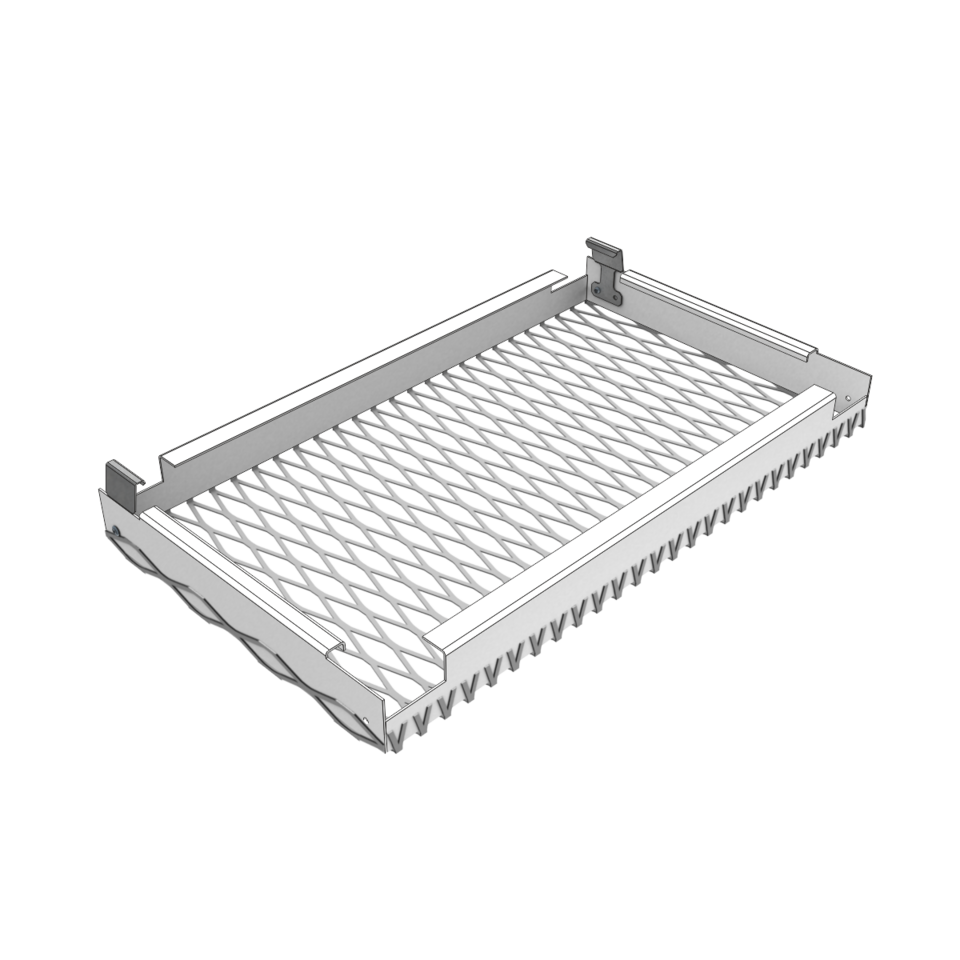

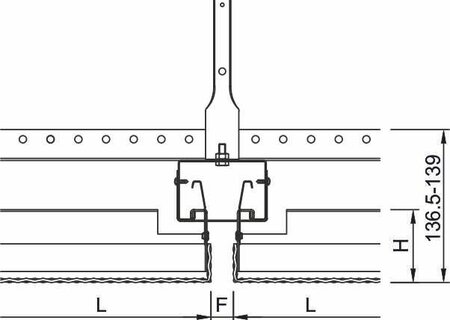

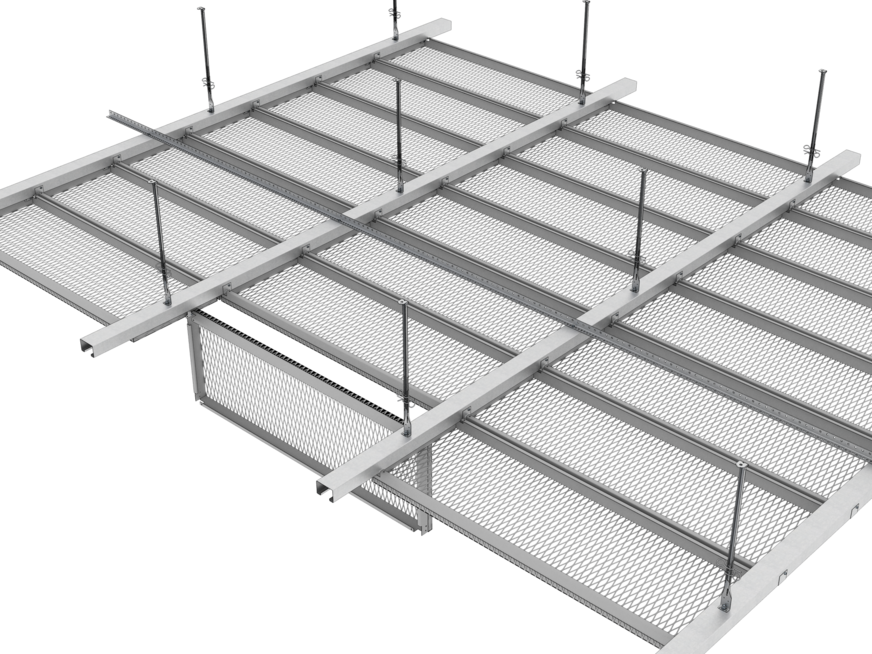

Type table - Ceiling

Type

LMD-St 213 Type 6

Type

Hook-On/Swing-Down, expanded metal turned up

Length (L)

250 - 3,000 mm

Width (B)

200 - 1,250 mm

Height

63.5 - 66 mm

Joint Width (F)

10 mm, 15 mm, 20 mm, 25 mm, 30 mm

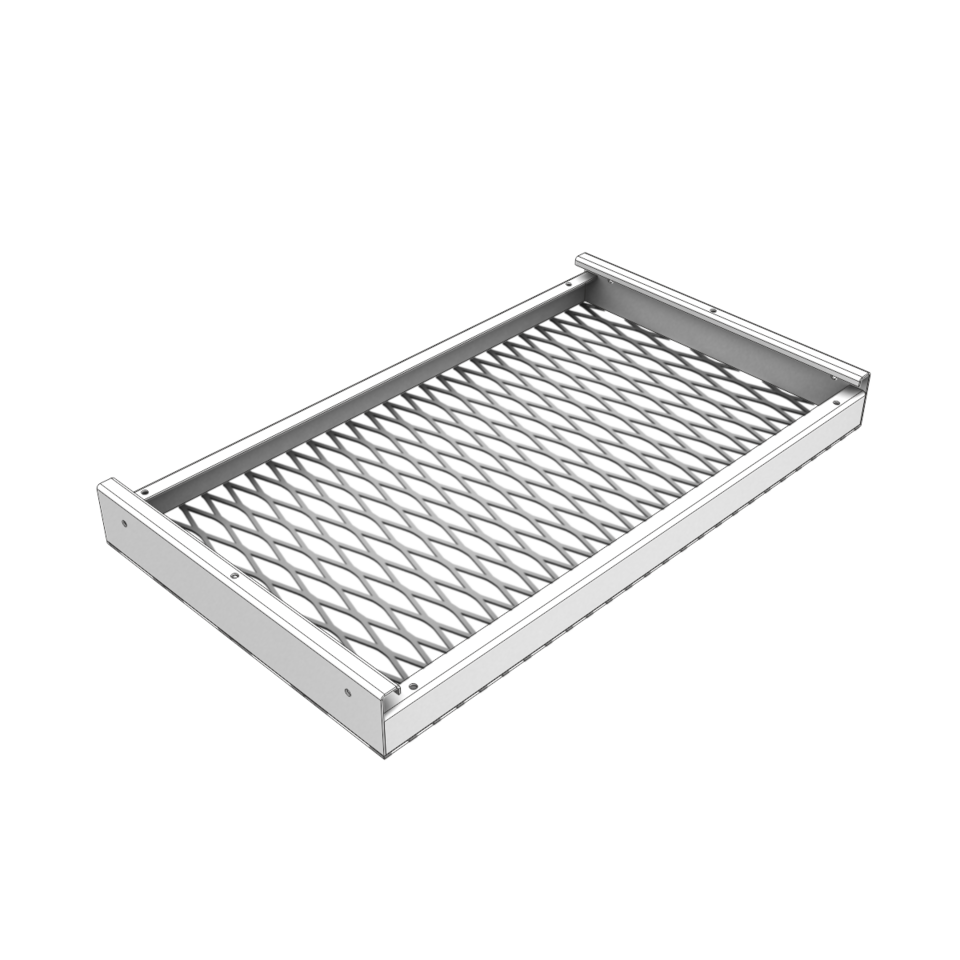

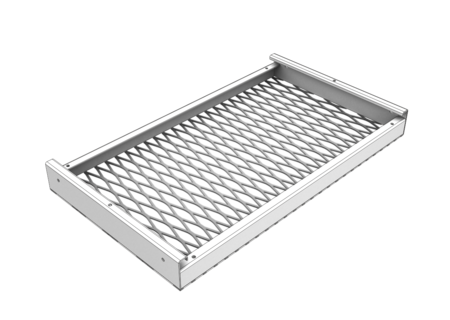

Type table - Ceiling

Type

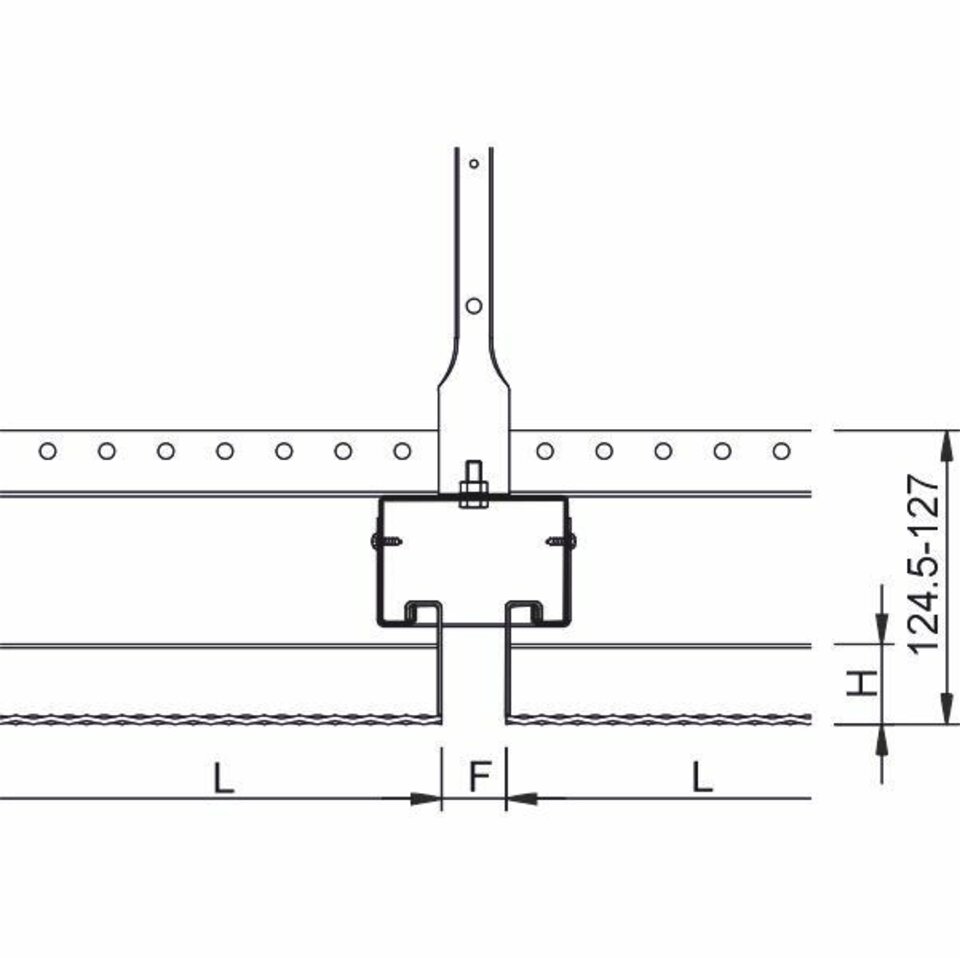

LMD-St 213 Type 8

Type

Hook-On, expanded metal placed on frame

Length (L)

250 - 2,000 mm

Width (B)

200 - 625 mm

Height

33.5 - 36 mm

Joint Width (F)

10 mm, 15 mm, 20 mm, 25 mm, 30 mm

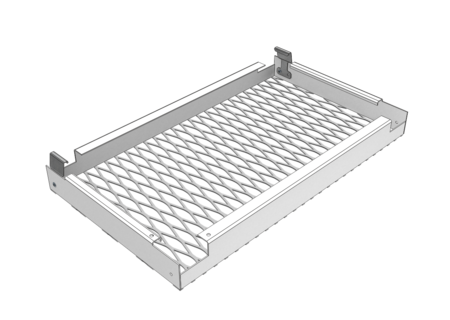

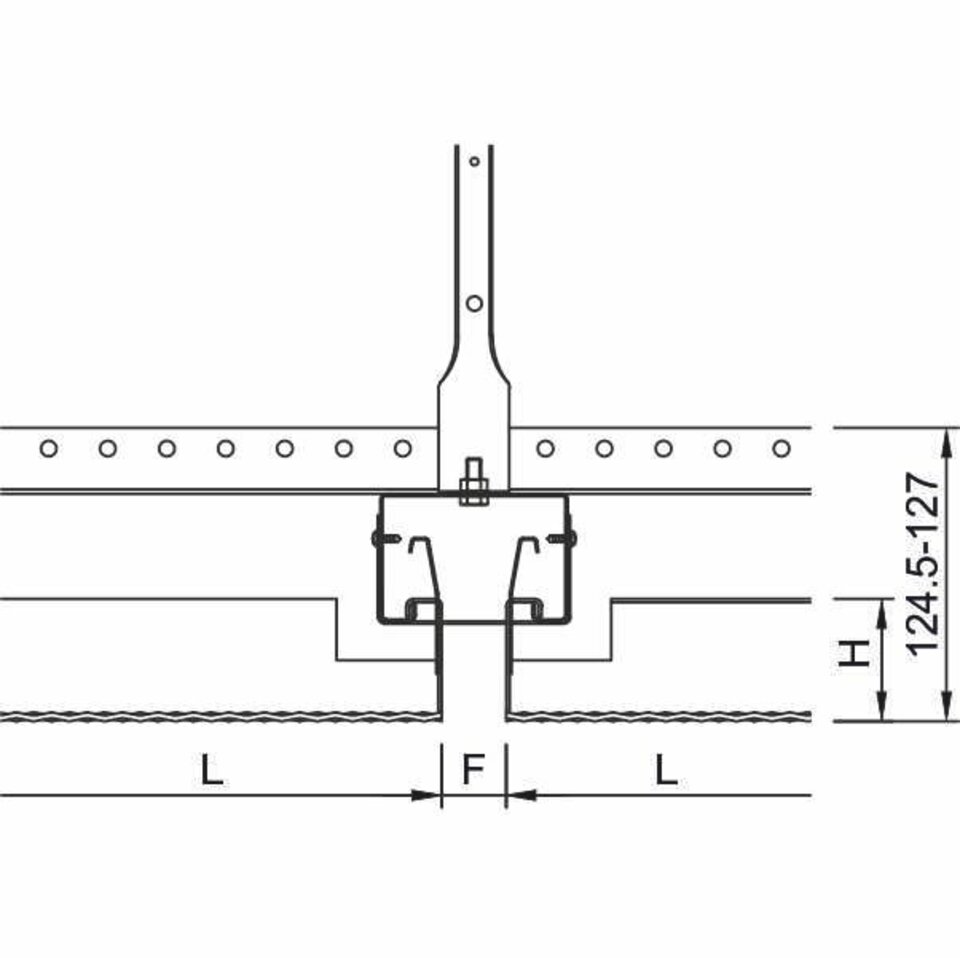

Type table - Ceiling

Type

LMD-St 213 Type 9

Type

Hook-On/Swing-Down, expanded metal placed on frame

Length (L)

250 - 2,000 mm

Width (B)

200 - 625 mm

Height

51.5 - 54 mm

Joint Width (F)

10 mm, 15 mm, 20 mm, 25 mm, 30 mm

Technical Details

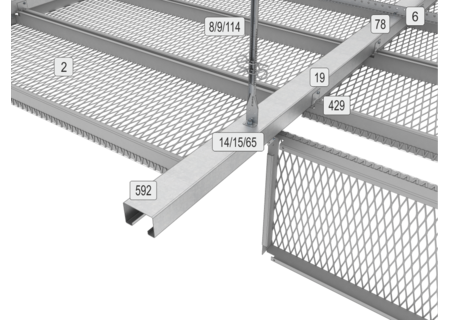

Component list

Acoustics

Room Acoustics

Evaluated Sound Absorption Coeff.

DIN EN ISO 11654

αw

0,15 - 1

Sound Absorber Class

DIN EN ISO 11654

E - A

Noise Reduction Coefficient

ASTM C 423

NRC

0,15 - 0,9

Fire protection

Static

Durability

Sustainability

Data

Recycling Content

24.3 %

Indoor Air Measurement

EN 16516

< 5 µg/m³

Formaldehyde Emissions

< 3 µg/m³

Evidence of emission measurements

Indoor Air Comfort

Erfüllt

Indoor Air Comfort Gold

Erfüllt

AgBB/ ABG

Erfüllt

BREEAM Internatonal

Conform

LEED v4

Conform

DGNB

Conform

Declarations and Proof

Product Self-Declaration

Self-Declaration according to ISO 14021

EPD (Environmental Product Declaration)

EPD according to EN 15804 / ISO 14025

Circular Economy

Cradle to Cradle Certified® Gold

French VOC Regulation

Emission class A+

Green Level Certification

Outstanding

Surfaces

Certification

Don't hesitate to contact us!

+49 8723 20-3679 E-Mail

Additional Equipment - (6)

LK 73

Light channel

Lineare Systemleuchte, bestückt mit LED-Technik. Das Gehäuse besteht aus Stahlblech, pulverbeschich...

High

Acustica

Acoustic fabric inlay

The acoustic fabric inlay Acustica is installed on the rear side of perforated ceiling panels and co...

LMD-RK 20

Inspection hatch expanded metal

Inspection hatches allow easy access to installations that are covered or concealed in the ceiling v...

LMD-Absorber type 1

Round absorber

LMD-Absorbers are most suitable for large rooms containing little sound absorbing surface and materi...

LMD-Absorber type 5

U-steel housing

LMD-Absorbers are most suitable for large rooms containing little sound absorbing surface and materi...

Calma

Glass yarn inlay in textile cover

Inserted into the back of perforated ceiling panels, the Calma acoustic inlay improves sound absorpt...

Combinable Systems - (2)

Outstanding

LMD-St 213 BWS

Hook-On Expanded Metal Ceiling, Ball-Impact Resistant

The system LMD-St 213 BWS with accentuated joints is fixed by means of hold-down clips and fulfils t...

Outstanding

Plafotherm® St 213

Heated and Chilled Expanded Metal Ceiling with Accentuated Joints

For maintenance works in the ceiling void, the Hook-On ceiling panels of this expanded metal ceiling...

Areas of Use

Businesses, Recreation and Culture: Shopping Centres, Museums, Public Swimming Pools, Places of Assembly, Banks, Cinemas and Theatres, Sales Areas, Stadiums

Work: Assembly Rooms, Common Rooms, Facilities for Meetings, Conventions and Conferences, Office buildings

Transport: Train Stations, Airports

Public Institutions: Court Houses, Government Buildings

Education: Library Rooms

Public Areas: Entrance Areas

Hotels and Gastronomy: Hotels and Resorts

Technical requirements

Design: Stainless Steel, Perforation, Powder Coating, Steel

Corrosion Protection: Interiors, Wet Areas

Acoustics: Room Acoustics

Fire Protection: Fire Behaviour / Building Material Class

Sustainability: Environmental Product Declaration, Cradle to Cradle®

Hygiene: Cleanable by vacuuming

Statics: Seismic Safety

Certificate

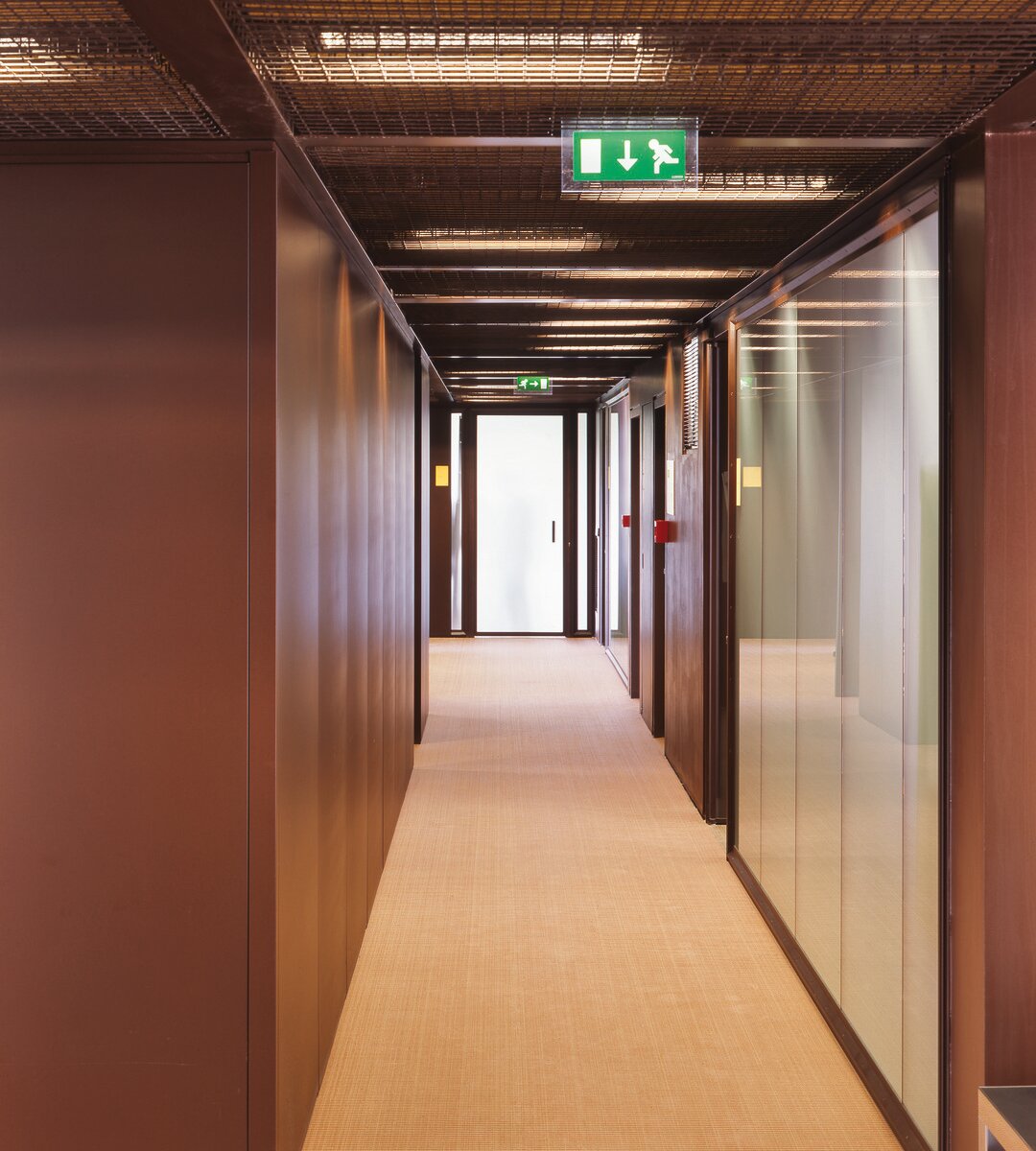

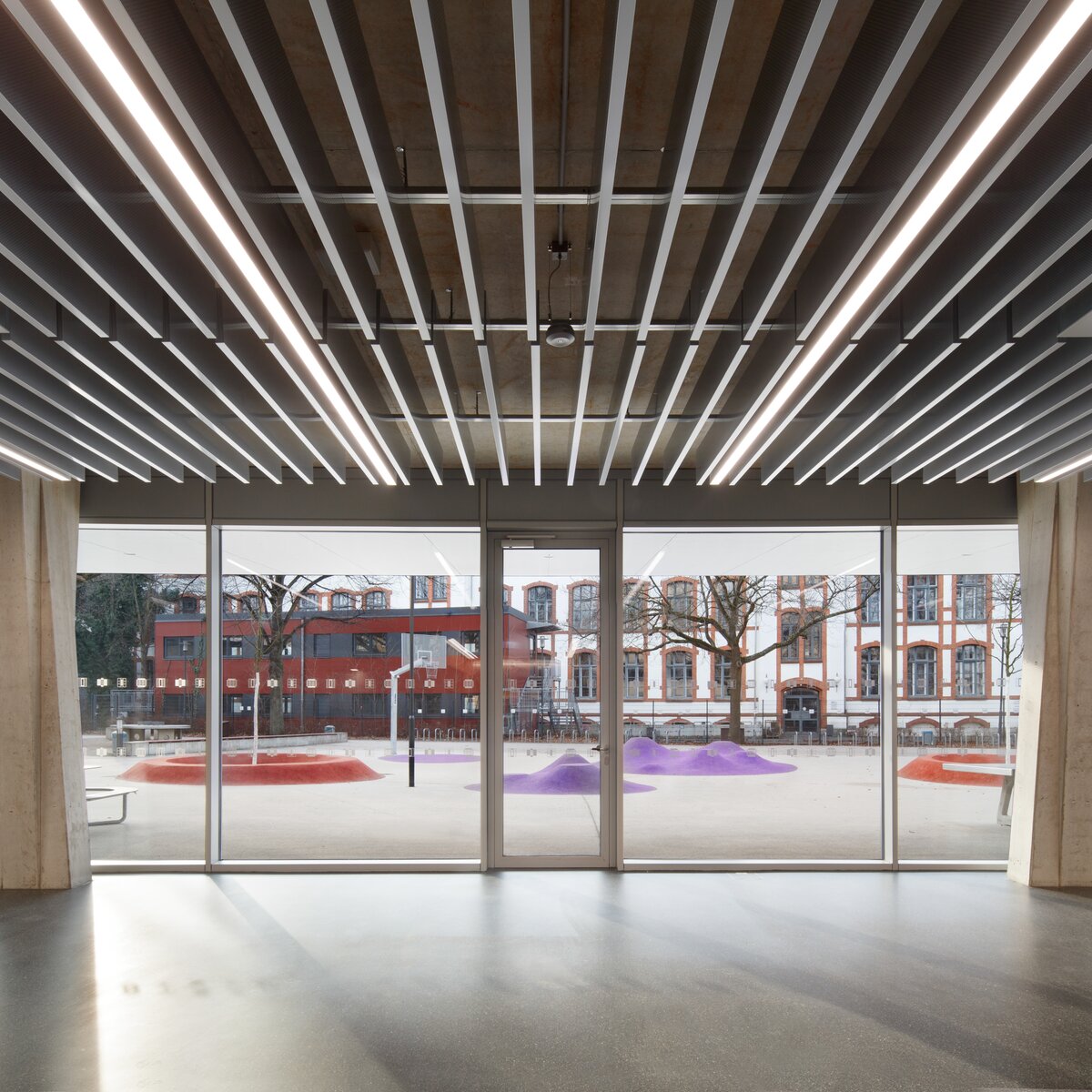

References
