MESHdesign Viva

3D Expanded Metal

MESHdesign Viva

3D Expanded Metal

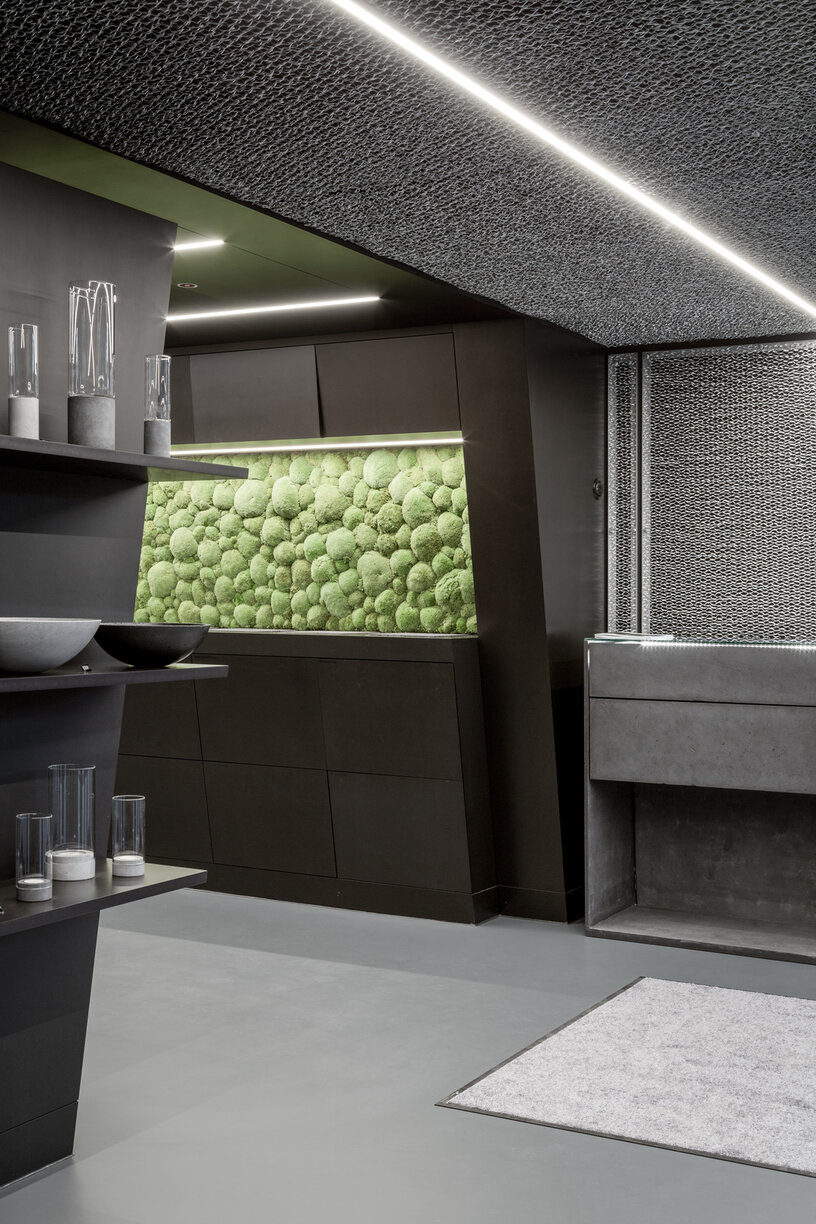

The folded expanded metal with open character grants free view into the ceiling void and is a three-dimensional design element. A high number of meshes, geometries and colours create unique, individual effects. The varied appearance can be emphasized by lighting solutions on the rear side.

unique design by individually folded expanded metal
various mesh types, sizes and geometries possible
structured surface on demand with high open area to have a clear view into the ceiling void
the incidence of light creates varied, diverse looks
can be combined with lighting solutions on the rear side

Data Sheet

MESHdesign VivaApplication

MESHdesign VivaApplication

MESHdesign VivaApplication

Downloads

Digital Service

NBS Specifications

Product Information

Variants

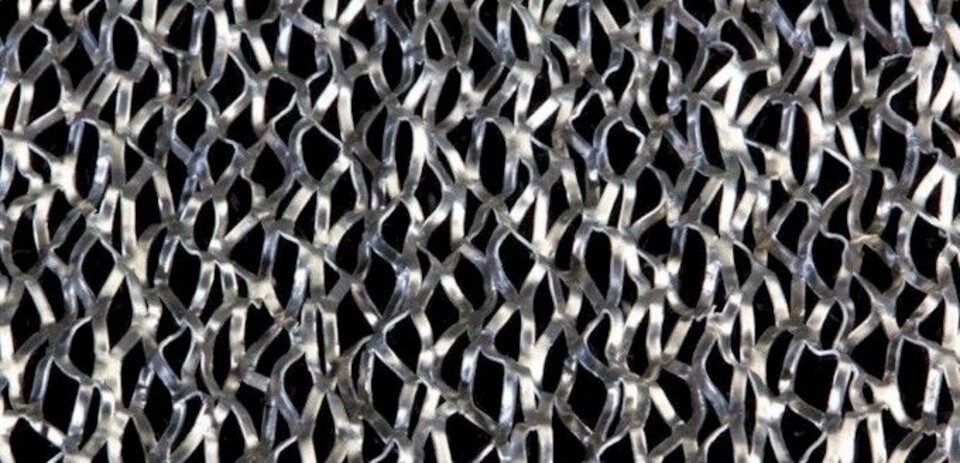

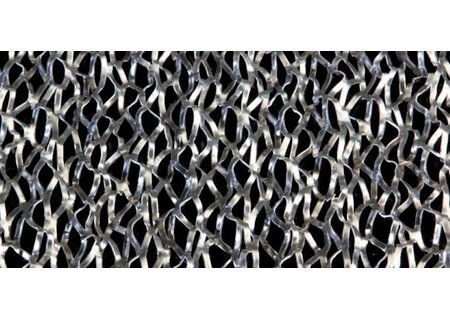

Viva V28s

frontal opening: 34 % (± 5 %)
open area: 42 % (± 5 %)
expanded metal thickness: approx. 12 mm
mesh length: 28 mm
max. panel size: 2,400 x 900 mm

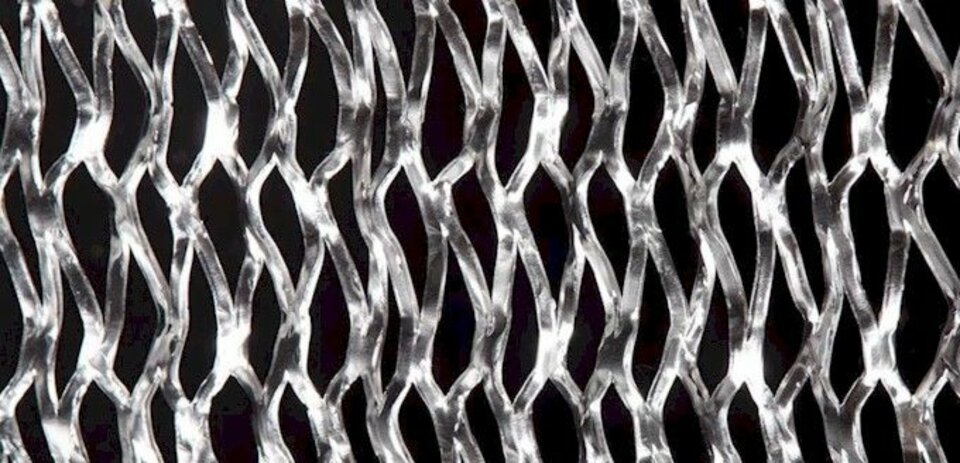

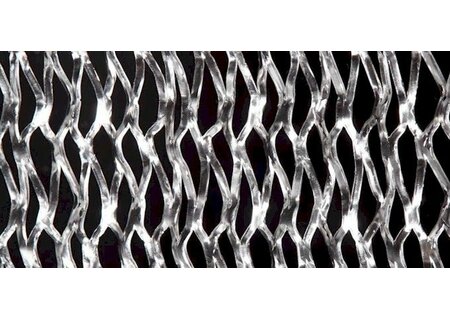

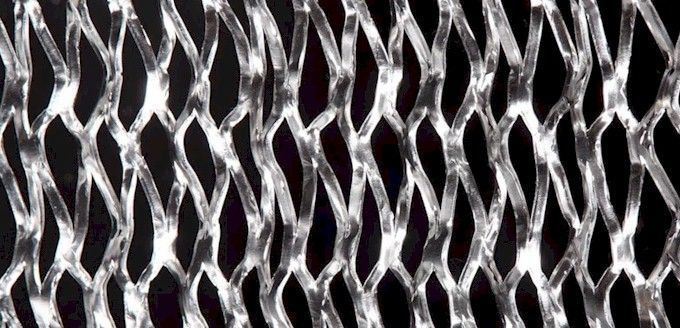

Viva S29

frontal opening: 43 % (± 5 %)
open area: 53 % (± 5 %)
expanded metal thickness: approx. 13 mm
mesh length: 43 mm
max. panel size: 2,400 x 900 mm

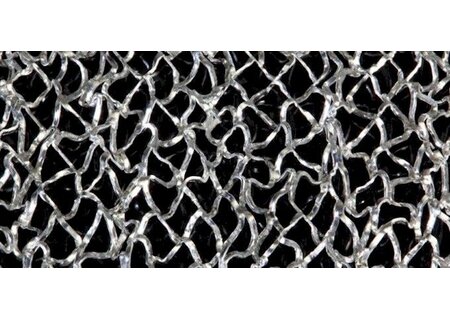

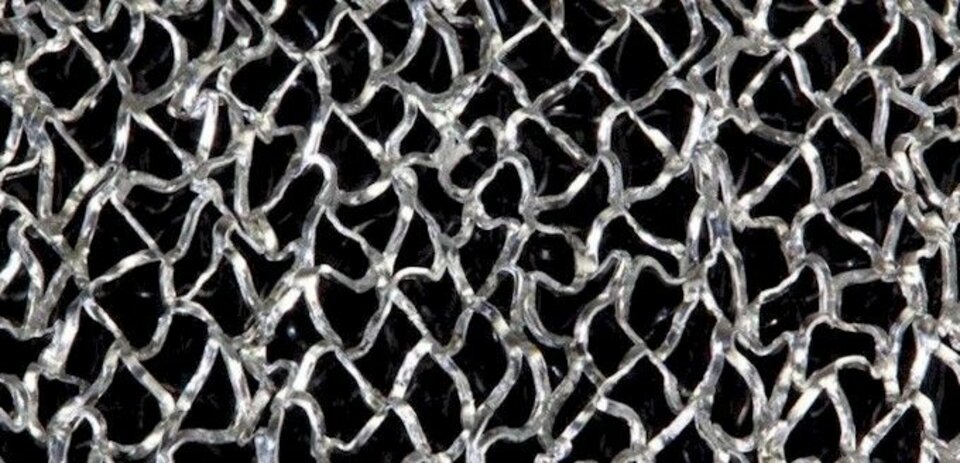

Viva V43s

frontal opening: 57 % (± 5 %)
open area: 65 % (± 5 %)
expanded metal thickness: approx. 16 mm
mesh length: 43 mm
max. panel size: 2,400 x 900 mm

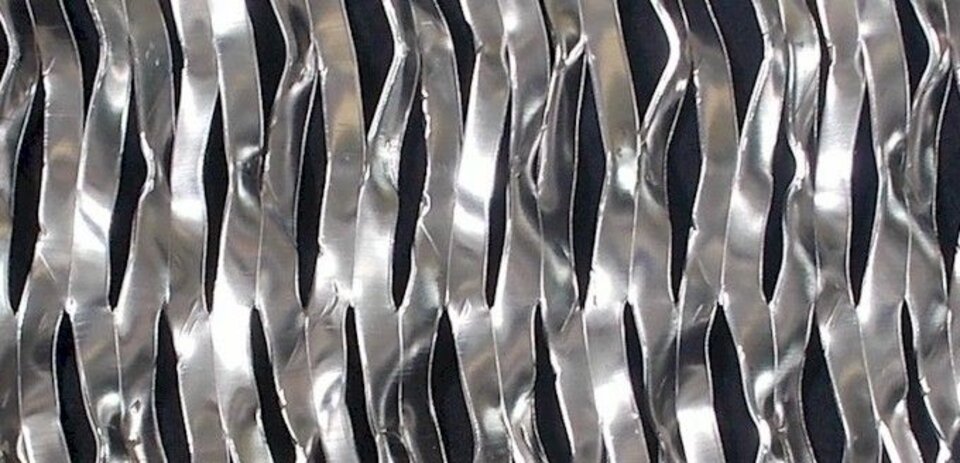

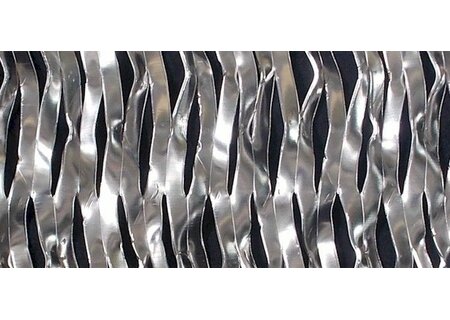

Viva S50

frontal opening: 25 % (± 5 %)
open area: 31 % (± 5 %)
expanded metal thickness: approx. 13 mm
mesh length: 63 mm
max. panel size: 2,400 x 900 mm

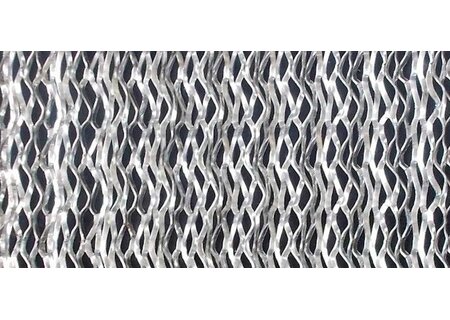

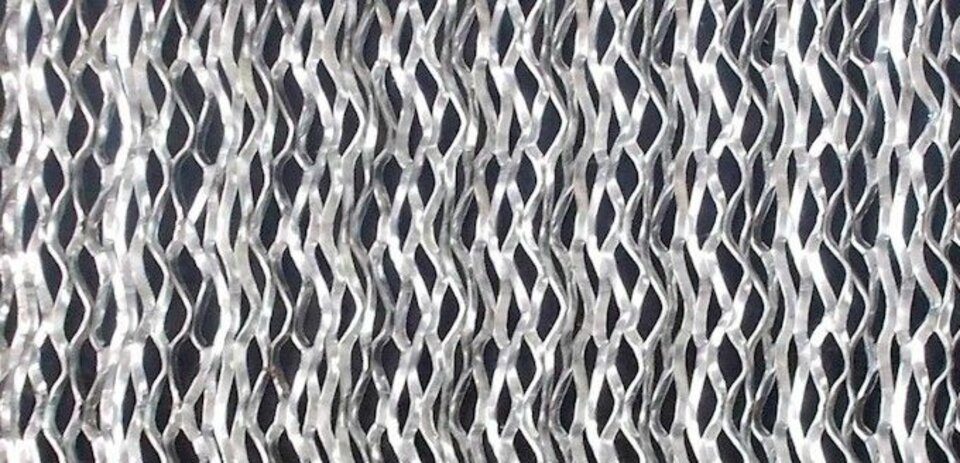

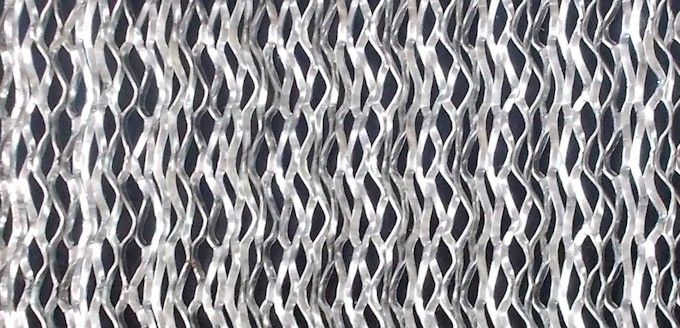

Viva V134

frontal opening: 18 % (± 5 %)
open area: 24 % (± 5 %)
expanded metal thickness: approx. 10 mm
mesh length: 28 mm
max. panel size: 2,400 x 900 mm

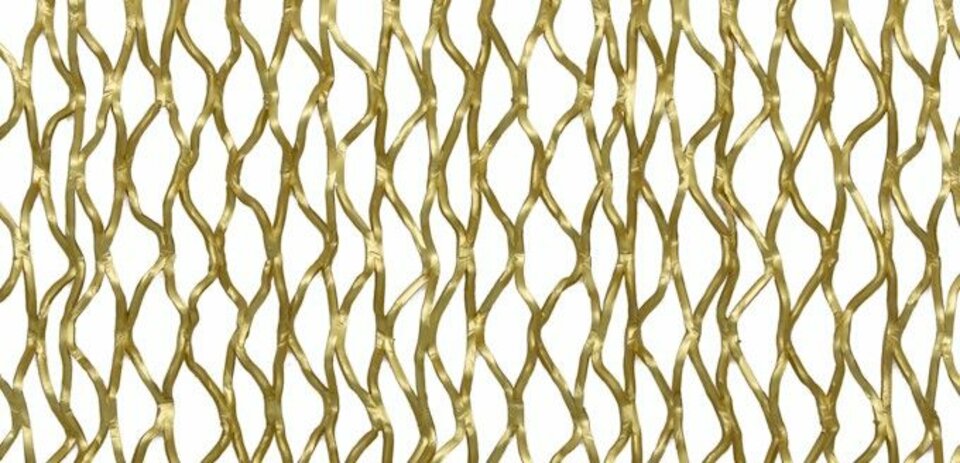

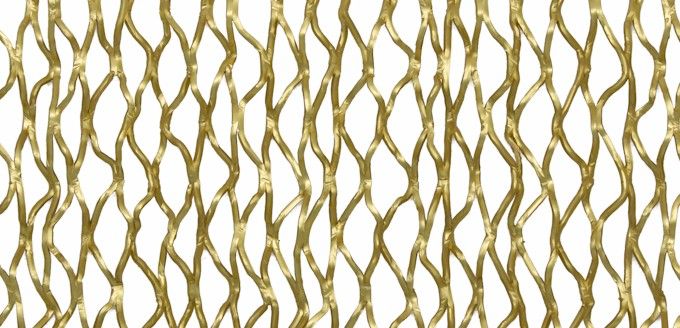

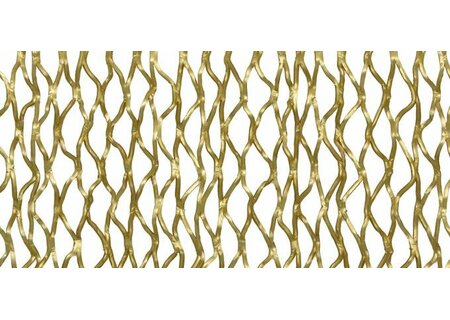

Aurum 2

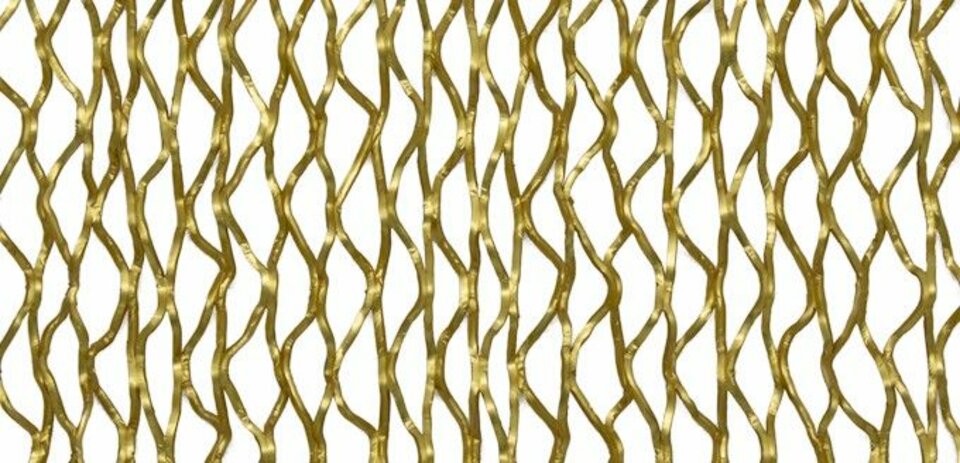

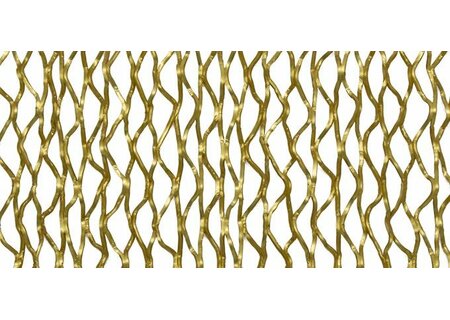

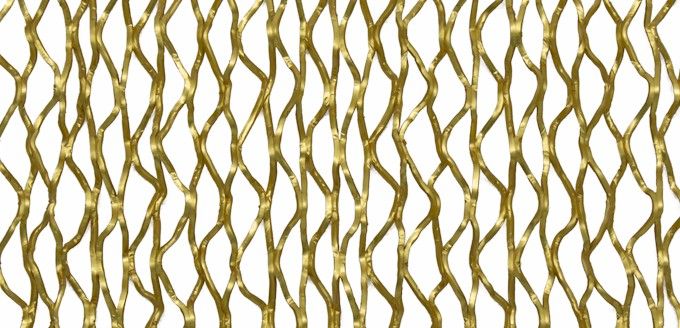

Aurum 3

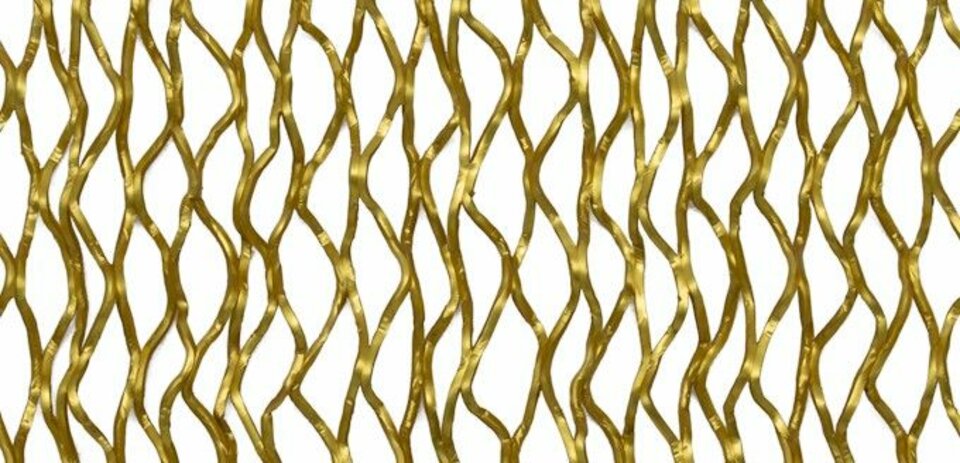

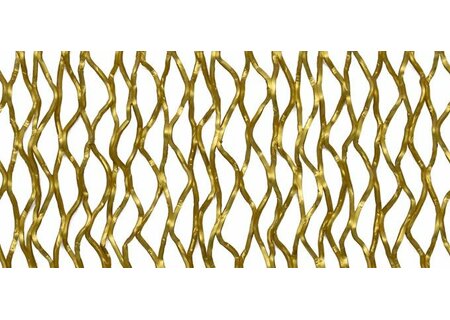

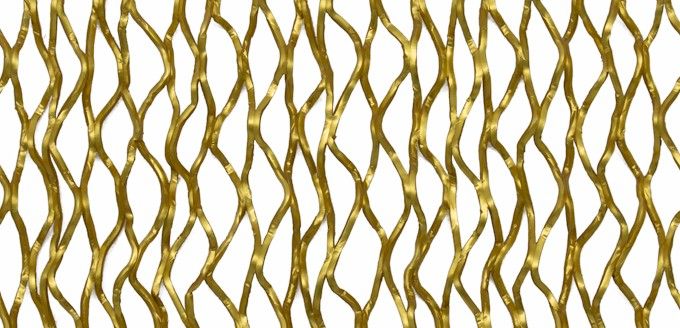

Aurum 4

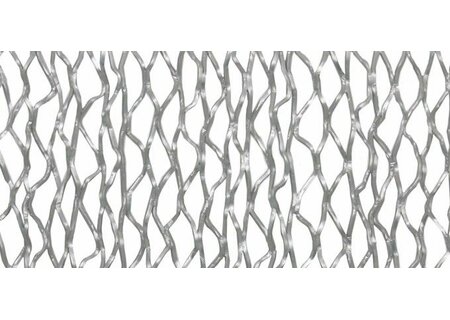

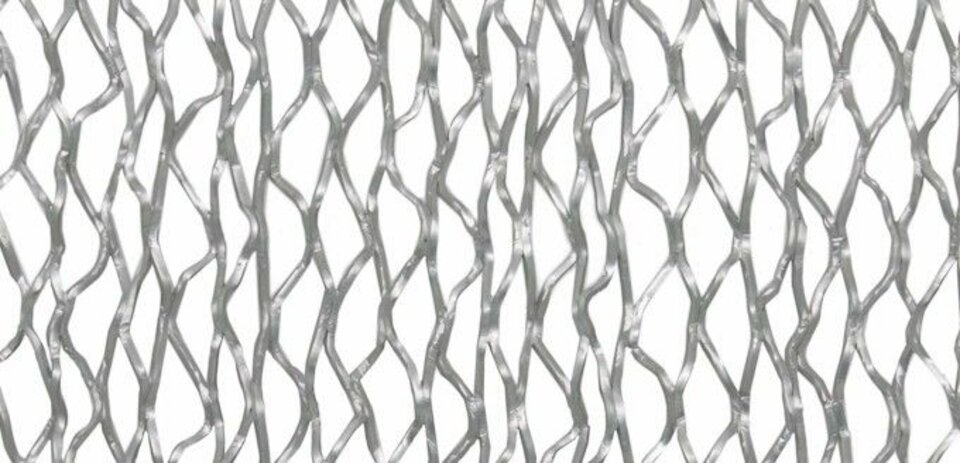

Aluminium Silver

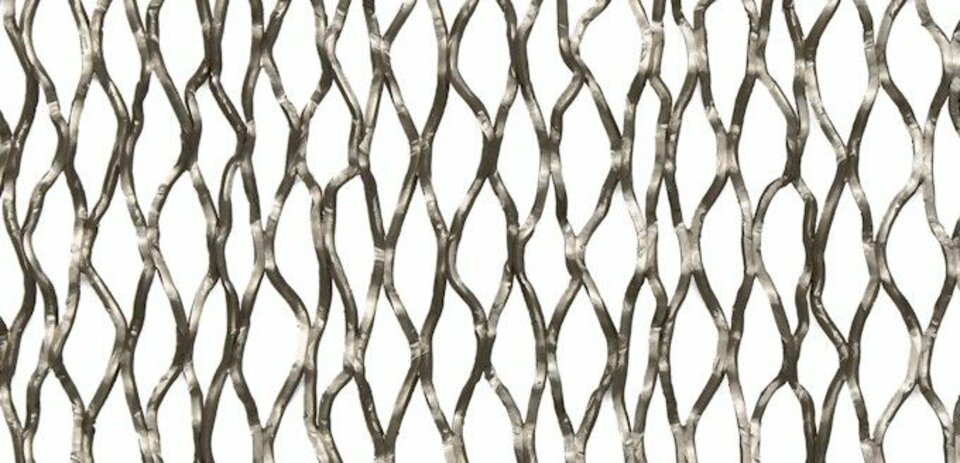

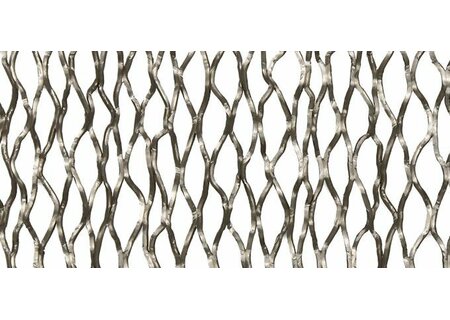

Brundisium 15

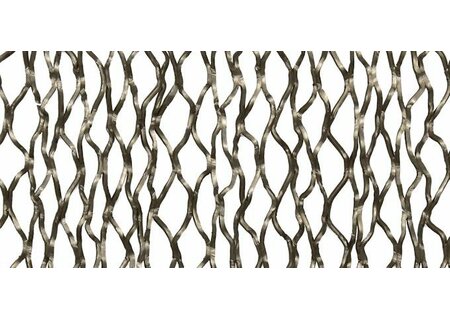

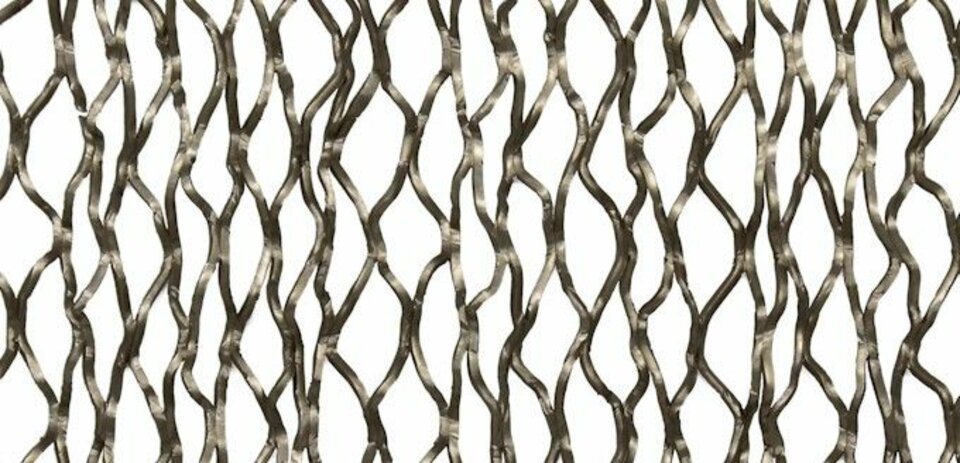

Brundisium 55

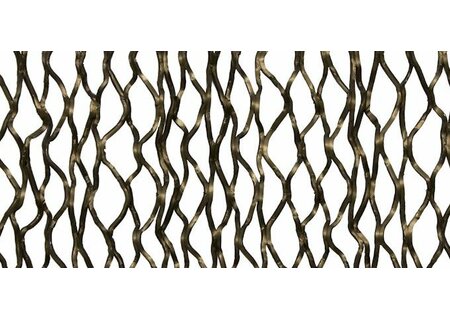

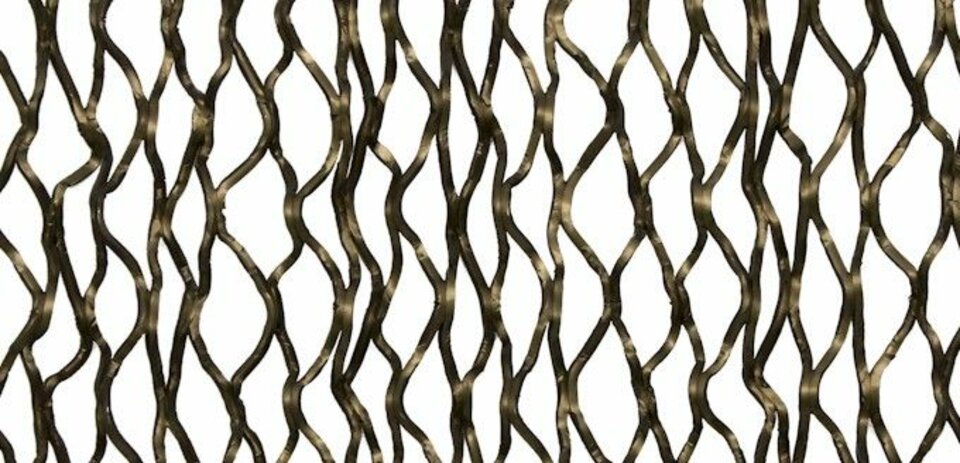

Brundisium 60

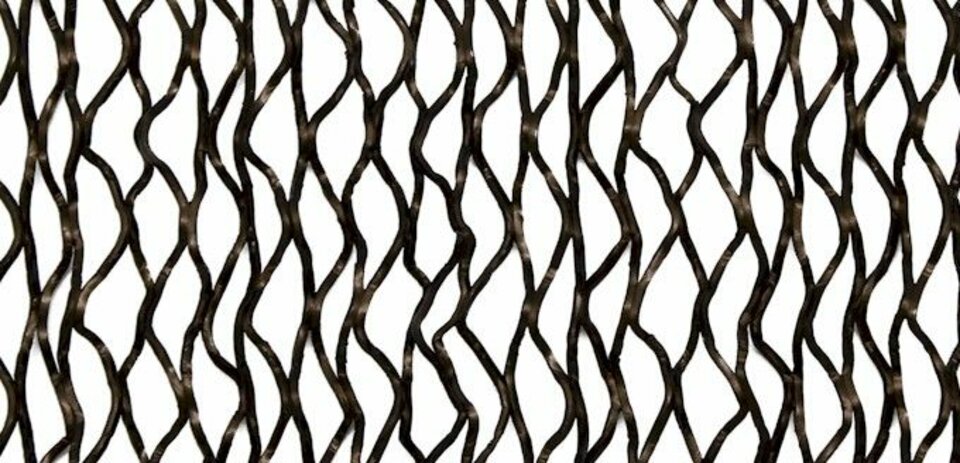

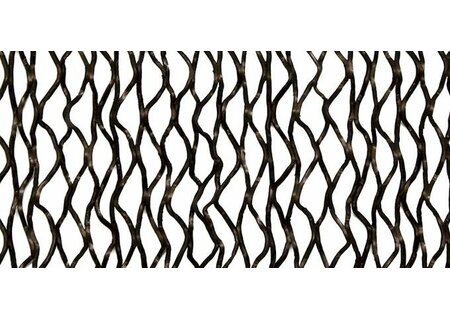

Brundisium 65

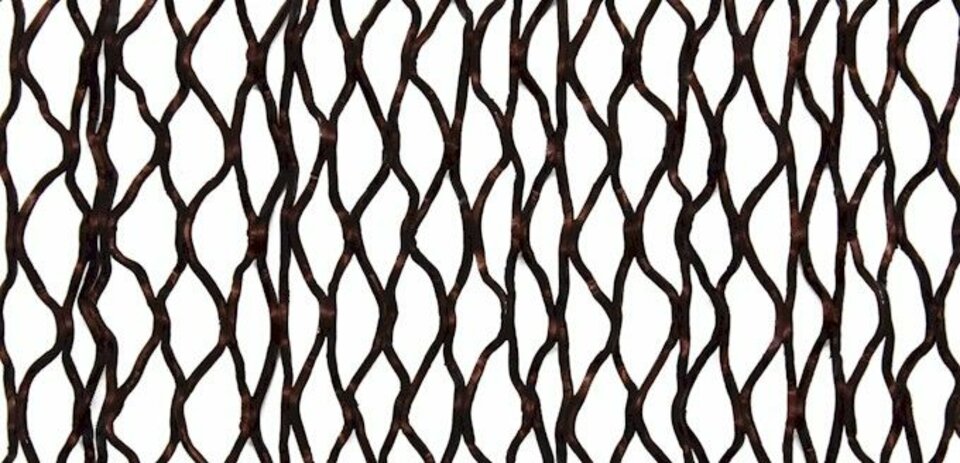

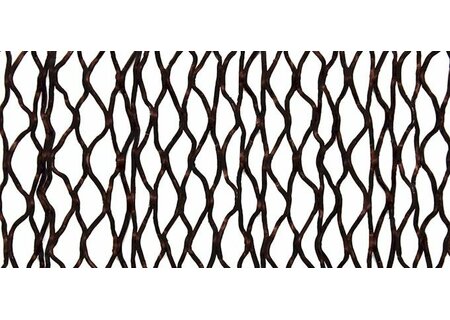

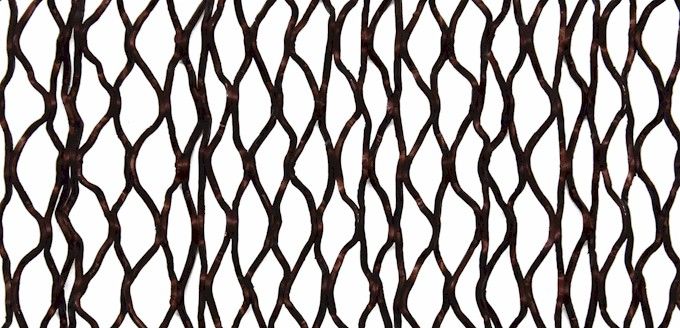

Aeris

Notice: colours displayed on the screen or printout are not binding because brightness and contrast may vary. Therefore small colour differences are possible.

Technical details

Acoustics

Fire protection

Durability

Project solutions

Don't hesitate to contact us!

+49 8723 20-3679 E-Mail

Combinable Systems - (3)

LMD-St 213

Hook-On Expanded Metal Ceiling with Accentuated Joints

LMD-St 312

Hook-On Expanded Metal Ceiling, Free-Spanning

LMD-St 214

Hook-On Expanded Metal Ceiling with Open Joints

Examples for areas of application

Work: Common Rooms, Facilities for Meetings, Conventions and Conferences, Assembly Rooms, Office Buildings

Businesses, Recreation and Culture: Places of Assembly, Banks, Cinemas and Multiplex Theatres, Stadiums and Arenas

Public Institutions: Courts and Correctional Facilities, Town Halls, Government and Administrative Buildings

Education: Research Rooms, Universities and Higher Education Buildings, Schools

Hotels and Gastronomy: Hotels and Resorts, Restaurants and Catering Facilities

Industry: Factories and Production Facilities

Transport: Railway Stations, Airports
