FLOOR and more^® power

Dry Hollow Floor for Heavy-Duty Areas

FLOOR and more^® power

Dry Hollow Floor for Heavy-Duty Areas

The FLOOR and more^®power Dry Hollow Floor System was developed especially for heavy-duty areas. The hollow floor panels type power consist of fibre-reinforced calcium sulphate with an optimised panel mixture and are optionally applied with a steel sheet on the lower side.

single-layer design up to 24 kN point load
accessible with heavy lifting platforms and vehicles
no reinforcement profiles necessary
very high load capacity with low base layer thickness

Data Sheet

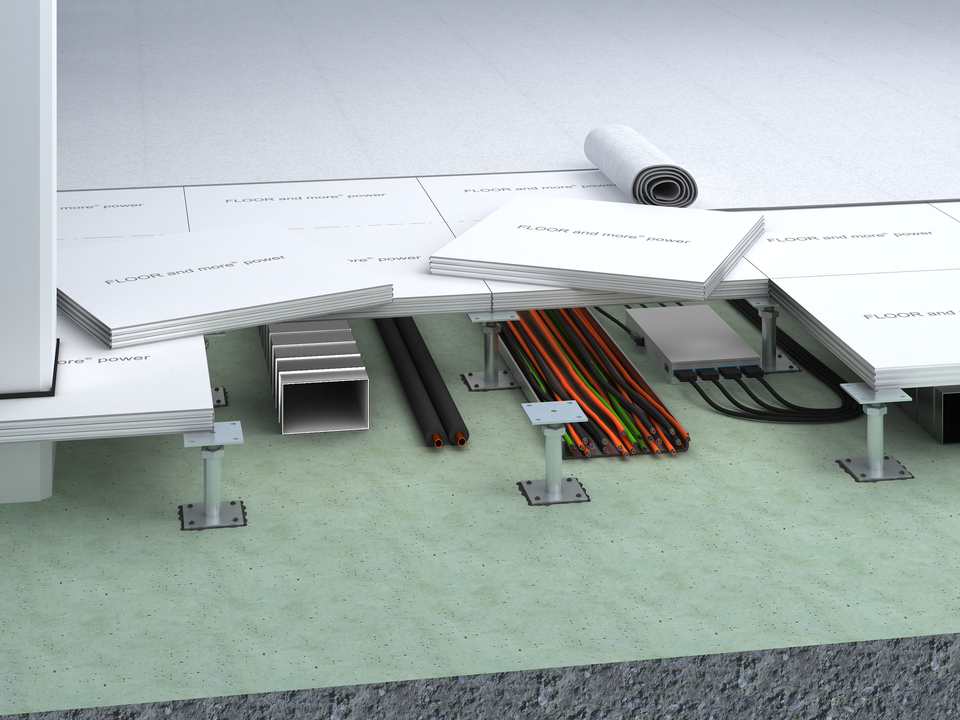

FLOOR and more® powerConstruction

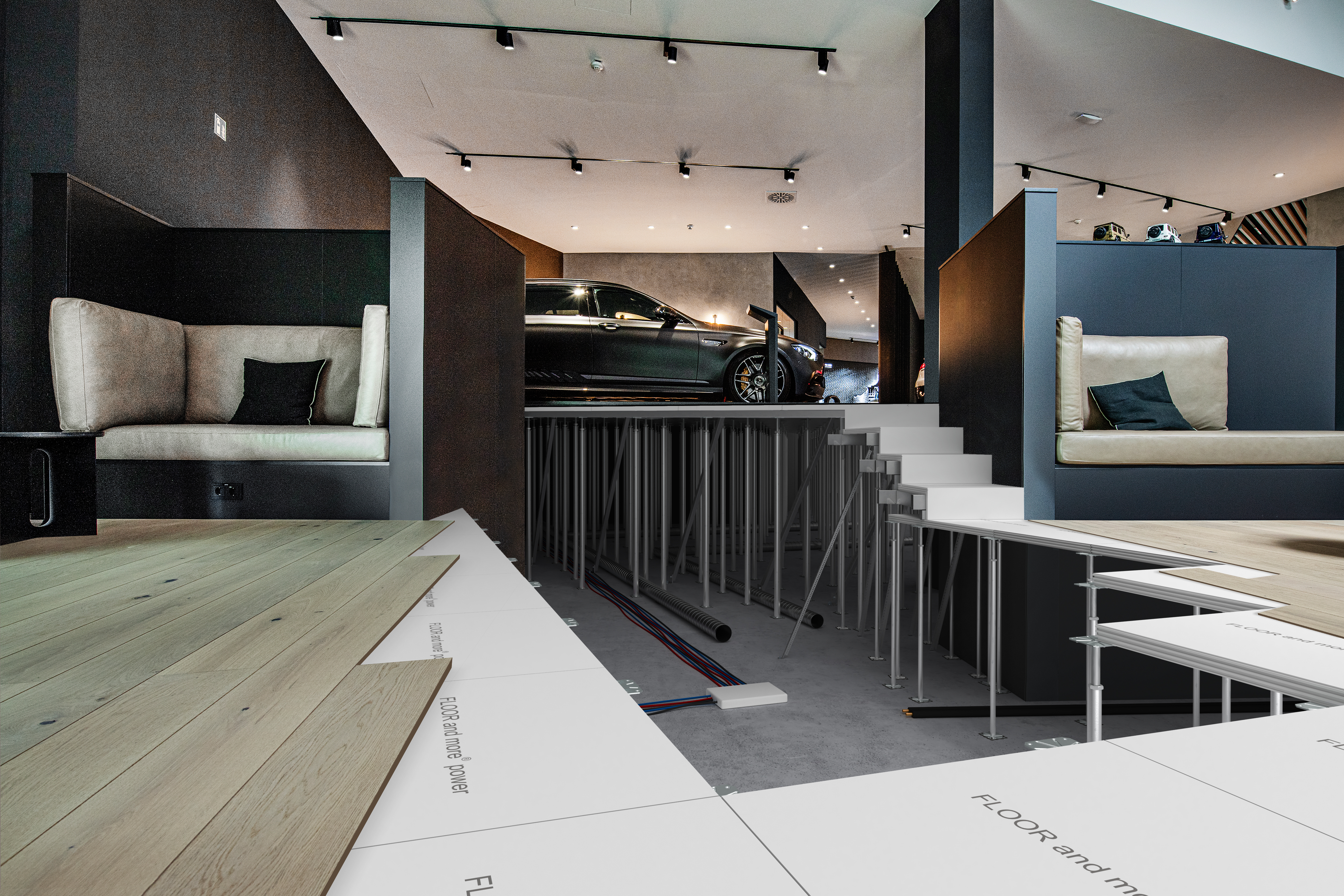

FLOOR and more® powerApplication

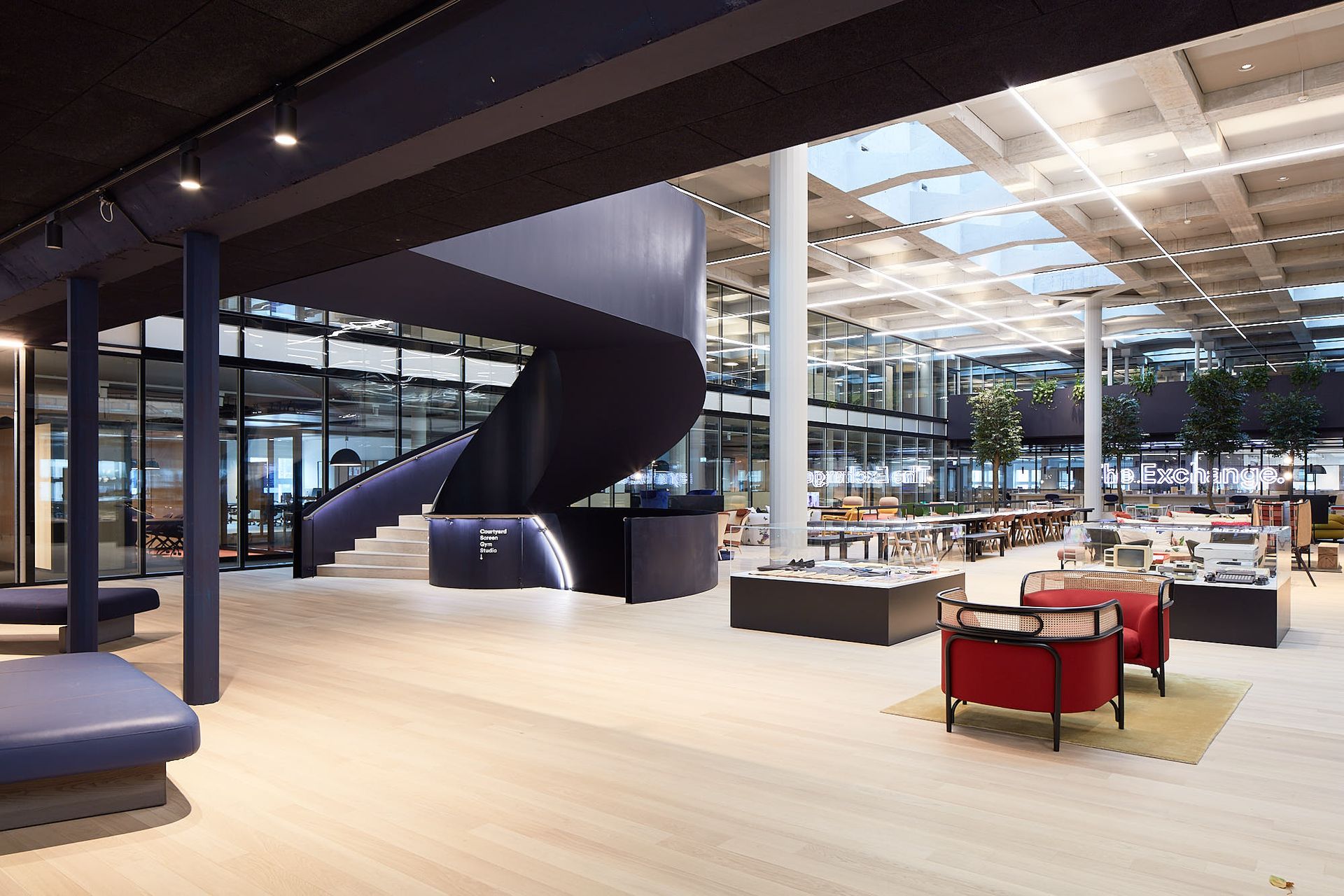

FLOOR and more® powerApplication

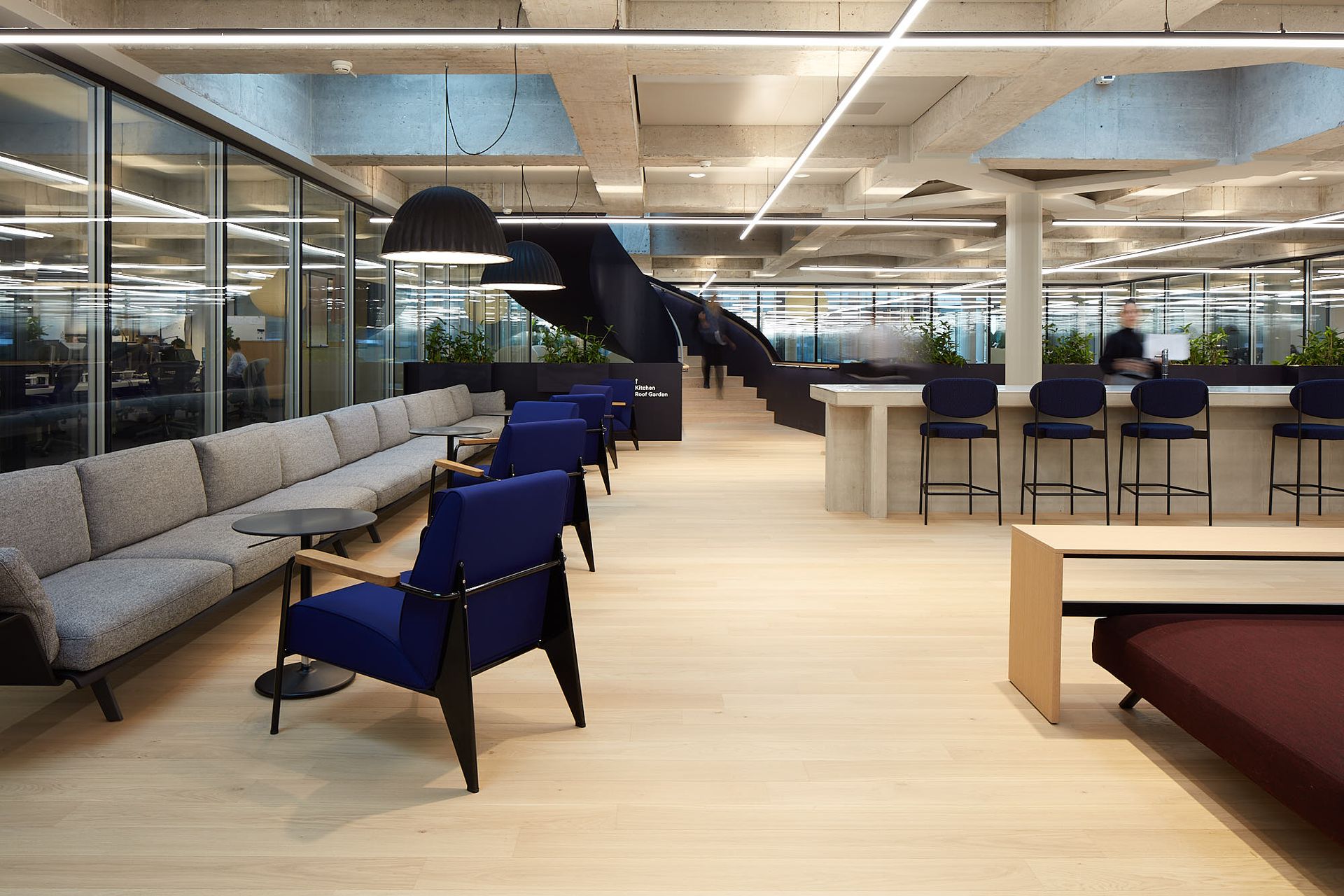

FLOOR and more® powerApplication

FLOOR and more® powerApplication

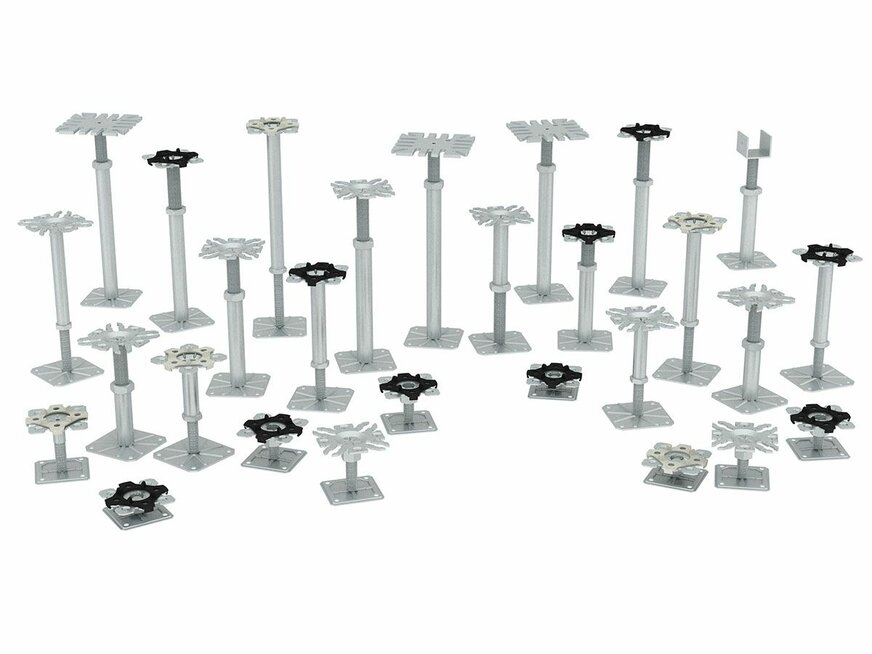

PedestalsOverview over pedestals

FLOOR and more® powerCradle to Cradle Certified (R) - Technical Cycle

Superior

Downloads

Digital Service

Tender texts and DIN/VOB specifications

www.ausschreiben.de

Product Information

Technical details

Static

Fire protection

Building material class

of the carrier panel

Building material class

EN 13501-1

Designation by building authorities

EN 13501-1

non-combustible

Fire resistance

DIN 4102-2

F 30

Fire resistance

EN 13501-2

REI 60 possible with additional measures
REI 30 possible with additional measures

Sustainability

Declarations

Circular Economy

Cradle to Cradle Certified^® Silver

Product Self-Declaration

Self-declaration according to ISO 14021 upon request

EPD (Environmental Product Declaration)

EPD according to EN 15804 / ISO 14025 upon request

Sustainable forestry

Our products can be supplied FSC™-certified (chain of custody certification) and fulfil all the necessary requirements. Certificate number: TUEV-COC-000515 Licence number: FSC-C119815

Evidence

Green Level Certificate

Superior

Coverings

Additional equipment

Facings

Staircases, platforms, etc. need to be finished with a front cladding (facing). Where features such as free-standing borders are required, the top edges of the facing will be protected with a stair edging profile. Angles screwed to the subfloor and bracing installed in the upper area of the facing ensure a stable structure.

Expansion joints profiles

In order to take up horizontal and vertical movements in a structural and inconspicuous manner, expansion joint profiles are used in the area of the hollow floor, adapted to the application.

Electrical outlets

As all electrical installations are laid under the hollow floor, electrical connections can be placed exactly where you want them by the insallation of electrical outlets.

Cavity barriers

Three different types of cavity barriers can be possible to meet the different requirements in the hollow floor area. - Ventilation barriers made from coated chipboard panels - Fire protecion barriers made from solid gypsum wall blocks (min. 80 mm) - Sound protection barriers made from foam mortar (min. 100 mm)

Air ventilation outlets

Air ventilation outlets allow the room to be air-conditioned and ventilated without creating draughts. Various systems are available: - Open system Ventilation takes place directly in the cavity for installations, which is designed as a pressure floor, through the corresponding air ventilation outlets or rather through the hexagonal ventilation outlets into the room. - Closed system In a closed system, the air is fed through a pipe system or through cavity barriers with fixed connections to the air ventilation outlets.

Revision openings

As a matter of course, hollow floors also have to guarantee easy access to the installations. For this purpose, FLOOR and more® can be equipped with revision openings. The removable floor panels are supported by a sturdy and surrounding frame which ensures the high stability of the floor construction. The covering separation rails and rubber seal lips can be visually adjusted to the chosen floor covering - so the revision opening blends into the floor surface inconspicuously.

Bridging profiles

Due to structural reasons bridging is required where pedestals cannot be installed. In such cases, special bridging profiles are available which are easy to install and improve at the same time dynamic and static load-bearing capacities.

Reinforcement profiles

Standard Lindner floor systems already exhibit high load-bearing capacities. Should these still not be sufficient, the system can be upgraded by reinforcement profiles. Various options are possible, from the lightest stringer which increases lateral rigidity through to a C-profile.

Don't hesitate to contact us!

+49 8723 20-3682 E-Mail

Examples for areas of application

Public Areas: Entrance Areas, Escape Routes

Work: Common Rooms, Facilities for Meetings, Conventions and Conferences, Stage and Studio Rooms, Office Buildings, Broadcasting Rooms, Television Studios, Assembly Rooms

Education: Libraries, Research Rooms, Schools, Universities and Higher Education Buildings

Businesses, Recreation and Culture: Shopping Centres, Sales Areas, Banks, Cinemas and Multiplex Theatres, Concert Halls, Theatres and Opera Houses, Museums and Galleries, Sports Halls and Gymnasiums, Stadiums and Arenas, Places of Assembly

Healthcare: Clinics and Hospitals, Laboratories and Research Facilities, Operating Theatres

Hotels and Gastronomy: Restaurants and Catering Facilities, Commercial Kitchens, Hotels and Resorts

Industry: Laboratories and Research Facilities, Factories and Production Facilities

Public Institutions: Courts and Correctional Facilities, Town Halls, Government and Administrative Buildings

Transport: Railway Stations, Airports
