Plafotherm® F30

Heated and Chilled Fire Rated Metal Ceiling Hook-On-Swing-Down-Slide acc. to DIN 4102-2

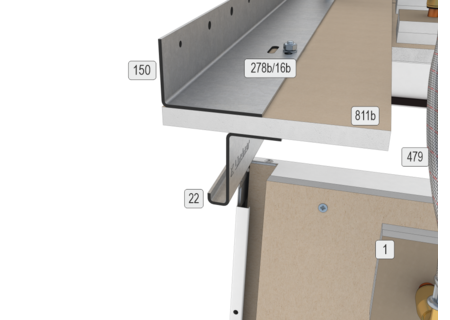

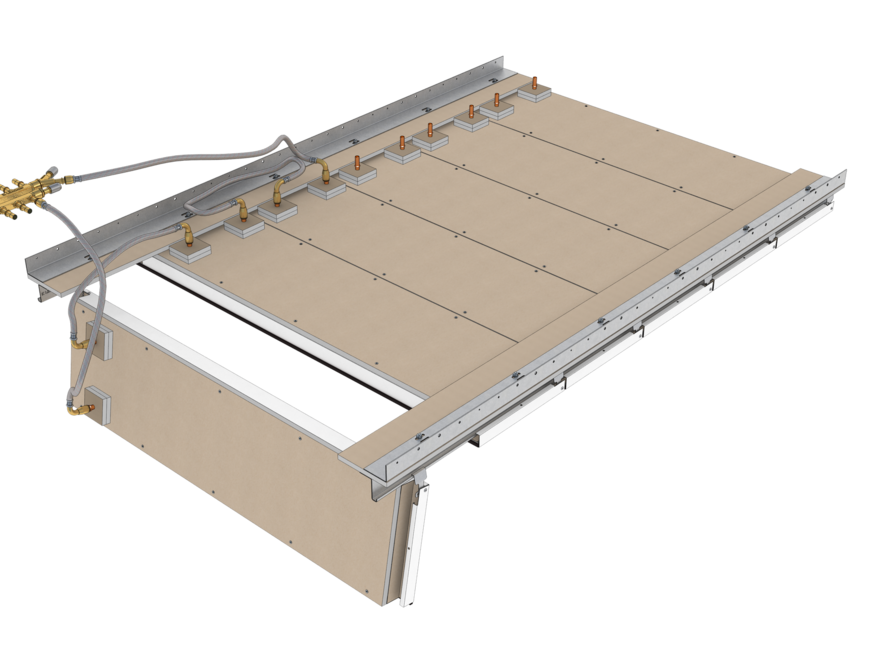

This fire rated metal ceiling with integrated heating/cooling technology guarantees reliable fire protection and at the same time ensures a pleasant room climate. The ceiling elements with mineral wool are hooked onto carrier rails on both sides. Each ceiling element can be swung down and slid along the corridor. The ceiling can be opened without the need for any tools. Moreover, tolerances on the wall can be compensated. No additional ceiling void is necessary for maintenance works.

  • heating/cooling by means of radiation creates a pleasant room climate
  • flexibility thanks to the combination of thermally active and passive areas
  • general building authority test certificate No. P-2101/336/18-MPA BS
  • freely spanned construction

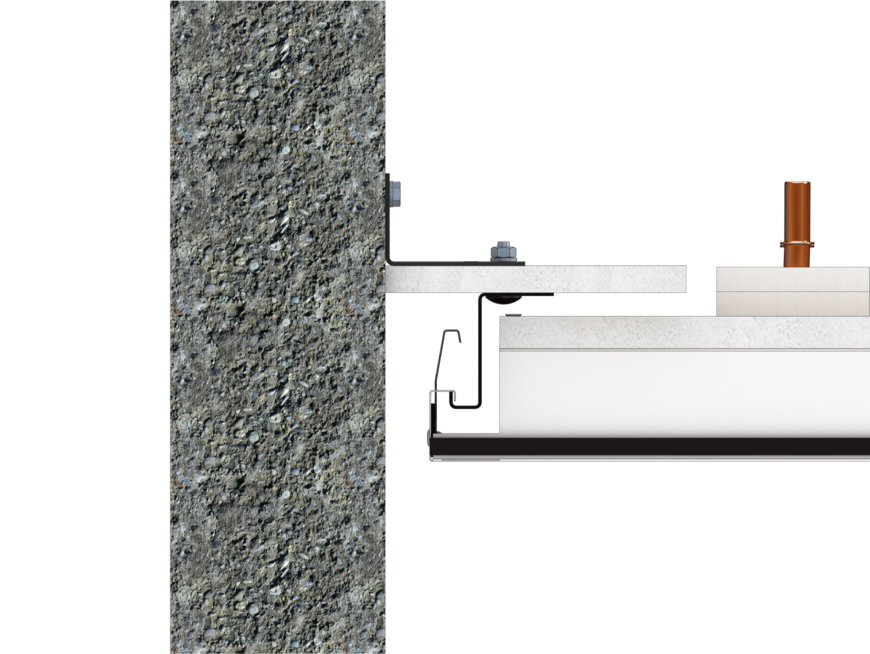

  • good compensation of tolerances on the wall is possible due to an adjustable wall connection

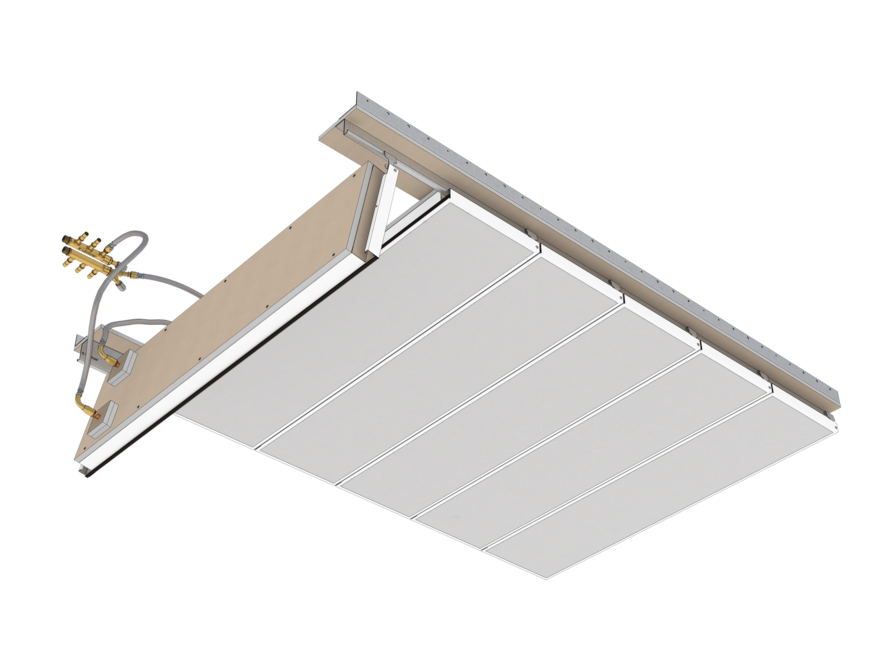

  • maintenance option due to ceiling elements that can be individually operated, swung down and slid without tools
  • swung down ceiling elements can be moved together to receive a large inspection opening (approx. 3,000 x 1,500 mm)
  • no additional ceiling void is necessary for maintenance works
  • hygienic and easy to clean
