LMD-L LAOLA

Metal Baffle Ceiling in Wavelike Design

LMD-L LAOLA

Metal Baffle Ceiling in Wavelike Design

LMD-L LAOLA with wavelike baffles is a design solution that creates vivid, three-dimensional effects. Design your individual baffle ceiling thanks to a multitude of possible radii, centre distances and sizes. The curved baffle ceiling is very maintenance-friendly due to baffles that can be slid without the need for any tools. Fixtures can independently be installed between the baffles.

three-dimensional design by means of wavelike baffles with concave and convex radii
freely selectable centre distances and baffle dimensions
independent installation of luminaires and fixtures possible between baffles
visible ceiling void
easy and quick installation
easy maintenance option due to baffles that can be individually slid without tools
finalist german sustainability award in the category design

Data Sheet CAD-Portal

LMD-L LAOLAView from below

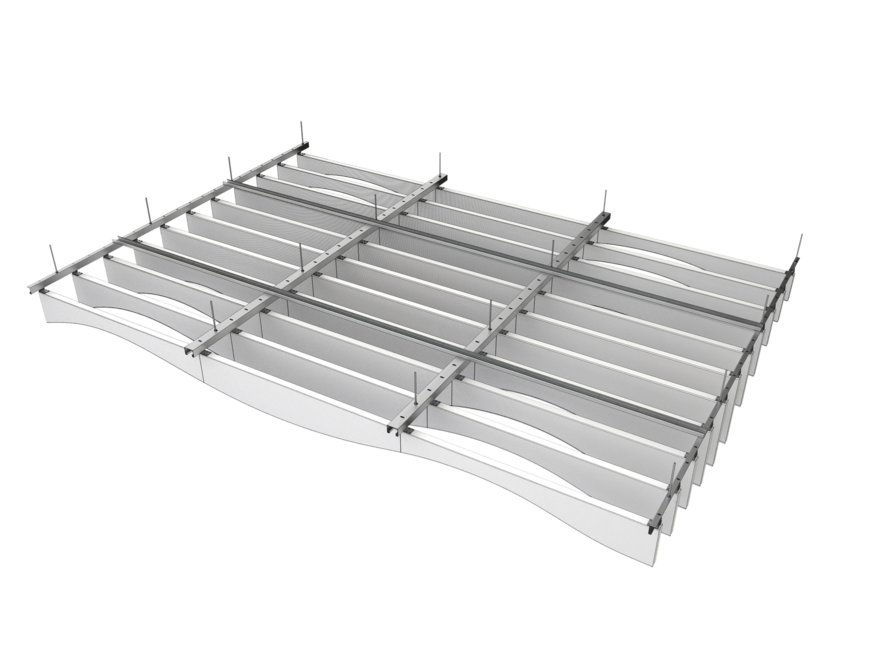

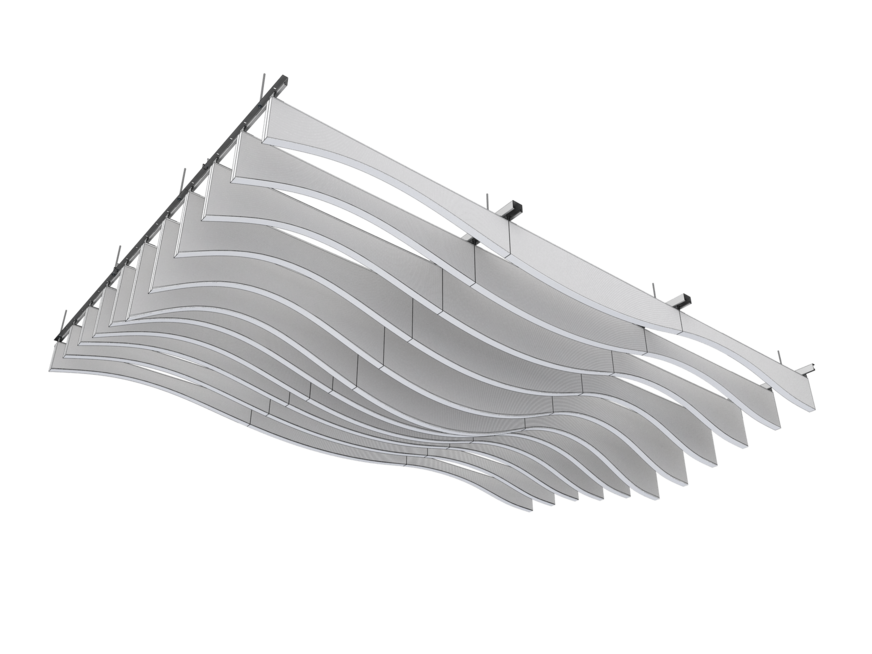

LMD-L LAOLAView from above

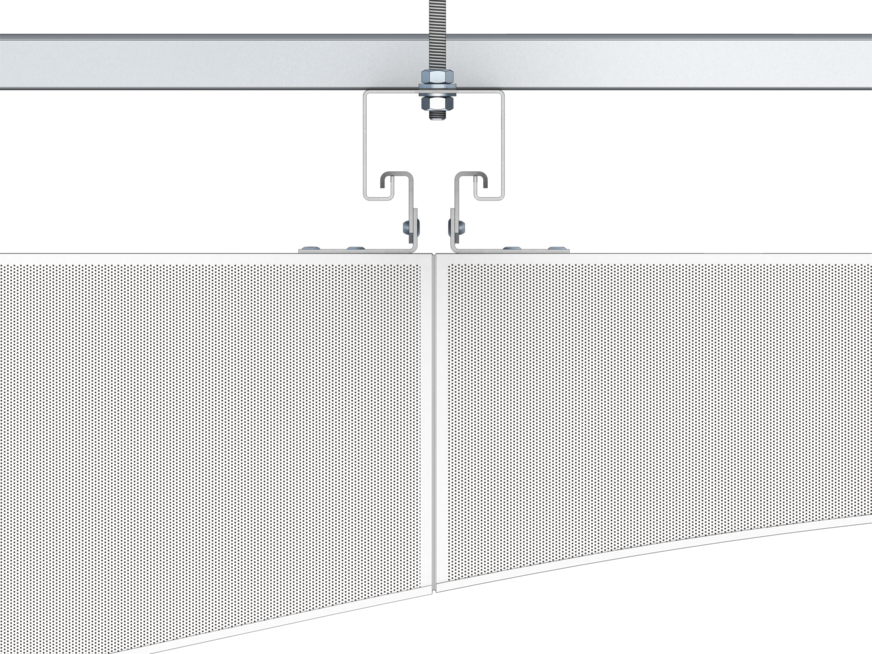

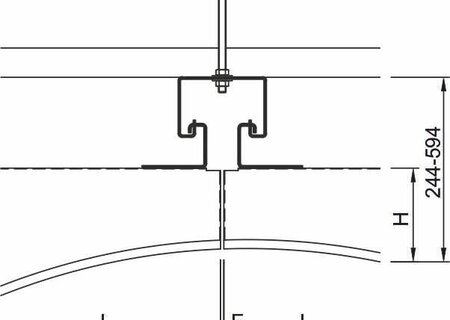

LMD-L LAOLASection

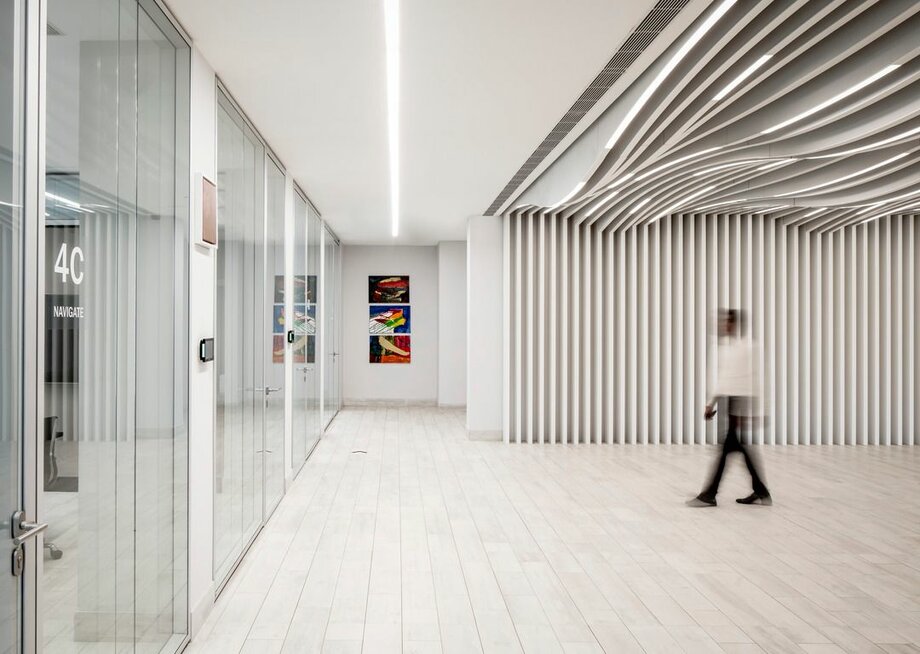

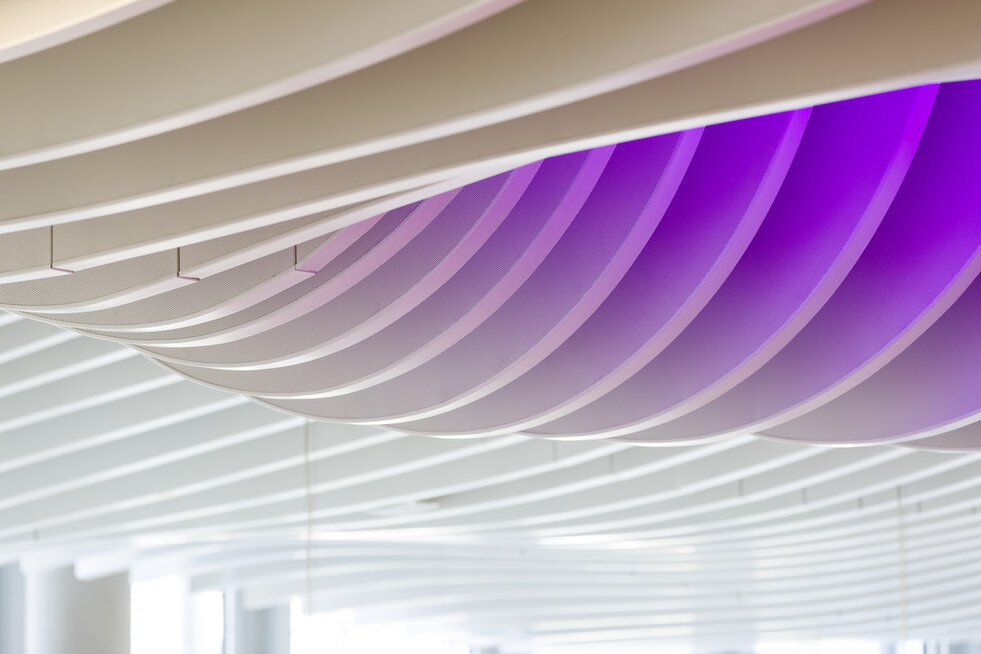

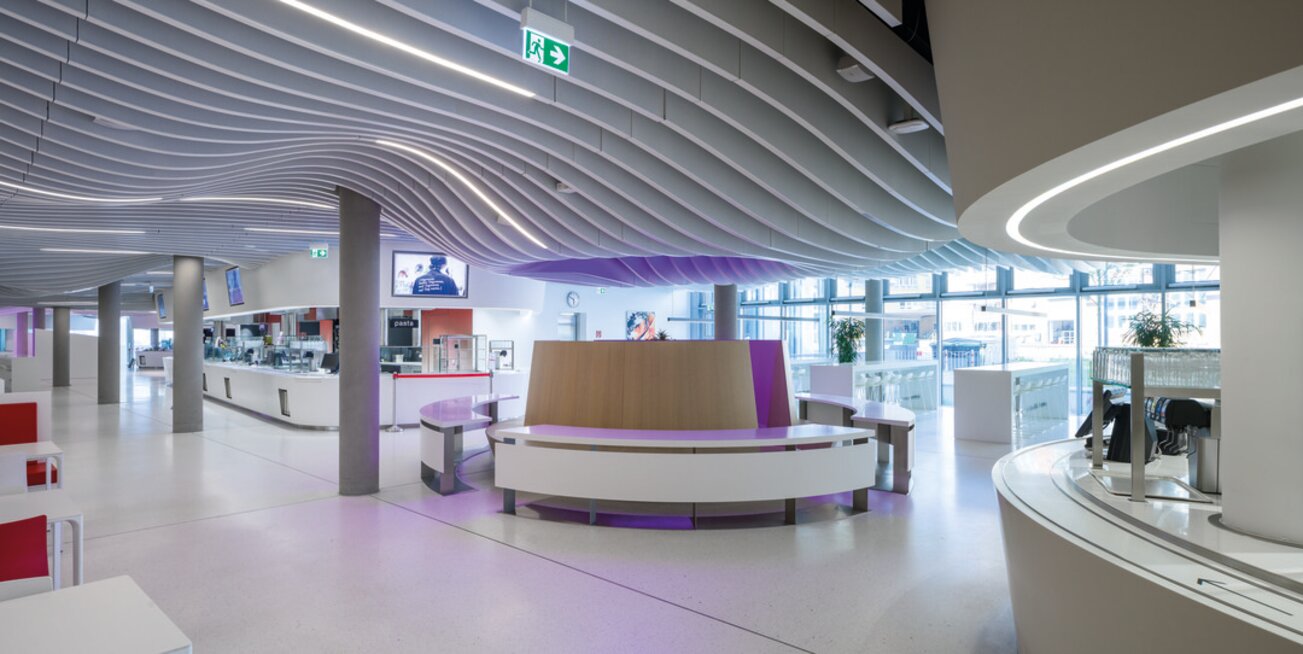

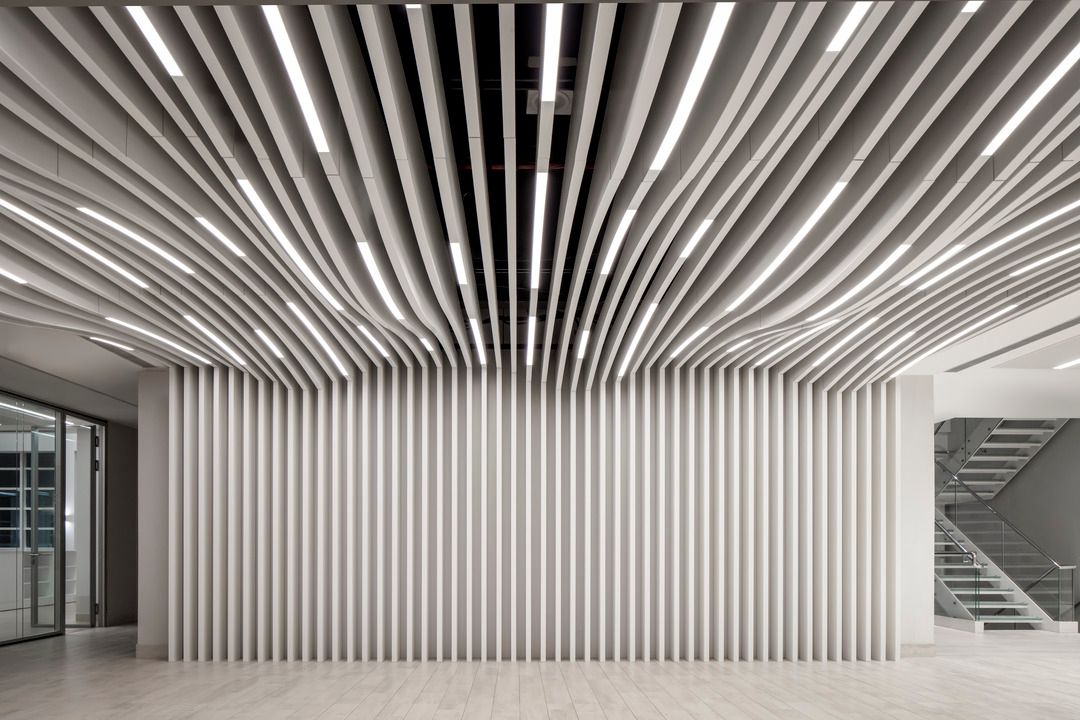

LMD-L LAOLAApplication

LMD-L LAOLAApplication

LMD-L LAOLAApplication

LMD-L LAOLAApplication

Downloads

Digital Service

NBS Specifications

Product Information

Ceiling elements

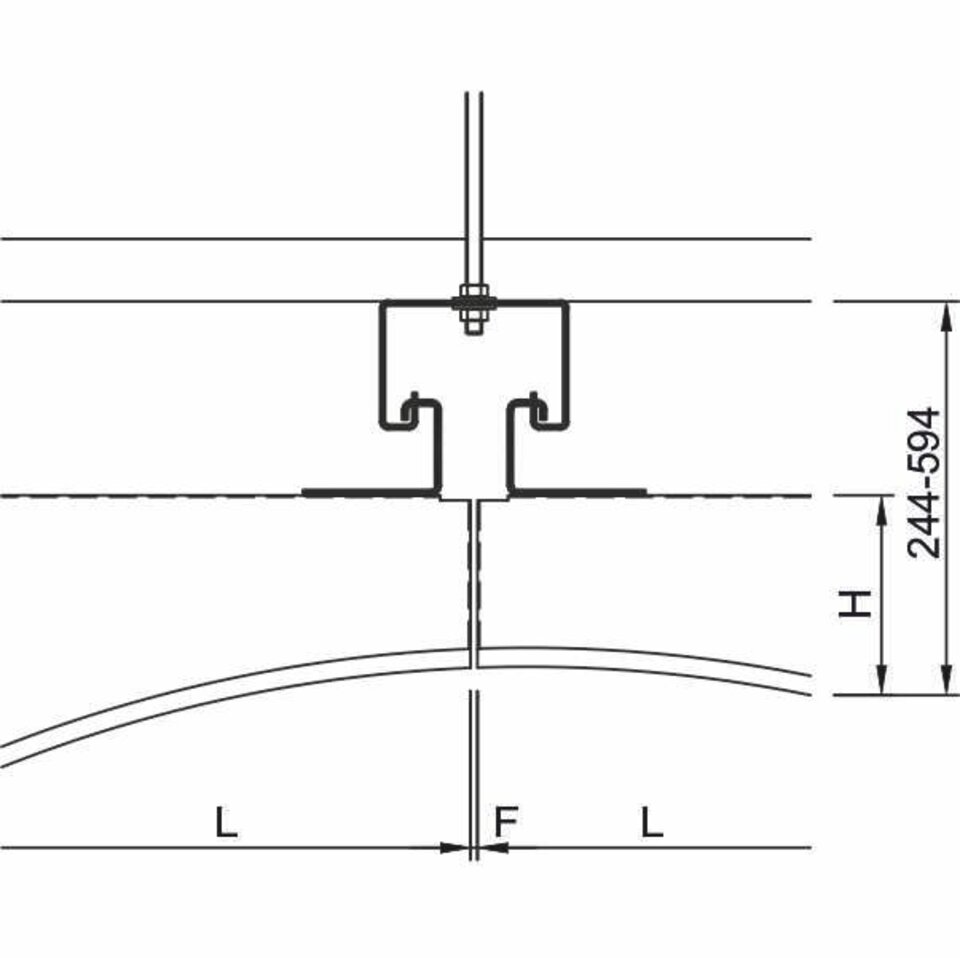

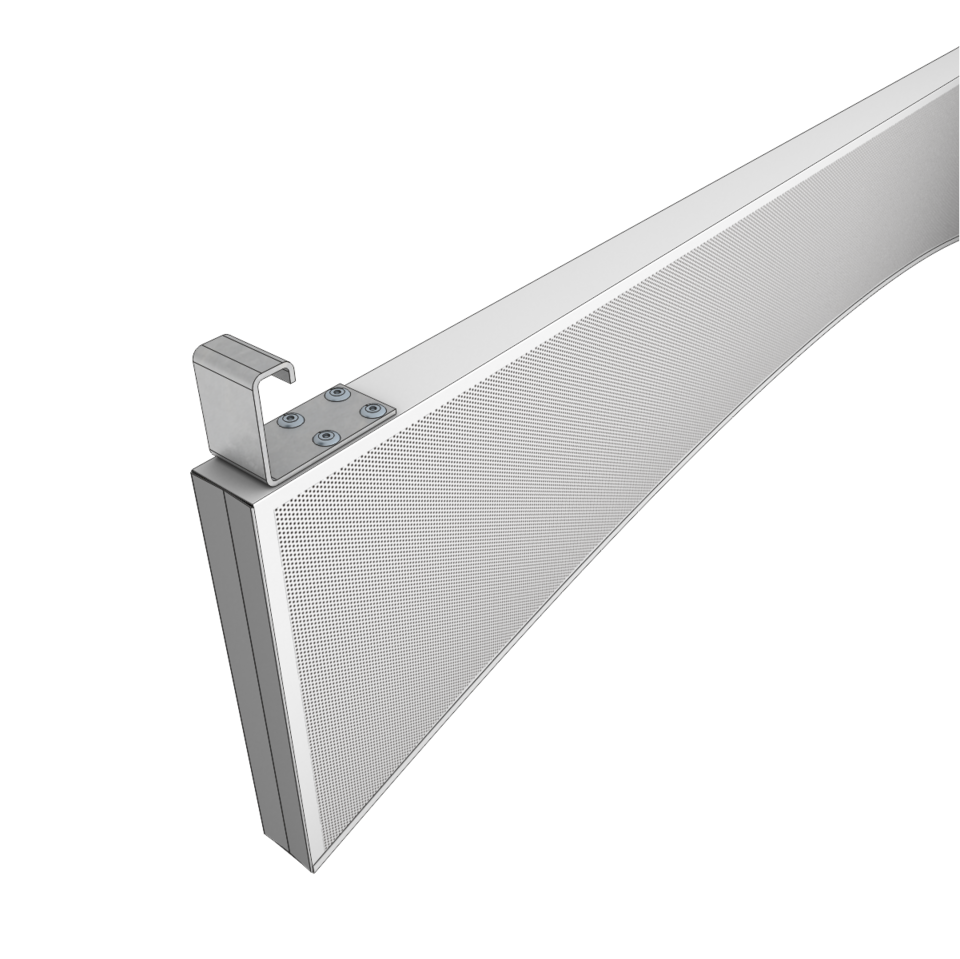

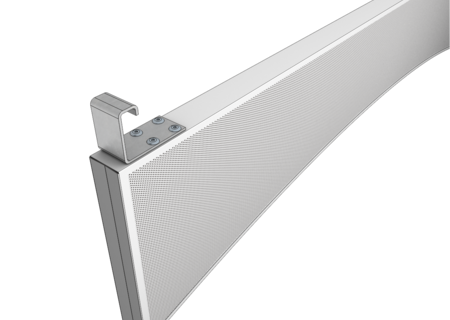

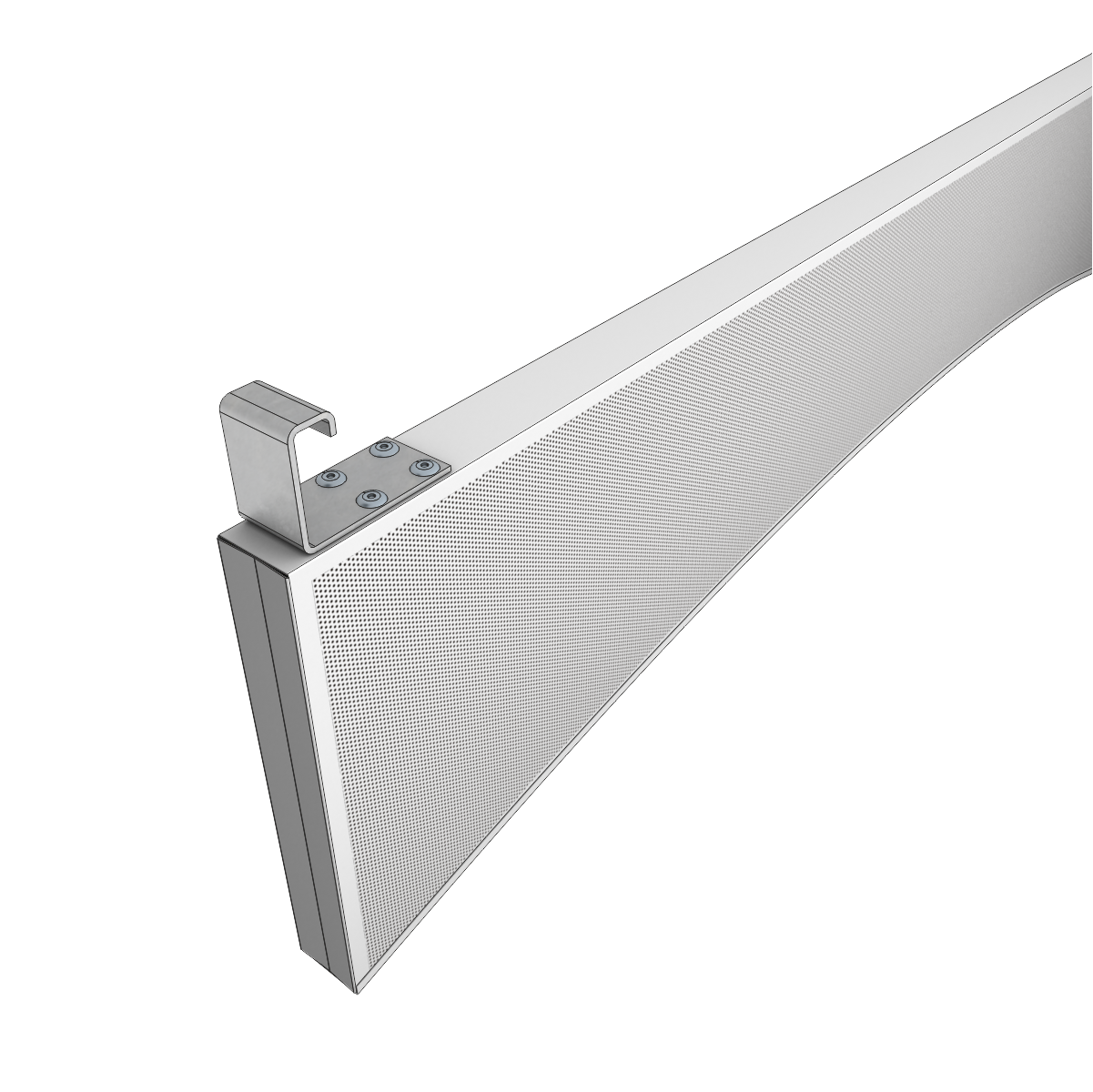

LMD-L LAOLA Typ 1

one-piece, slide option

Length (L)

500 - 2,500 mm

Width (B)

50 mm

Height (H)

100 - 500 mm

Radius (R)

min. 1,500 mm

Joint width (F)

3 mm

Perforation

REGULARline Rd 1,8-10, REGULARline Rg 1,8-11, REGULARline Rg 1,8-19, REGULARline Rv 1,8-20, REGULARline Rd 1,8-21

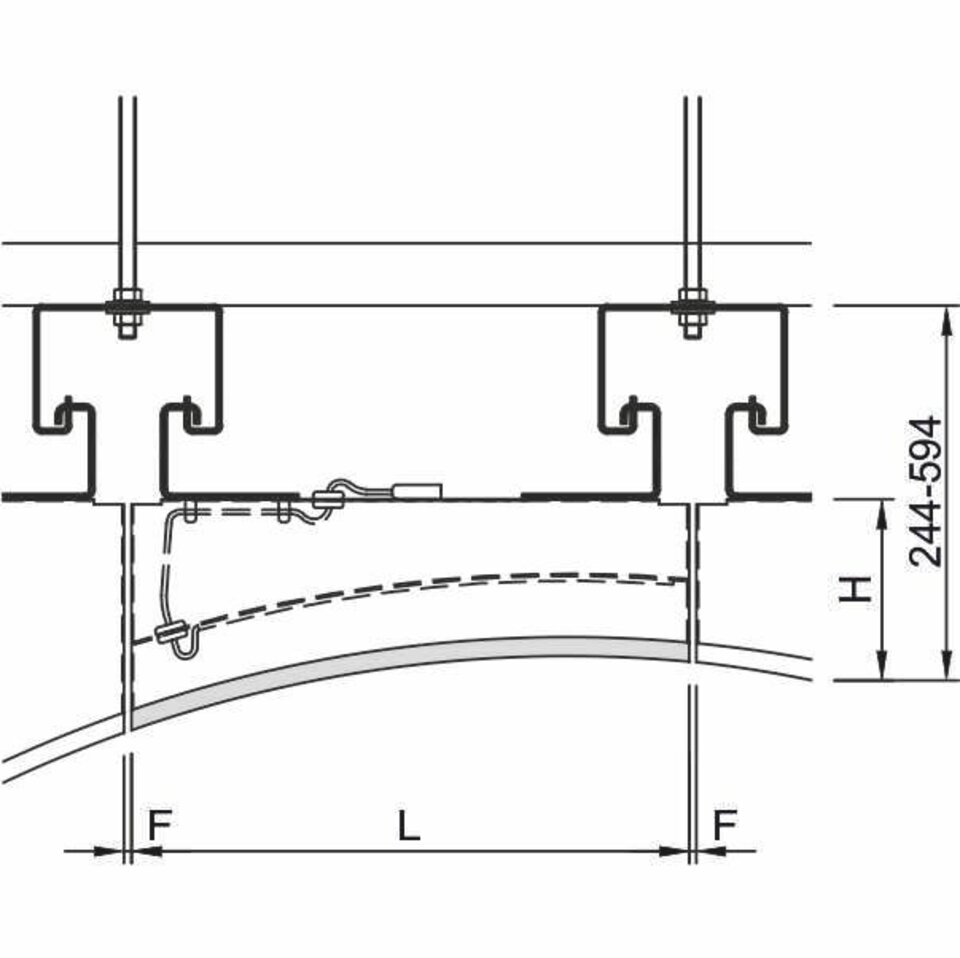

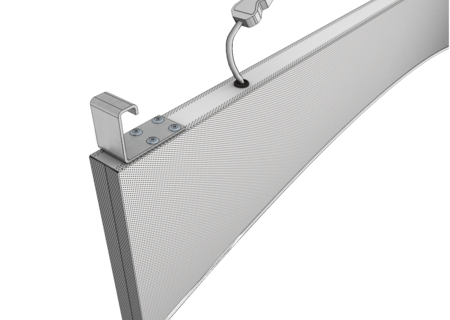

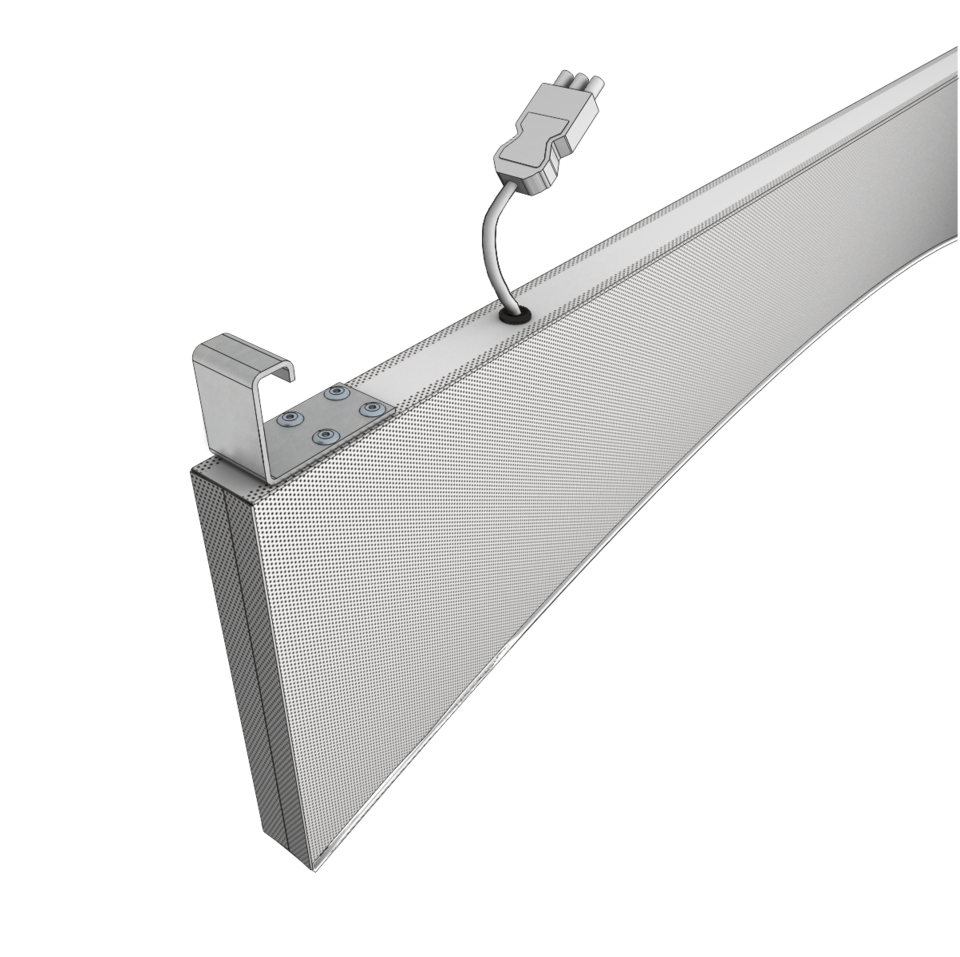

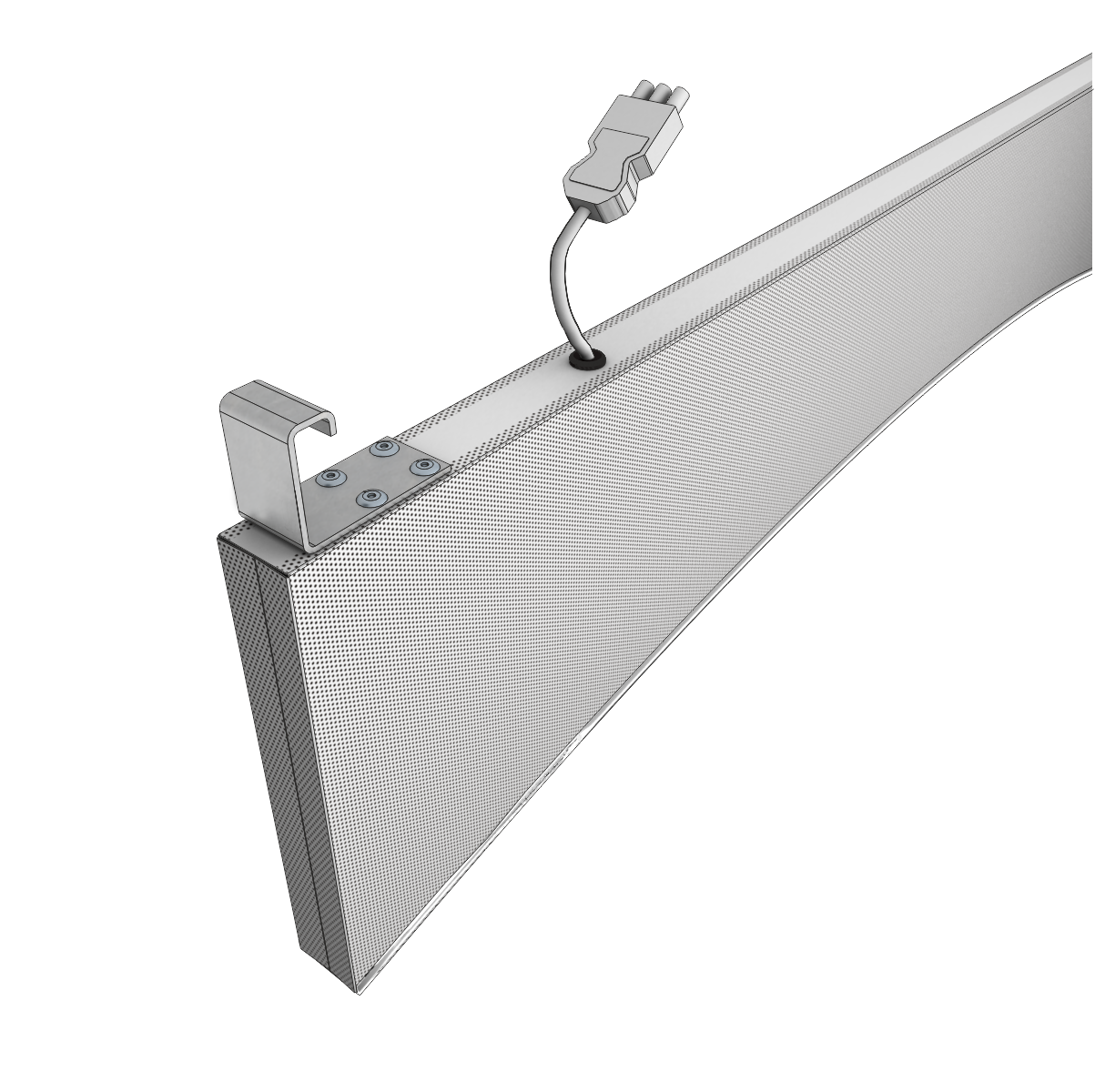

LMD-L LAOLA Shine

one-piece, slide option, with luminaire LShine

Length (L)

500 - 2,500 mm

Width (B)

50 mm

Height (H)

100 - 500 mm

Radius (R)

min. 1,500 mm

Joint width (F)

3 mm

Perforation

REGULARline Rd 1,8-10, REGULARline Rg 1,8-11, REGULARline Rg 1,8-19, REGULARline Rv 1,8-20, REGULARline Rd 1,8-21

Technical details

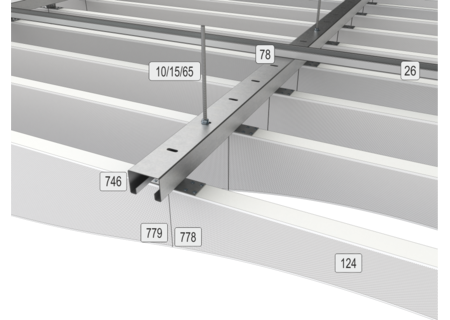

Component list

Fire protection

Durability

Sustainability

Declarations

EPD (Environmental Product Declaration)

The product has a verified EPD in compliance with the applicable standards. ( ISO 14025/EN 15804)

French VOC Regulation

Emission class A+

Product Self-Declaration

A self-declaration in accordance with ISO 14021 is available. This contains extensive environmental information for planning, tenders and building certifications (LEED, DGNB, EU taxonomy).

Data

Recycled Content

24 %

Indoor air measurement EN 16516 options

< 5 µg/m³

Emission of Formaldehyde

< 3 µg/m³

Evidence

Indoor Air Comfort

Accomplished

Indoor Air Comfort Gold

Accomplished

AgBB

Accomplished

BREEAM International

Conform

LEED v4

Conform

DGNB

Conform

Surfaces

Certification

Project solutions

Don't hesitate to contact us!

+49 8723 20-3679 E-Mail

Additional Equipment - (2)

Acustica

Acoustic fabric inlay

LShine

Baffle luminaire

Examples for areas of application

Work: Facilities for Meetings, Conventions and Conferences, Stage and Studio Rooms, Broadcasting Rooms, Television Studios, Assembly Rooms, Common Rooms, Office Buildings

Businesses, Recreation and Culture: Shopping Centres, Museums and Galleries, Stadiums and Arenas, Places of Assembly, Sales Areas, Banks, Cinemas and Multiplex Theatres, Concert Halls, Theatres and Opera Houses

Transport: Railway Stations, Airports

Public Institutions: Courts and Correctional Facilities, Town Halls, Government and Administrative Buildings

Education: Libraries

Public Areas: Entrance Areas

Hotels and Gastronomy: Hotels and Resorts
