LMD-E 312

Hook-On-Swing-Down-Slide Corridor Ceiling

LMD-E 312

Hook-On-Swing-Down-Slide Corridor Ceiling

A concealed Hook-On construction with shadow gap characterises this corridor ceiling. An adjustable wall connection with Hook-On ceiling panels enables a compensation of tolerances on the wall. For maintenance works, each ceiling panel can be removed or swung down and slid without the need for any tools.

freely spanned construction
compensation of tolerances on the wall is possible due to an adjustable wall connection
easy maintenance option due to ceiling panels that can be individually operated, swung down and slid without tools
hygienic and easy to clean

Data Sheet CAD-Portal

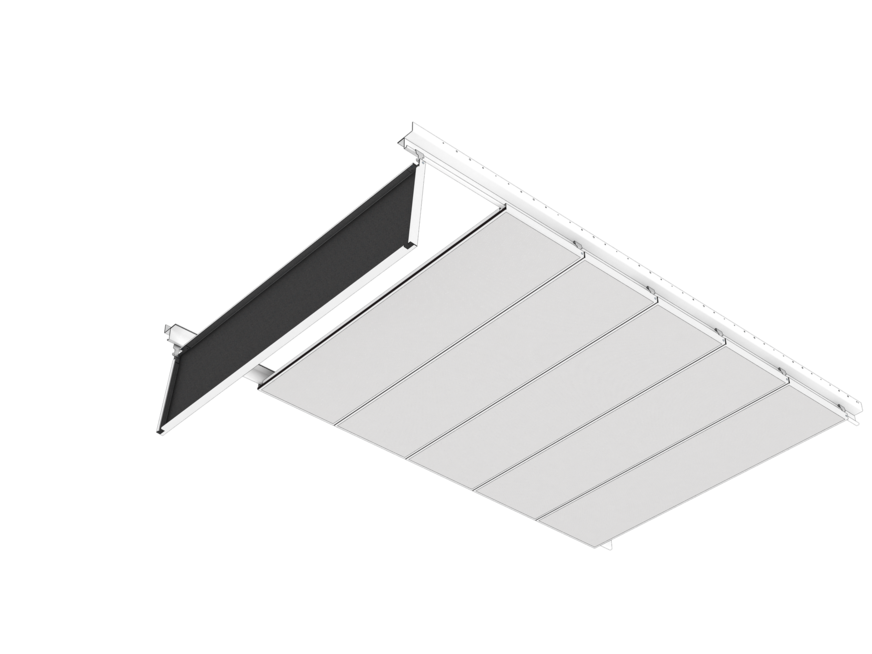

LMD-E 312View from below

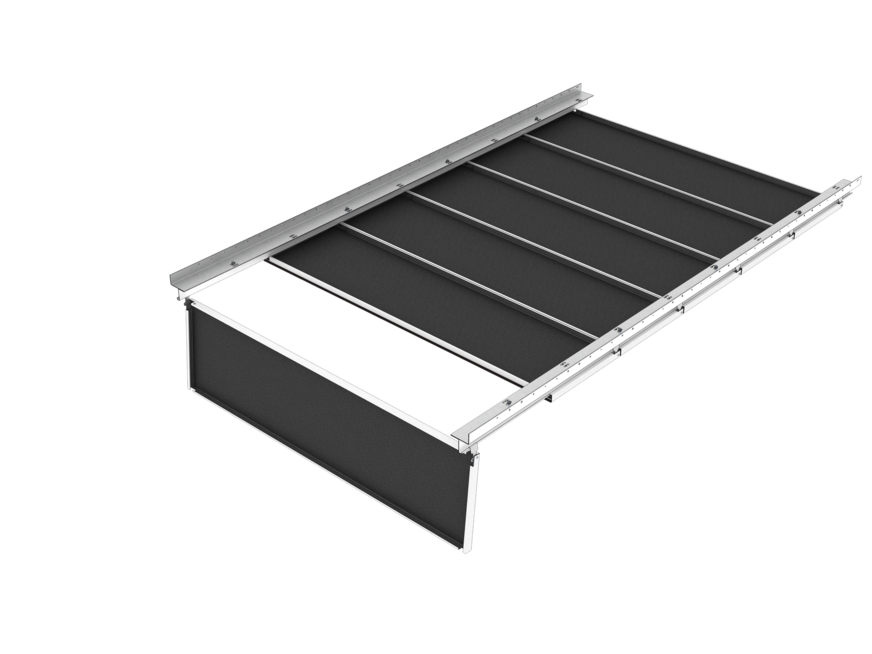

LMD-E 312View from above

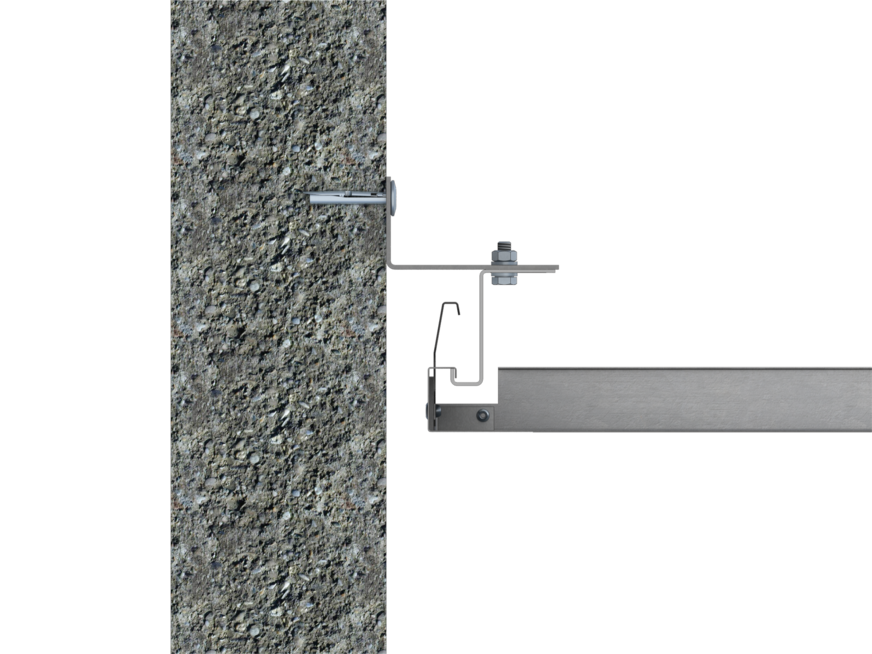

LMD-E 312Section

LMD-E 312Application

Outstanding

Downloads

Digital Service

NBS Specifications

BIM Content

www.bimobject.com

Product Information

Ceiling elements

Type table - Ceiling

Type

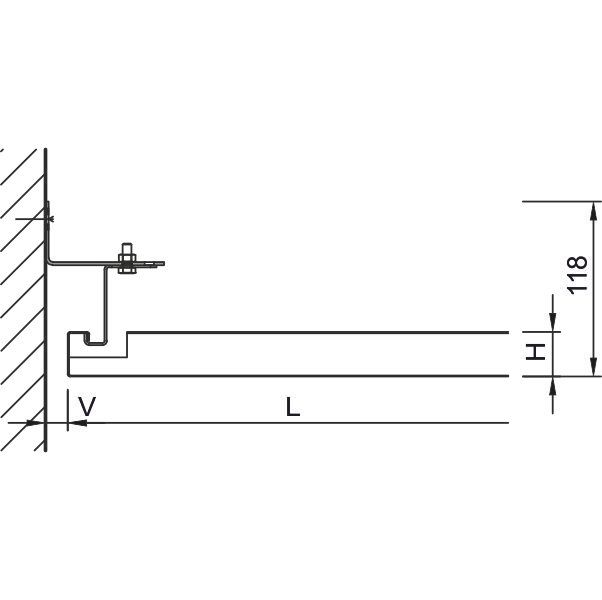

LMD-E 312 Type 1

Type

Hook-On

Length (L)

250 - 3,000 mm

Width (B)

200 - 1,250 mm

Height

30 mm, 40 mm, 50 mm

Adjustment Range

10 - 35 mm

Type table - Ceiling

Type

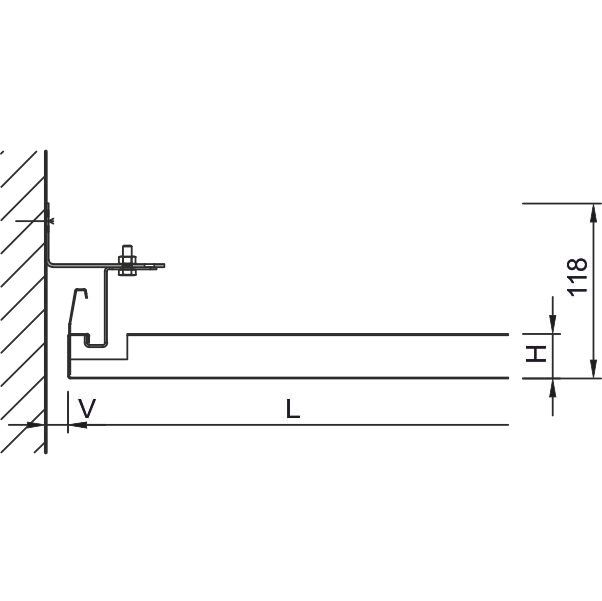

LMD-E 312 Type 2

Type

Hook-On, Swing-Down option <1.2 m²

Length (L)

250 - 3,000 mm

Width (B)

200 - 1,250 mm

Height

30 mm, 40 mm, 50 mm

Adjustment Range

10 - 35 mm

Type table - Ceiling

Type

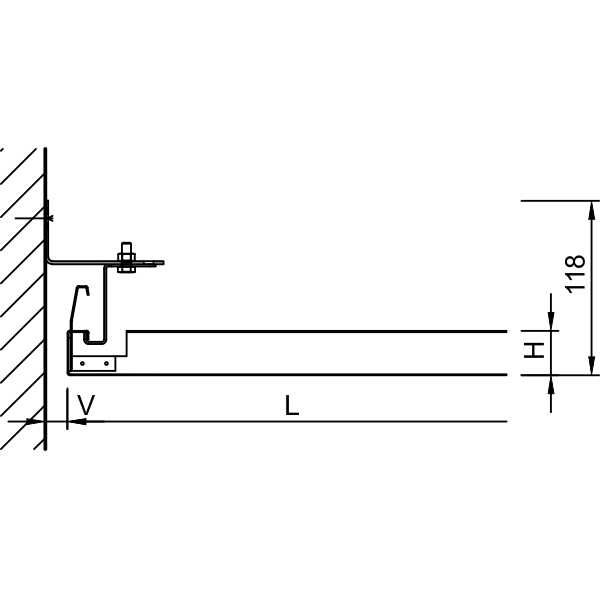

LMD-E 312 Type 3

Type

Hook-On, Swing-Down option

Length (L)

250 - 3,000 mm

Width (B)

200 - 1,250 mm

Height

30 mm, 40 mm, 50 mm

Adjustment Range

10 - 35 mm

Technical Details

Component list

Acoustics

Room Acoustics

Evaluated Sound Absorption Coeff.

DIN EN ISO 11654

αw

0,15 - 1

Sound Absorber Class

DIN EN ISO 11654

E - A

Noise Reduction Coefficient

ASTM C 423

NRC

0,15 - 0,95

Fire protection

Static

Safety

Durability

Sustainability

Data

Recycling Content

24.4 %

Indoor Air Measurement

EN 16516

< 5 µg/m³

Formaldehyde Emissions

< 3 µg/m³

Evidence of emission measurements

Indoor Air Comfort

Erfüllt

Indoor Air Comfort Gold

Erfüllt

AgBB/ ABG

Erfüllt

BREEAM Internatonal

Conform

LEED v4

Conform

DGNB

Conform

Declarations and Proof

Product Self-Declaration

Self-Declaration according to ISO 14021

EPD (Environmental Product Declaration)

EPD according to EN 15804 / ISO 14025

Circular Economy

Cradle to Cradle Certified® Gold

French VOC Regulation

Emission class A+

Green Level Certification

Outstanding

Surfaces

Certification
