LMD-E 213 BWS

Hook-On Ceiling, Ball-Impact Resistant

LMD-E 213 BWS

Hook-On Ceiling, Ball-Impact Resistant

This Hook-On ceiling is successfully tested for ball-impact resistance according to DIN EN 13964 annex D class 1A - 3A and is a safe choice for sports halls, swimming pools or similar. The system is visually characterised by accentuated joints in both directions along the ceiling panels and a concealed substructure. Different ceiling panels are available that can be removed or swung down and slid.

hook-On ceiling with tested ball-impact resistance
homogeneous ceiling surface due to concealed substructure
ceiling layout with accentuated joints in both directions possible
maintenance option due to ceiling panels that can be individually operated, swung down and slid
perforations with max. 3 mm diameter and max. 30 % open area
hygienic and easy to clean

Data Sheet CAD-Portal

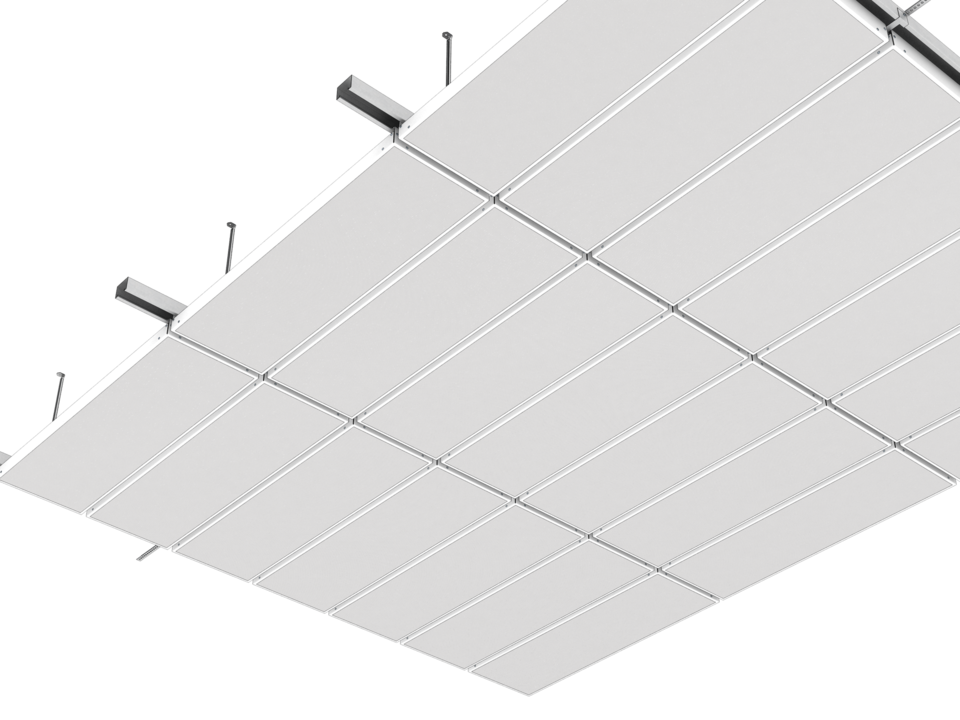

LMD-E 213 BWSView from below

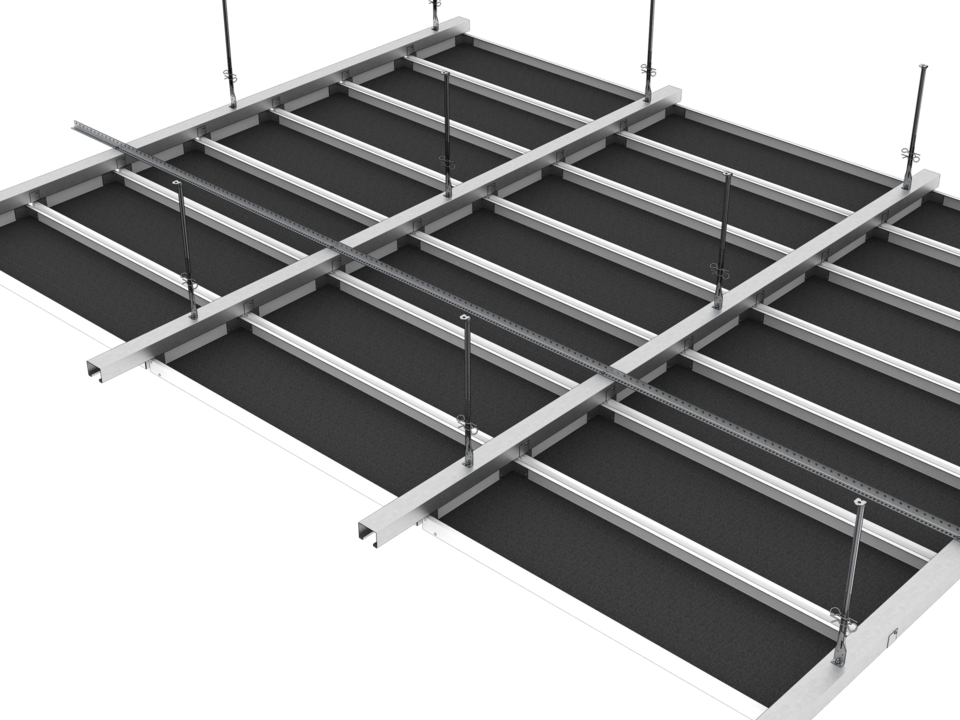

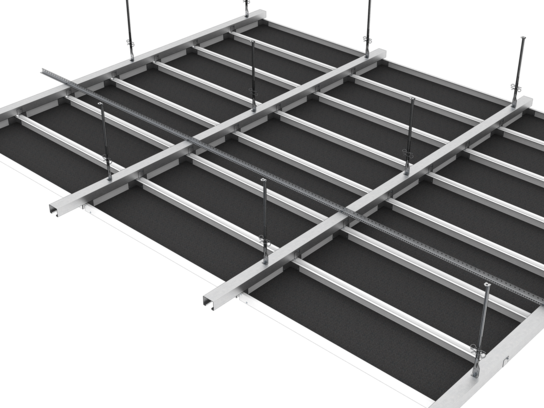

LMD-E 213 BWSView from above

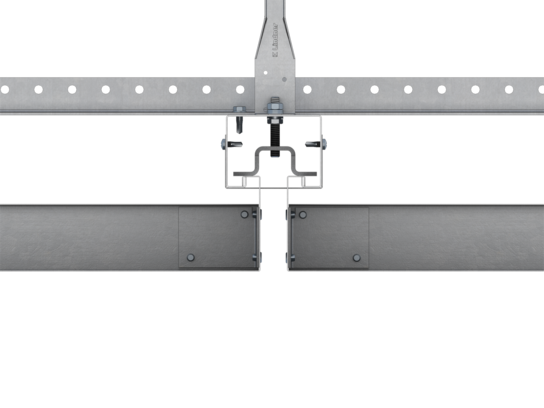

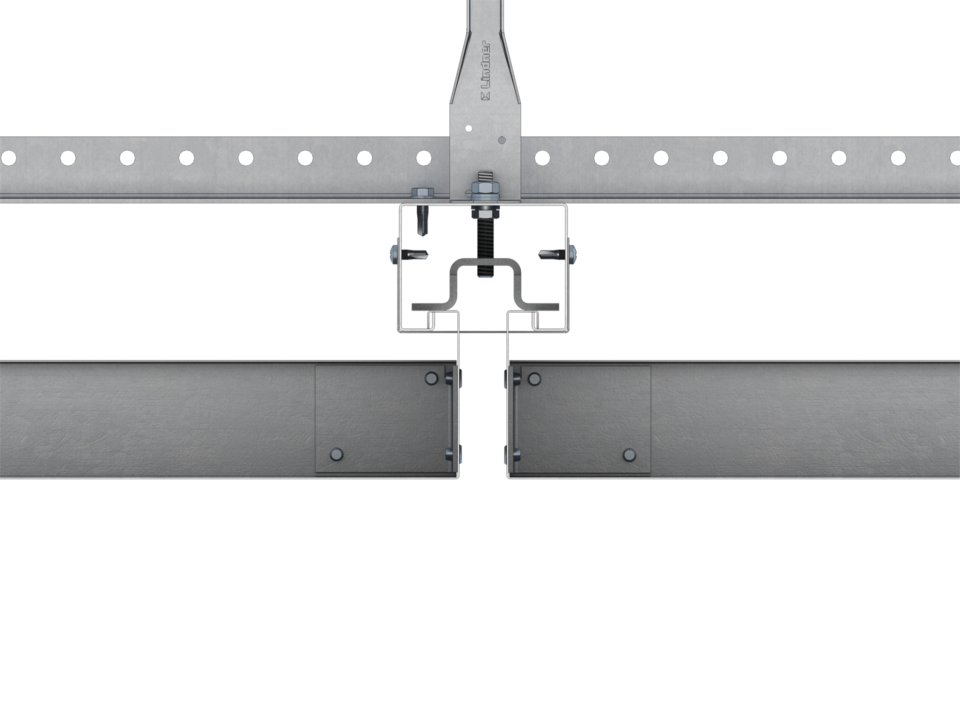

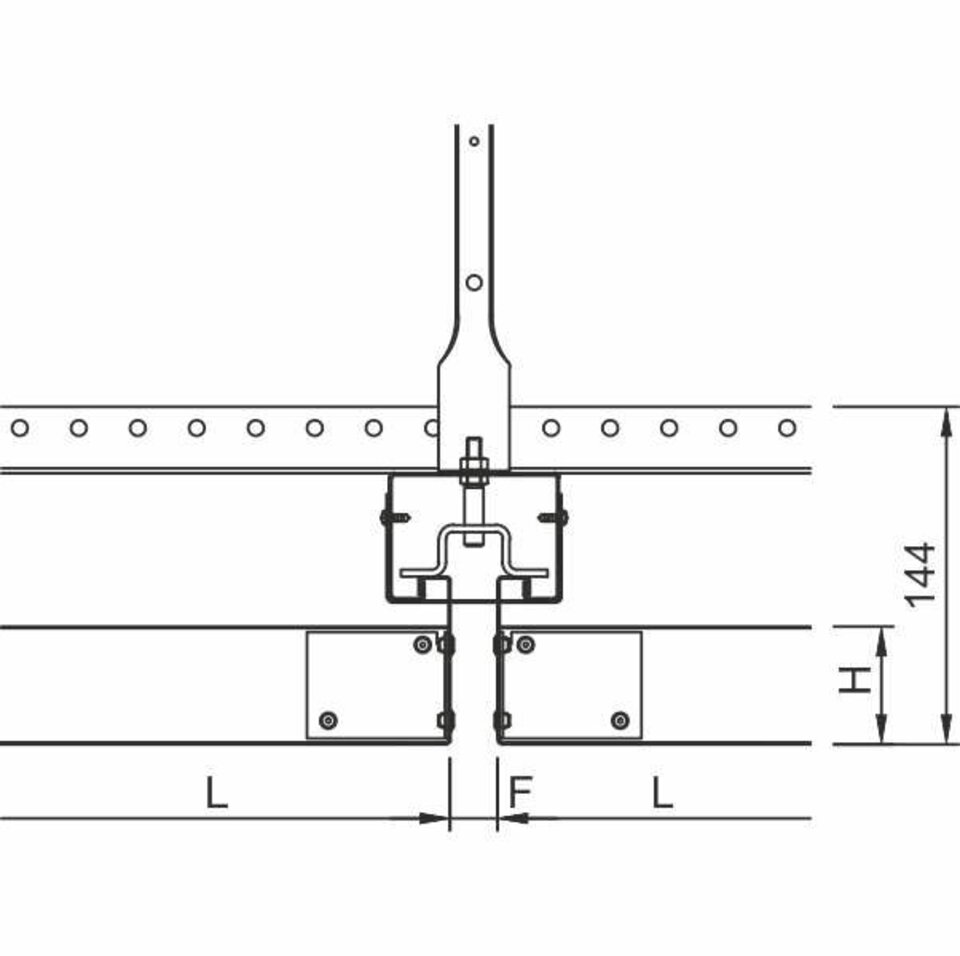

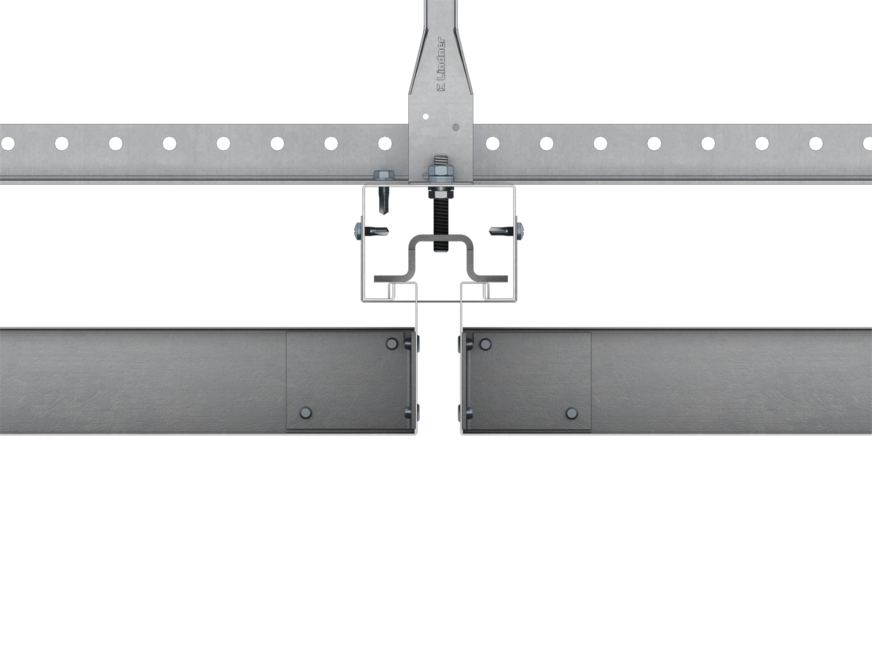

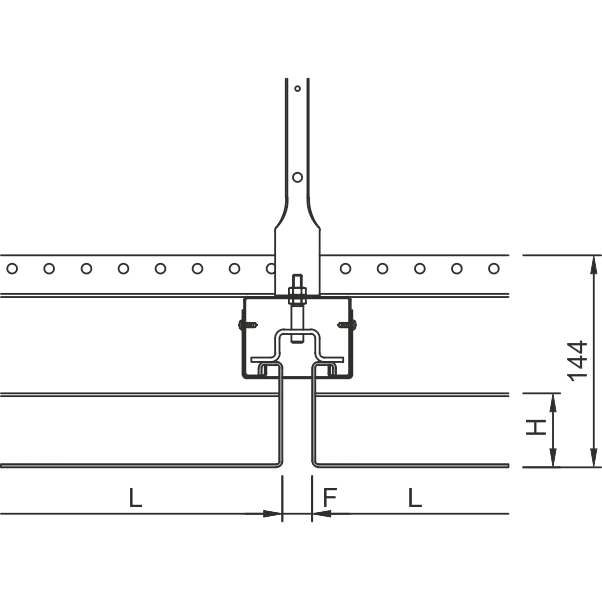

LMD-E 213 BWSSection

Outstanding

Downloads

Digital Service

NBS Specifications

BIM Content

www.bimobject.com

Product Information

Ceiling elements

Type table - Ceiling

Type

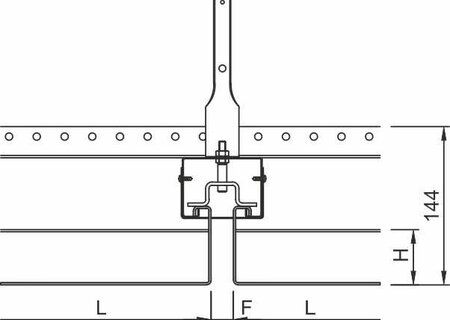

LMD-E 213 BWS Type 1

Type

Hook-On, aluminium

Length (L)

500 - 1,230 mm

Width (B)

200 - 1,230 mm

Height

50 mm

Joint Width (F)

20 mm, 25 mm, 30 mm

Type table - Ceiling

Type

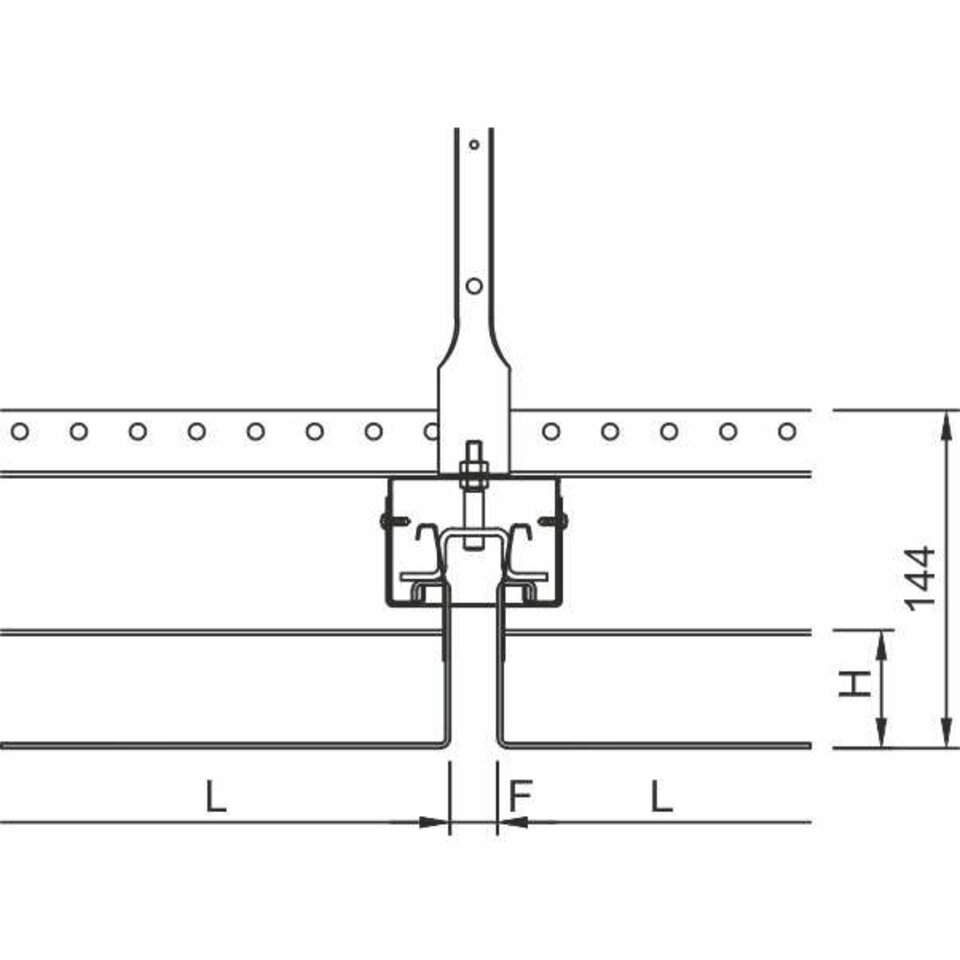

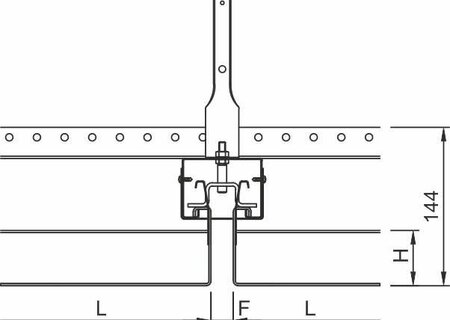

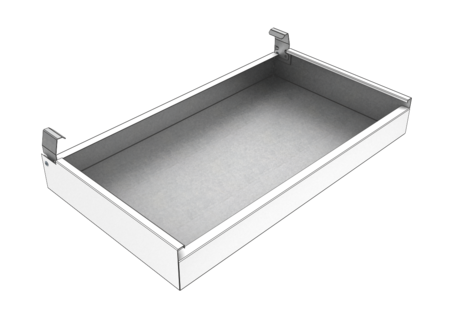

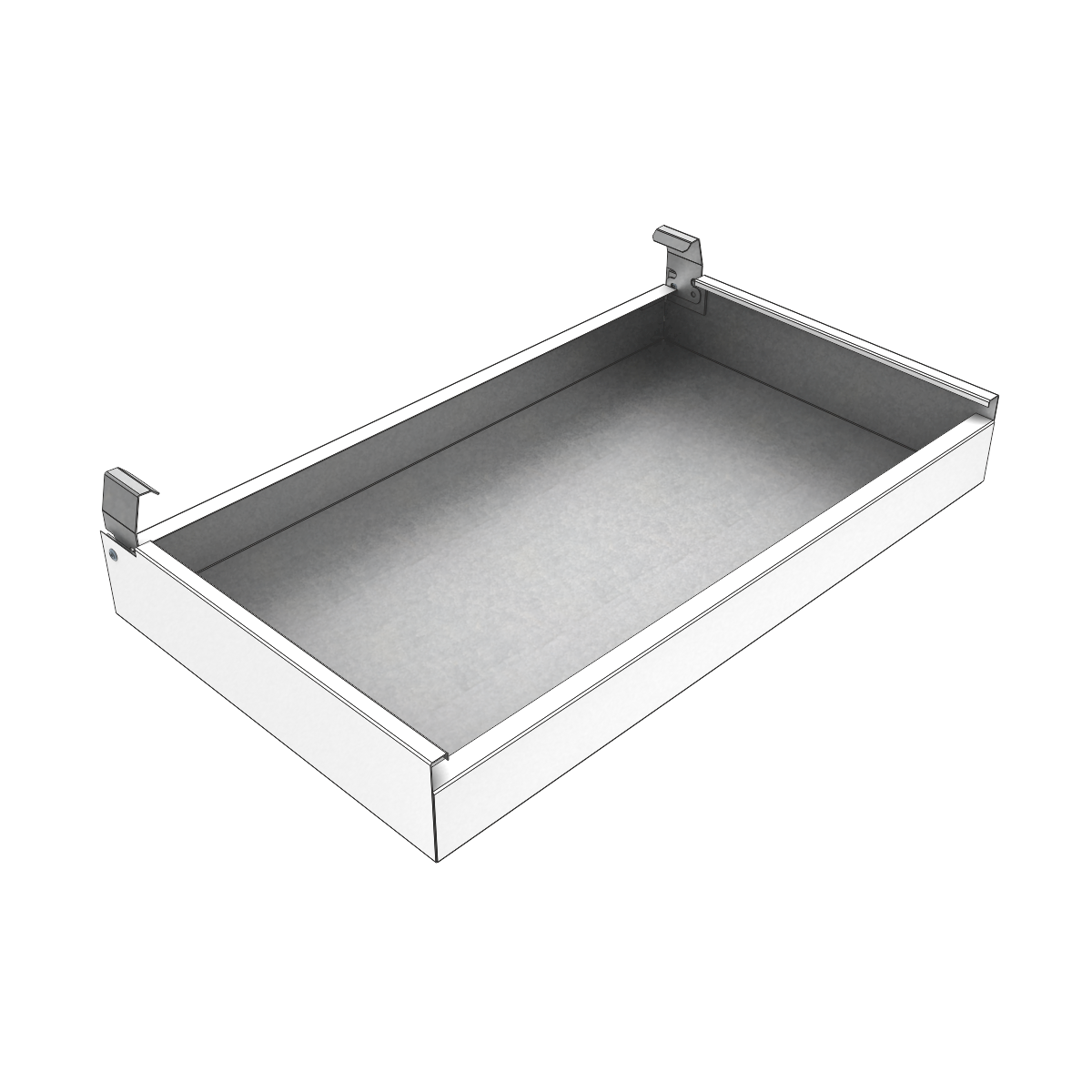

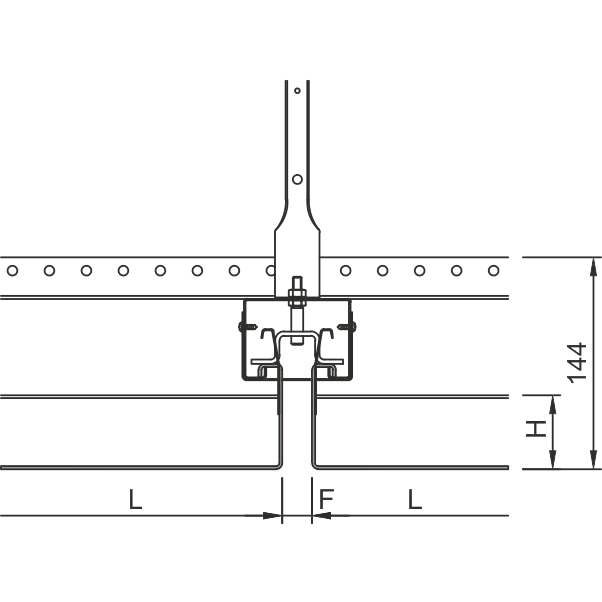

LMD-E 213 BWS Type 2

Type

Hook-On, Swing-Down and slide option, aluminium

Length (L)

500 - 1,230 mm

Width (B)

200 - 1,230 mm

Height

50 mm

Joint Width (F)

20 mm, 25 mm, 30 mm

Type table - Ceiling

Type

LMD-E 213 BWS Type 3

Type

Hook-On, aluminium/steel

Length (L)

500 - 2,500 mm

Width (B)

200 - 500 mm

Height

50 mm

Joint Width (F)

20 mm, 25 mm, 30 mm

Type table - Ceiling

Type

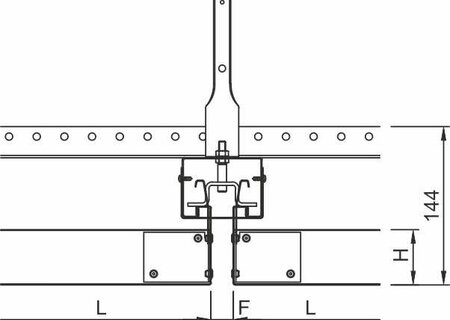

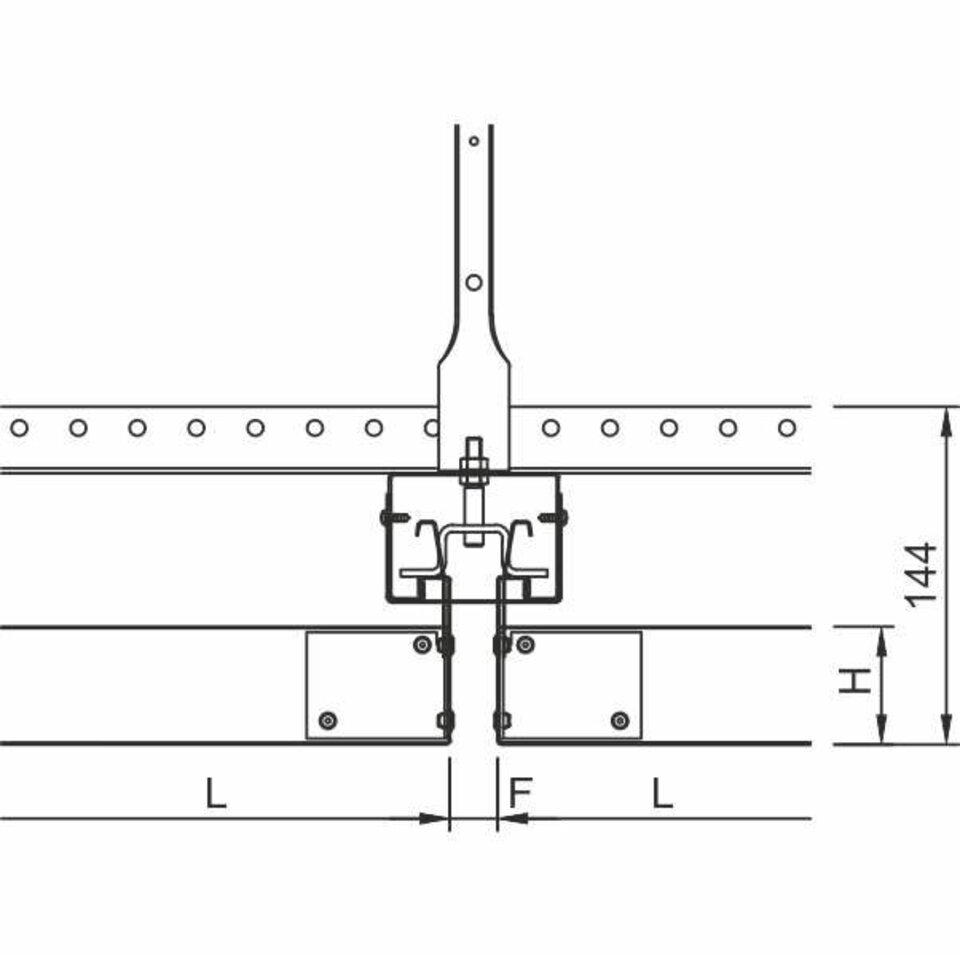

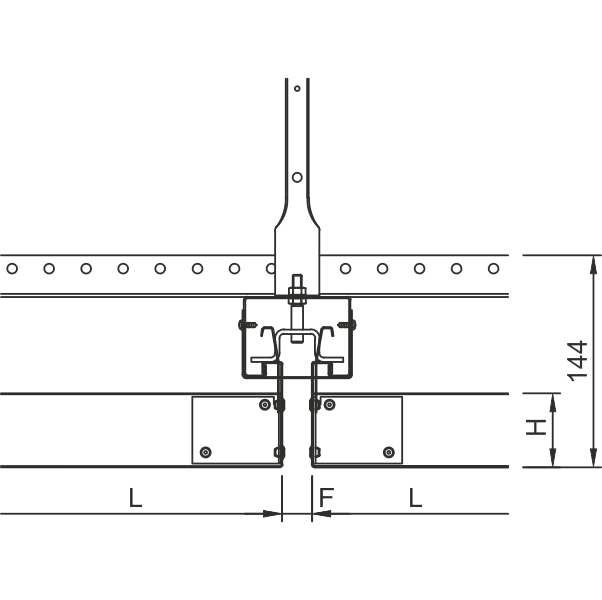

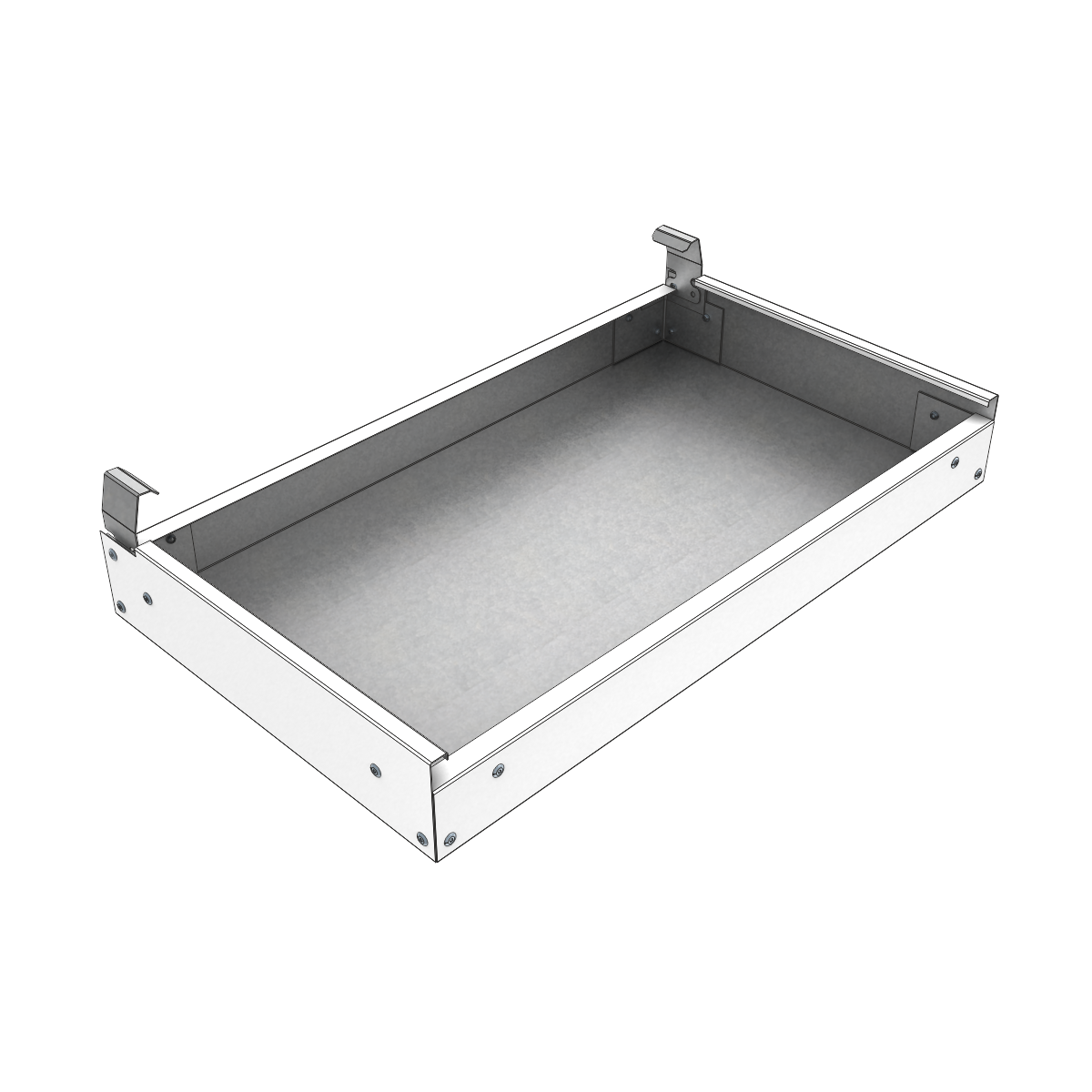

LMD-E 213 BWS Type 4

Type

Hook-On, Swing-Down and slide option, aluminium/steel

Length (L)

500 - 2,500 mm

Width (B)

200 - 500 mm

Height

50 mm

Joint Width (F)

20 mm, 25 mm, 30 mm

Type table - Ceiling

Type

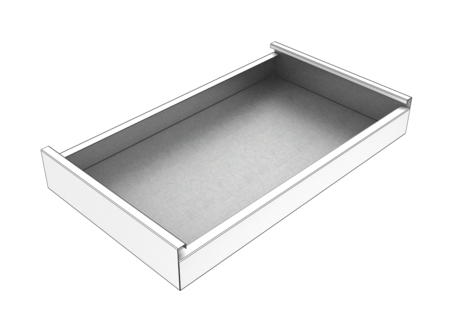

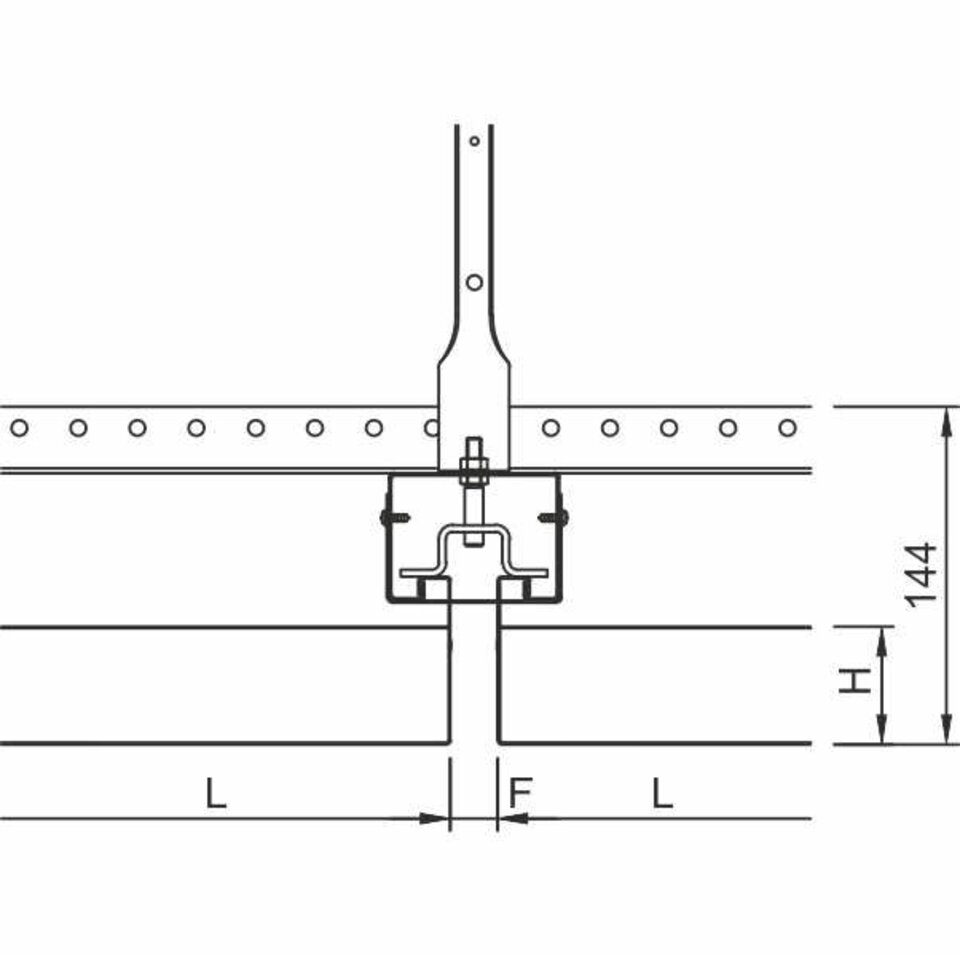

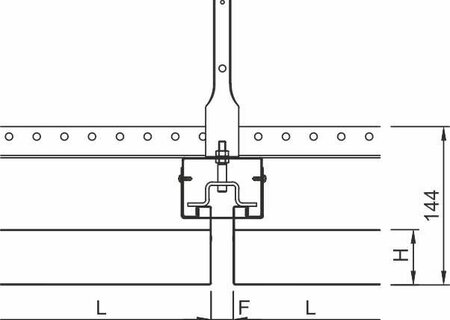

LMD-E 213 BWS Type 5

Type

eingehängt, Stahl

Length (L)

500 - 3,000 mm

Width (B)

200 - 800 mm

Height

50 mm

Joint Width (F)

20 mm, 25 mm, 30 mm

Type table - Ceiling

Type

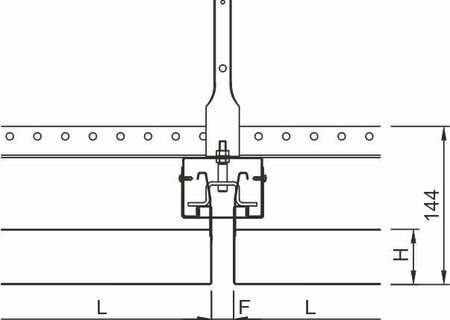

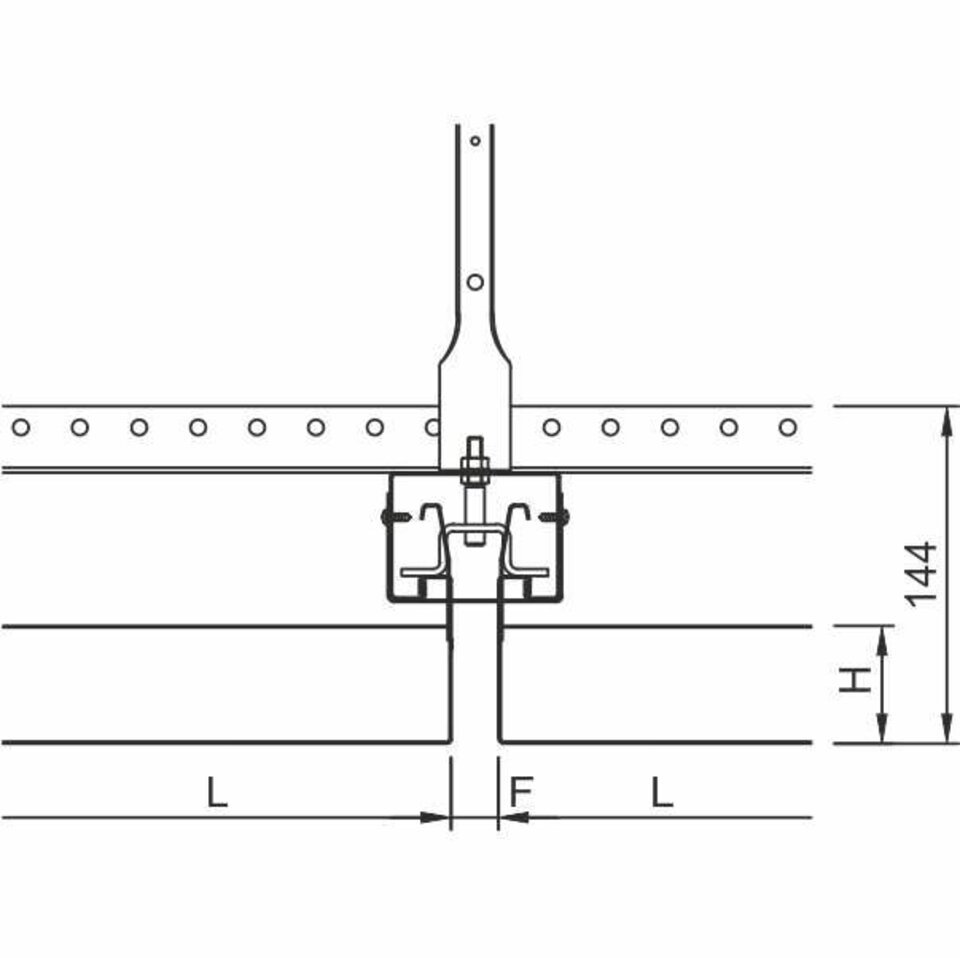

LMD-E 213 BWS Type 6

Type

Hook-On, Swing-Down and slide option, steel

Length (L)

500 - 3,000 mm

Width (B)

200 - 800 mm

Height

50 mm

Joint Width (F)

20 mm, 25 mm, 30 mm

Technical Details

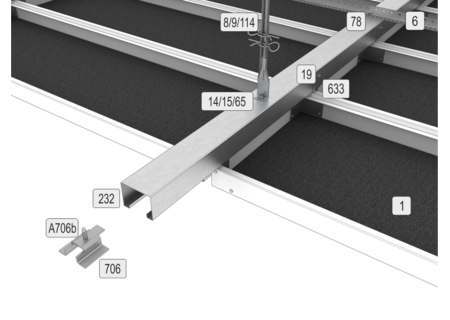

Component list

Acoustics

Room Acoustics

Evaluated Sound Absorption Coeff.

DIN EN ISO 11654

αw

0,15 - 1

Sound Absorber Class

DIN EN ISO 11654

E - A

Noise Reduction Coefficient

ASTM C 423

NRC

0,15 - 0,95

Fire protection

Static

Durability

Sustainability

Data

Recycling Content

24.4 %

Indoor Air Measurement

EN 16516

< 5 µg/m³

Formaldehyde Emissions

< 3 µg/m³

Evidence of emission measurements

Indoor Air Comfort

Erfüllt

Indoor Air Comfort Gold

Erfüllt

AgBB/ ABG

Erfüllt

BREEAM Internatonal

Conform

LEED v4

Conform

DGNB

Conform

Declarations and Proof

Product Self-Declaration

Self-Declaration according to ISO 14021

EPD (Environmental Product Declaration)

EPD according to EN 15804 / ISO 14025

Circular Economy

Cradle to Cradle Certified® Gold

French VOC Regulation

Emission class A+

Green Level Certification

Outstanding

Surfaces

Certification

Don't hesitate to contact us!

+49 8723 20-3679 E-Mail

Additional Equipment - (5)

SHL 298

Luminaire for sports halls

Our lighting fixture SHL 298 is absolutely suitable for gymnasiums. Due to its very impact-resistant...

SYS 298

Luminaire for sports halls

Our lighting fixture SYS 298 is absolutely suitable for gymnasiums. Due to its very impact-resistant...

High

Acustica

Acoustic fabric inlay

The acoustic fabric inlay Acustica is installed on the rear side of perforated ceiling panels and co...

Insula

Mineral wool inlay in acoustic foil

Insula mineral wool inlays are used to improve room acoustics. Very high sound absorption values can...

Calma

Glass yarn inlay in textile cover

Inserted into the back of perforated ceiling panels, the Calma acoustic inlay improves sound absorpt...

Areas of Use

Businesses, Recreation and Culture: Gymnasiums, Stadiums, Public Swimming Pools

Technical requirements

Design: Aluminium, Digital Print, Stainless Steel, Perforation, Powder Coating, Steel

Acoustics: Room Acoustics

Fire Protection: Fire Behaviour / Building Material Class

Corrosion Protection: Interiors, Wet Areas

Sustainability: Environmental Product Declaration, Cradle to Cradle®

Statics: Ball-Impact Resistance, Seismic Safety

Hygiene: Cleanable by vacuuming, Wipeable, Antibacterially disinfectable, Virucide disinfectable
